172,90 €

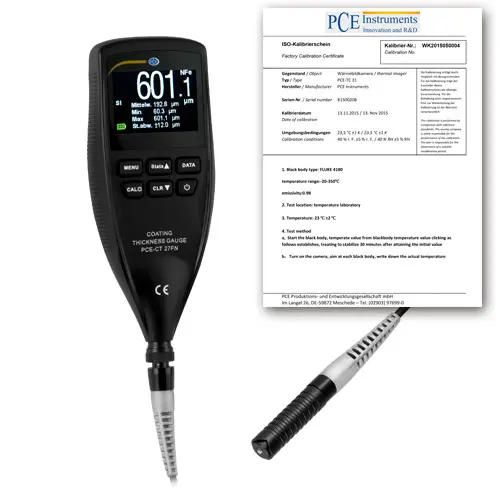

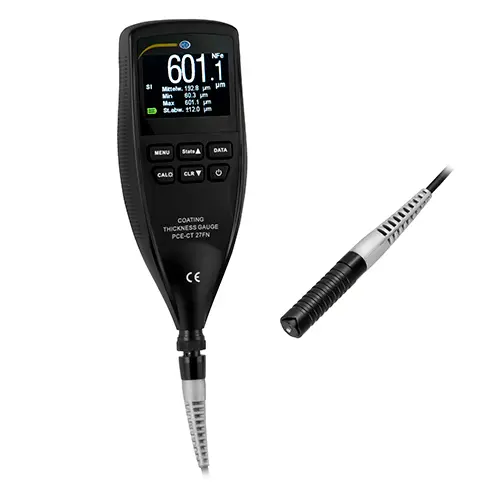

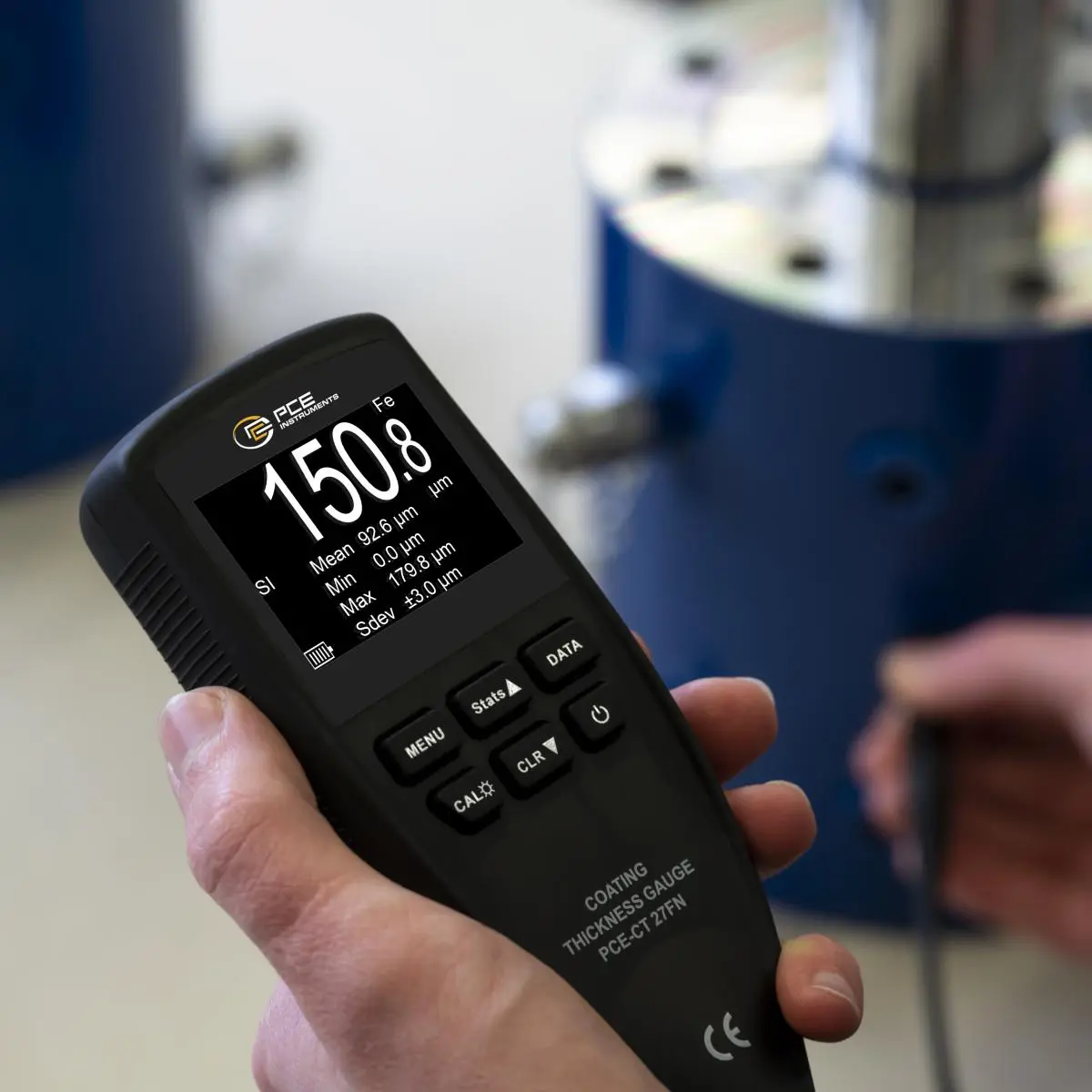

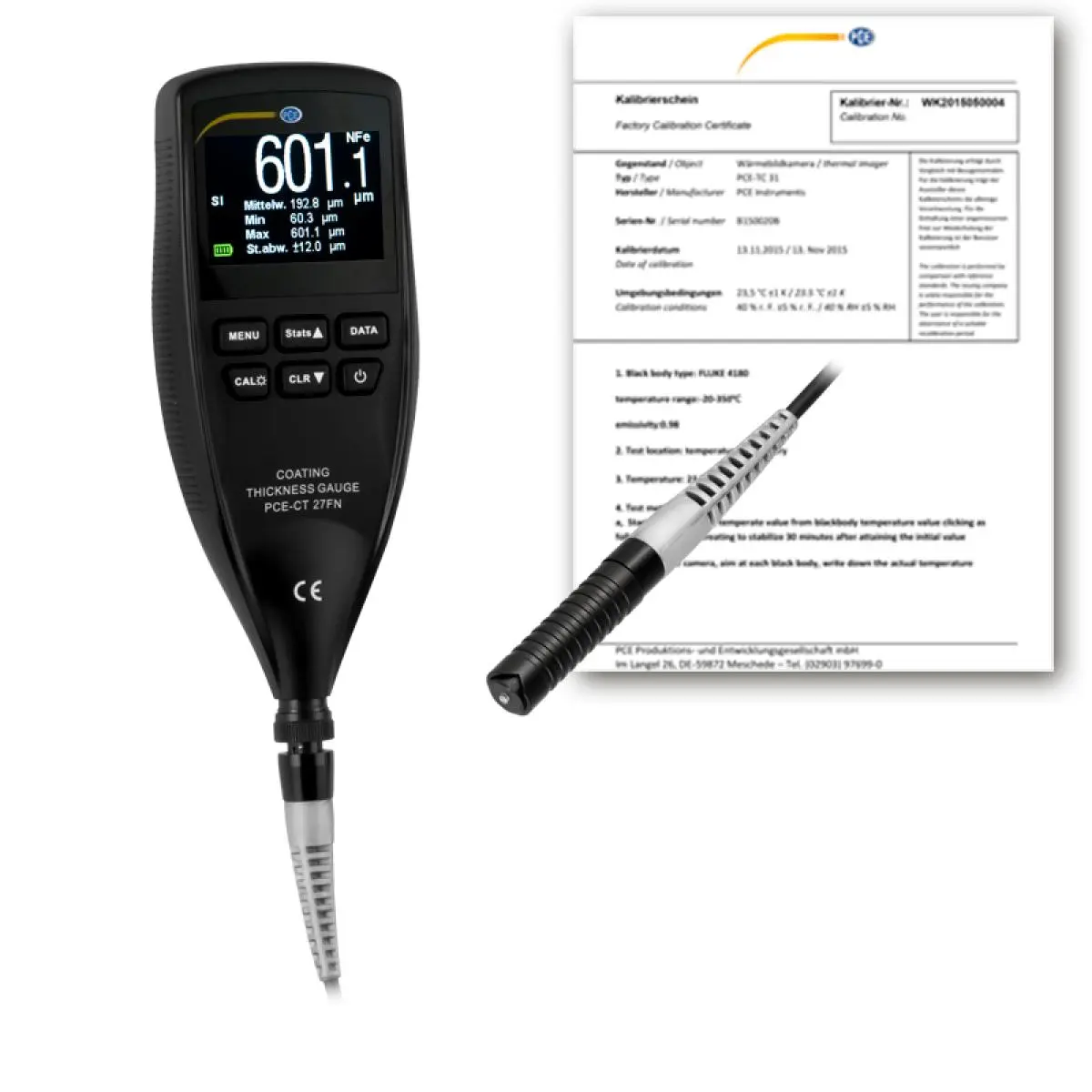

PCE-CT 27FN Thickness Gauge

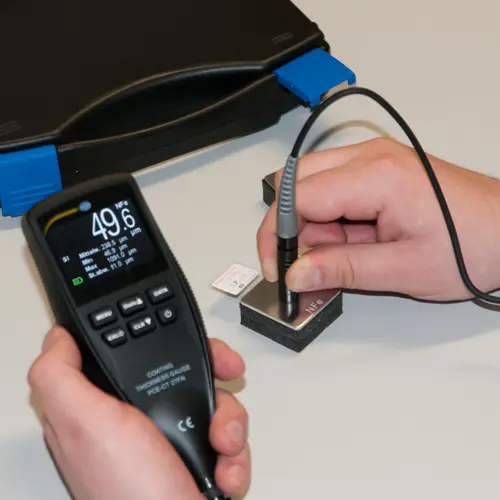

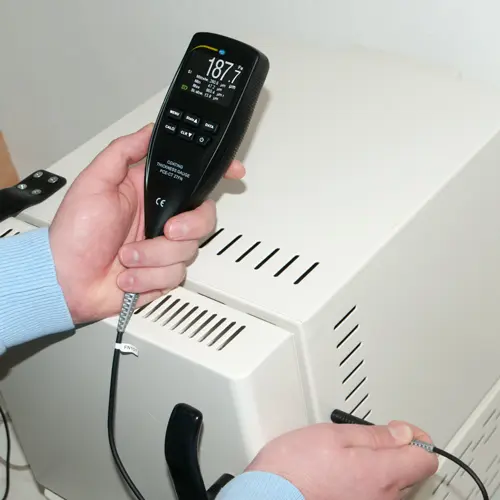

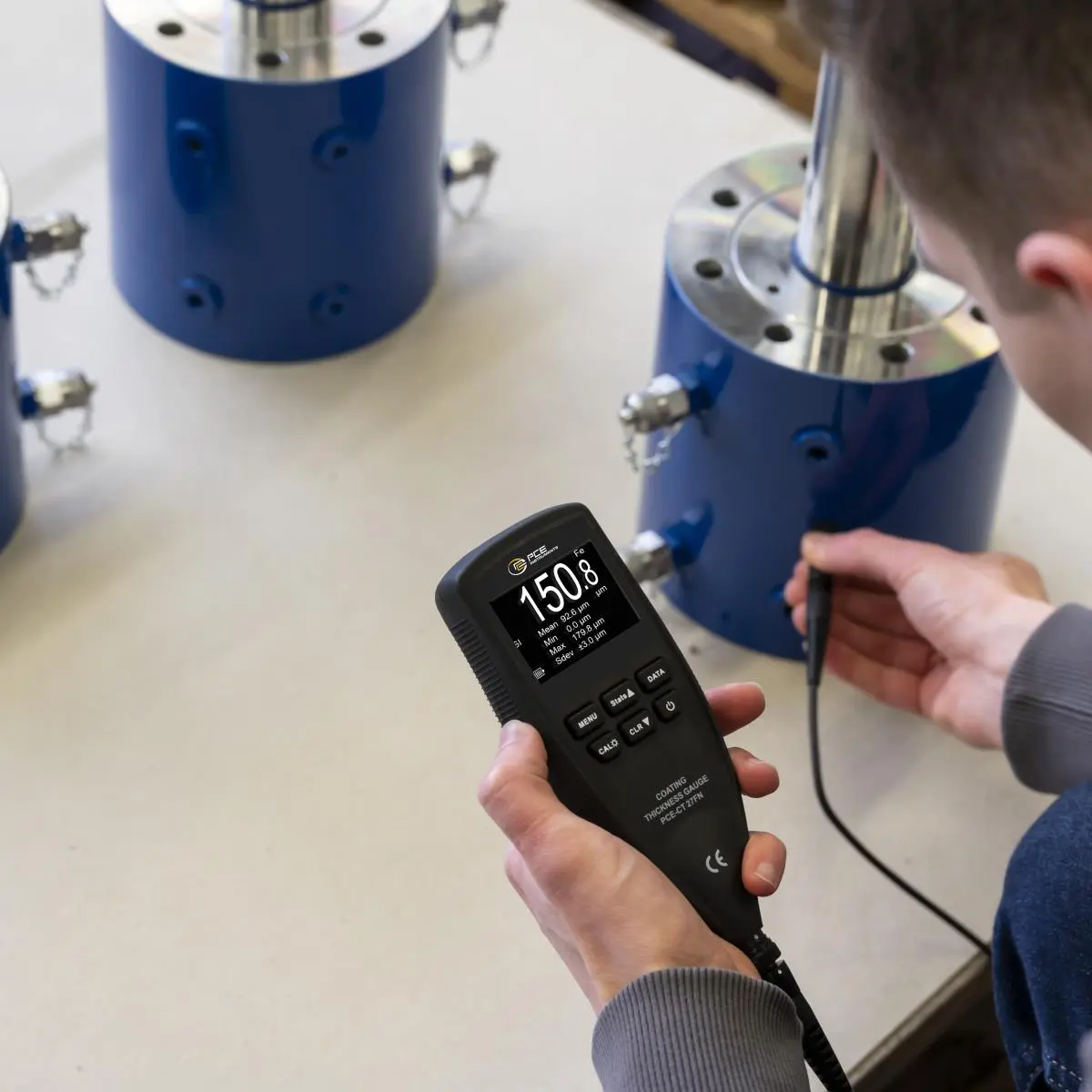

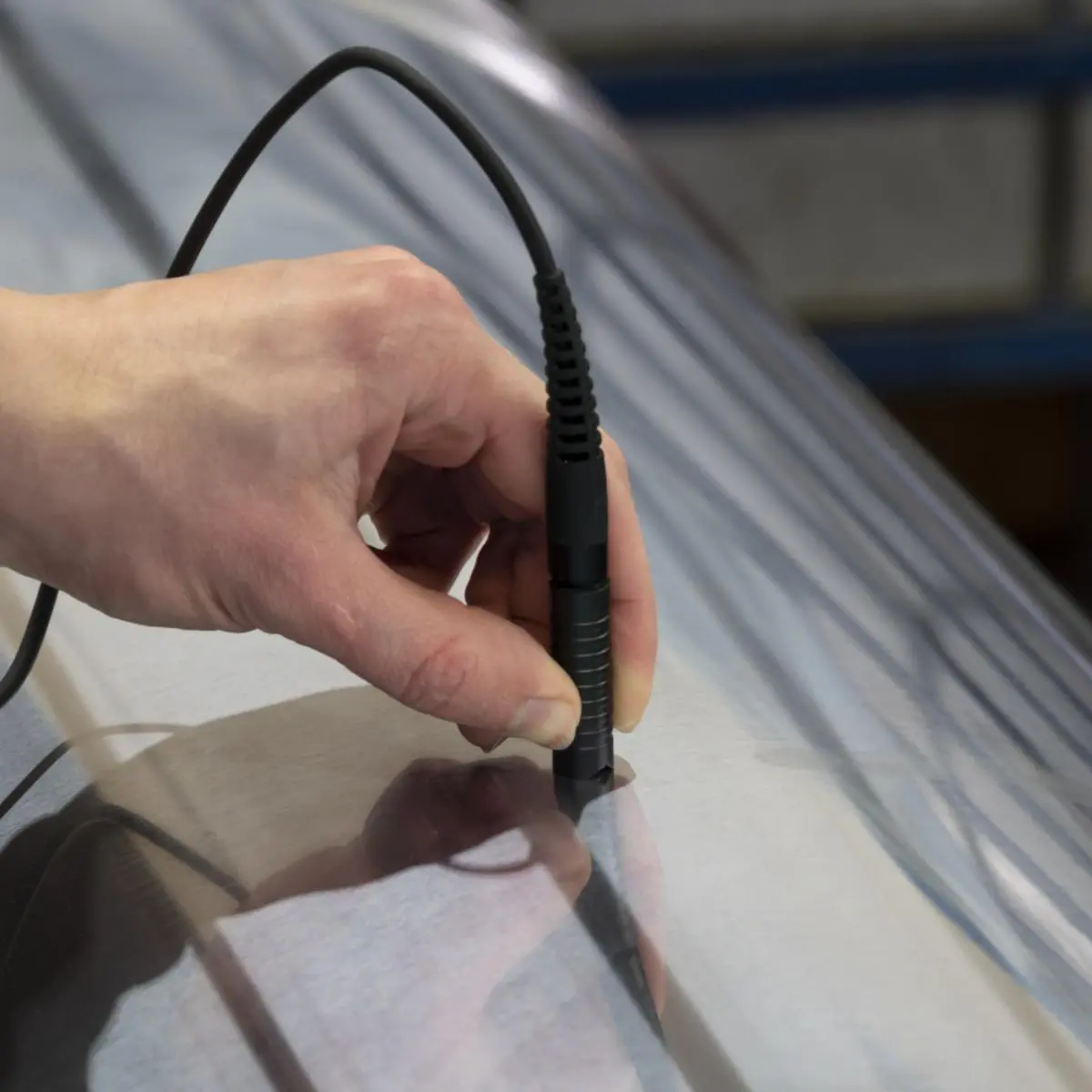

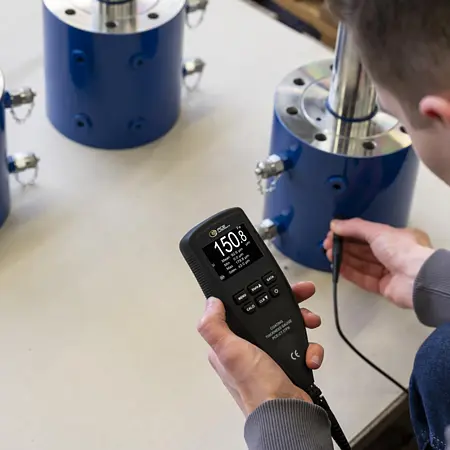

PCE-CT 27FN is a Thickness Gauge that takes non-destructive measurements of nonmagnetic coating, insulating layer and dry film thickness (DFT) on metal substrates such as steel and aluminum. Ideal for surface testing, automotive paint inspection, material testing and manufacturing quality control applications, this Thickness Gauge is designed to measure layers of paint, ink, plastic, chrome, copper, zinc, enamel, paper, glass, rubber and similar materials.
| Layer thickness | |
| Measuring range | 0 ... 1250 µm |
| Resolution | 0,1 µm |
| Accuracy | ±(2 % +2 µm) |
| Layer thickness | |
| Measuring range | 0 ... 50 mil |
| Resolution | 0,1 mil |
| Accuracy | ±(2 % +0.1 mil) |

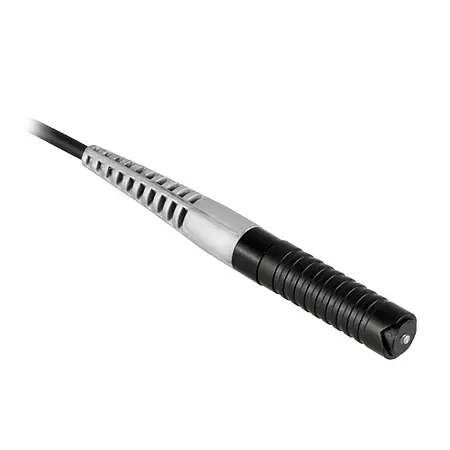

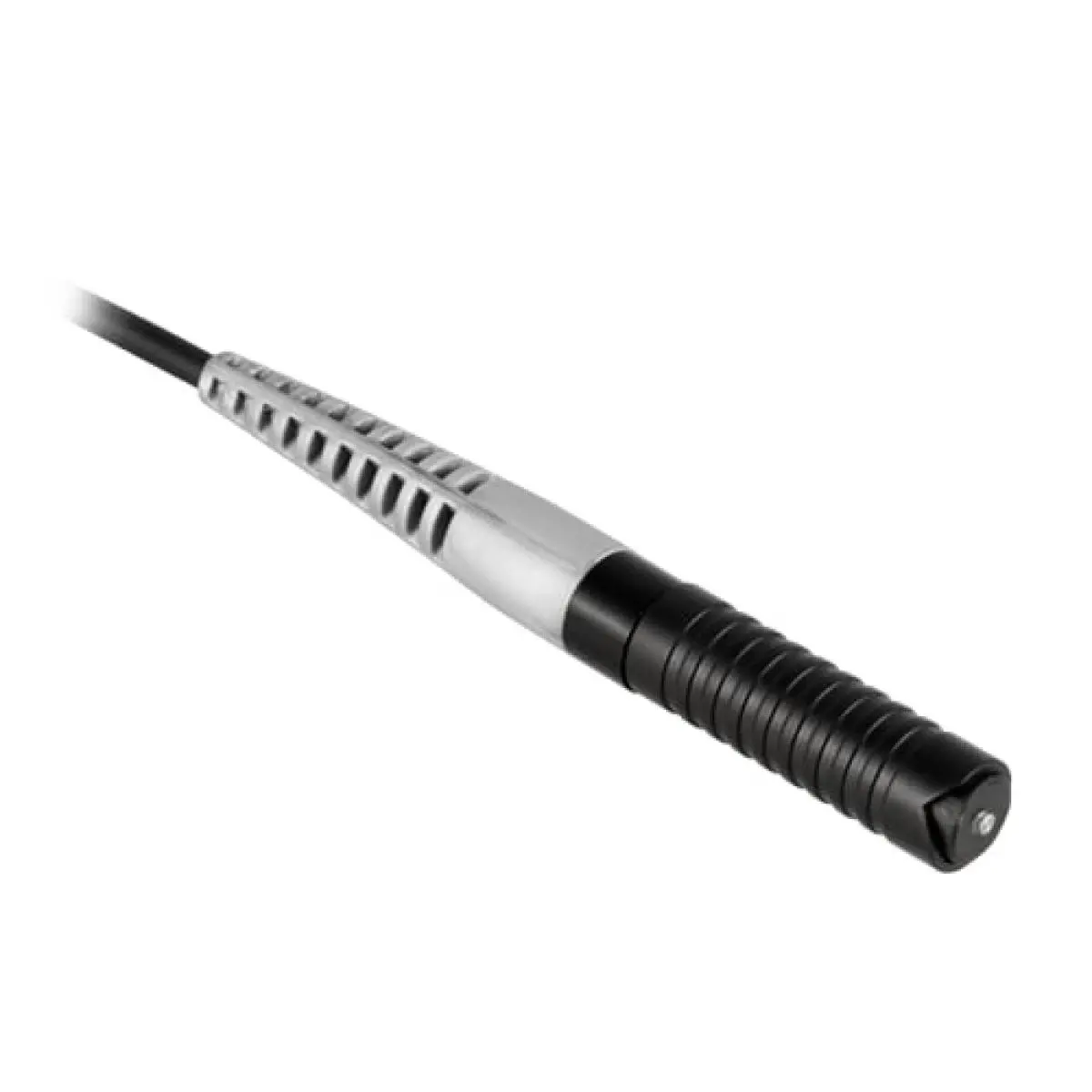

| Sensor | |
| Designation | SE-CT 27FN |
| Battery type | Magnetic mode (Fe), Eddy current mode (NFe) |
| Measurable materials | Fe substrates such as: steel and iron NFe substrates such as: aluminium and copper |
| Min. measuring surface | Ø 8 mm |
| Min. layer thickness | 0.4 mm |
| Min. radius of curvature convex | 1.5 mm |
| Min. radius of curvature concave | 7 mm |
| Additional description | Cable length: 85 cm |
| Dimension | Ø 10.50 mm, L: 45 mm |
| General technical data | |
| Measuring functions | MIN, MAX, Average value |
| Units | mils, µm |
| Display type | TFT colour display |
| Display size | 2 Inch |
| Storage medium | Internal memory |
| Storage capacity | 80 Values |
| Alarm | Acoustic |
| Alarm modes | adjustable |

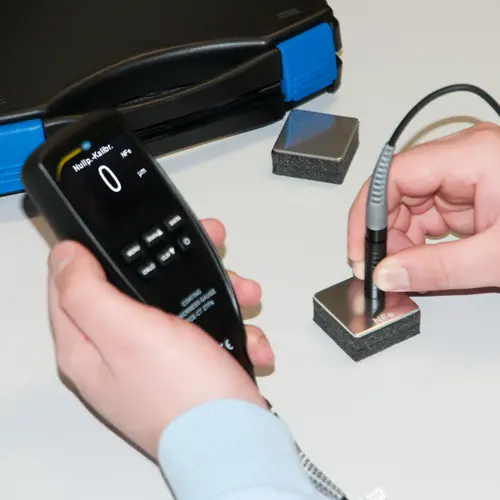

| Calibration | selectable: zero point, 2 point, multipoint |
| Menu language | English, German, Chinese |
| Protection class (device) | IP20 |
| (Rechargeable) battery | 4 x 1,5 V AAA battery , Alkali-manganese |
| Capacity | 1200 mAh |
| Operating conditions | -10 ... 50 °C , 20 ... 90 % RH |
| Storage conditions | -10 ... 50 °C , 20 ... 90 % RH |
| Dimensions ( L x W x H ) | 163 x 68 x 30 mm |
| Weight | 114 g |
