Magnetometer / Magnetic Field Detector PCE-MFM 3000

Magnetometer / Magnetic Field Detector PCE-MFM 3000 [zoom]

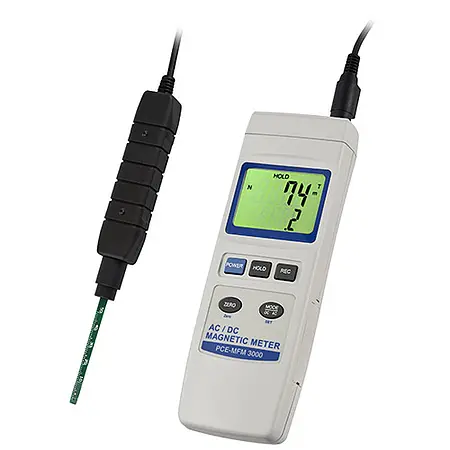

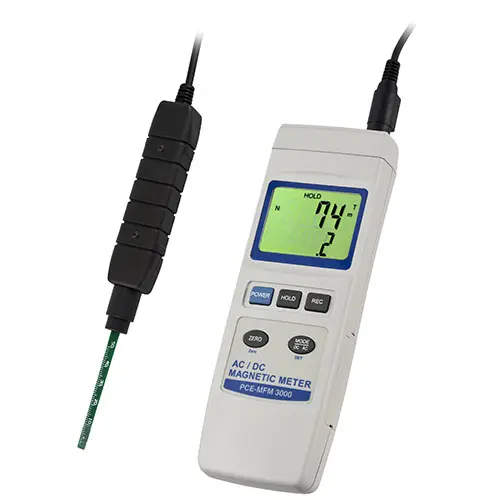

Magnetometer / Magnetic Field Detector PCE-MFM 3000

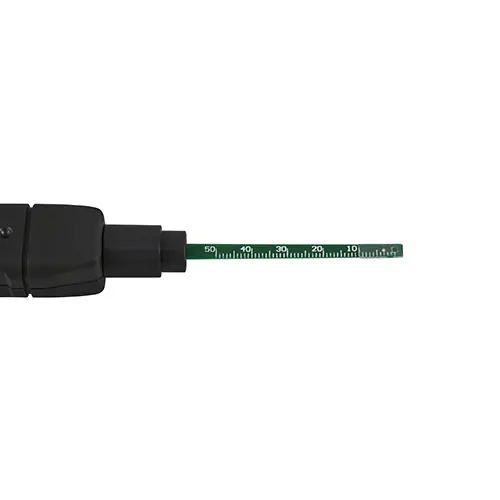

Magnetometer / Magnetic Field Detector Sensor

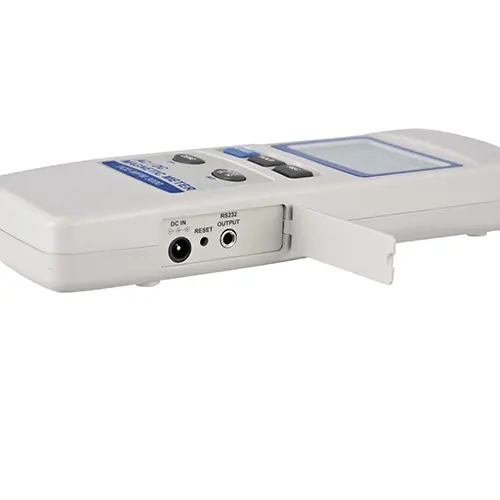

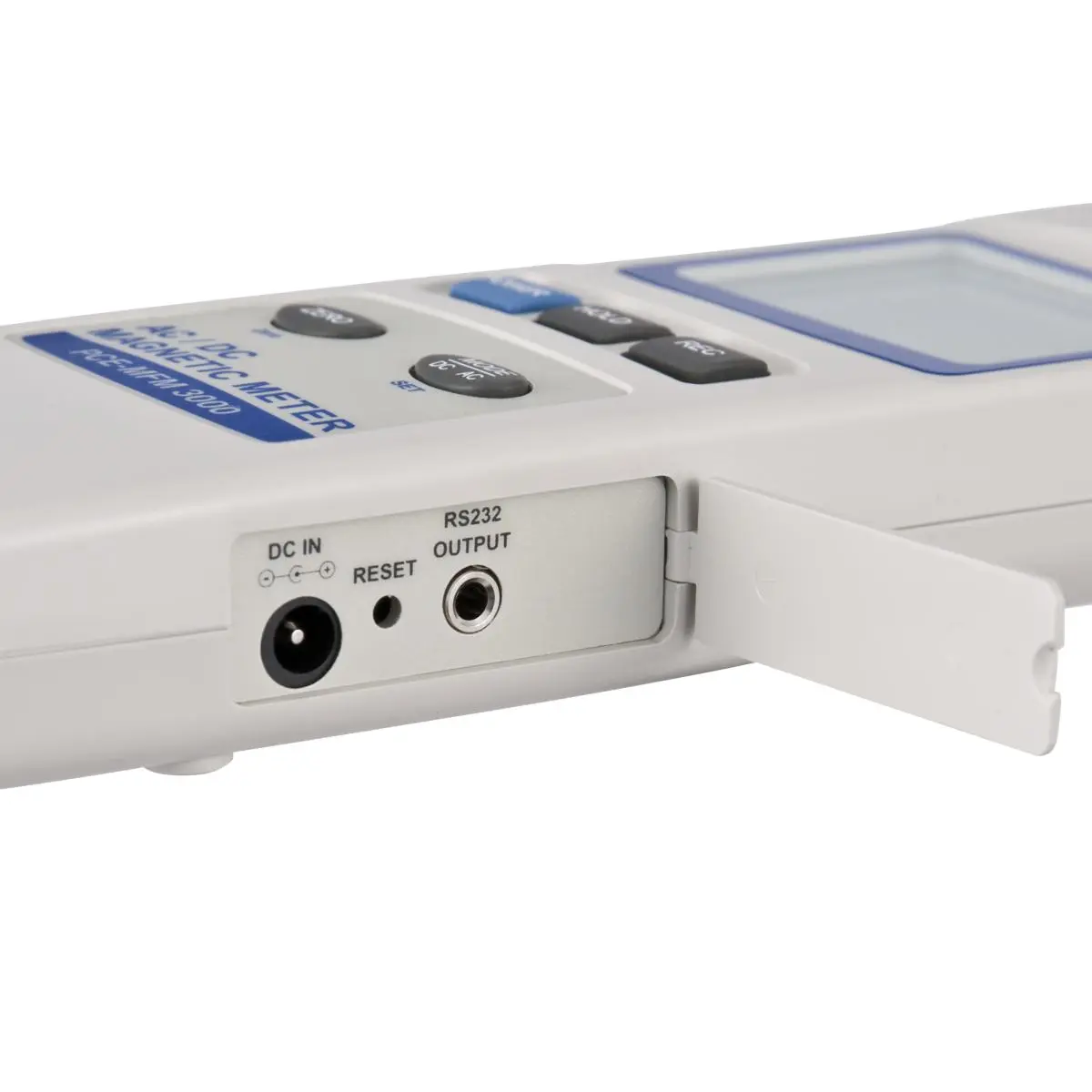

Magnetometer / Magnetic Field Detector Connections
Magnetometer / Magnetic Field Detector Sensor

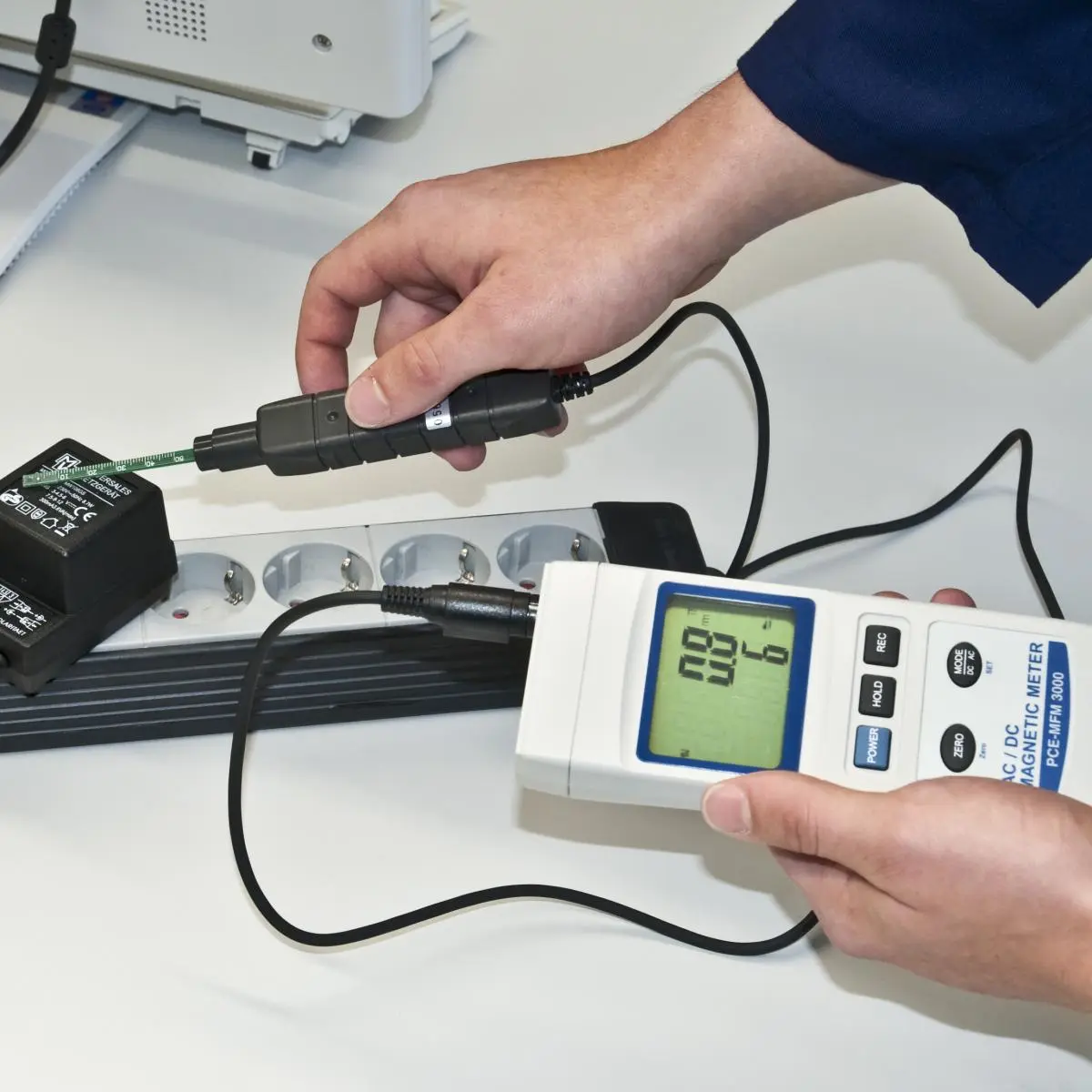

Magnetometer / Magnetic Field Detector Application picture

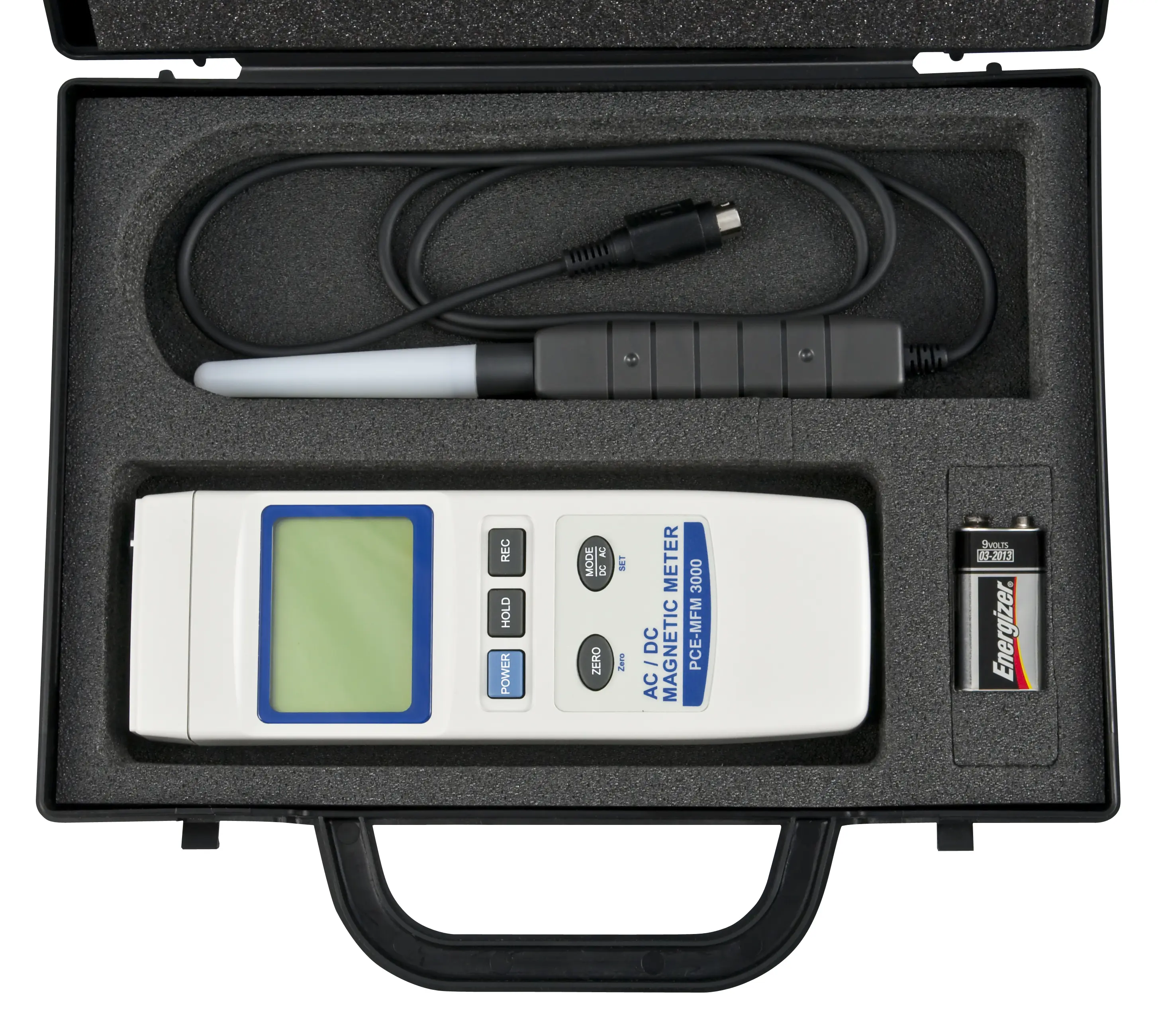

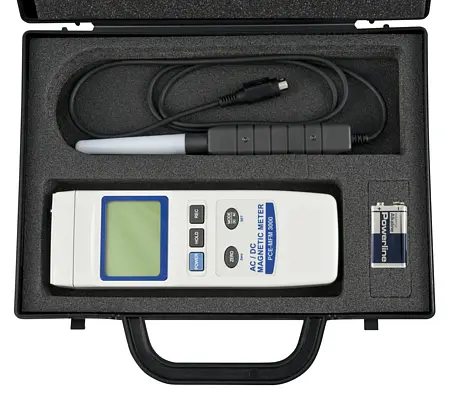

Magnetometer / Magnetic Field Detector Delivery scope

Magnetometer PCE-MFM 3000

Order no.: PCE-MFM 3000
GTIN (EAN): 4250348707260
423,90 €
504,44 €
price ex. (VAT / delivery)
:
4250348707260
PCE-MFM 3000
Delivery time:1-2 working days

Accessory

Description

Magnetometer PCE-MFM 3000
Portable handheld AC / DC magnetic field detector

The PCE-MFM 3000 is a handheld magnetometer that detects both static (DC) permanent magnet (rare earth) magnetic and dynamic (AC) electromagnetic fields (EMFs) and displays measurement results in gauss (G) or milli Tesla (mT). This portable magnetometer comes with an external sensor and features an RS-232 port for downloading data to a PC.

Meter can be calibrated by an ISO lab to verify accuracy, see accessories tab for information.


Highlights

- Measurement range: 0 ... 30000 G / 0 ... 3000 mT
- Accuracy: ± 5%; + 20 digits (static) / + 10 digits (dynamic)
- Resolution: 0.1 G / 0.01 mT
- Detects both static (DC) permanent magnetic and dynamic (AC) electromagnetic
fields (EMFs)
- Displays measurement results in gauss (G) or milli Tesla (mT)
- Comes with an external sensor
- Features an RS-232 port for downloading data to PC
- Max, min, data hold and auto shutdown power-saving functionality
- Ideal tool for checking magnetic valves, relays and air-core transformers
- Useful for assessing permanent magnets and rare earth magnets made of
Neodymium Iron Boron (NdFeB), Samarium Cobalt (SmCo), Alnico and Ferrite (also
known as ceramic)
- The external sensor's small, flat tip allows easy access through gaps and
into tiny spaces
- Measures through casings, coverings and housings, eliminating the need to
dismantle parts for inspection

Specification

Magnetic field AC
Measuring range  0 ... 150 mT
Resolution  0,01 mT
Accuracy  ±5% v. Mw. +20 digits (at 23 ±5°C)
Frequency range  50 ... 60 Hz

Magnetic field AC
Measuring range  0 ... 1500 mT
Resolution  0,1
Accuracy  ±5% v. Mw. +20 digits (at 23 ±5°C)

Magnetic field AC
Measuring range  0 ... 1500 g
Resolution  0,1 g
Accuracy  ±5% v. Mw. +20 digits (at 23 ±5°C)

Magnetic field AC
Measuring range  0 ... 15000 g
Resolution  1 g
Accuracy  ±5% v. Mw. +20 digits (at 23 ±5°C)

Magnetic field DC
Measuring range  0 ... 300 mT
Resolution  0,01 mT
Accuracy  ±5% v. Mw. +10 digits (at 23 ±5°C)

Magnetic field DC
Measuring range  0 ... 3000 mT
Resolution  0,1 mT
Accuracy  ±5% v. Mw. +10 digits (at 23 ±5°C)

Magnetic field DC
Measuring range  0 ... 3000 g
Resolution  0,1 g
Accuracy  ±5% v. Mw. +10 digits (at 23 ±5°C)

Magnetic field DC
Measuring range  0 ... 30000 g
Resolution  1 g
Accuracy  ±5% v. Mw. +10 digits (at 23 ±5°C)

General technical data
Measuring functions  MIN, MAX, HOLD
Measuring direction  Uniaxial
Frequency  50 ... 60 Hz
Display type  LCD
Measuring rate  1 Hz
Sensor  Hall sensor
Dimensions  Probe: 195 x 25 x 19 mm
Menu language  English, English (GB)
Protection class (device)  IP20
(Rechargeable) battery  1 x 9 V 9V block , Alkali-manganese
Capacity  640 mAh
Operating conditions  0 ... 50 °C , 0 ... 85 % RH
Storage conditions  0 ... 50 °C , 0 ... 85 % RH
Dimensions ( L x W x H )  198 x 68 x 30 mm
Weight  275 g

Delivery Scope

1 x PCE-MFM 3000 Magnetometer / Magnetic Field Detector
1 x External sensor
1 x 9V battery
1 x Carrying case
1 x User manual
