Magnetic Stirrer PCE-MSR 45

Magnetic Stirrer PCE-MSR 45

Order no.: PCE-MSR 45
GTIN (EAN): 4250348737151
556,90 €
662,71 €
price ex. (VAT / delivery)
:
4250348737151
PCE-MSR 45
Delivery time: 1-2 working days

Description

Magnetic Stirrer for liquids up to 20 liters / Stirring speed up to 2000 rpm / Stirring plate temperature up to 350°C (662°F) / External temperature sensor up to 250°C (482°F) / Adjustable direction of rotation

This Magnetic Stirrer combines powerful stirring performance with precise temperature control - ideal for laboratories, research, schools and industry. The stirring speed is infinitely adjustable from 100 to 2000 rpm, with a fine resolution of 1 rpm and an accuracy of ±10 rpm. It is suitable for liquid volumes of up to 20 liters and enables uniform stirring behavior even with large quantities.

The robust stirring plate made of cast aluminum with a ceramic-coated surface reaches temperatures of up to 350°C / 662°F. With a surface area of 170 × 170 mm / 6.7 x 6.7 in, it also offers enough space for larger vessels. An external temperature sensor allows precise temperature measurements in the range from 0 to 250°C / 32 to 482°F - perfect for temperature-sensitive applications. A red LED provides a clear warning as soon as the heating plate is hot, thus ensuring additional safety in everyday laboratory work.

Another highlight is the brushless motor, which guarantees long-lasting, maintenance-free use. The Magnetic Stirrer has a single stirring position, allows the direction of rotation to be changed and can therefore be used flexibly.

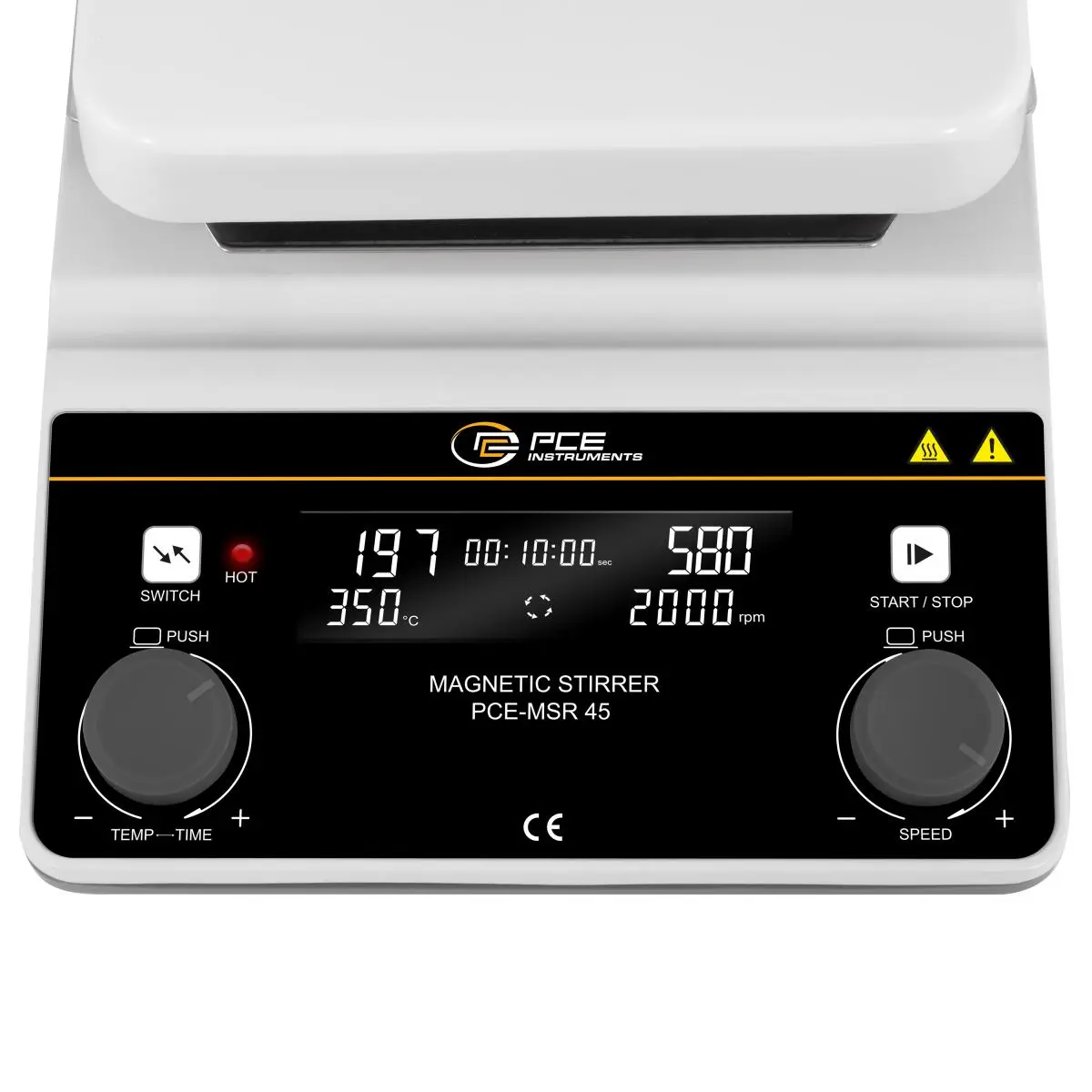

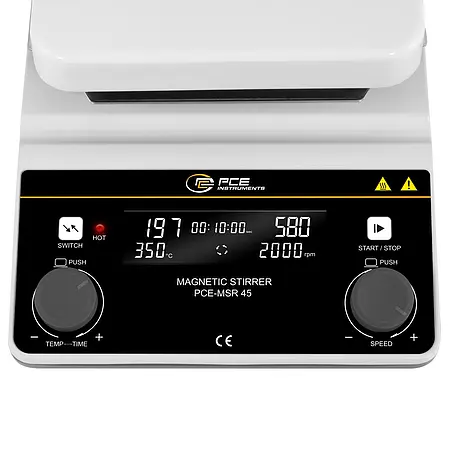

The integrated 3.7-inch LCD display clearly shows all relevant information. A timer (adjustable from 1 second to 99 hours and 59 minutes) enables time-controlled stirring and heating. The Magnetic Stirrer is ideal for applications where uniform stirring and controlled heating are crucial.


Highlights

- Stirring speed adjustable from 100 ... 2000 rpm adjustable
- for a maximum of 20 liters of liquid
- External temperature sensor
- Sensor temperature range: 0 ... 250°C / 32 ... 482°F
- Stirring plate temperature: 0 ... 350°C / 32 ... 662°F
- Stirring plate: Cast aluminum with ceramic coating
- Number of stirring positions: 1
- Timer: 1 s ... 99 h 59 min
- Power supply: 230V AC, 50/60 Hz

Specification

Speed
Measurement range up to  100 ... 2000 rpm
Resolution  1 rpm
Accuracy  ±10 U/min

Temperature sensor
Measurement range up to  0 ... 100 °C
Resolution  1 °C
Accuracy  ±0.5°C

Temperature sensor
Measurement range up to  101 ... 250 °C
Resolution  1 °C
Accuracy  ±1°C

General technical data
Display type  LCD
Display size  3,7 Inch
Dimensions  Stirring plate: 170 x 170 mm
Stirring rod: Ø 10 x 40 mm
Performance  950 W
Number of stirring points  1
Drive of the stirring points  Brushless motor
Max. Stirring quantity  20 l
Stirring plate material  Cast aluminium with ceramic coating
Temperature  Stirring plate: 0 ... 350°C / Accuracy: ±3°C
Timer from  1 s
Timer until  100 h
Menu language  English, English (GB)
Protection class (device)  IP20
Power supply  230V AC | 50/60 Hz

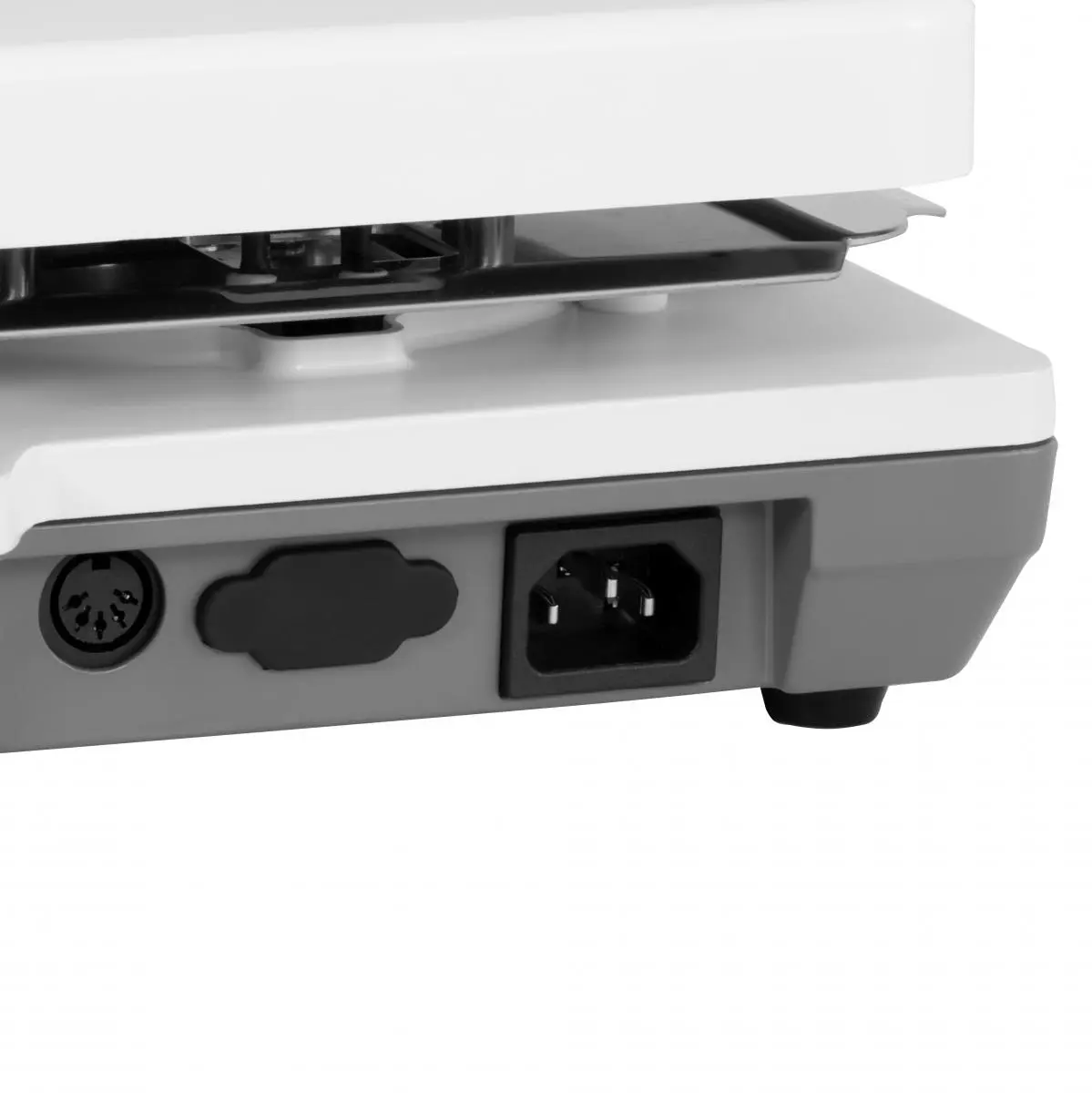

Connector type  Cold-device plug
Operating conditions  0 ... 50 °C , 0 ... 80 % RH
Storage conditions  0 ... 50 °C , 0 ... 80 % RH
Dimensions ( L x W x H )  290 x 190 x 100 mm
Weight  3139 g

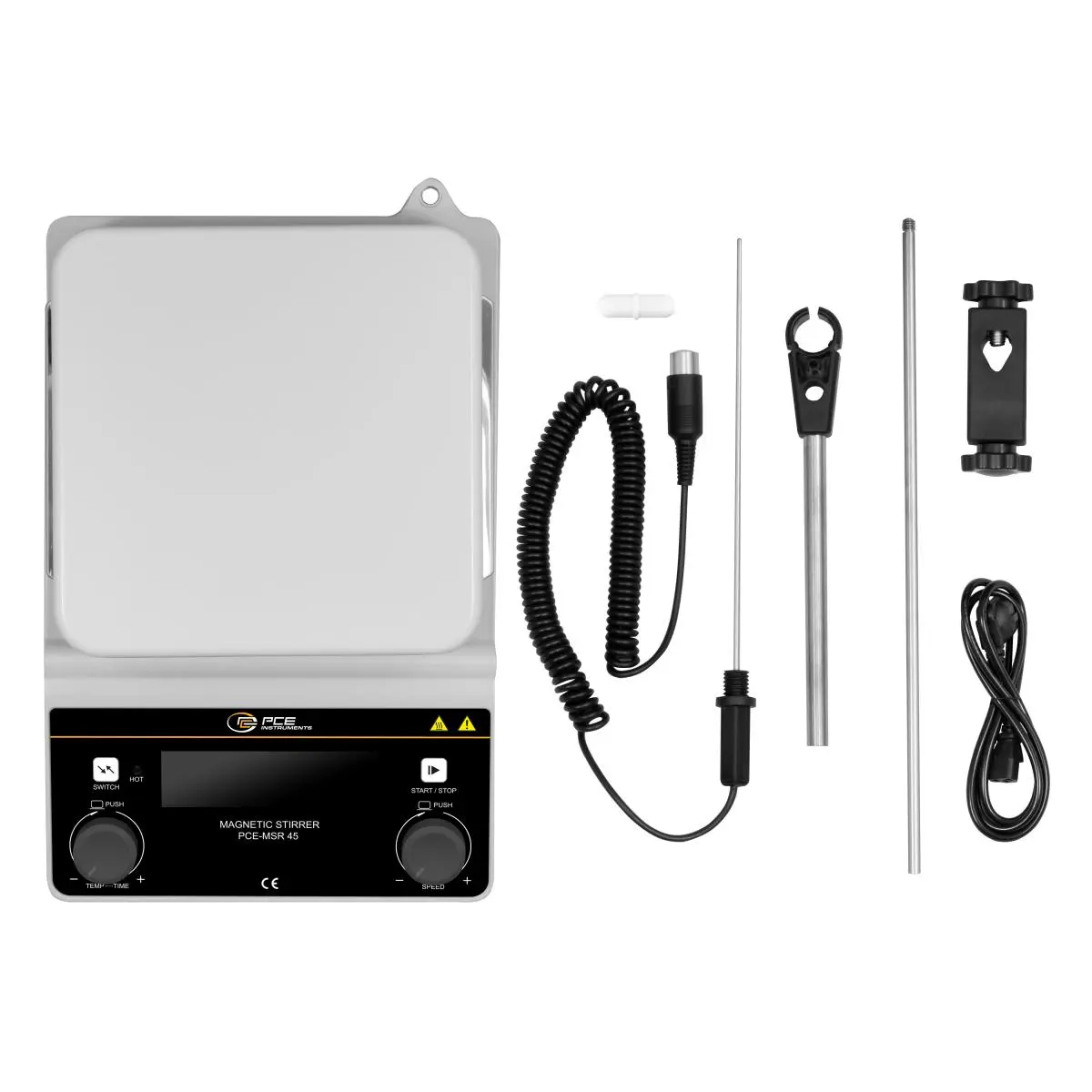

Delivery Scope

1 x PCE-MSR 45 Magnetic Stirrer
1 x Temperature sensor
1 x Stand
1 x Bakelite clamp holder
1 x Sensor holder
1 x Device cable
1 x Stirring rod: Ø 10 x 40 mm / 0.4 x 1.6 in
1 x Instruction manual
