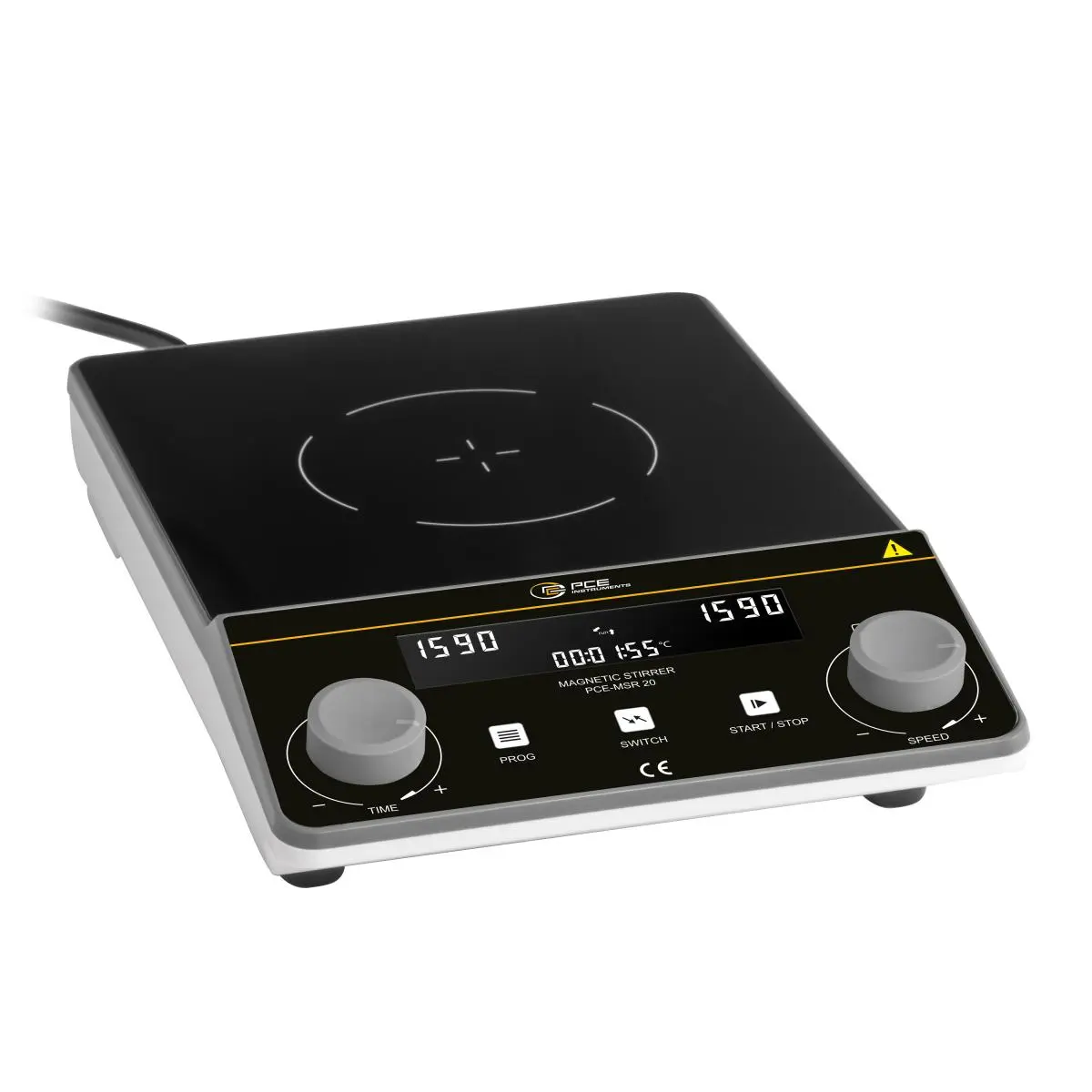

Magnetic Stirrer PCE-MSR 20

Magnetic Stirrer PCE-MSR 20

Order no.: PCE-MSR 20
GTIN (EAN): 4250348737120
156,90 €
186,71 €
price ex. (VAT / delivery)
:
4250348737120
PCE-MSR 20
Delivery time: 1-2 working days

Description

Magnetic Stirrer for liquids up to 5 l / Stirring speed up to 1600 rpm / Adjustable direction of rotation / Programme mode: up to 6 stirring programmes / 1 stirring position

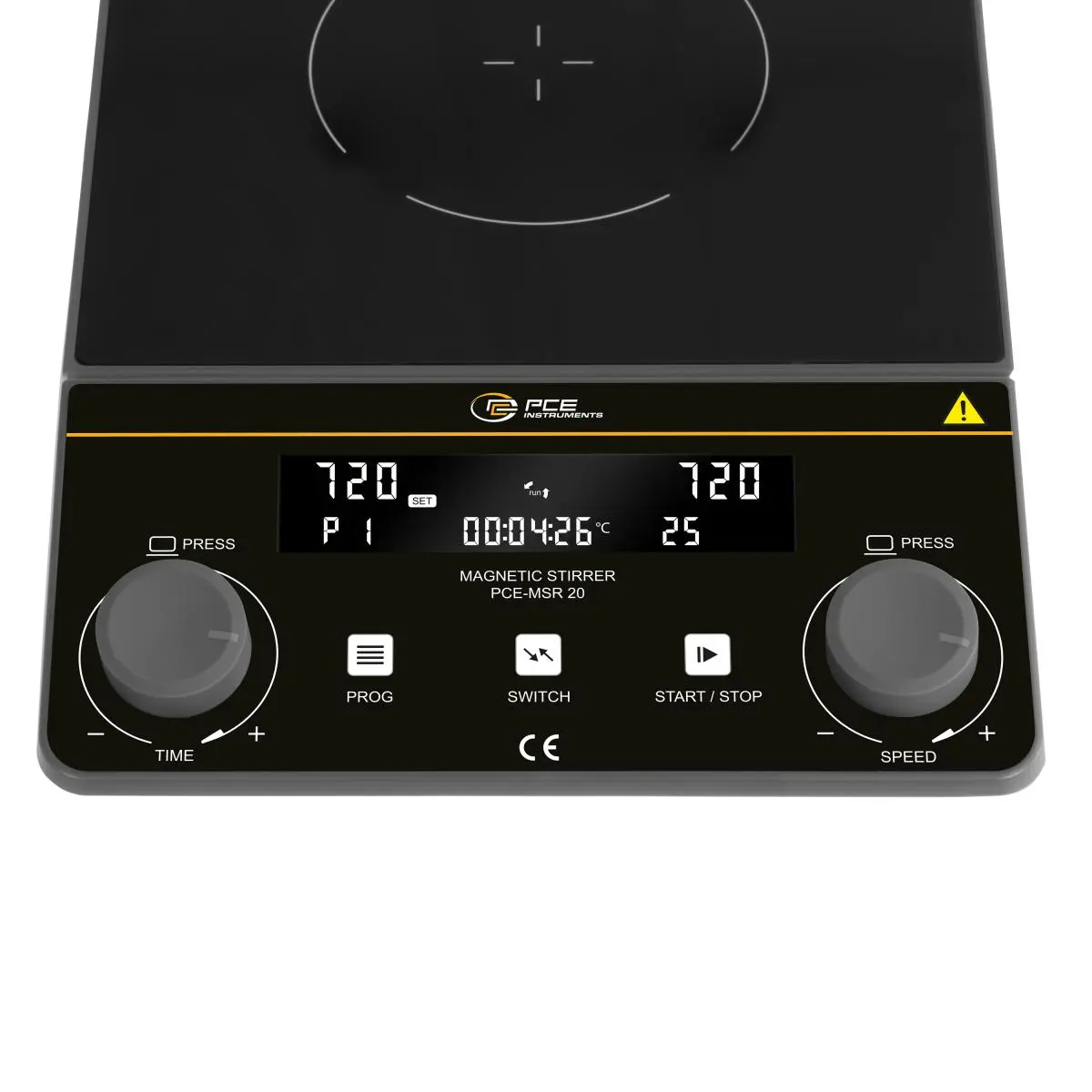

The Magnetic Stirrer is an easy-to-use laboratory device that is used for the efficient mixing of liquids. With a 3.7 inch LCD display and user-friendly controls, the stirring speed, stirring time and direction of rotation can be customized. The stirring speed can be set within a range of 100 ... 1,600 rpm and has an accuracy of ±10 rpm.

Our Magnetic Stirrer automatically saves the last set working parameters and up to six individually programmed stirring cycles. This enables a quick restart with the desired settings. The stirrer also has an integrated timer that allows precise time control from one second to 99 hours and 59 minutes.

The use of a brushless motor ensures maintenance-free and quiet operation. The robust acrylic stirring plate measuring 173 × 180 mm provides a stable base for a wide range of stirring tasks, even for longer operating times. The Magnetic Stirrer can process liquid volumes up to a maximum of 5 litres and is operated via a power supply of AC 100 ... 240V at 50 Hz.

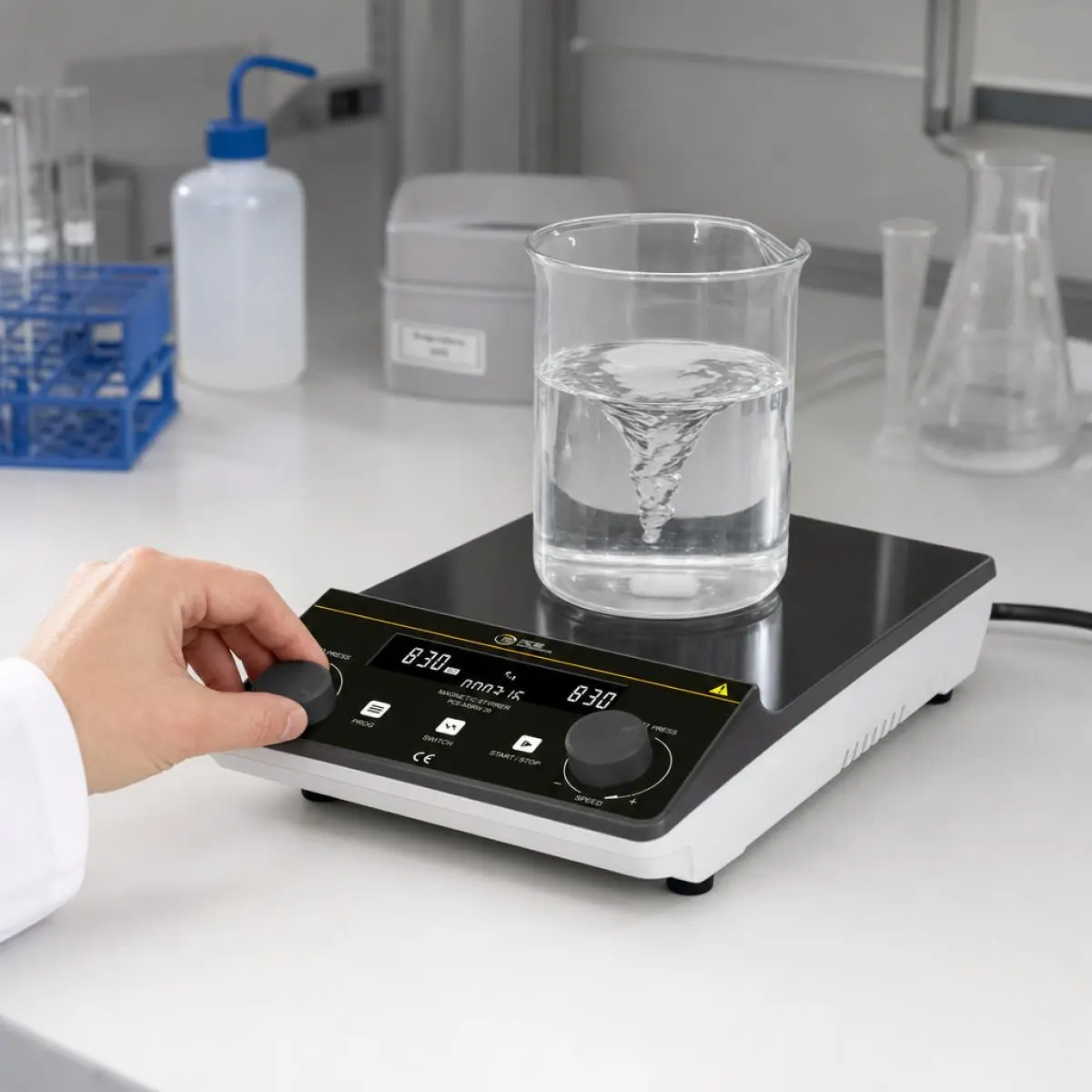

It is a good solution for laboratory work where reliable and reproducible mixing without heating is required. It impresses with its robust design and easy handling in research facilities and industrial laboratories.


Highlights

- Stirring speed adjustable from 100 ... 1,600 rpm adjustable
- Timer: 1 s ... 99h 59 min
- Stirring plate made of safety glass
- for a maximum of 5 litres of liquid
- Programme mode: up to 6 stirring programmes
- Power supply: 100 ... 240V AC, 50/60 Hz

Specification

Speed
Measurement range up to  100 ... 1600 rpm
Resolution  1 rpm
Accuracy  ±10 U/min

General technical data
Display type  LCD
Display size  3,7 Inch
Dimensions  Stirring plate: 173 x 180 mm
Stirring rod: Ø 8 x 30 mm
Performance  24 W
Number of stirring points  1
Drive of the stirring points  Brushless motor
Max. Stirring quantity  5 l
Stirring plate material  Tempered glass
Timer from  1 s
Timer until  100 h
Menu language  English, English (GB)
Protection class (device)  IP20
Power supply  100 ... 240 V AC | 50/60 Hz

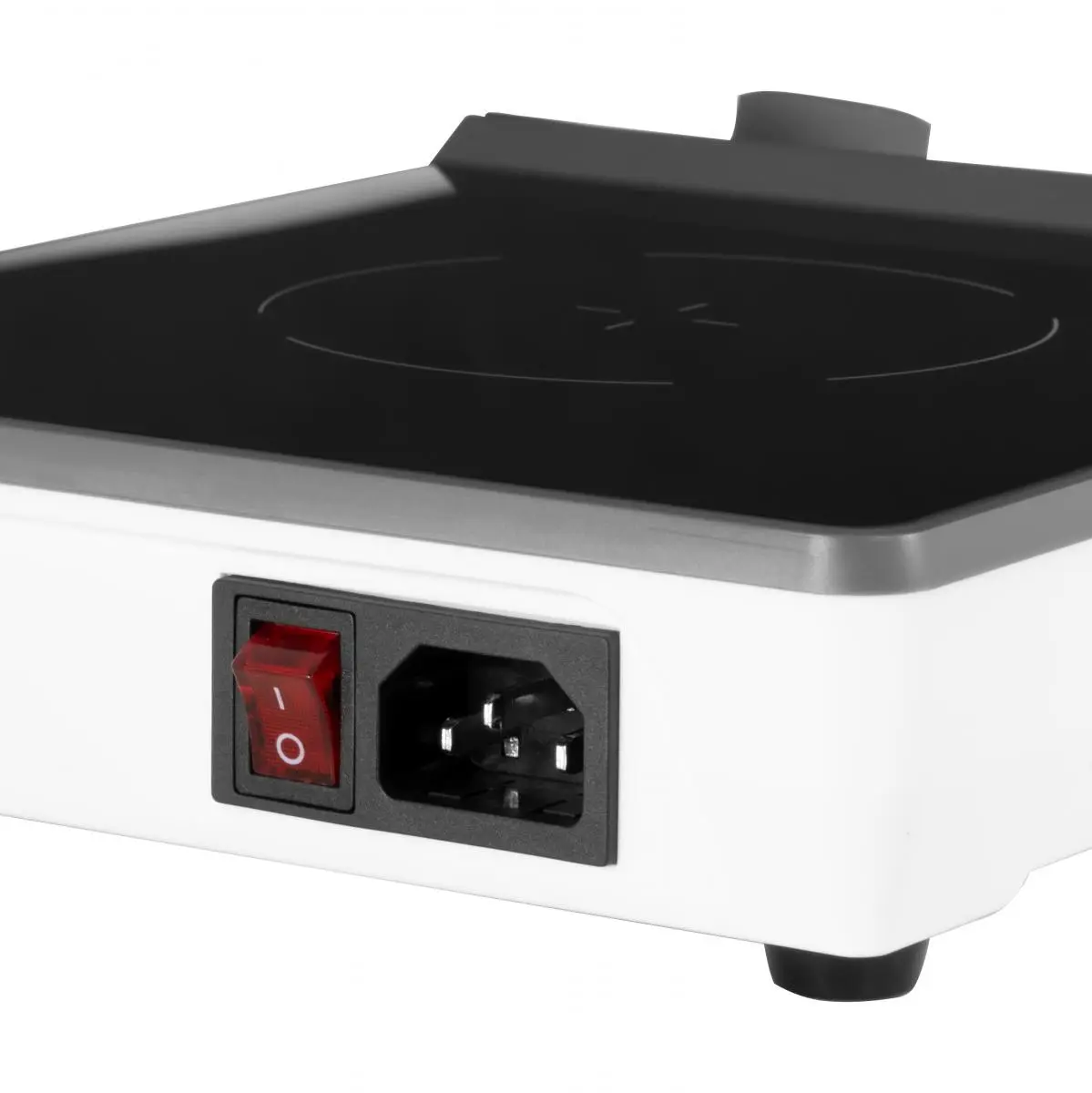

Connector type  Cold-device plug
Operating conditions  0 ... 50 °C , 0 ... 80 % RH
Storage conditions  0 ... 50 °C , 0 ... 80 % RH
Dimensions ( L x W x H )  270 x 180 x 50 mm
Weight  1110 g

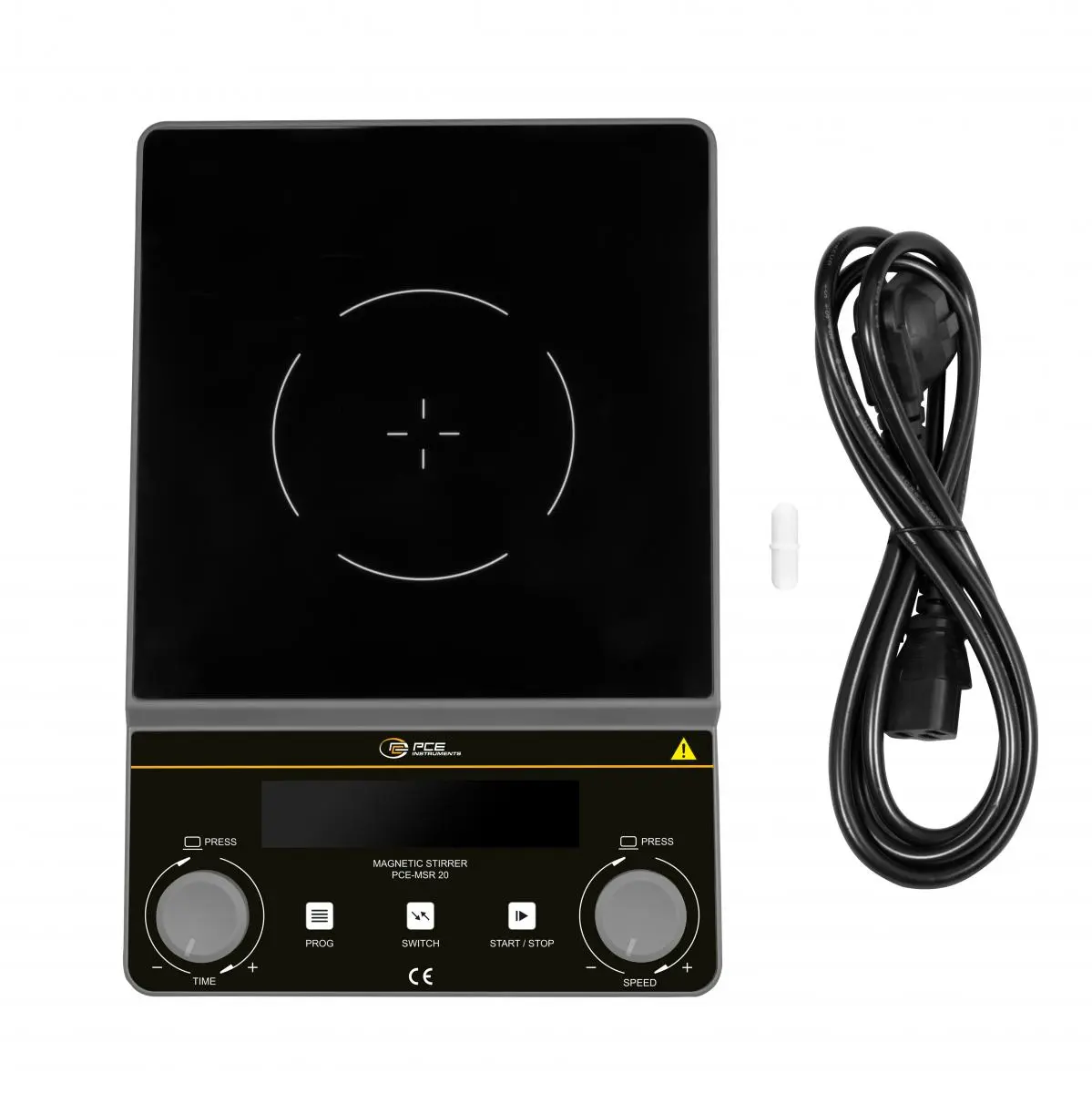

Delivery Scope

1 x PCE-MSR 20 Magnetic Stirrer
1 x Device cable
1 x Stirring rod: Ø 8 x 30 mm
1 x Operating instructions
