Flow Cup Meter PCE-128/4

ISO Flow Cup Meter PCE-128/4

Order no.: PCE-128/4
GTIN (EAN): 4250348729774
216,90 €
258,11 €
price ex. (VAT / delivery)
:
4250348729774
PCE-128/4
Delivery time:1-2 working days
Handheld

Description

ISO flow cup meter for measuring viscosity /

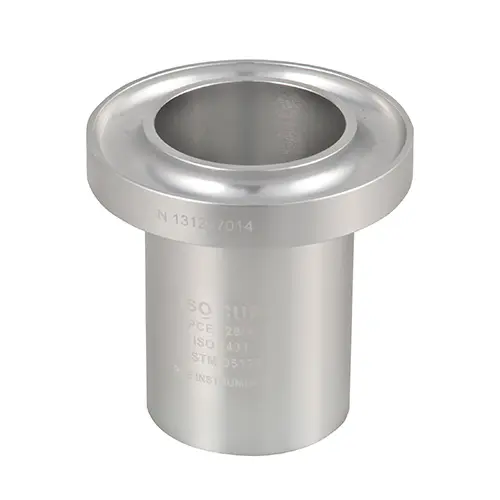

International standard DIN 53224 / Cup made of anodized aluminum

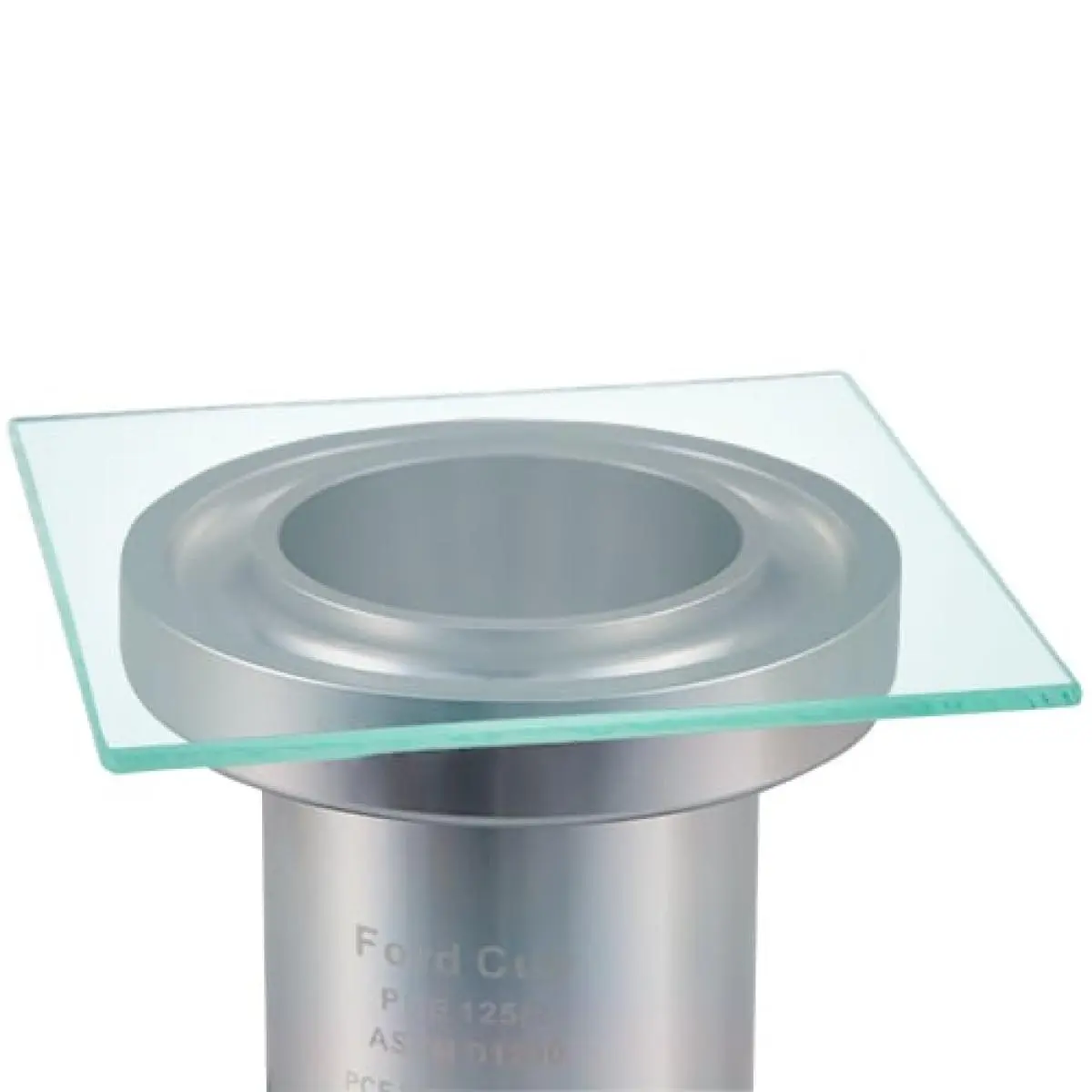

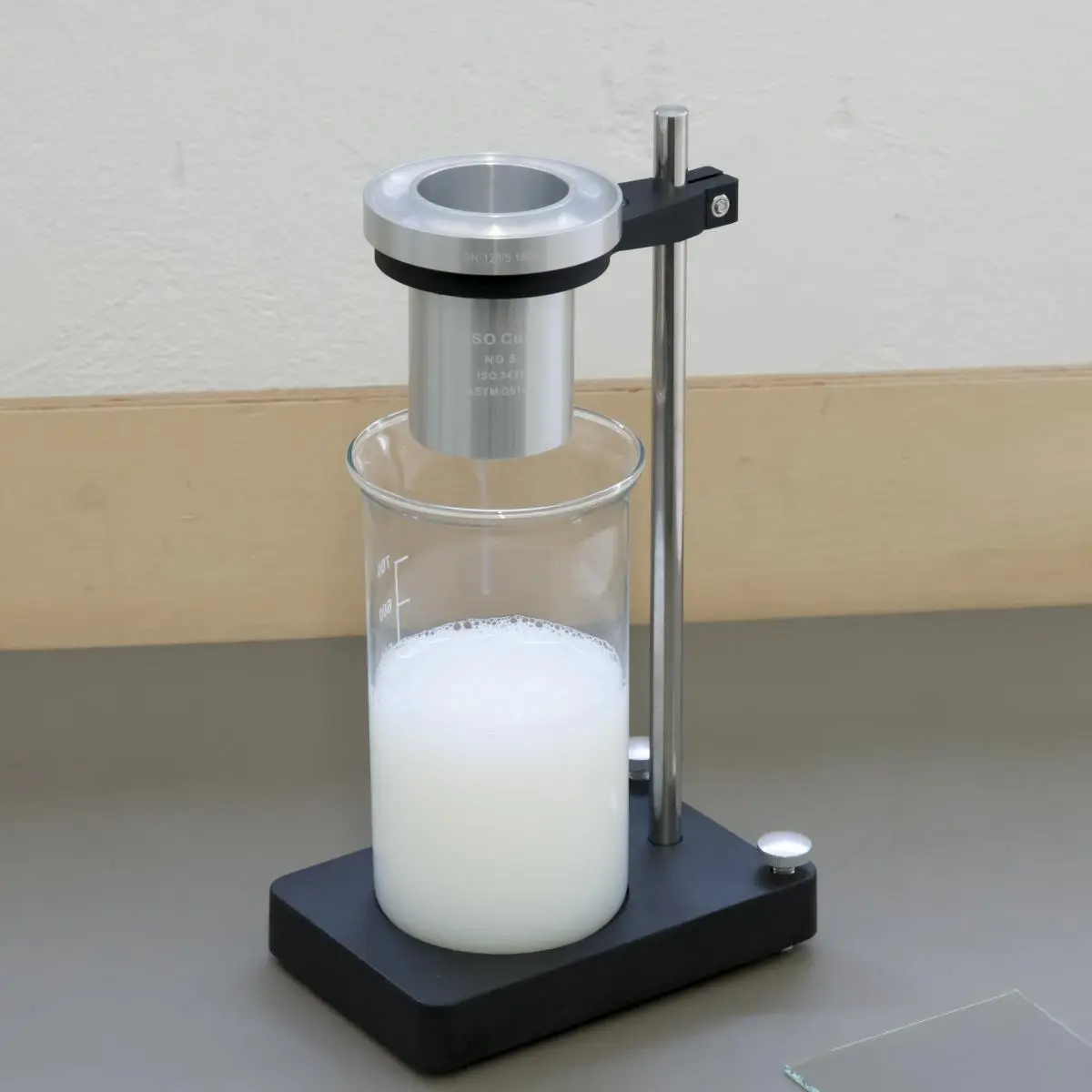

ISO flow cup meters are suitable for determining the flow time of Newtonian / near-Newtonian liquids and are often used in laboratories and industrial production. For handling, the nozzle must be closed and the material to be measured must be poured into the flow cup. By placing the glass plate on the cup, you create a vacuum, which enables the cup to be placed in the tripod for time measurement. When the glass plate is then pulled from the flow cup, the measurement can be started. As soon as the flow comes to a standstill, the time must be stopped. For a relative value, this method is perfectly adequate in many areas. To ensure the accuracy of the cup, it is important to clean it after each use. It is important to ensure that the surface inside the cup is not damaged. Any scratches or dried material residues will affect the further measurements.

Highlights

- Highly polished and finely machined for a
high discharge accuracy
- Factory calibration certificate included
- With overflow channel
- Complies with international standards

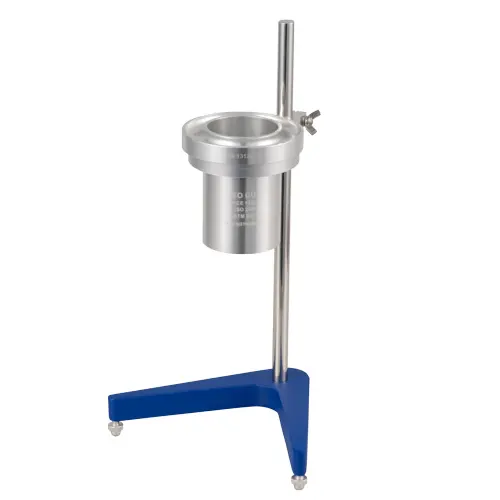

- Stand available as optional accessory

Specification

Viscosity
Measuring range  34 ... 135 mm²/s

General technical data
Display type  without display
Standard(s)  ISO 2431, DIN 53224, EN 535, ASTM D5125
Housing  Stainless steel
Outlet nozzle diameter  4 mm
Run-down time  30 ... 100 s
Dimensions  Outer diameter: 85 mm
Inner diameter: 50 mm
Cup height: 85 mm
Operating conditions  10 ... 40 °C , 20 ... 80 % RH
Storage conditions  10 ... 40 °C , 20 ... 80 % RH
Dimensions ( L x W x H )  85 x 85 x 85 mm
Weight  353 g

Delivery Scope

1 x Flow Cup Meter PCE-128/4
1 x Glass plate
1 x Factory calibration certificate
1 x Instruction manual
