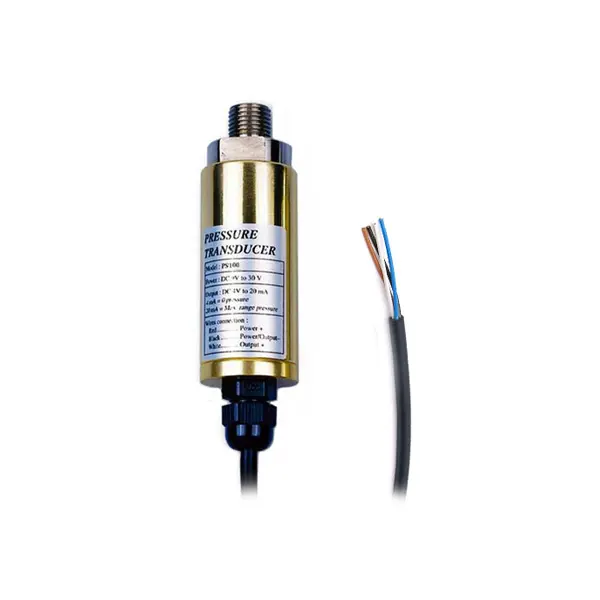

Pressure Sensor PCE-PS 420

Order no.: PCE-PS 420

GTIN (EAN):

Description

Pressure sensor up to 400 bar / relative pressure measurement / analog output / 4 ... 20mA

The simple pressure sensor PCE-PS 420 can be used everywhere where simple pressure is to be measured. The measured pressure is provided as a 4 ... 20mA analog valueon the pressure sensor. With the open cable ends, the pressure sensor can be connected to a display with 4 ... 20 mA input. The pressure sensoris operated with a voltage of 9-30 V DC. With the 1/4" NPT, the pressure sensor can be connected inevery process. The measuring range extends from 2 to 400 bar relative pressure. The pressure sensor has the accuracy class 1.

Highlights

- Max. 400 Bar (selectable)
- 4 ... 20 mA output
- Media: non-corrosive gases and liquids
- Pressure: relative
- Diaphragm:ceramic
- Accuracy class: 1

Specification

Technical Specification Pressure SensorPCE-PS 420
Pressure range	2 Bar 5 Bar 10 Bar 20 Bar 50 Bar 100 Bar 400 Bar
General Technical Data
Accuracy	< ±1 % FSO (@ 10 ... 40 °C)
Zero stability	< ±2 % FSO (@ 10 ... 40 °C)
Media	Non-corrosive gases and liquids
Temperature ranges	0 ... 60 °C
Diaphragm	ceramic
Load	500 Ohm
Analog output	4 ... 20 mA
Power supply	9 ... 30 V DC
Process connection (selectable)	1/4" NPT
Dimensions	30 mm x 85 mm
Connecting cable	4 pole ca. 1 m
Connection assignment	Red: Power + Black: Power - White: Signal + Green: Signal -

Delivery Scope

Delivery Contents

1 x Pressure Sensor PCE-PS 420

Downloads

Datasheet
