Pressure Indicator PCE-PG 25H

Pressure Indicator PCE-PG 25H

Order no.: PCE-PG 25H
GTIN (EAN): 4250348735515
979,90 €
1.166,08 €
price ex. (VAT / delivery)
:
4250348735515
PCE-PG 25H
Delivery time:1-2 working days

Description

Highly accurate Pressure Indicator / Threaded connection: M20 x 1.5 mm / Long-life battery / 3.1 inch LCD display

Our highly accurate Pressure Indicator is a precise and reliable solution for measuring gas and liquid pressures in industry, laboratories and technology. With a measuring range of -0.088 MPa ... +2.5 MPa and a high resolution of 0.0001 MPa, our high-precision Pressure Indicator is ideal for applications that require maximum measurement accuracy. The accuracy is 0.05 % FS, which guarantees stable and repeatable measurement results.

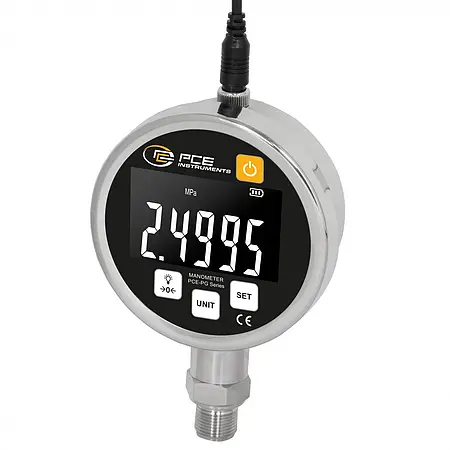

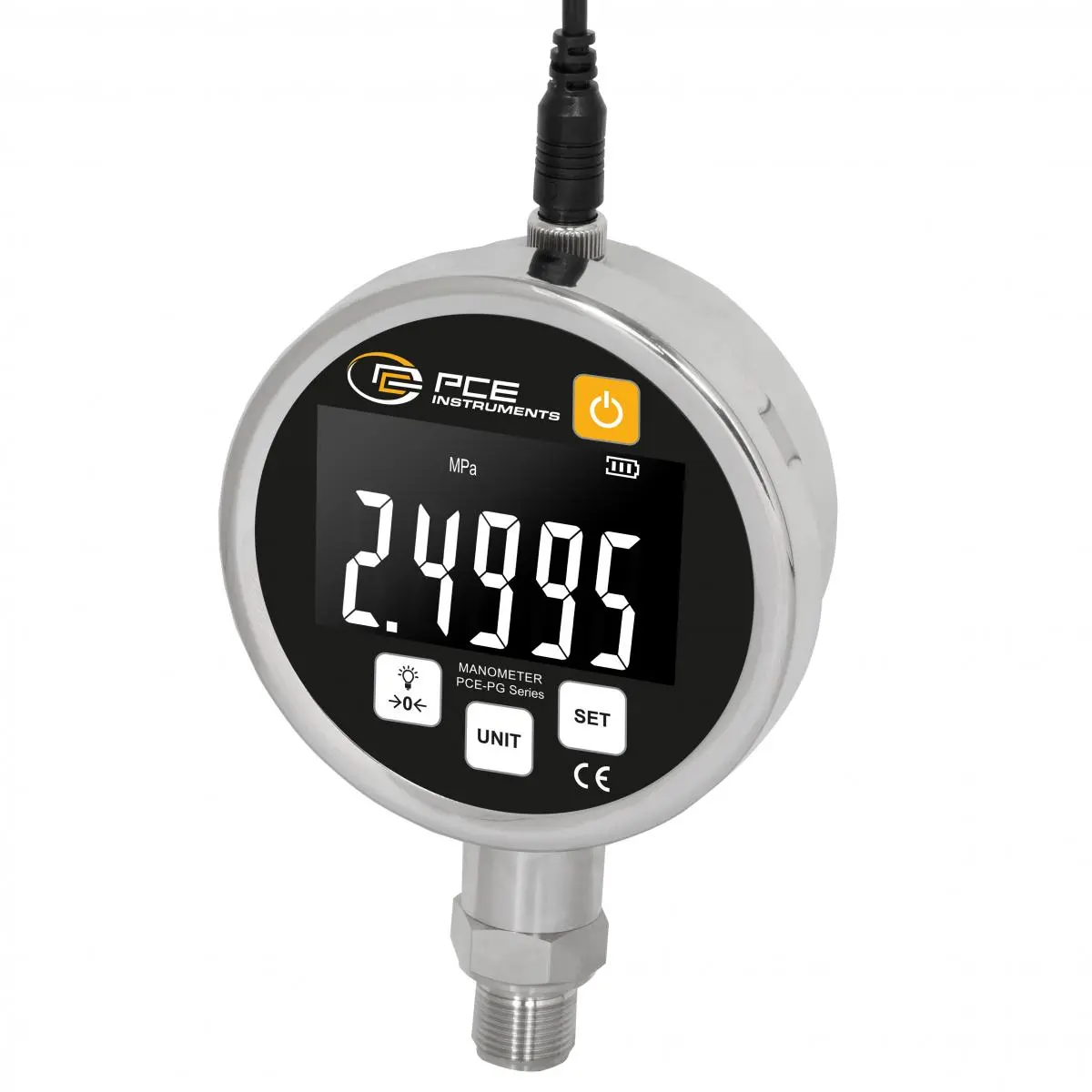

Our high-accuracy Pressure Indicator uses a diffused silicon pressure sensor and offers intelligent calibration and linearity correction functions. The zero point is set quickly and precisely within two seconds using a magnetic pin. This ensures consistently high measuring accuracy and reliability. The response time is just 0.5 seconds, allowing rapid pressure changes to be reliably recorded. The device is equipped with a 3.1 inch LC display, which is easy to read and has a backlight.

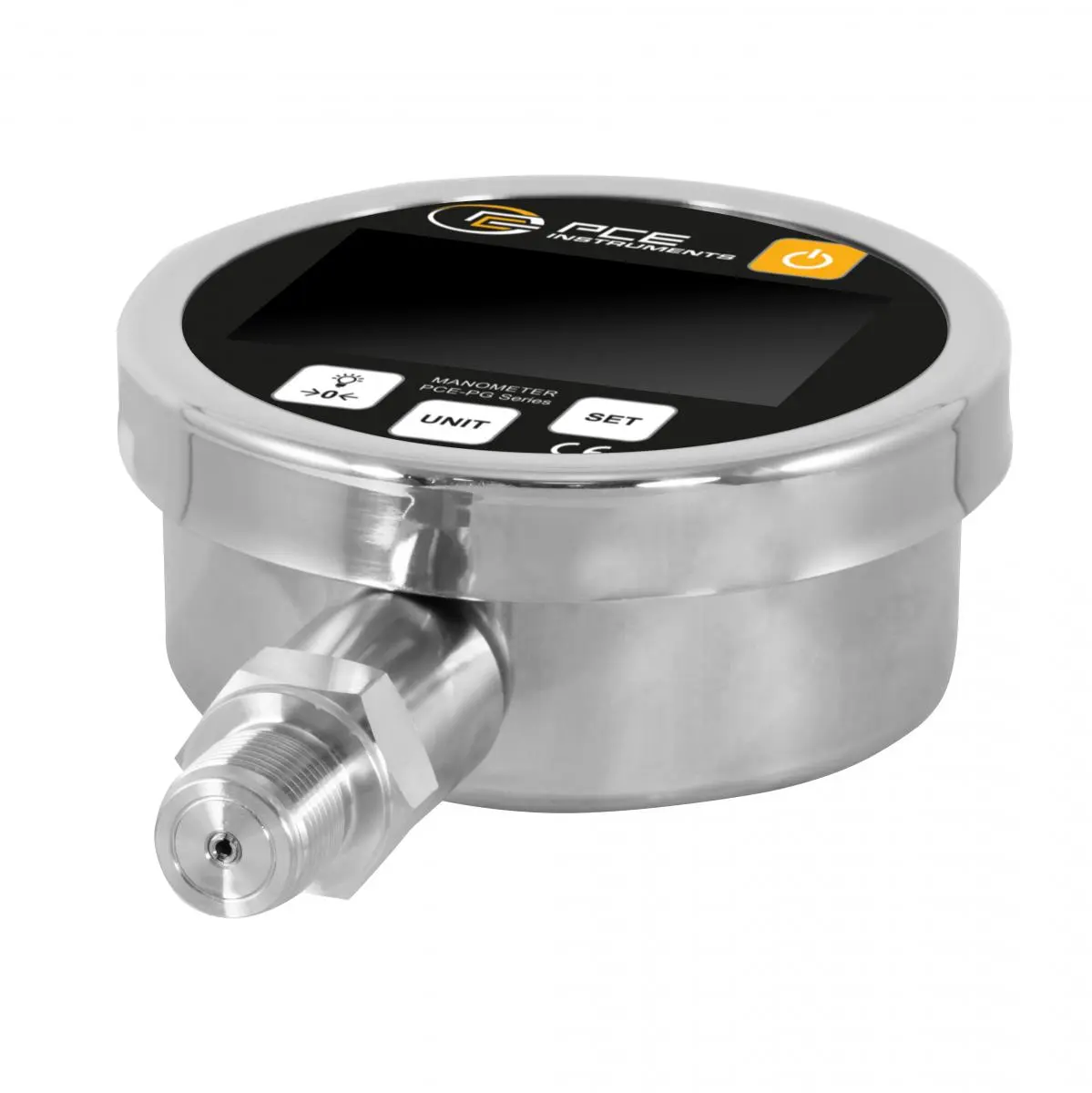

The wetted parts are made of stainless steel, making our highly accurate Pressure Indicator suitable for air, water and non-aggressive oils. The connection is made via an M20 × 1.5 thread. Overload protection up to 1.2 times the maximum pressure range reliably protects the sensor from short-term pressure peaks. With a housing diameter of 112 mm and a weight of just 601 g, the device is space-saving and easy to install. The device supports ten selectable pressure units: bar, psi, kPa, MPa, Pa, inHg, mmHg, inH₂O, mmH₂O and kgf/cm², which ensures maximum flexibility for different requirements.

For data transmission, our high-precision pressure measuring device uses an RS-485 interface with the Modbus RTU communication protocol. Thanks to its low power consumption, the integrated lithium battery achieves a service life of more than three years in 24-hour operation.

The highly accurate pressure measuring device is ideal for the precise measurement of gas and liquid pressures in various areas such as industrial production, hydraulic systems, water and waste water technology as well as in laboratory applications. It is particularly suitable for applications that require high accuracy and reliability and can be used for monitoring pressure systems in non-aggressive media. However, the temperature of the media should not exceed 85 °C to ensure optimum performance of the device.


Highlights

- Pressure range: -0.088 ... +2.5 MPa
- Interface: RS485
- Pressure connection: M20 x 1.5 plug
- Operating temperature: -10 ... 50°C / 14 ... 122°C
- 10 pressure units

Specification

Pressure
Measurement range up to  -0,088 ... +2,5 MPa
Resolution  0,0001 MPa
Accuracy  0.05% FS.

Pressure
Measurement range up to  -0,88 ... +25 bar
Resolution  0,001 bar
Accuracy  0.05% FS.

Pressure
Measurement range up to  -12,8 ... +362,6 psi
Resolution  0,1 psi
Accuracy  0.05% FS.

Pressure
Measurement range up to  -88 ... +2500 kPa
Resolution  0,1 kPa
Accuracy  0.05% FS.

Pressure
Measurement range up to  -0,9 ... +25,49 kgf/cm²
Resolution  0,01 kgf/cm²
Accuracy  0.05% FS.

Pressure
Measurement range up to  -88000 ... +2500000 Pa
Resolution  1 Pa
Accuracy  0.05% FS.

Pressure
Measurement range up to  -26 ... +738,3 inHg
Resolution  0,1 inHg
Accuracy  0.05% FS.

Pressure
Measurement range up to  -660 ... +18752 mmHg
Resolution  1 mmHg
Accuracy  0.05% FS.

Pressure
Measurement range up to  -353 ... +10046,63 inH₂O
Resolution  1 inH₂O
Accuracy  0.05% FS.

Pressure
Measurement range up to  -89737 ... +2549350 mmH₂O
Resolution  1 mmH₂O
Accuracy  0.05% FS.

General technical data
Outputs  4 ... 20 mA
Units  bar, psi, kPa, MPa, kgf/cm², Pa, inHg, mmHg, inH₂O, mmH₂O
Connections  M20 x 1.5 mm
Display type  LCD
Display size  3,1 Inch
Interface  RS485
Response time  0,5 s
Measured medium  Water, Oil, Air
Housing  Stainless steel
Overload protection  1.2 times overload
Sensors  Silicon pressure sensor
Protection class (device)  IP56
Power supply  100 ... 240V AC | 50/60 Hz
Connector type  Euro plug
(Rechargeable) battery  1 x 3,6 V internal , Lithium-ion battery
Capacity  2600 mAh
Operating conditions  -10 ... 50 °C , 0 ... 95 % RH
Storage conditions  -20 ... 70 °C , 0 ... 85 % RH
Dimensions ( L x W x H )  165 x 112 x 47 mm
Weight  601 g

Delivery Scope

1 x PCE-PG 25H High-precision Pressure Indicator
1 x Power adapter 10V / 1 A
1 x Connection cable
1 x USB-to-RS-485 adapter cable

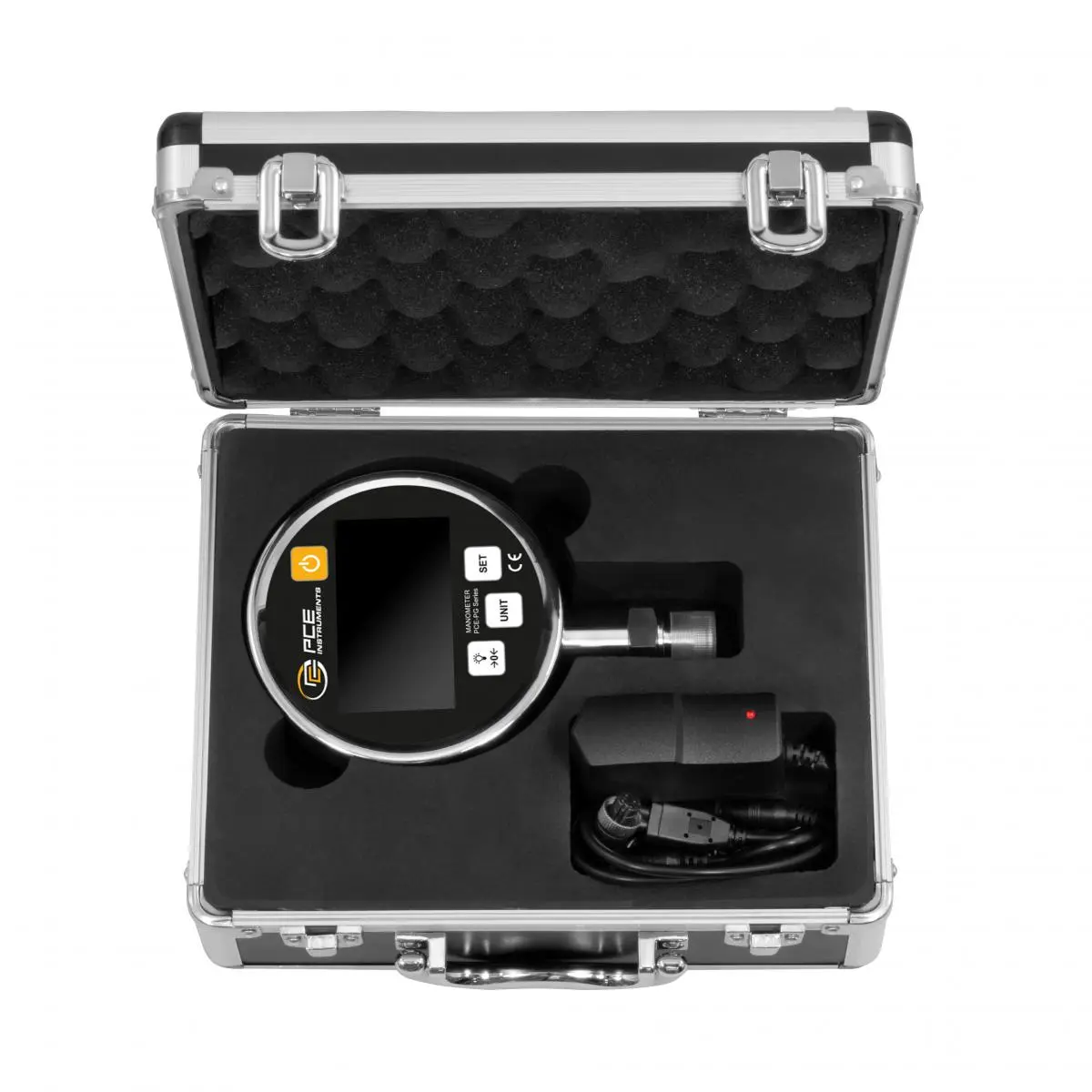

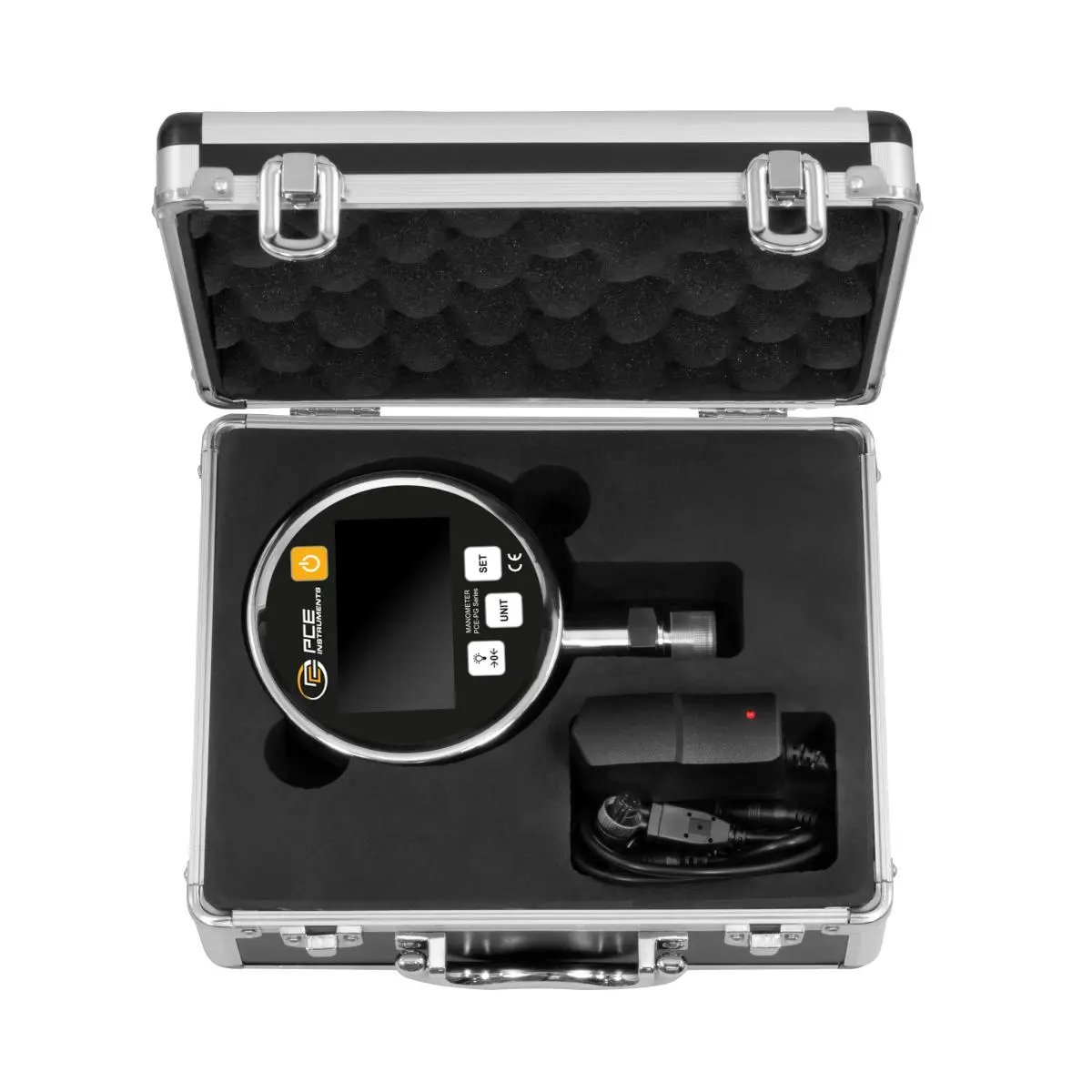

1 x Transport case
1 x Operating instructions
