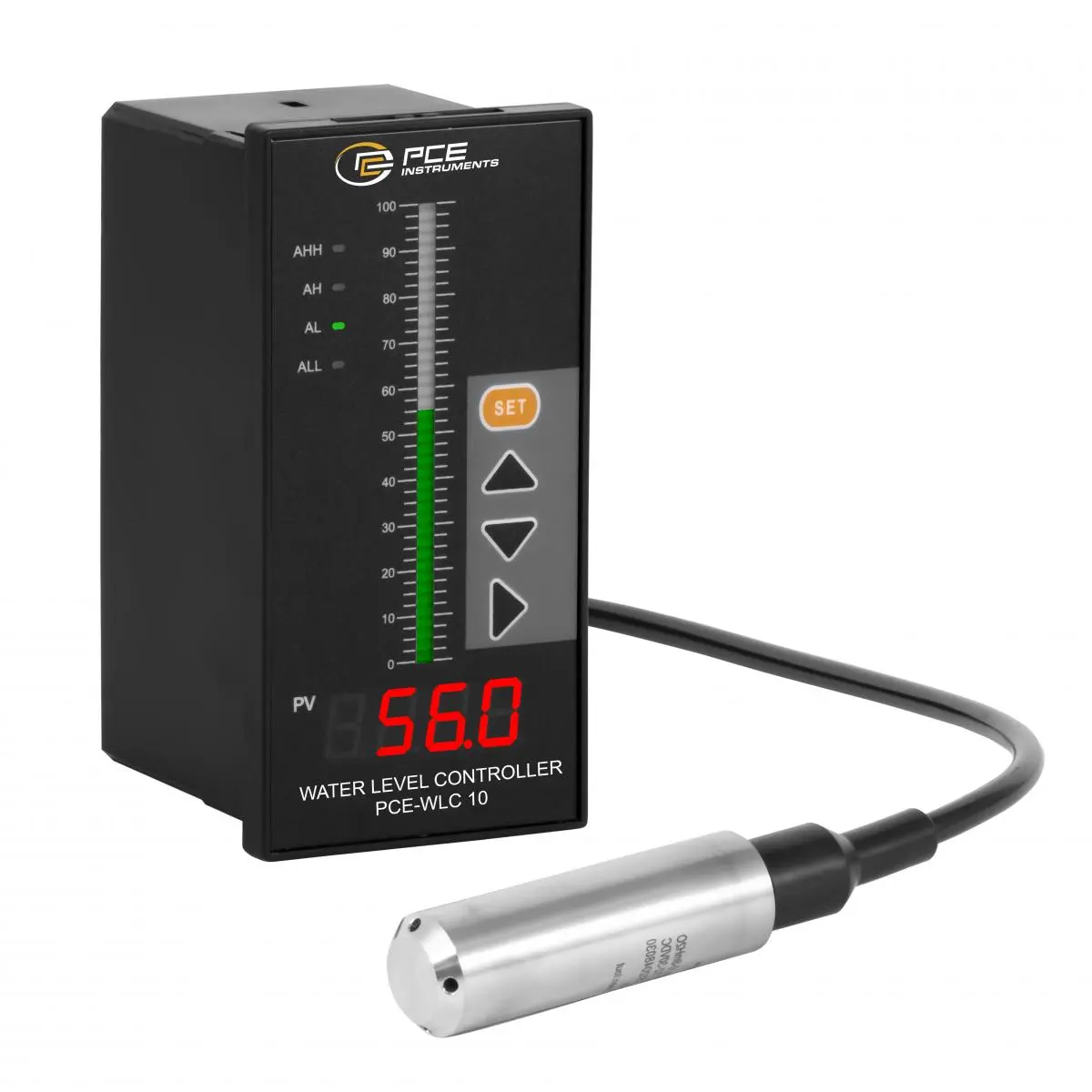

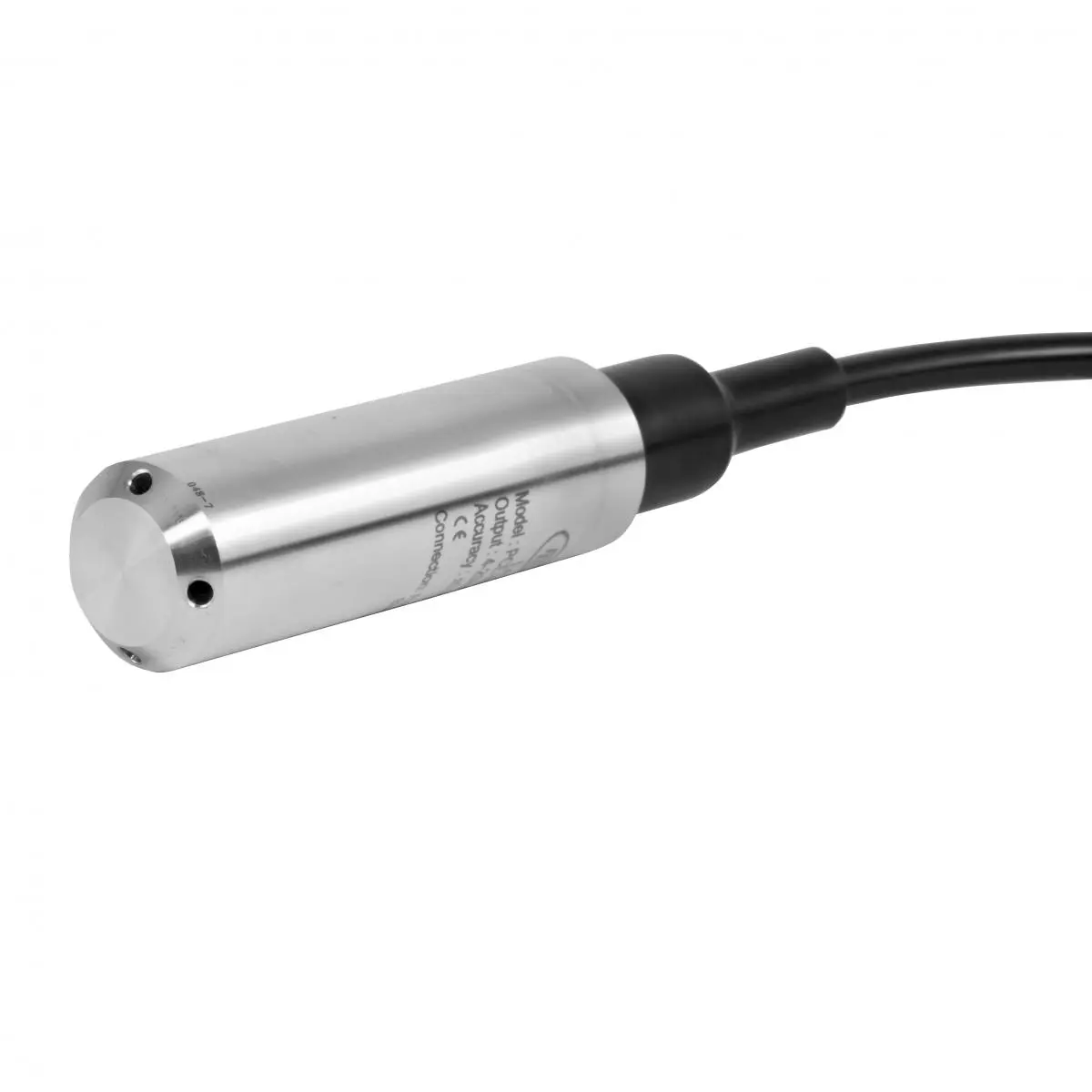

The Panel Indicator offers a reliable and precise solution for measuring liquid levels in a wide variety of applications. With a measuring range of 0 to 8 m / 0 … 26.2 ft H₂O, the level gauge is ideally suited for use in deep wells, rivers, lakes, canals, reservoirs, and coastal monitoring applications up to a water depth of 8 m / 26.2 ft. The high accuracy of ±0.5% FS ensures precise measurement results even under demanding conditions. Thanks to its robust design with a stainless steel housing and durable cable material, the Panel Indicator is resistant to abrasion, oil, acids, and alkalis.

The flexible submersible installation allows for use in both static and flowing media. The long-term stability of ±0.2% FS per year ensures consistently reliable measurement results. The display is operated with a supply voltage of 24 V DC and is designed for connection to sensors with a 4–20 mA output signal. It also features a 4–20 mA analogue output, which enables easy processing of the measured values in higher-level control systems.

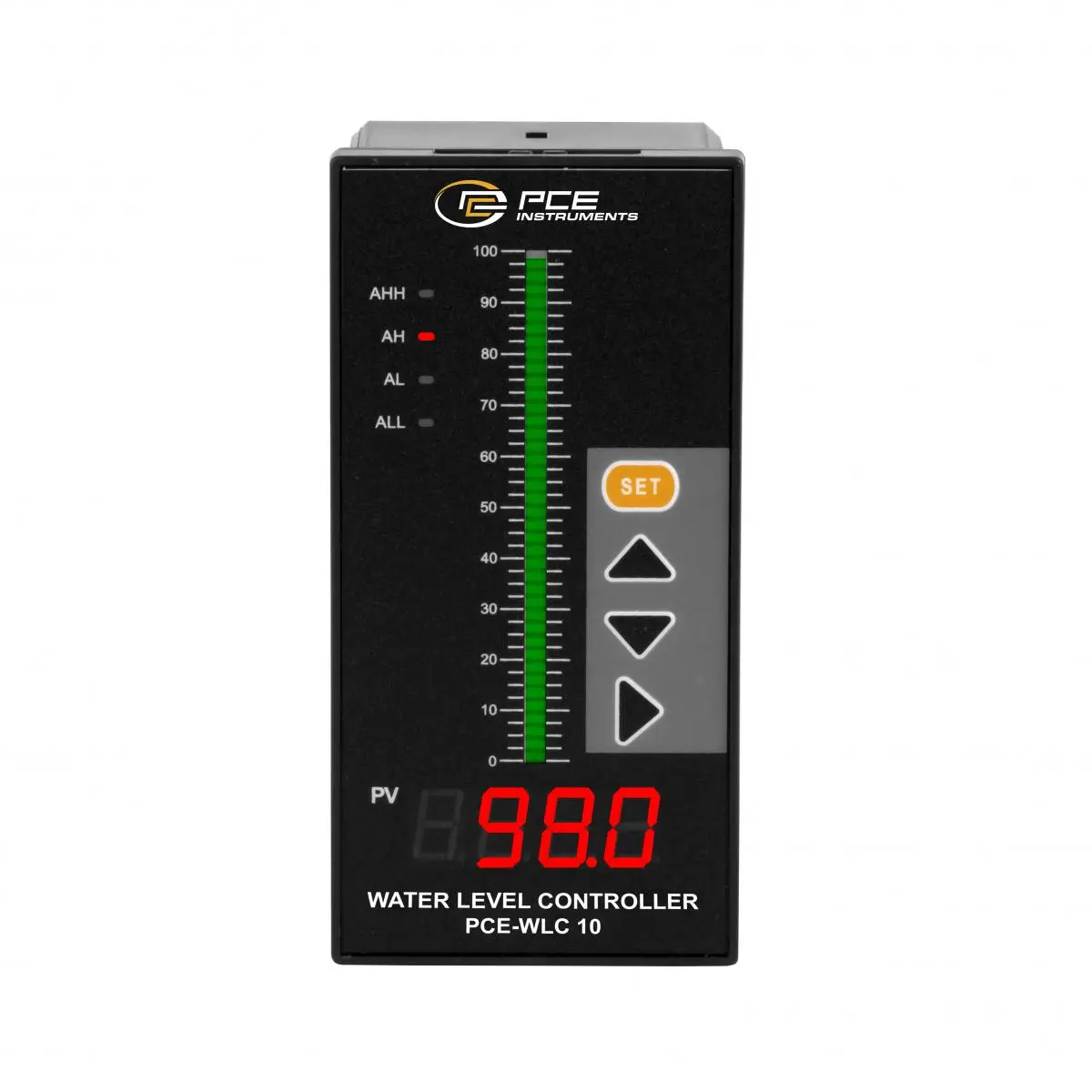

Four alarm relays (ALL, AL, AH, AHH) are available for monitoring limit values, allowing individual switching points to be set for different liquid levels. All settings can be conveniently adjusted directly via the control buttons on the display, ensuring quick and easy commissioning. The Panel Indicator is ideally suited for applications in water management, wastewater treatment, irrigation, water diversion, and industrial liquid monitoring.
