Description

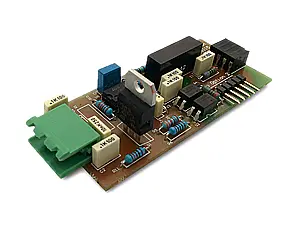

The analog output module offers a 4 ... 20-mA output, isolated, for installation in the Opt1 option.

Specification

Output ranges	4 ... 20-mA (active and passive)
Active output	Connect terminal A (+15V DC) and B (mA) R L < 350 R
Passive output	Connect terminal C (GND) and B (mA) R L < 700 R
Precision	< 0.5% FS
Isolation	1000V DC
Response time	< 100 mSec. + indicator response time
Allowed location	Opt1

1 x PCE-DPD-U / A1 Analog output module
