Pallet Truck Scale PCE-EPT 1.5-ICA with electric drive inc ISO Calibration Cert

Order no.: PCE-EPT 1.5-ICA
ISO Calibration
£ 2,839.00
£ 3,406.80
4250348729866
PCE-EPT 1.5-ICA
price ex. (VAT / delivery)
5 t
0,1 kg
Calibratable
Delivery time: 10 - 14 days
Pallet Truck Scale / Weighing range 0 ... 1500 kg / Fork height 86 ... 196 mm / Quickly exchangeable battery / Faster and slower running / "Hold" and "tare" function /
Backlight / Rubber wheels / Incl. ISO calibration certificate / Electric drive

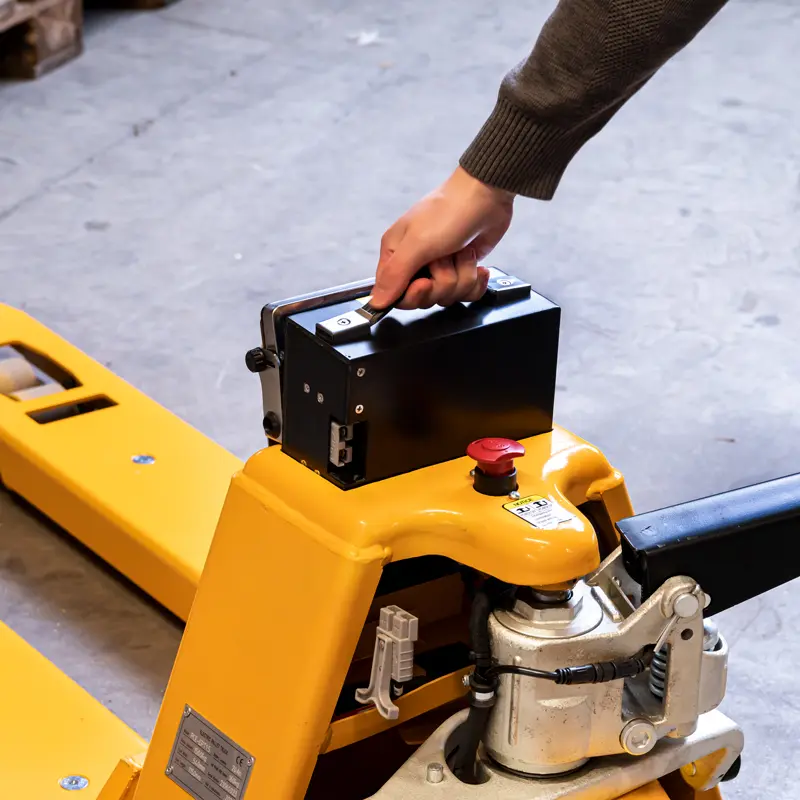

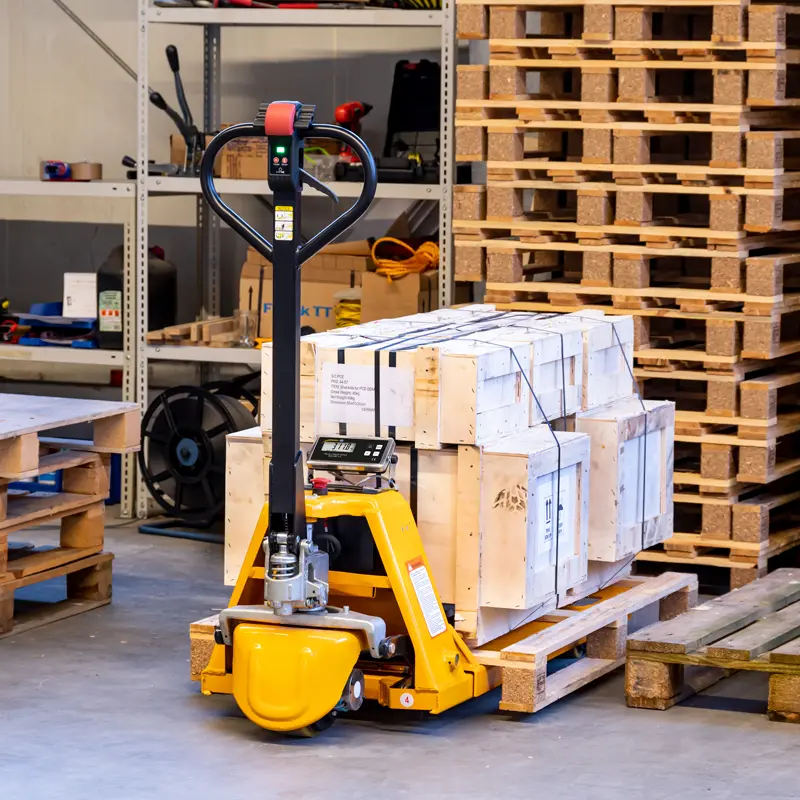

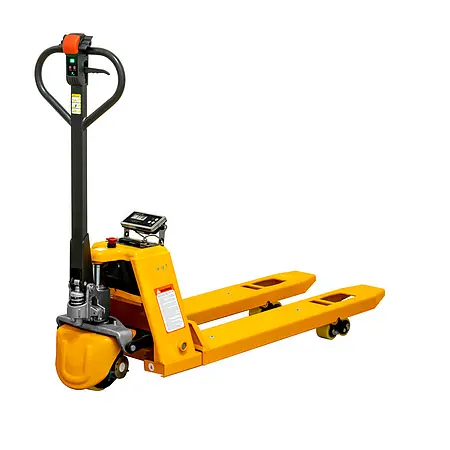

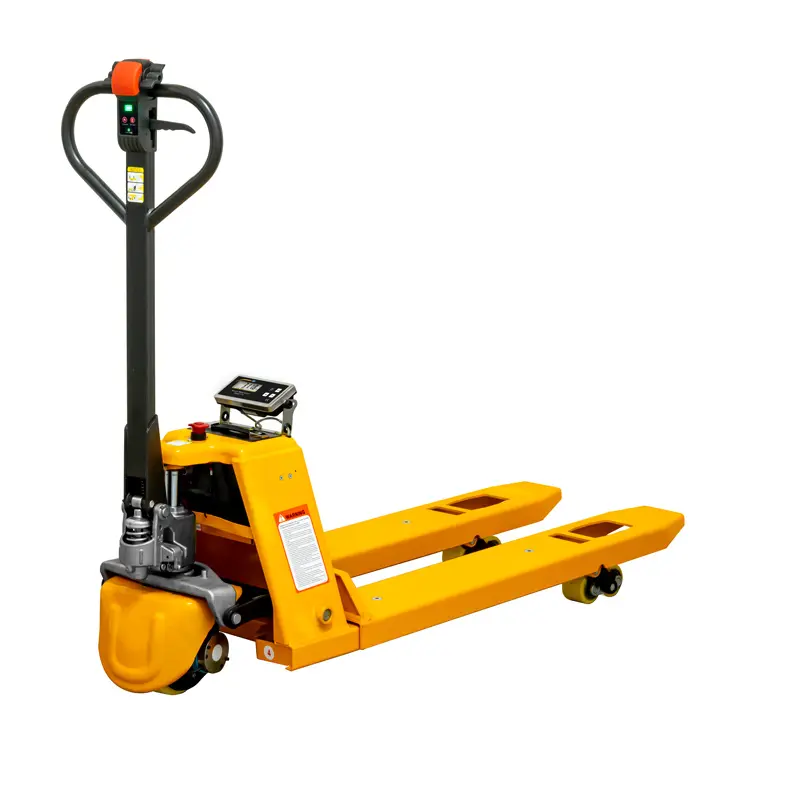

The pallet truck scale is a lift truck with an integrated electric motor drive. The pallet scale's 20 Ah battery can be recharged using the supplied power pack. If necessary, the battery in the pallet truck scale can be replaced with a fully charged battery in just a few steps. This ensures an almost uninterrupted workflow in, for example, 24/7 operation with the pallet truck scale.

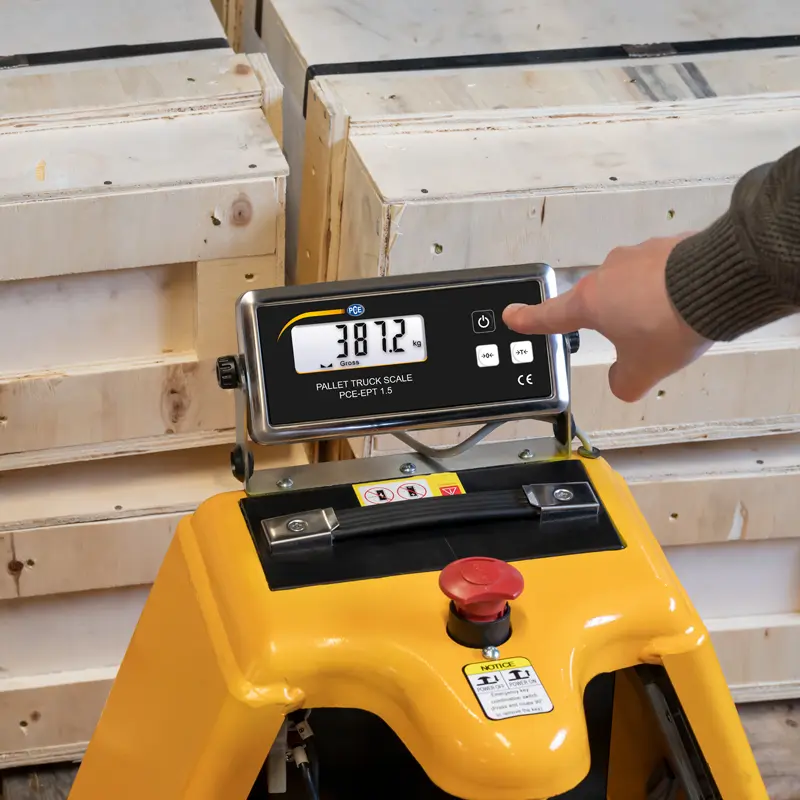

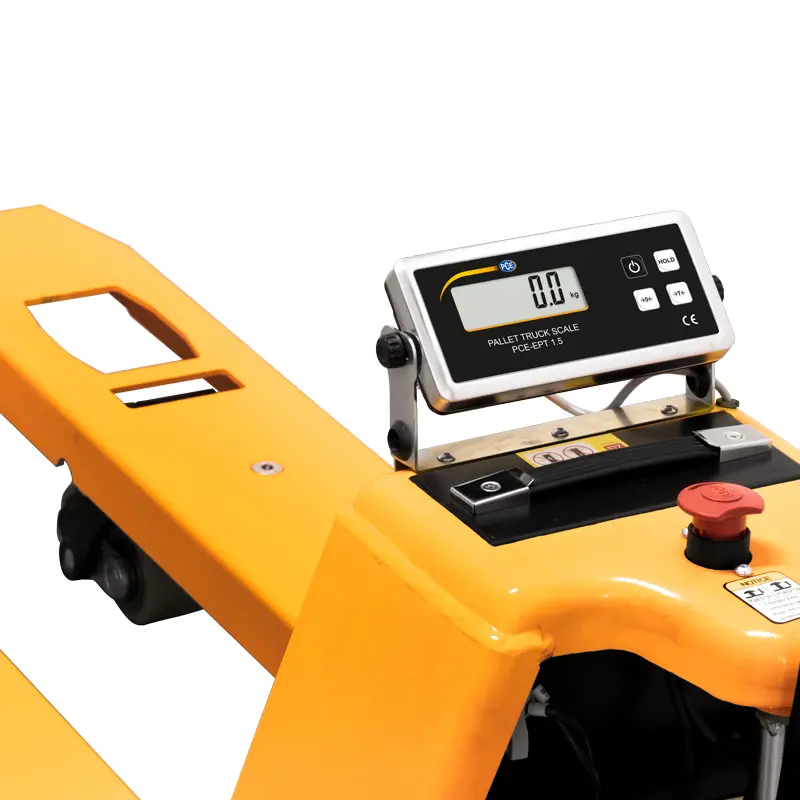

In addition, the pallet truck scale has a weighing function. This allows pallets to be weighed with the scale. The weight on the pallet truck scale is measured using four built-in load cells with a total measuring range of 0 ... 1500 kg. To facilitate weighing, a zero point and taring can be carried out.

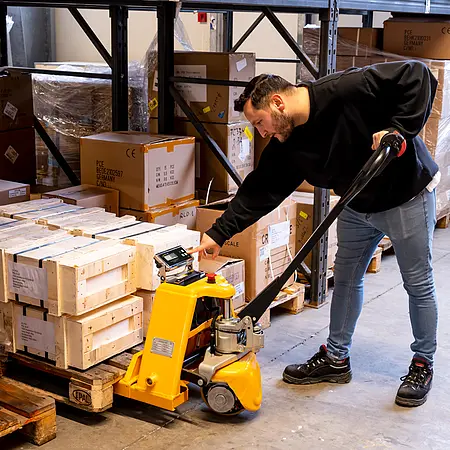

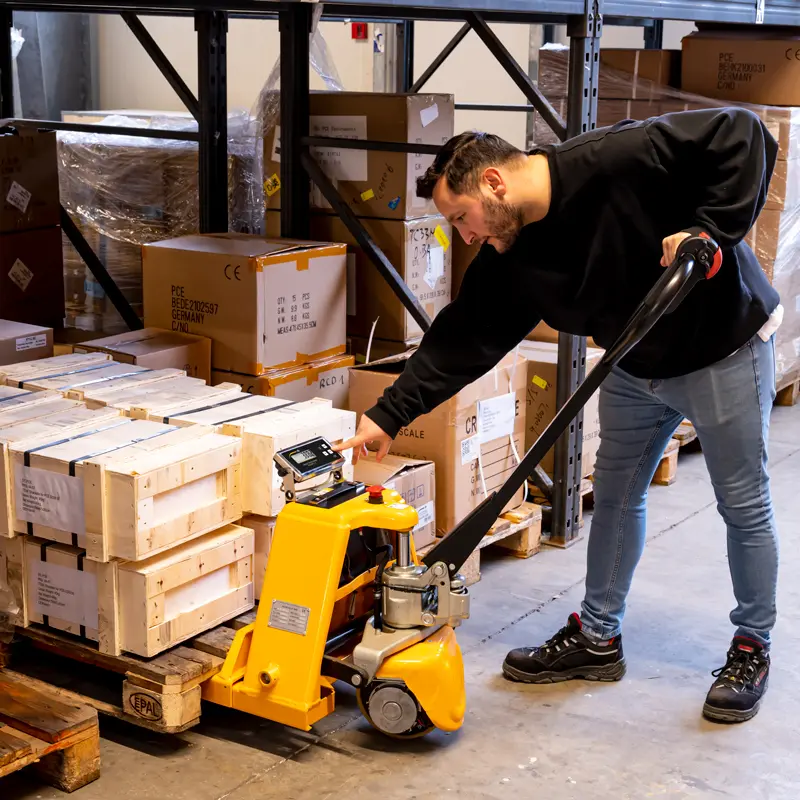

Thanks to the electric drive and the integrated weighing device, the pallet truck scale is the ideal support for every logistics or forwarding employee. This increases productivity and at the same time reduces the burden on employees. The pallet truck scale is equipped with an ISO calibration certificate.

- Weighing range 0 ... 1500 kg / 3306 lb
- Resolution 0.1 kg / 0.22 lb
- Quickly replaceable battery with a long service life
- Fork height 86 ... 196 mm / 3.3 x 7.7"
- Rubber wheels
- With electric drive
- Incl. ISO calibration certificate
Weighing range 0 ... 1500 kg / 3306 lb
Resolution 0.1 kg / 0.22 lb
Accuracy ±0.2% of measuring range

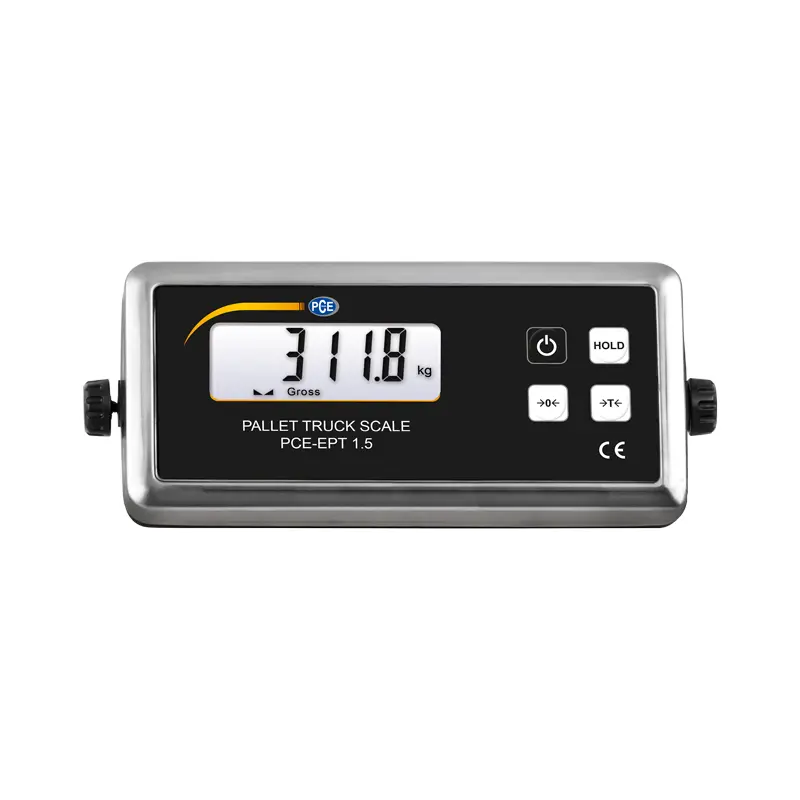

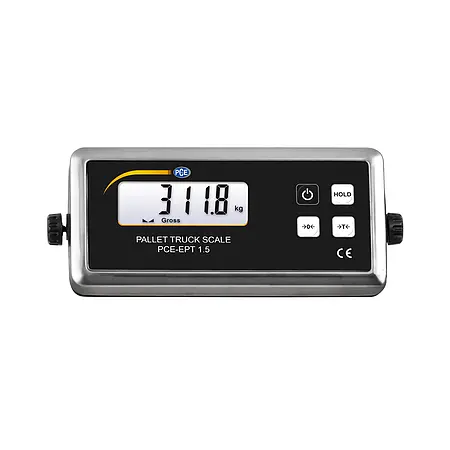

Display
Taring range over the entire weighing range
Zero point (automatic) to 10% of measuring range
Zero point (manual) to 2% of measuring range
Digit height 20 mm / 0.78"
Power supply battery 3 x 1.5 V AA batteries
Power supply mains adapter primary: 100 ... 240 V AC, 50/60 Hz, 0.3 A
  secondary: 6 V DC, 500 mA
Battery life with
backlight ca. 30 hours
Battery life without
backlight ca. 100 hours

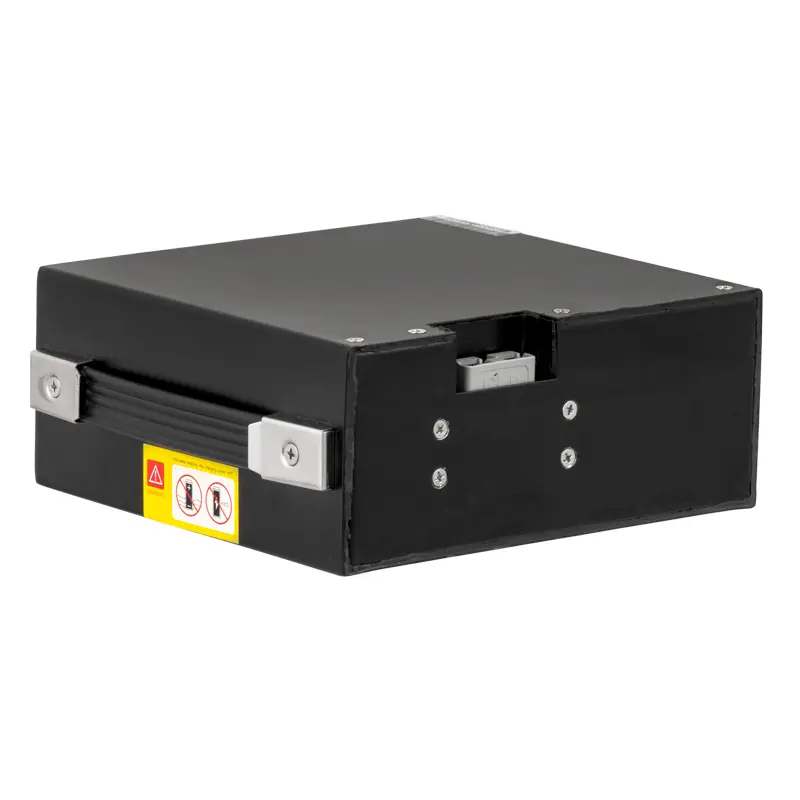

Battery pack
Power supply (battery) 24 V, 20 Ah
Power supply (mains adapter) primary: 100 ... 240 V AC, 50/60 Hz, 1.6 A

secondary: 29.4 V DC, 4 A
Weight battery 5 kg / 10 lbs

Further specifications

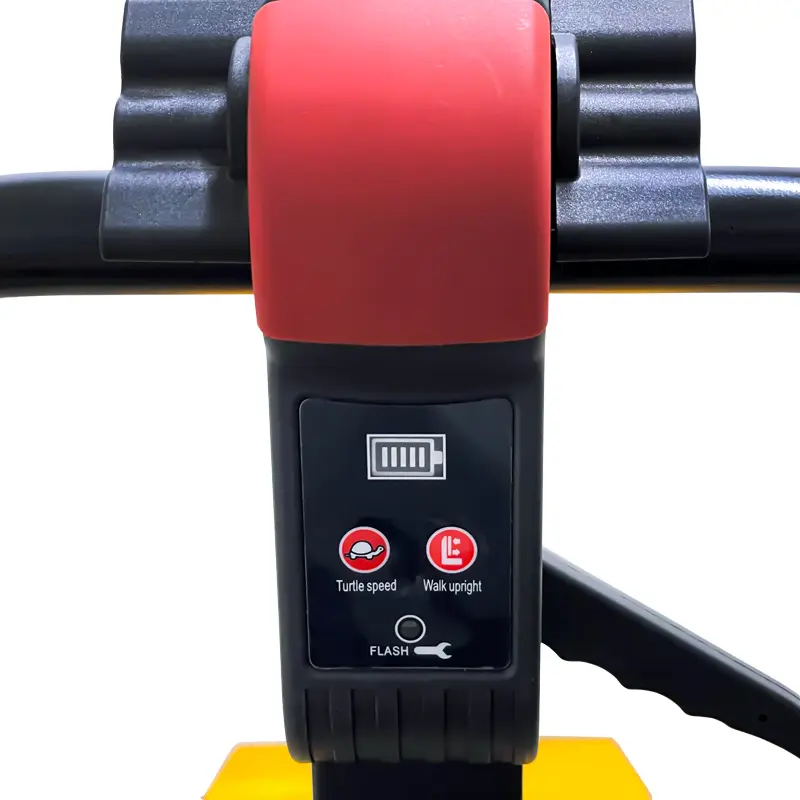

Functions horn, slow and fast drive mode,
  drive with a vertical tiller
Speed ​​(loaded) 4 km/h / 2.5 mph
Speed ​​(unladen) 4.5 km/h / 2.8 mph
Maximum gradeability (loaded) 3 %
Maximum gradeability (unladen)       18 %
Motor power 450 W
Parking brake electromagnetic
Tyres PU
Tyre size (drive) Ø150 x 70 mm / Ø5.9 x 2.75“

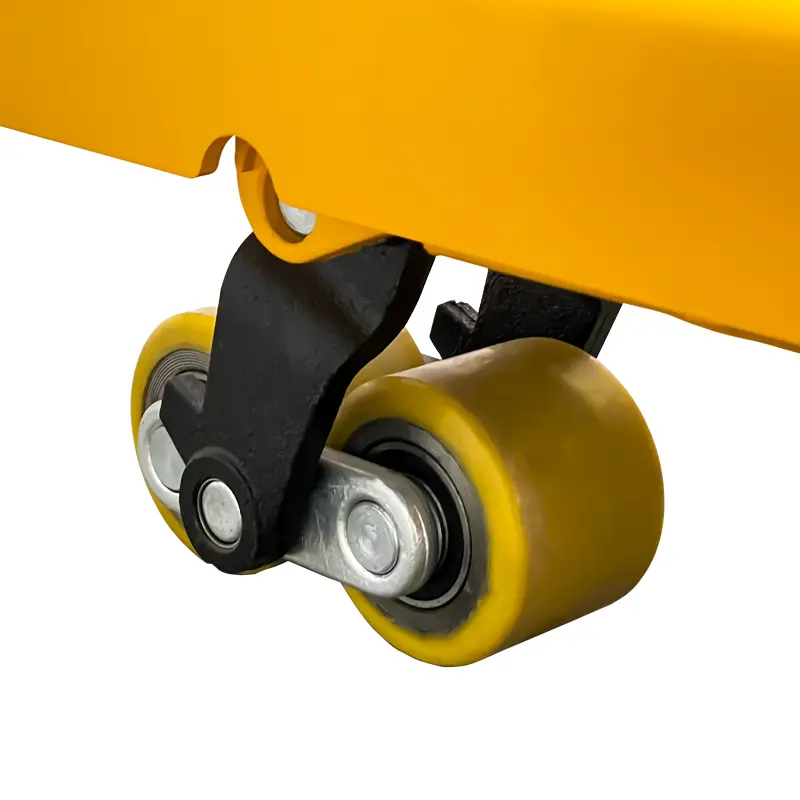

Tyre size (loading area) 4 x Ø80 x 60 mm / Ø3.15“ x 2.36“
Ambient conditions -10 … 40 °C / 14 ... 104 °F; <85 % RH, non-condensing
Dimensions dimensions can be found in the instructions
Weight 160 kg / 352 lb

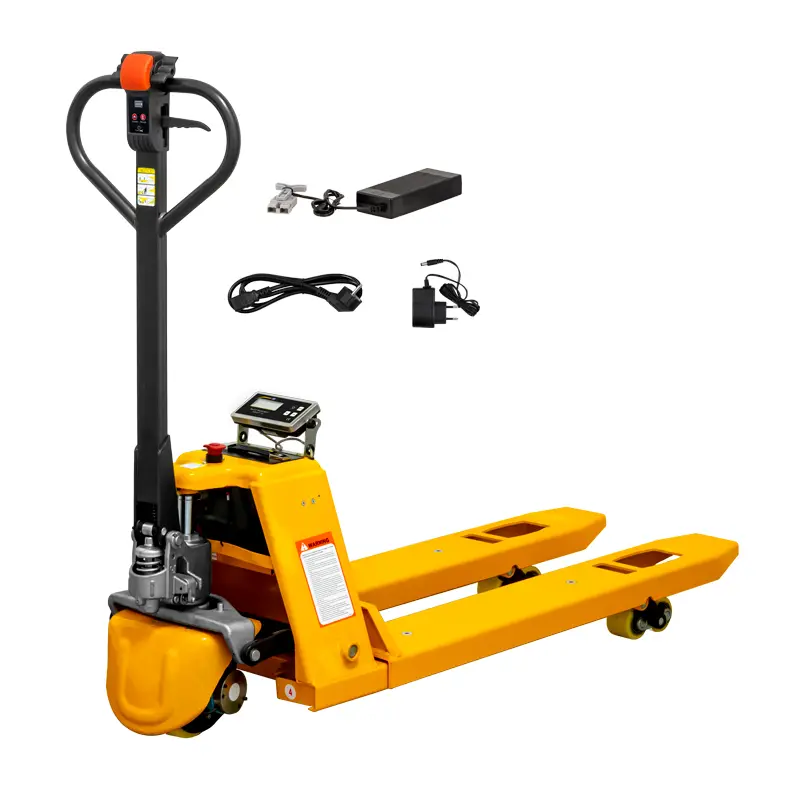

1 x Pallet Truck Scale PCE-EPT 1.5-ICA
2 x Mains power adapters
3 x 1.5V AA batteries
1 x 24V battery pack
1 x Instruction manual

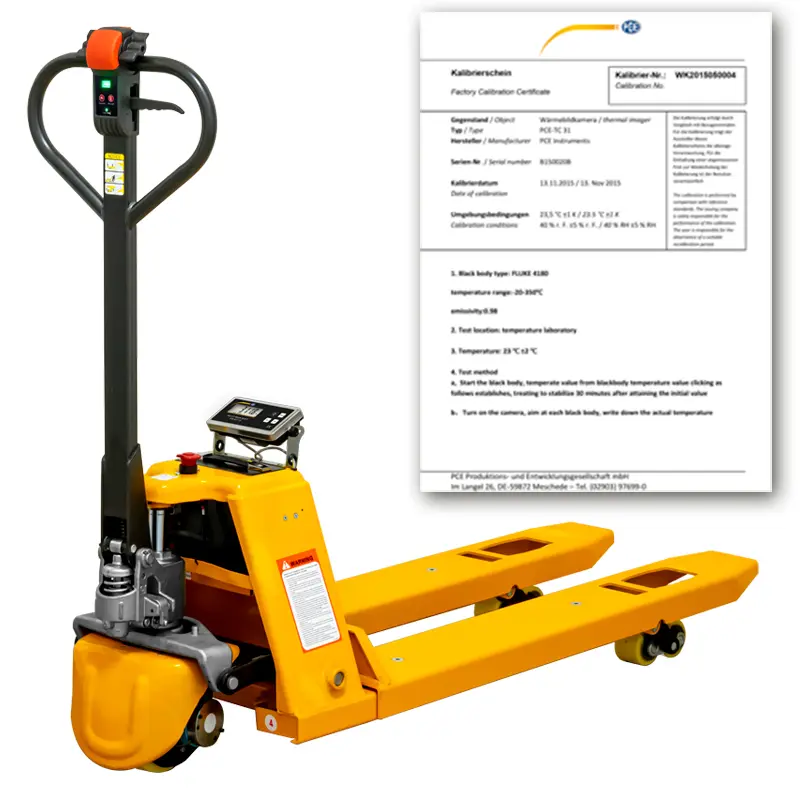

1 x ISO calibration certificate

N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.

Accessories

Order no.: CAL-PCE-HW
Calibration certificate for hand pallet truck scales up to 1.5t
ISO calibration certificate, e.g. to comply with your DIN ISO 9000. For this we send the balance to our in-house calibration laboratory. You as the client, the measured values and the serial number are recorded in this ISO calibration certificate.

- Range up to 1.5t

N.B. Calibration certificates are issued specifically for the customer and are non-returnable.
