  5. Industrial Scale PCE-EPT 1.5-ICA with electric drive inc ISO Calibration Cert
Order no.: PCE-EPT 1.5-ICA

Industrial Scale PCE-EPT 1.5-ICA with electric drive inc ISO Calibration Cert

ISO Calibration
£ 2,839.00
£ 3,406.80
:
4250348729866
PCE-EPT 1.5-ICA
price ex. (VAT / delivery)
5 t
0,1 kg
Calibratable
Delivery time: 10 - 14 days

Description

Industrial Scale PCE-EPT 1.5-ICA / Weighing range 0 ... 1500 kg / Fork height 86 ... 196 mm / Quickly exchangeable battery / Faster and slower running / "Hold" and "tare" function /
Backlight / Rubber wheels / Incl. ISO calibration certificate / Electric drive

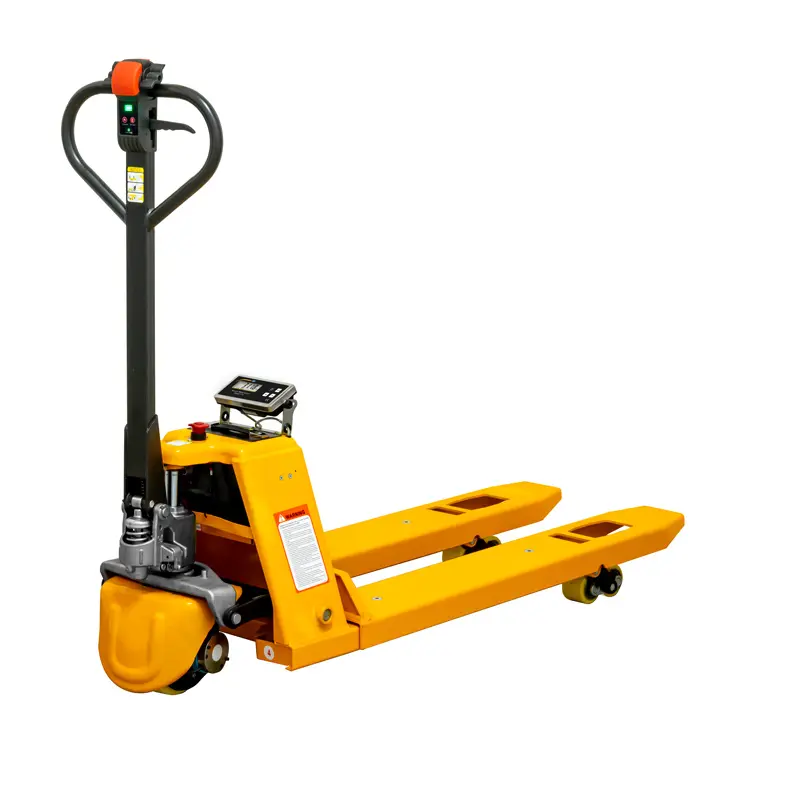

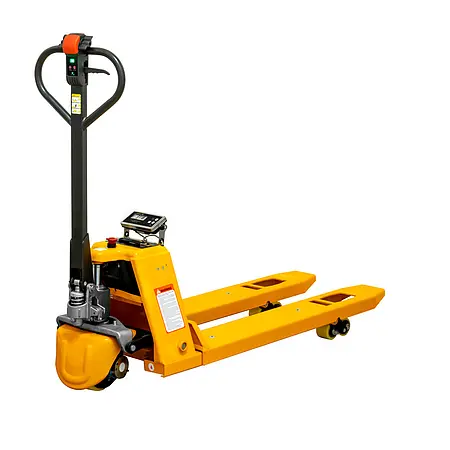

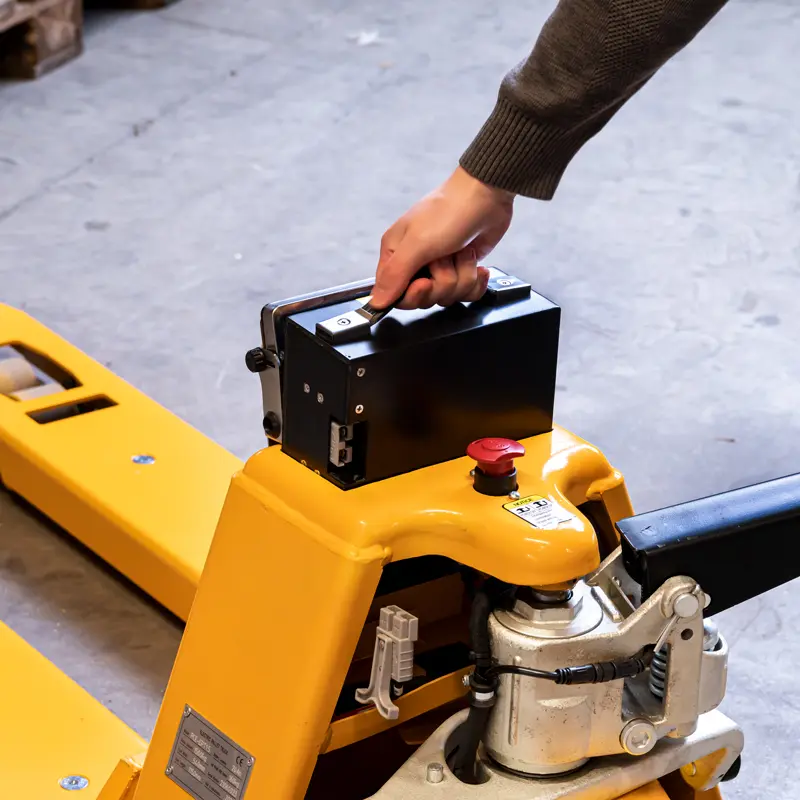

The industrial scale is a lift truck with an integrated electric motor drive. The industrial scale's 20 Ah battery can be recharged using the supplied power pack. If necessary, the battery in the industrial scale can be replaced with a fully charged battery in just a few steps. This ensures an almost uninterrupted workflow in, for example, 24/7 operation with the industrial scale.

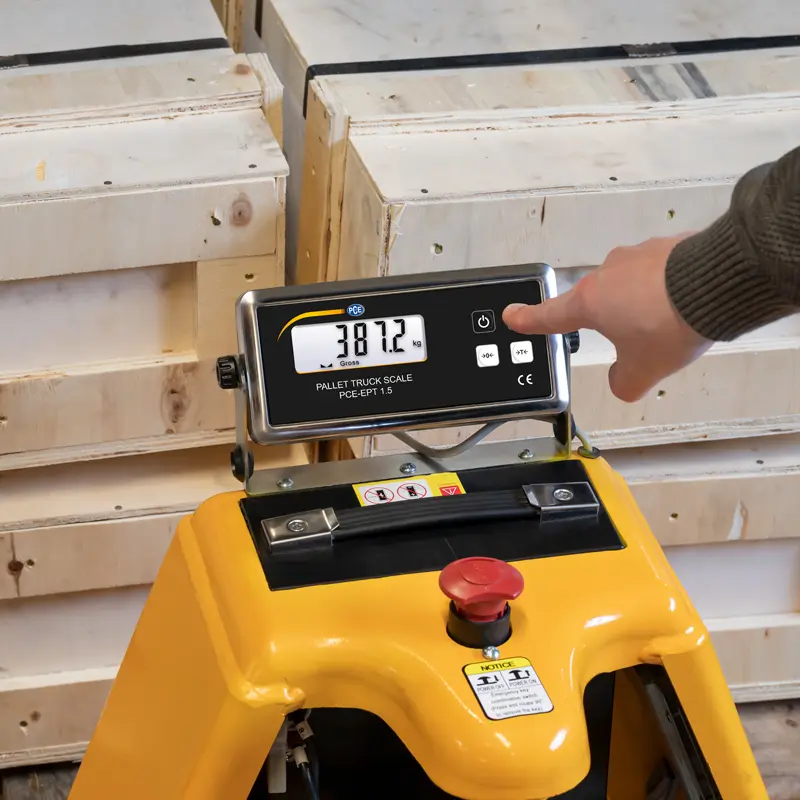

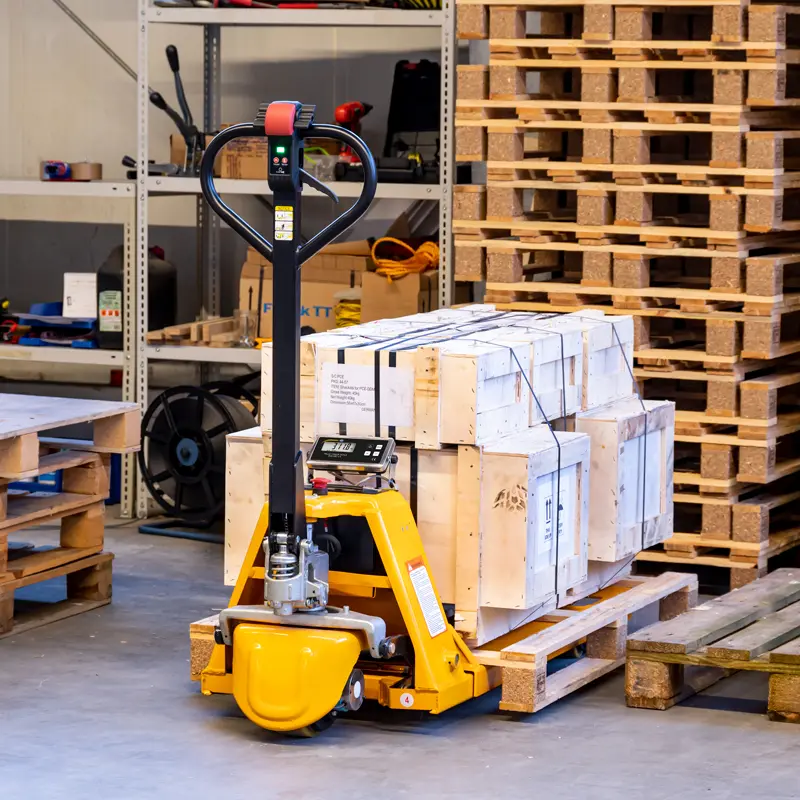

In addition, the industrial scale has a weighing function. This allows pallets to be weighed with the scale. The weight on the industrial scale is measured using four built-in load cells with a total measuring range of 0 ... 1500 kg. To facilitate weighing, a zero point and taring can be carried out.

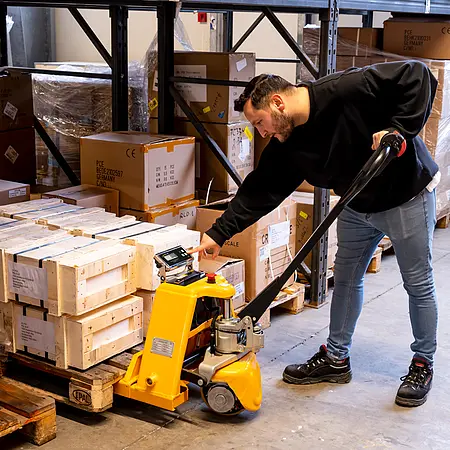

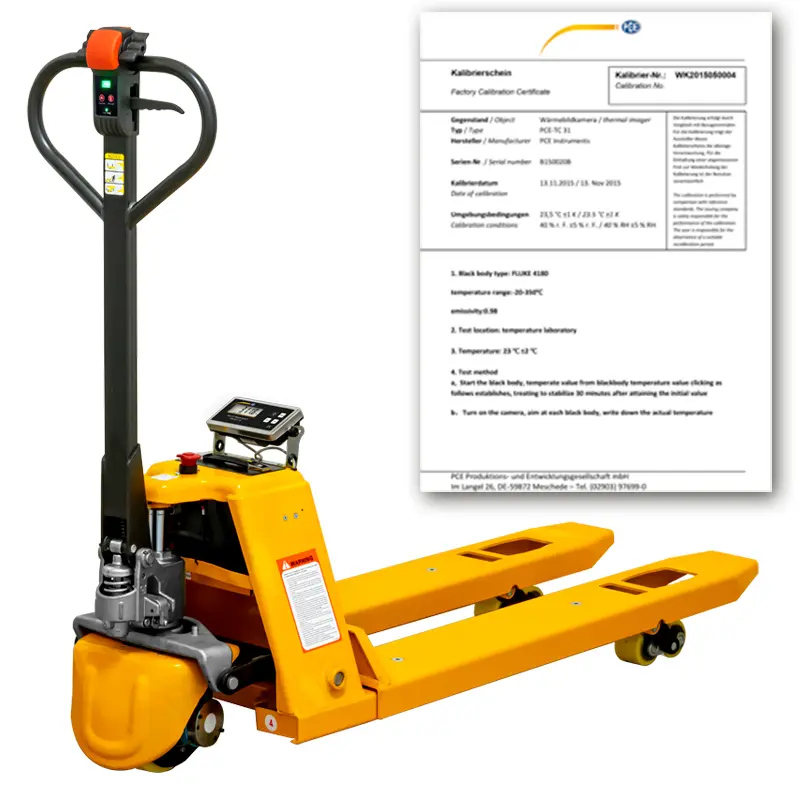

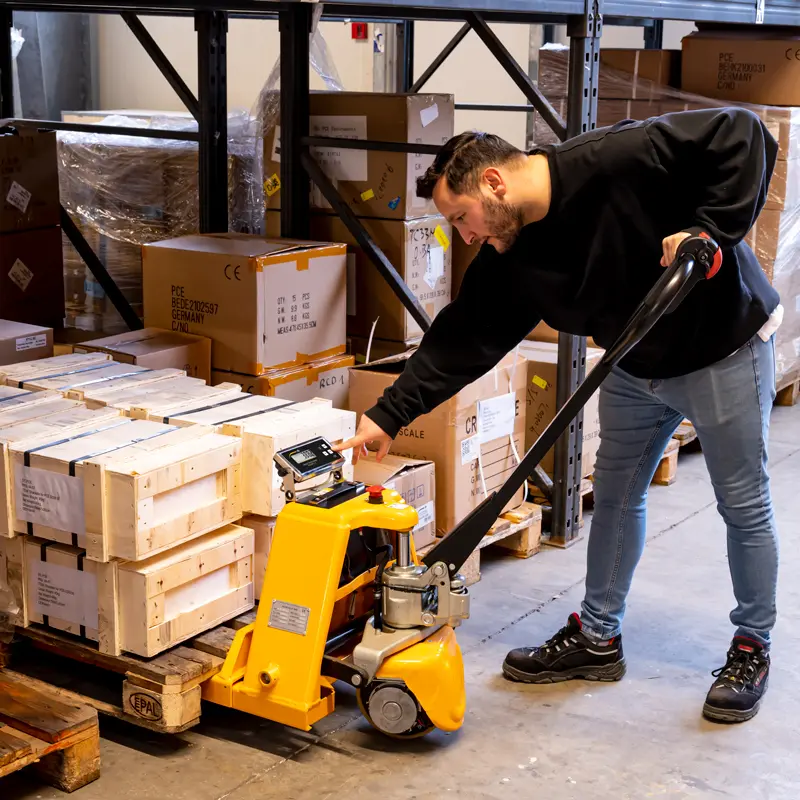

Thanks to the electric drive and the integrated weighing device, the industrial scale is the ideal support for every logistics or forwarding employee. This increases productivity and at the same time reduces the burden on employees. The industrial scale is equipped with an ISO calibration certificate.

Highlights

- Weighing range 0 ... 1500 kg / 3306 lb
- Resolution 0.1 kg / 0.22 lb
- Quickly replaceable battery with a long service life
- Fork height 86 ... 196 mm / 3.3 x 7.7"

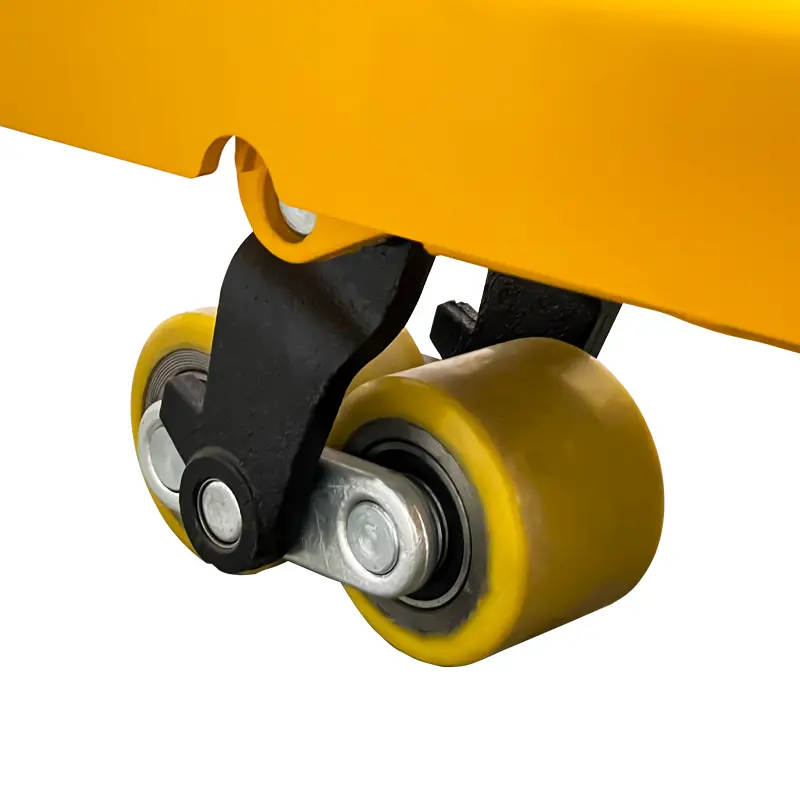

- Rubber wheels
- With electric drive
- Incl. ISO calibration certificate

Specification

Weighing range 0 ... 1500 kg / 3306 lb
Resolution 0.1 kg / 0.22 lb
Accuracy ±0.2% of measuring range

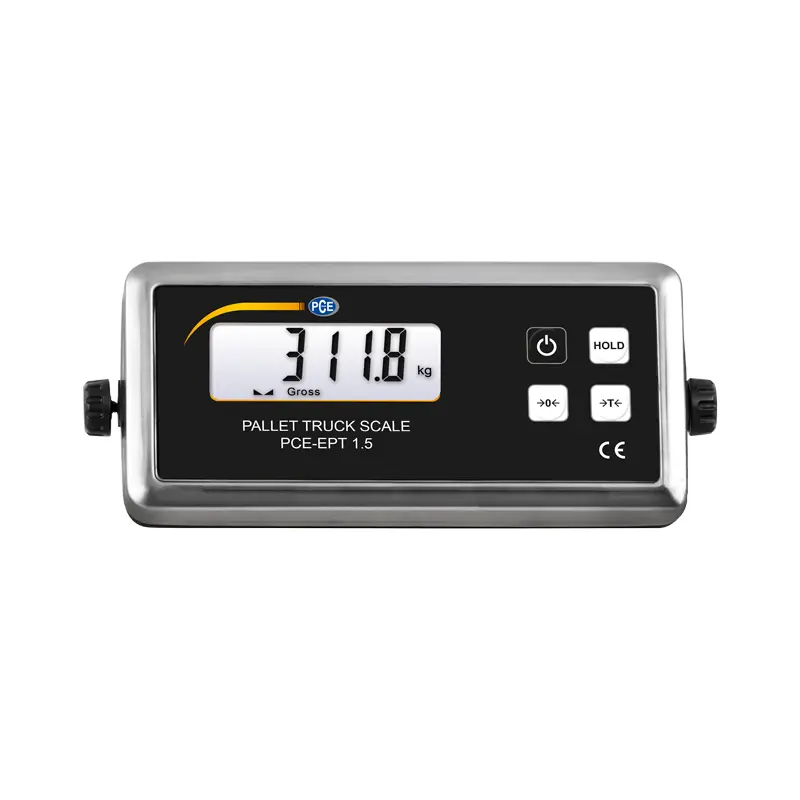

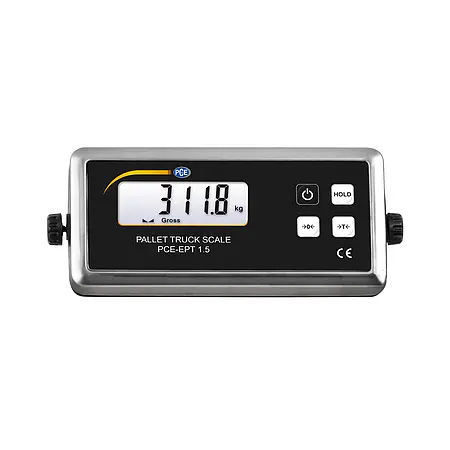

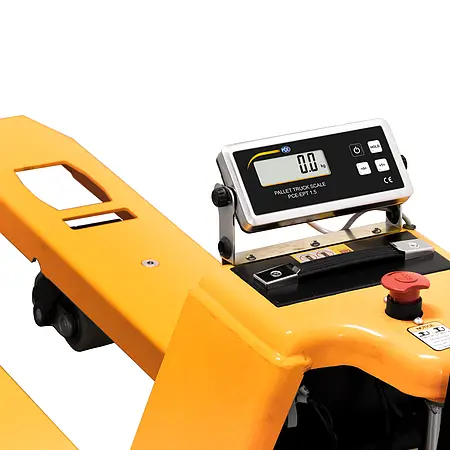

Display
Taring range over the entire weighing range
Zero point (automatic) to 10% of measuring range
Zero point (manual) to 2% of measuring range
Digit height 20 mm / 0.78"
Power supply battery 3 x 1.5 V AA batteries
Power supply mains adapter primary: 100 ... 240 V AC, 50/60 Hz, 0.3 A
  secondary: 6 V DC, 500 mA
Battery life with
backlight ca. 30 hours
Battery life without
backlight ca. 100 hours

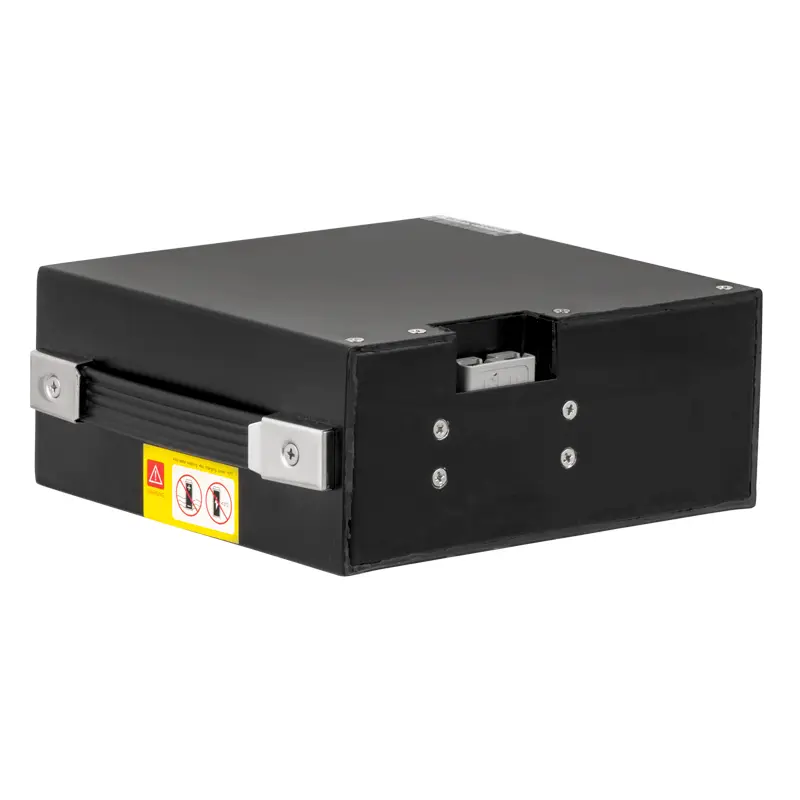

Battery pack
Power supply (battery) 24 V, 20 Ah
Power supply (mains adapter) primary: 100 ... 240 V AC, 50/60 Hz, 1.6 A

secondary: 29.4 V DC, 4 A
Weight battery 5 kg / 10 lbs

Further specifications

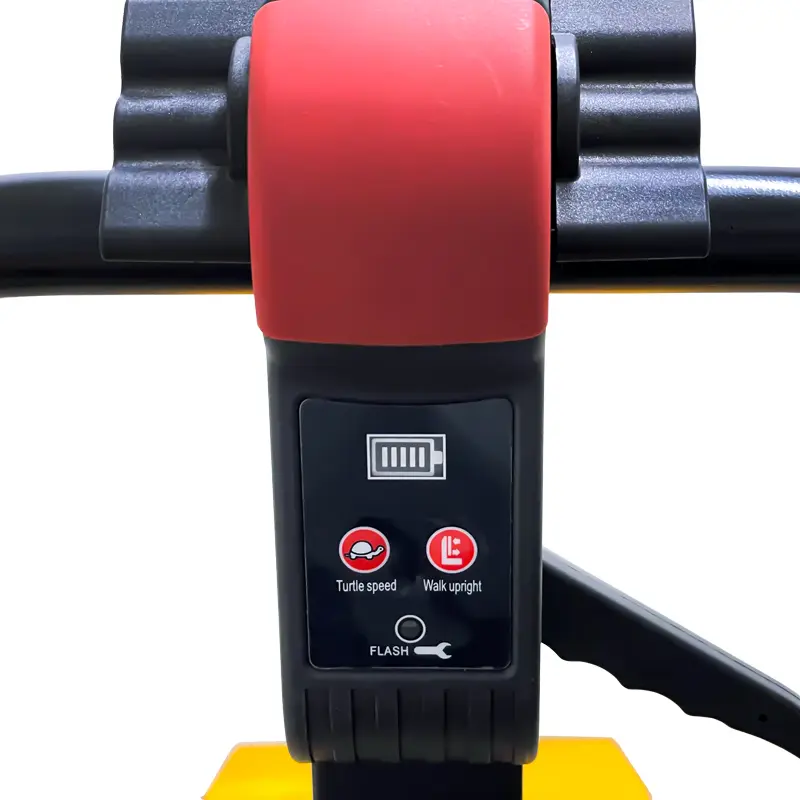

Functions horn, slow and fast drive mode,
  drive with a vertical tiller
Speed ​​(loaded) 4 km/h / 2.5 mph
Speed ​​(unladen) 4.5 km/h / 2.8 mph
Maximum gradeability (loaded) 3 %
Maximum gradeability (unladen)       18 %
Motor power 450 W
Parking brake electromagnetic
Tyres PU
Tyre size (drive) Ø150 x 70 mm / Ø5.9 x 2.75“
Tyre size (loading area) 4 x Ø80 x 60 mm / Ø3.15“ x 2.36“
Ambient conditions -10 … 40 °C / 14 ... 104 °F; <85 % RH, non-condensing
Dimensions dimensions can be found in the instructions
Weight 160 kg / 352 lb

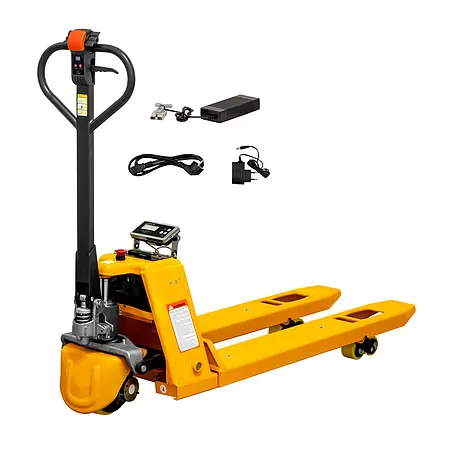

Delivery Scope

1 x Industrial Scale PCE-EPT 1.5-ICA
2 x Mains power adapters
3 x 1.5V AA batteries
1 x 24V battery pack
1 x Instruction manual
1 x ISO calibration certificate

N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
