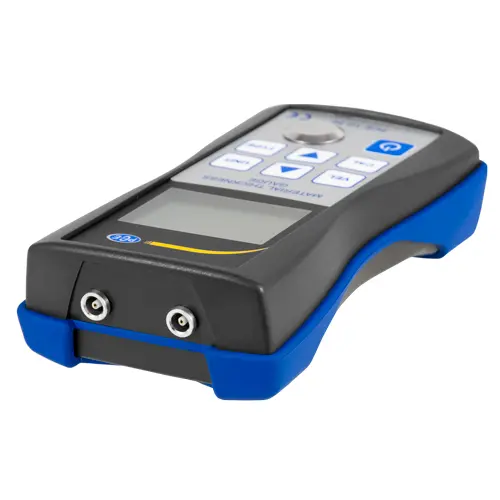

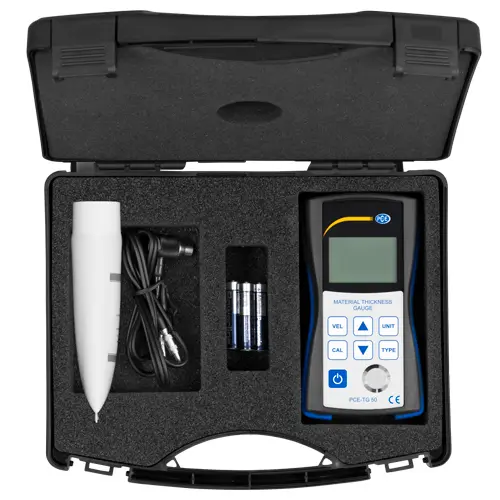

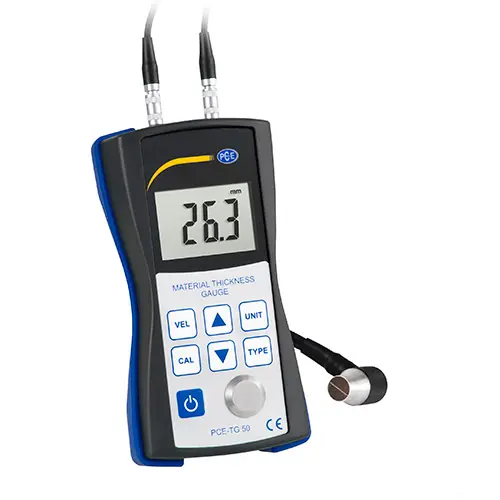

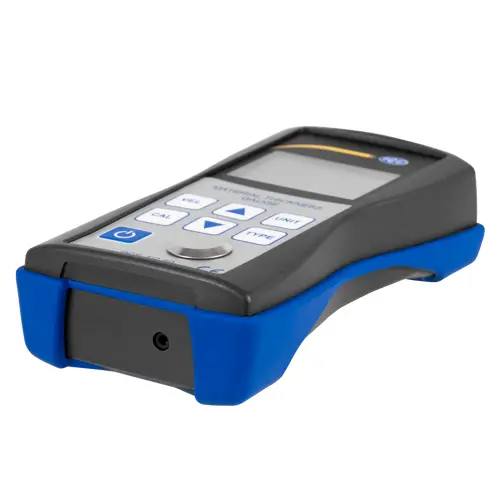

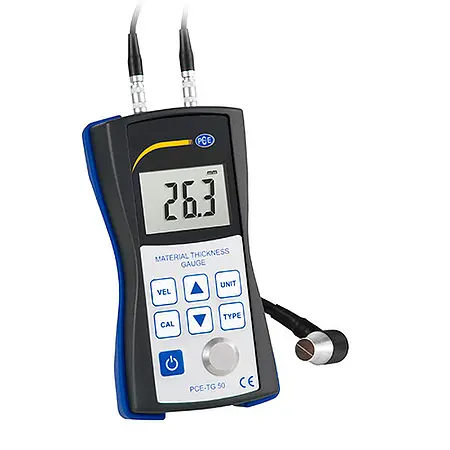

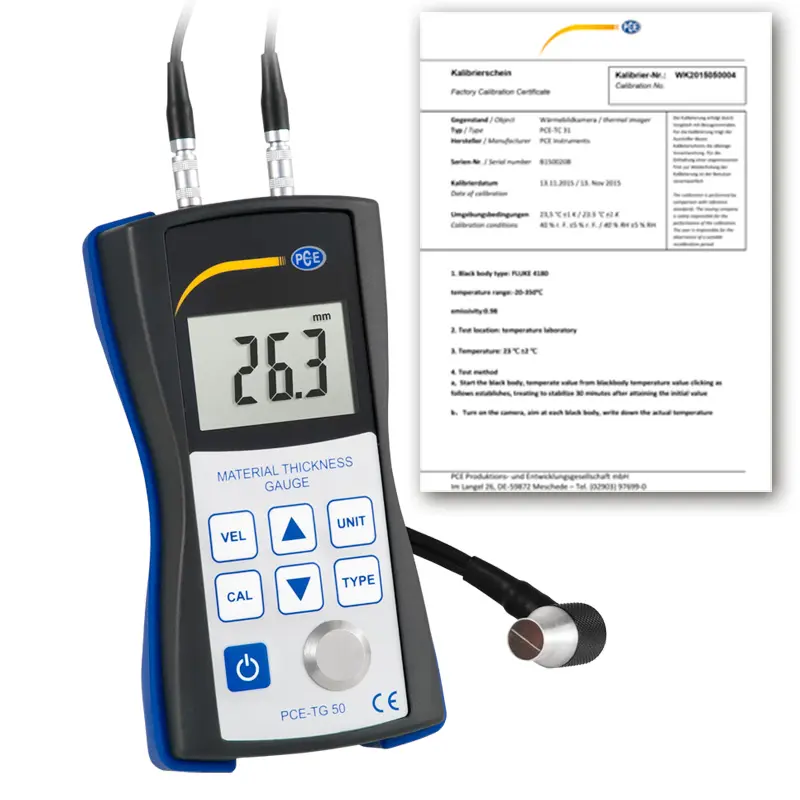

Wall Thickness Gauge incl. ISO Calibration Certificate
Portable handheld thickness gauge with a measuring range of 1.2 ... 200.0 mm / 0.05 ... 7.87 inches (steel) and adjustable ultrasound speed / velocity

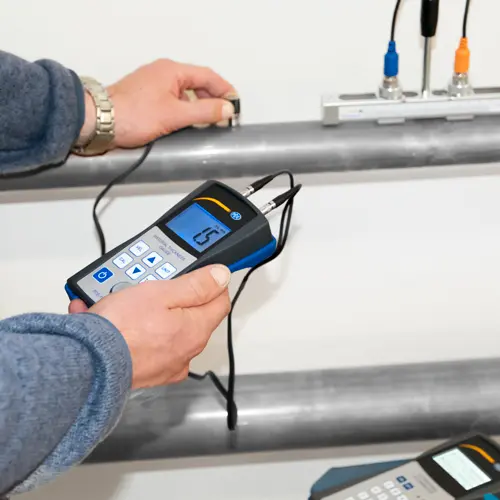

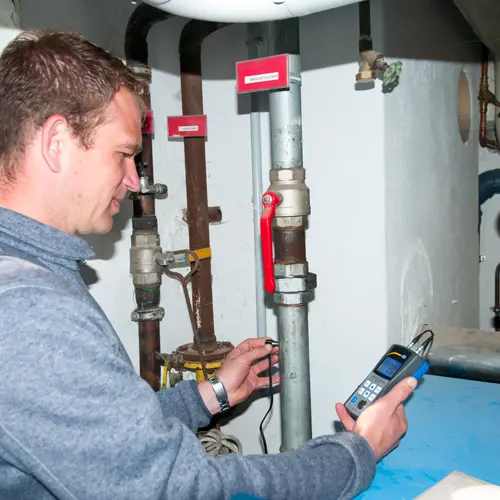

This is a compact wall thickness gauge or gauge used to measure the thickness of metal, glass, plastic and other homogeneous materials. This portable handheld wall thickness gauge operates with an external ultrasonic contact transducer sensor probe and requires the use of coupling gel or paste. The probe directs ultrasonic waves through the coupling gel into the material to be tested. Since different materials conduct ultrasound at different speeds or velocities, the wall thickness gauge allows for ultrasound velocity adjustments to accommodate a wide variety of material testing applications.
With the wall thickness gauge, you can determine the thickness of metal, glass, plastic and other homogeneous materials in seconds. Operation of the ultrasonic wall thickness gauge is easily carried out via the seven-button interface. Using the integrated calibration block, the measuring device can be calibrated onsite or in the field with minimal effort. Measured values can be transferred to a PC using the optional software and connection cable (sold separately - see accessories for details). The software also offers the possibility to export the data into Microsoft Excel.
- Measurement range: 1.2 ... 200.0 mm / 0.05 ... 7.87 in (steel)
- Accuracy: ± 0.5% of rdg. ± 0.1 mm / ± 0.00393701 in
- Resolution: 0.1 mm / 0.001 in
- Ultrasound velocity (adjustable): 800 ... 9950 m/s / 2624.67 ... 32644.36 ft/s
- Adjustable ultrasound velocity (for thickness measurements of different materials)
- Requires use of contact gel or paste
- Features an integrated steel calibration block and user-friendly DIY calibration procedure
- Optional software and connection cable (sold separately) for data transfer to a PC - see accessories for details
- Incl. ISO calibration certificate
|
| |
| Measurement range | 1.2 ... 200 mm / 0.05 ... 7.87 in (steel) |
| Accuracy | ± 0.5% of rdg. ± 0.1 mm / ± 0.00393701 in |
| Transducer | 5 MHz frequency, 8 mm / 0.32 inch diameter; Probe support surface: 10.2 mm / 0.4 in diameter; Head: 15.4 mm diameter / 0.61 in |
| Resolution | 0.1 mm / 0.001 in |
| Ultrasound velocity | 800 ... 9950 m/s / 2624.67 ... 32644.36 ft/s (adjustable) |
| Display | 4-digit LCD |
| Operating conditions | -10 ... 50°C / 14 ... 122°F; Relative humidity: < 80% RH |
| Calibration block | 5.0 mm / 0.2 in steel (integrated) |
| Measuring units | mm or in (adjustable) |
| Material temperature | 0 ... 50°C / 32 ... 122°F (permanent); 50 ... 85°C / 122 ... 185°F (for 5 minutes, then 30 minutes cooling below 50° C / 122°F) |
| Data interface | RS-232 port |
| Power supply | 3 x 1.5V AAA batteries (approx. 250 hours of battery life) |
| Dimensions | Approx. 142 x 77 x 40 mm / 5.6 x 3.1 x 1.6 inches (handset) |
| Weight | Approx. 265 g / < 1 lb (handset with batteries and probe) |
ISO re-calibration incl. certificate for material thickness meter. This is often required to comply with DIN ISO 9000.
- Calibration points are: 5; 10; 20; 50 and 100 mm
If your calibration certificate expires, you can easily return your meter for re-calibration.
We carry out the calibration and send you the device with a new calibration certificate.
Calibration certificates are issued specifically for the customer and are excluded from the right of return
Price excl. VAT &. delivery
2 year Warranty
High temperature probe as optional accessory for PCE-TG series. Probe for use at high temperatures.
- Measuring range: 4 .. 100 mm / 0.15 ... 3.93"
- Operating temperature: -10 ... +300 °C / 14 ... 572 °F
Price excl. VAT &. delivery
2 year Warranty

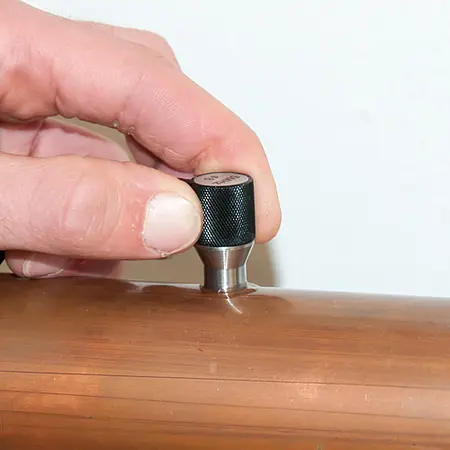

Miniature probe as optional accessory for PCE-TG series. Angled probe.
- Measuring range: 1.0 .. 50.0 mm / 0.03 ... 1.96"
- Operating temperature: -10 ... +60 °C / 14 ... 140 °F
Price excl. VAT &. delivery
2 year Warranty

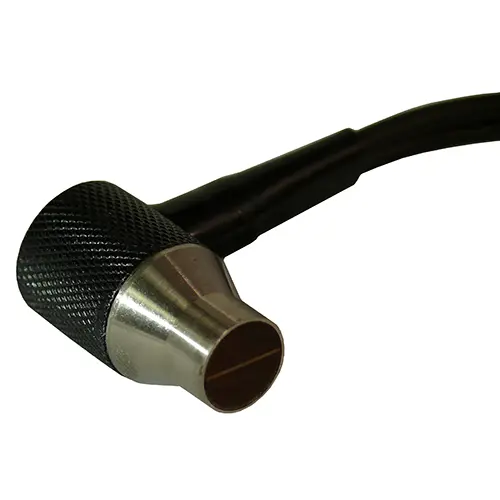

Standard probe as optional accessory for PCE-TG series. Angled probe.
- Measurement range 1.2 ... 200 mm / 0.05 ... 7.87 in (steel)
- Operating conditions -10 ... 50°C / 14 ... 122°F; Relative humidity: < 80% RH
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
