Current measurement DC A
Measuring range  Resolution  Accuracy (of measured value)
500 μA  0.01 μA  ± (1% + 6 digits)
5000 μA  0.1 μA  ± (1% + 6 digits)
50 A  0.01A  ± (2.5% + 5 digits)
1000 A  0.1 A  ± (2.5% + 30 digits)
Current measurement AC A
Measuring range  Resolution  Accuracy (of measured value)
500 μA  0.01 μA  ± (1.5% + 30 digits)
5000 μA  0.1 μA  ± (1.5% + 30 digits)
50 A  0.01A  ± (2.5% + 30 digits)
1000 A  0.1 A  ± (2.8% + 30 digits)
Note: For AC A measurements, the specification of accuracy refers to the range of 5% to 100% of the measuring range
Resistance measurement
Measuring range  Resolution  Accuracy (of measured value)
500 Ω  0.01  ± (1% + 9 digits)
5 kΩ  0.0001  ± (1% + 5 digits)
50 kΩ  0.001  ± (1% + 5 digits)
500 kΩ  0.01  ± (1% + 5 digits)
5 MΩ  0.0001  ± (3% + 10 digits)
50 MΩ  0.001  ± (3.5% + 10 digits)
Voltage measurement DC V
Measuring range  Resolution  Accuracy (of measured value)
500 mV  0.01 mV  ± (0.1 % + 8 Digit)
5 V  0.0001 V  ± (0.1 % + 4 Digit)
50 V  0.001 V  ± (0.1 % + 4 Digit)
500 V  0.01 V  ± (0.1 % + 4 Digit)
600 V  0.1 V  ± (0.5 % + 4 Digit)
Voltage measurement AC V (50 Hz ... 100 Hz)
Measuring range  Resolution  Accuracy (of measured value)
500 mV  0.01 mV  ± ( 0.8 % + 9 Digit) (at 50 Hz / 60 Hz)
5 V  0.0001 V  ± (1 % + 30 Digit)
50 V  0.001 V  ± (1 % + 30 Digit)
500 V  0.01 V  ± (1 % + 30 Digit)
600 V  0.1 V  ± (1 % + 30 Digit)
Note: For AC V measurements, the specification of accuracy refers to the range of 5% to 100% of the measuring range
Capacitance measurement
Measuring range  Resolution  Accuracy (of measured value)
500 nF  0.01  ± (3.5% + 40 digits)
5000 nF  0.1  ± (3.5% + 10 digits)
50 μF  0.001  ± (3.5% + 10 digits)
500 μF  0.01  ± (3.5% + 10 digits)
5mF  0.0001  ± (5% + 10 digits)
Frequency measurement
Measuring range  Resolution  Accuracy (of measured value)
50 Hz  0.001  ± (0.3% + 2 digits)
500 Hz  0.01  ± (0.3% + 2 digits)
5 kHz  0.0001  ± (0.3% + 2 digits)
50 khz  0.001  ± (0.3% + 2 digits)
500 kHz  0.01  ± (0.3% + 2 digits)
5 Mhz  0.0001  ± (0.3% + 2 digits)
10 MHz  0.001  ± (0.3% + 2 digits)
Duty cycle
Measuring range  Resolution  Accuracy (of measured value)
5% ... 95%  0.1
± (1% + 2 digits)
Pulse width: 100 μs ... 100 ms
Frequency: 10 Hz ... 10 kHz
Temperature
Measuring range  Resolution  Accuracy (of measured value)
100 ... 1000°C / 148 ... 1832°F  0.1  ± (1% + 2.5°C / 3.5°F)
General technical data
Conductor diameter  Max. 48 mm / 1.9 in
Display
Two lines 50,000 digits
Continuity test  50 ohms / < 50 mA
Diode test  0.3 mA / 2.8 V DC
Battery indicator  Battery icon when battery low
Overrange  OL, if measuring range exceeded
Sample rate  2 Hz
Peak detection  > 1 ms
Thermocouple  Type K
Fuse  500mA ceramic quickacting
AC bandwidth (AC A / AC V)  50 Hz ... 400 Hz
AC measurement  True RMS
Operating conditions  5 ... 40°C / 41 ... 104°F, max. 80% RH at 31°C / 87.8°F
Storage conditions  20 ... 60°C / 4 ... 140°F, max. 80% RH
Power supply  9V block battery
Automatic shutdown  After about 30 minutes
Dimensions (W x H x D)  230 x 76 x 40 mm / 9 x 3 x 1.6 in
Weight  315 g / < 1 lb
Safety  IEC
10101 (2001): EN 610101 (2001) CAT III 600V CAT II 1000V Degree of pollution 2

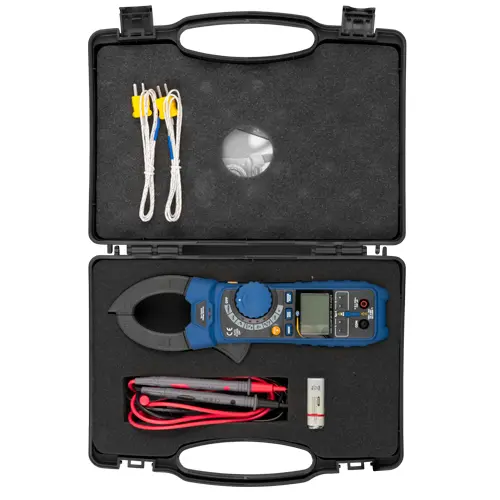

1 x Voltmeter PCEHVAC 6
1 x Transport bag
2 x Test leads
1 x Battery 9V block battery

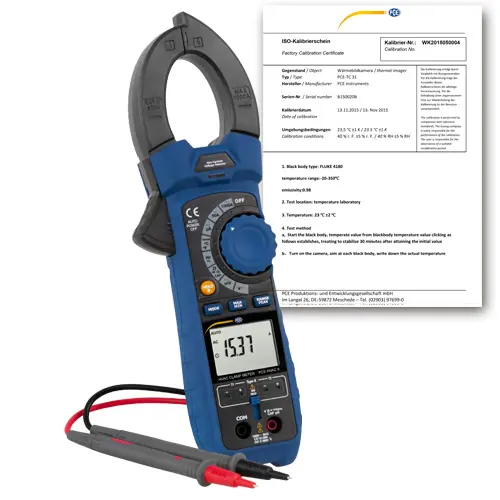

1 x ISO Calibration Certificate
N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
