PCE-TU 3 Vibration Analyzer Laser Shaft Alignment Tool
Prevent premature failure of couplings, bearings and mechanical seals

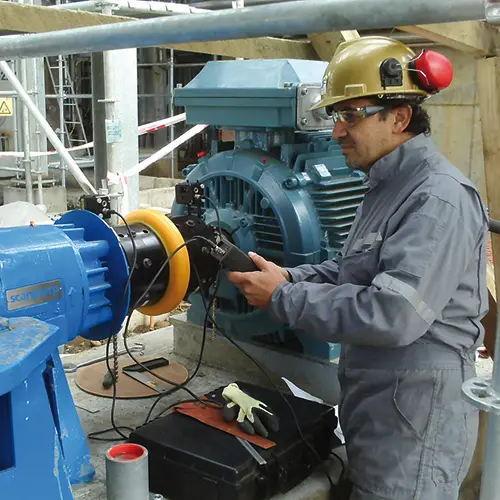

PCE-TU 3 is a vibration analyzer laser shaft alignment tool designed to aid in aligning rotating equipment (e.g., electric motor and direct-coupled machine) shafts to prevent premature failure of couplings, bearings and mechanical seals. PCE-TU 3 also helps you detect and correct soft foot to avoid costly downtime.

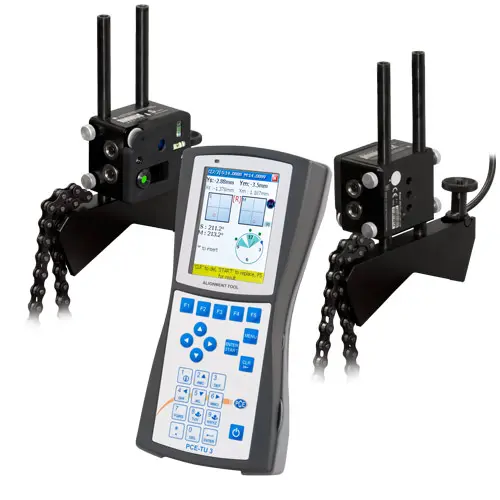

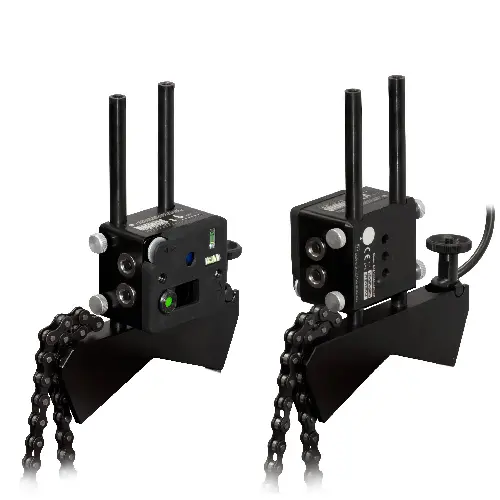

The PCE-TU 3 alignment tool features two red laser sensors that can be fixed to a shaft. This class 2 laser system has a typical wavelength of 670 nm, < 1 mW capacity, and maximum radiation energy of 0.1 mJ per impulse. The class 2 laser meets applicable ANSI, BS 4803, IEC 825 and US FDA requirements.
|Max. distance||10 m / 32.8 ft between sensors|
|Accuracy||±1 % + 0.01|
|Display resolution||0.01 or 0.001 mm|
|Sensor type||Position-sensitive photo diodes, approx. 10 x 10 mm / 0.4 x 0.4"|
|Laser type||Visible, red, 635 ... 670 nm, < 1 mW|
|Tilt (incline) resolution||0.1 °|

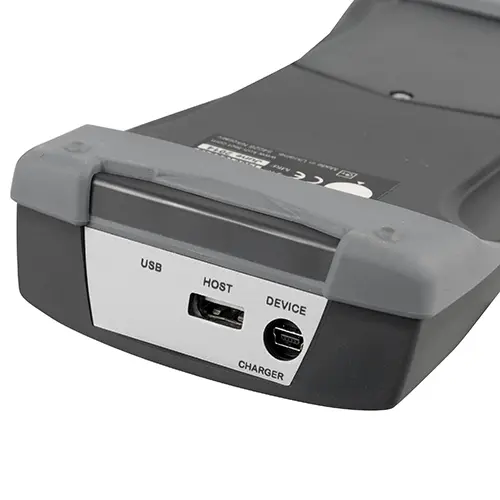

|Interface||USB standard, Bluetooth optional|
|Memory||2 GB data, internal|
|Operating temp. range||-10 ° ... +55 °C / +14 ... +131 °F|
|Power supply||NiMH battery (rechargeable)|
|Ingress protection rating||IP65|
|Weight||7.5 kg / 16.5 lbs|
See user manual for complete specifications.
