  • Video Thermography Test Instrument PCE-TC 28

Thermography Test Instrument PCE-TC 28

Order no.: PCE-TC 28
new
£ 227.00
£ 272.40
4250348715951
PCE-TC 28
1 pcs.
price ex. (VAT / delivery)
Delivery time: 1-2 working days

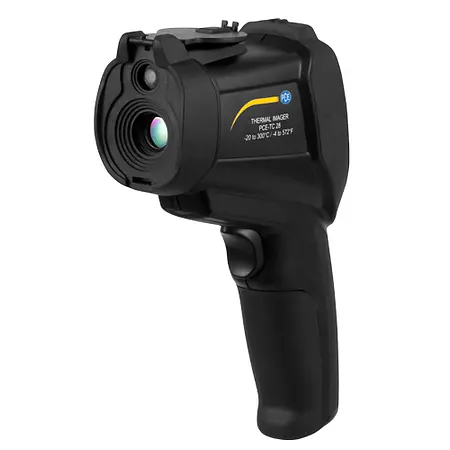

Thermography Camera PCE-TC 28
Infrared camera for non-contact temperature measurements / adjustable emissivity
built-in digital camera / auto power-off / adjustable threshold levels /
SD card memory

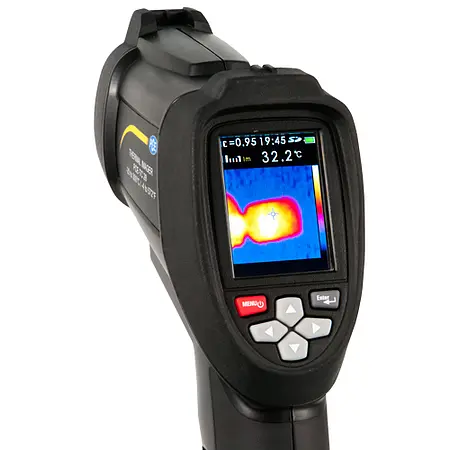

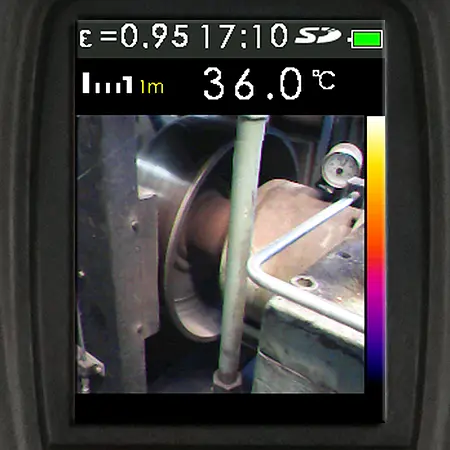

The infrared camera was designed for taking non-contact temperature measurements. To get accurate readings, the emissivity of the infrared camera can be adjusted, depending on the operation purpose. Besides taking infrared images, the infrared camera can also take normal pictures, as well as a mixture of both, due to the built-in digital camera. This makes it easier for the operator to aim at the target and to recognize and locate hotspots.

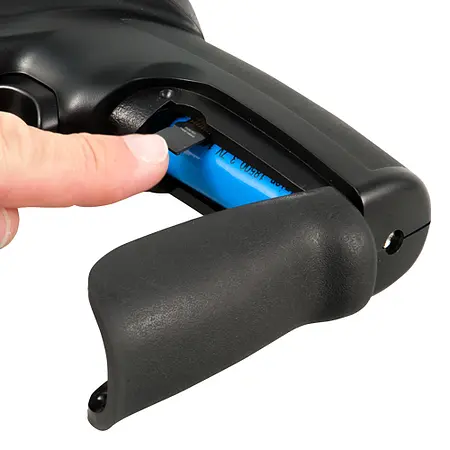

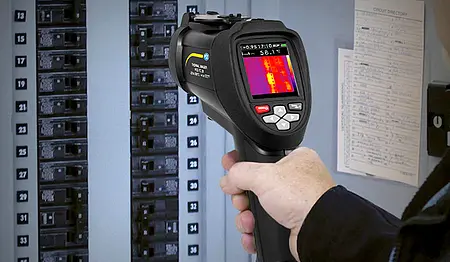

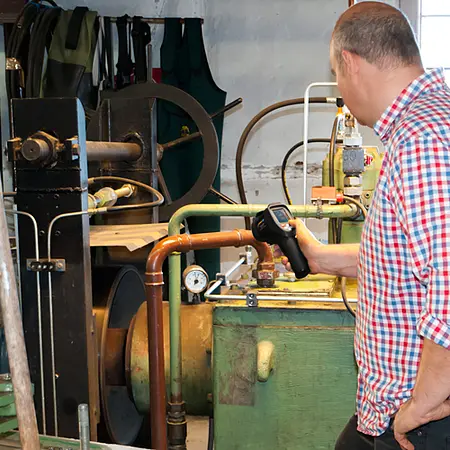

The infrared camera is well-suited for a large variety of applications. This includes monitoring of machinery, building inspection or different applications in the hobby and leisure domain, for example. The infrared camera comes with a built-in SD card slot for MicroSD cards. The device supports different memory card capacities. It is possible to store up to 6000 images per gigabyte on the SD card of the infrared camera.


- built-in digital camera
- adjustable emissivity
- fast sampling time
- MIN/MAX indication
- exchangeable Li-ion battery
- auto power-off function

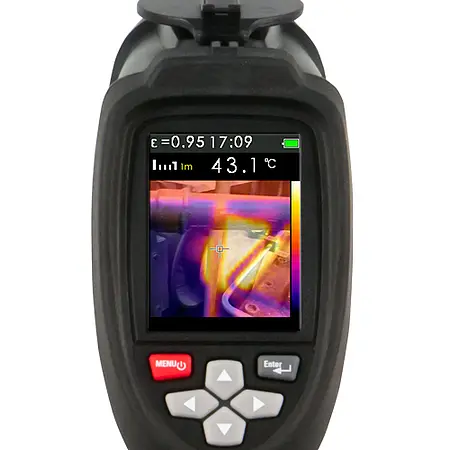

- TFT display with backlight

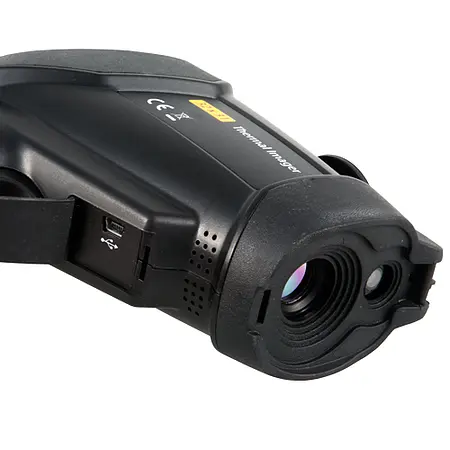

- protective cap for the lens

Temperature

Measurement range

-20 ... +300 °C

Accuracy

±2 %, ±2 °C

Emissivity correction on screen

Yes

Setting of background temperature

Yes


Frequency image recording

9 Hz

Type of detector

Uncooled pyroelectric ceramics

Thermal sensitivity

≤150 mK

Infrared spectral band

6.5 ... 14 µm

Camera

48608 Pixel

Field of view

38 x 38 °

Mechanism of focus

Fixed focus

Parallax correction of visual and IR image

0.5 m, 1.0 m, 2.0 m, 3.0 m

Picture-in-picture coverage of visual and IR image

0 / 25 / 50 / 75 / 100 %

Hot / cold spot localisation

Yes

Image recording and data storage

Image recording

Image can be viewed before saving

Storage medium

MicroSD card can save 6000 images per GB

File format

.bmp

Memory view

Possibility to scroll through all saved images

Operating temperature

0 ... +50 °C

Storage temperature

-20 ... +60 °C

Relative air humidity

10 ... 90 %, non-condensing

Display

2.2 " diagonal, (320 x 240 TFT LCD)

Emissivities

Material

Thermal emissivity

Material

Thermal emissivity

Asphalt

0.90 ... 0.98

Fabric (black)

0.98

Concrete

0.94

Human skin

0.98

Cement

0.96

Foam

0.75 ... 0.80

Sand

0.90

Coal

0.96

Soil

0.92 ... 0.96

Lacquer

0.80 ... 0.95

Water

0.92 ... 0.96

Lacquer (matt)

0.97

Ice

0.96 ... 0.98

Rubber (black)

0.94

Snow

0.83

Plastics

0.85 ... 0.95

Glass

0.90 ... 0.95

Wood

0.90

Ceramics

0.90 ... 0.94

Paper

0.70 ... 0.94

Marble

0.94

Chromium (oxidised)

0.81

Plaster

0.80 ... 0.90

Copper (oxidised)

0.78

Mortar

0.89 ... 0.91

Iron (oxidised)

0.78 ... 0.82

Brick

0.93 ... 0.96

Textiles

0.90

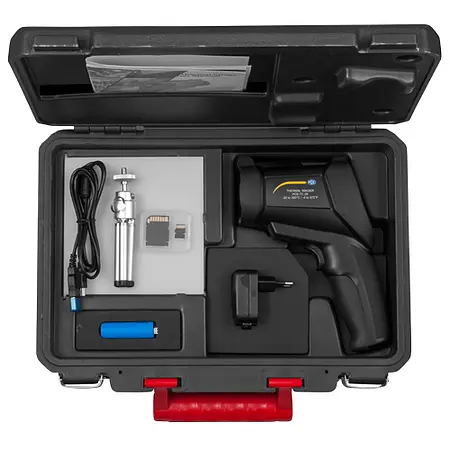

1 x Thermography Camera PCE-TC 28
1 x rechargeable Li-Ion battery
1 x USB data cable

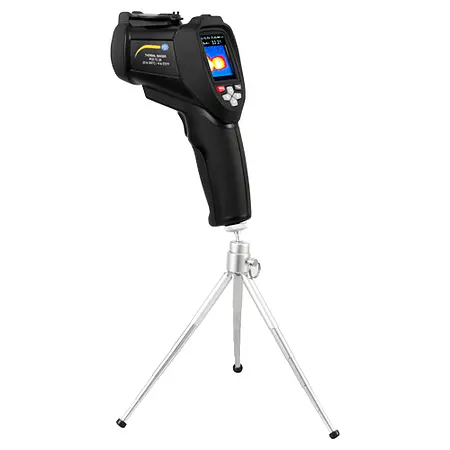

1 x mini tripod
1 x mains adaptor
1 x carrying case
1 x user manual
