Order no.: PCE-PDA A100L

Pressure Gauge PCE-PDA A100L

£ 622.00
£ 746.40
price ex. (VAT / delivery)
Delivery time: 1-2 working days

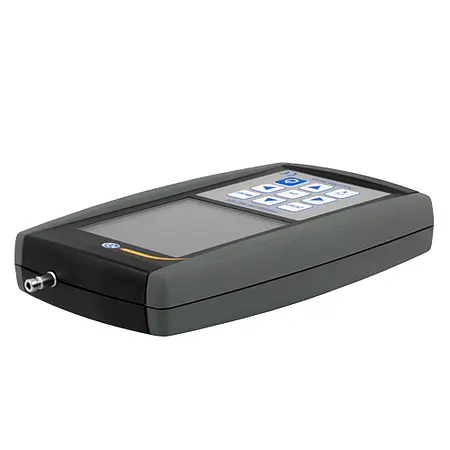

PCE-PDA A100L Pressure Gauge
Measuring instrument for barometric absolute pressure up to 200 kPa / Data logger / Graphic LCD / With USB interface / MAX MIN HOLD function

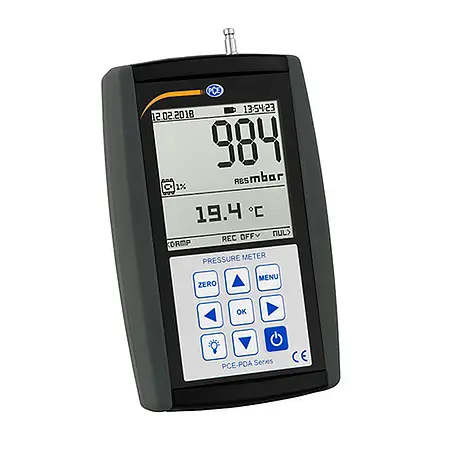

The pressure gauge PCE-PDA A100L is suitable for the measurement of the atmospheric pressure. This  pressure meter records the pressure from absolute zero to 200 kPa. The pressure gauge can be used for many mobile applications in industry and crafts. This professional pressure gauge can either be operated with batteries or rechargeable batteries. In battery mode, the USB interface allows charging of the inserted batteries. The PCE-PDA A100L pressure gauge is equipped with a large LC display. A display illumination makes it easier to read the measured values ​​even under poor conditions. The pressure is measured by an internally installed sensor.

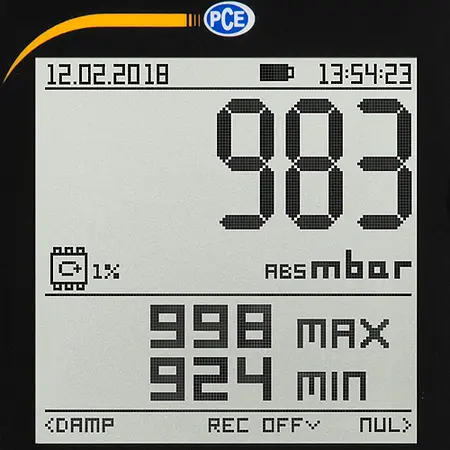

A plug-in nipple is available from the pressure connection. At these, the pressure of air and liquids can be passed through quick couplings to the sensor. The pressure gauge has a precision mode that allows the resolution of the measured value to be increased tenfold. In addition to the continuous pressure measurement, the display shows the maximum and minimum measured values ​​directly in the display. At the touch of a button, this storage can be reset. Furthermore, the pressure gauge performs a temperature measurement. To store the measured values ​​for further documentation purposes, the pressure gauge has a data logger. Here, the user can specify a storage interval and a recording period in which the pressure measured values ​​are stored.


- Graphic LCD
- USB interface
- Datalogger
- Absolute pressure measurement
- Different units
- MAX MIN HOLD function
- Measured value smoothing
- Integrated temperature measurement


Measuring range pressure 0 ... 200 kPa absolute
Resolution 0.01 kPa, 0.1 kPa
Accuracy <± 0.5% of the measuring range
Nominal pressure 200 kPa
Overpressure 200 kPa
Burst pressure 300 kPa
Media Liquids
Non-aggressive gasses
Measuring rate 10 Hz
Measurement units Pa, hPa, kPa, MPa, mbar, bar, ATM, kg / cm², mmH2O, cmH2O, inH2O, mmHg, inHg, Torr, PSI, PSF
Pressure Absolute pressure
Pressure connections 5 mm nipple for quick connectors
Max, Min and Hold function Yes
Data logger 1024 memory slots
1 s ... 255 h Recording time per memory location
1 s ... 24h recording interval
Medium For air and non-explosive gasses
Zero correction Yes, with a zero key
Averaging Yes, between 0.1 ... 9.9 s
Display Graphic LCD with backlight
Protection IP41
Power supply 2 x 1.5V AA battery / 1.2V NiMh battery
5V / 500-mA USB power adapter
Current consumption 50-mA (with backlight)
10-mA (without backlight)
Operating temperature 0 ... 50°C / 32 ... 122°F
Storage temperature 10 ... 55°C / 50 ... 131°F
Dimensions 145 x 85 x 35 mm / 5.7 x 3.3 x 1.4 in
WeightAbout 285 g / < 1 lb

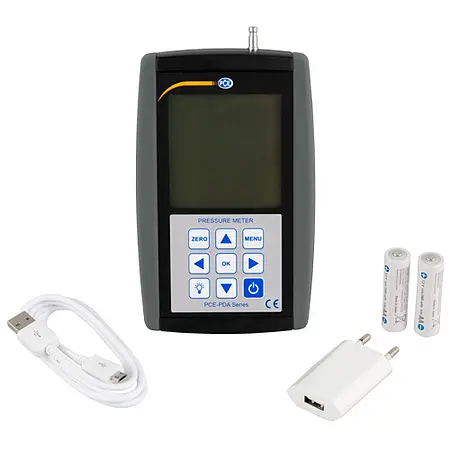

Delivery Scope

1 x Pressure gauge PCE-PDA A100L
2 x 1.2V AA NiMh batteries
1 x USB power adapter
1 x Micro USB cable
1 x User manual
