Order no.: PCE-EVSE-KIT2-ICA

PAT Tester/ Portable Appliance Testing Eqpt PCE-EVSE-KIT2-ICA incl ISO Cal Cert.

ISO Calibration
£ 1,305.00
£ 1,566.00
PCE-EVSE-KIT2-ICA
price ex. (VAT / delivery)
Delivery time: 10 - 14 days

Description

Robust Insulation Tester/ Electrical resistance / Earthing resistance / Loop impedance / Voltage measurement / Low resistance measurement / RCD test / incl. ISO Calibration Certificate

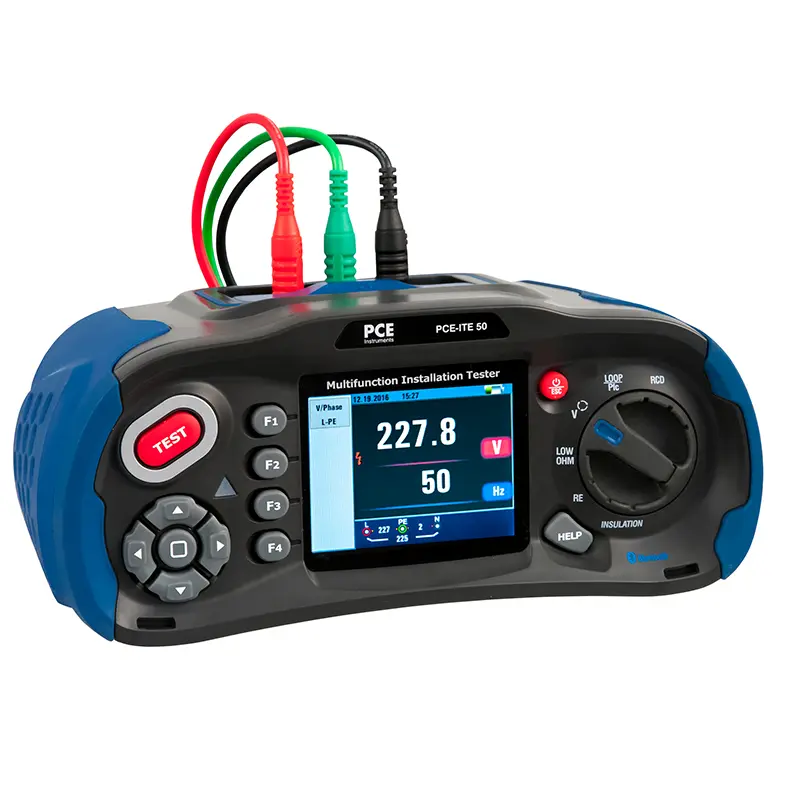

This is a robust installation tester with a large 3.5" TFT colour LCD display. The installation tester also offers, in addition to the various measuring modes such as insulation resistance, grounding resistance, loop impedance, voltage, low-impedance measurement and RCD test with the camera function, the possibility of documenting suitable photos with the measurements. With the installation tester, you can ensure that fixed installations are safely and correctly installed. Thanks to the dual display, the intuitive symbols and the high viewing angle, you can comfortably and quickly perform your measurements with the installation tester. With the low-resistance measurement of the installation tester, you can check grounding conductors, potential equalization rails and protective conductors for low impedance.

The measuring range for low-resistance measurement with the installation tester is in the range of 0 - 2000 Ω with a resolution of 0.001 - 1 Ω. Probably the most important measurement of the installation tester is the measurement of insulation resistance. Electrical cables are placed under voltage during the insulation measurement in order to detect fault currents, which generate material migration or heat. In most cases, these current faults are so minimal that they are not detected by protective devices and in the worst case they can lead to a fire. The installation tester can carry out installation measurement with a test voltage of 125V, 250V, 500V or 1000V.

The load current is in each case 1 mA. The installation tester is independent of the mains supply. In order to bring all systems and circuits of a power supply system to a common potential (ground reference or potential reference) and to protect against short-circuit currents and overvoltages, the earthing resistor should be as low-impedance as possible. With a measuring range of 0 ... 2000 Ω with a resolution of 0.01 ... 1 Ω, the installation tester DT-6650 offers all the prerequisites for a meaningful measurement of the grounding resistance.

EVSE adapter for charging plugs type 1 and 2 / PP and CP simulation /
Schuko socket connection / Direct acceptance of all connections via laboratory plugs

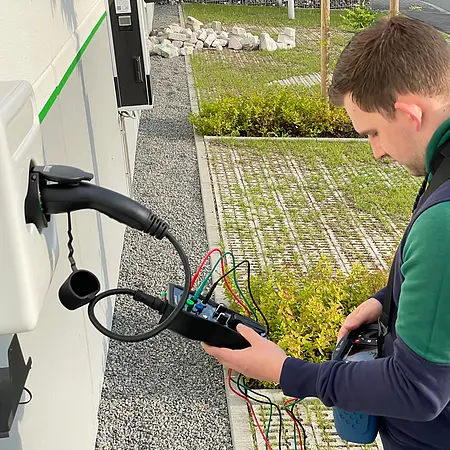

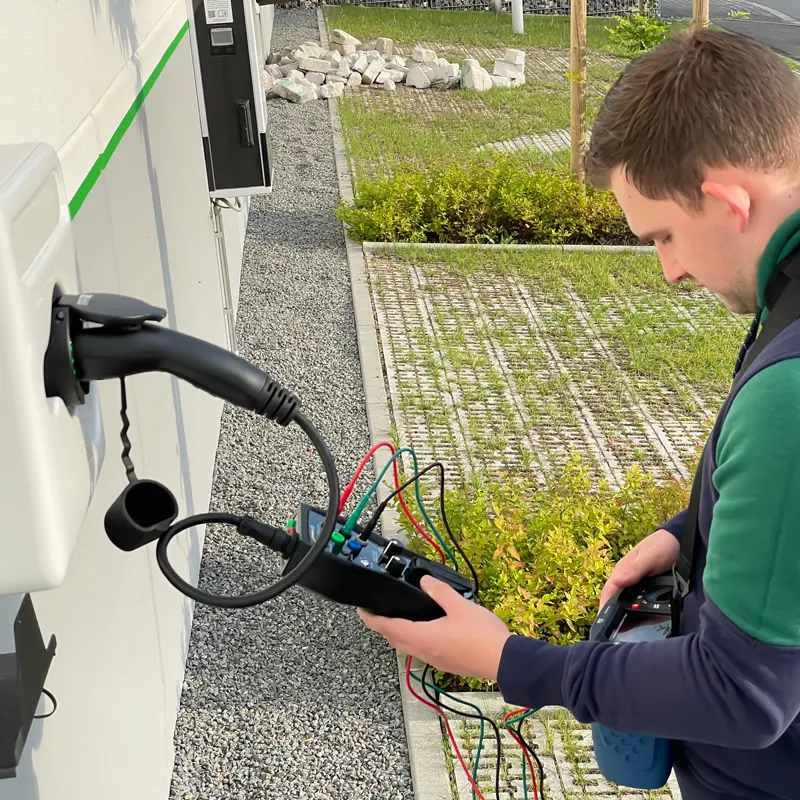

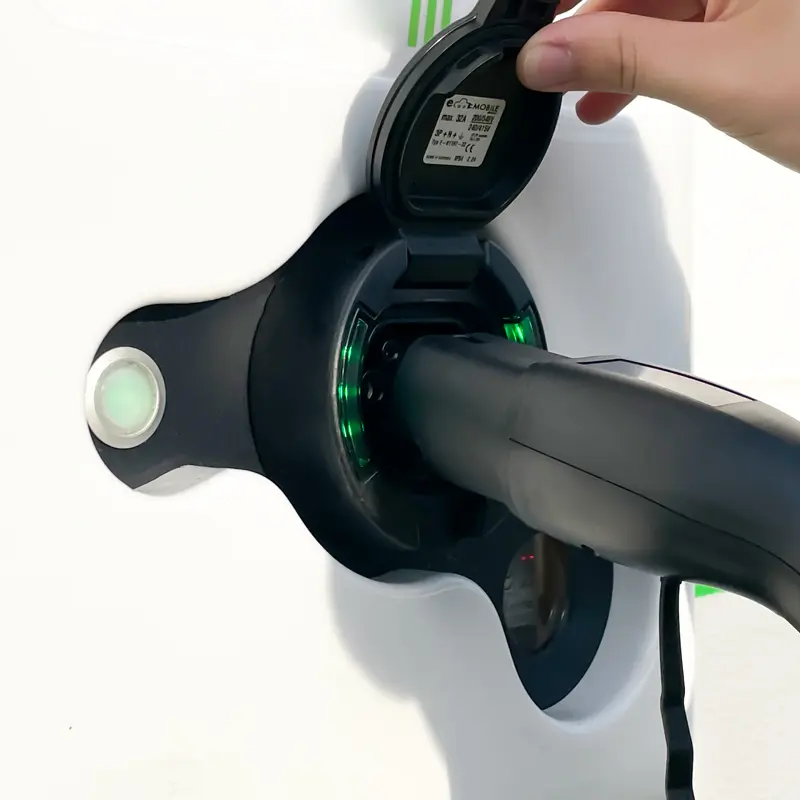

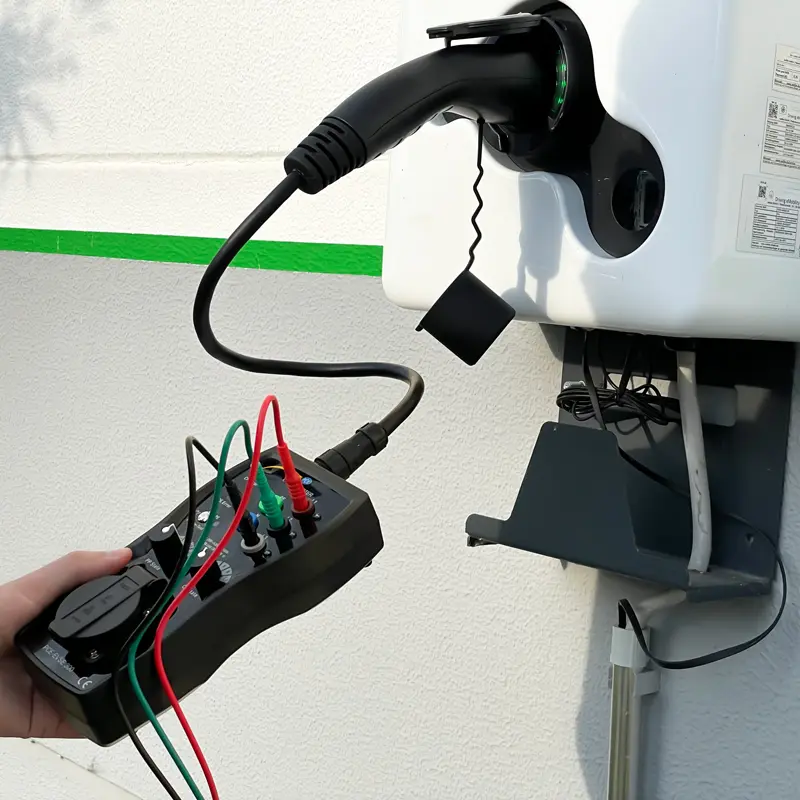

Electromobility is playing an increasingly important role. An important point here are the charging stations for electric vehicles. Special measuring devices are needed to check the function, protective devices and insulation of permanently installed charging stations, also known as wallboxes. Often, measuring devices are already available to perform the required measurements. An adapter is therefore required so that the measuring device can be connected to the charging station.

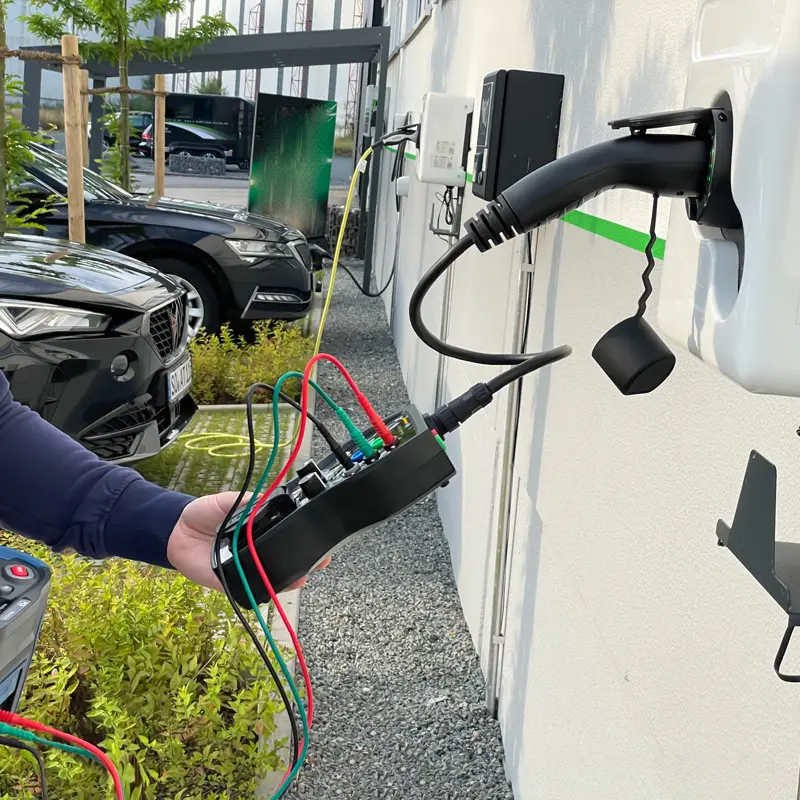

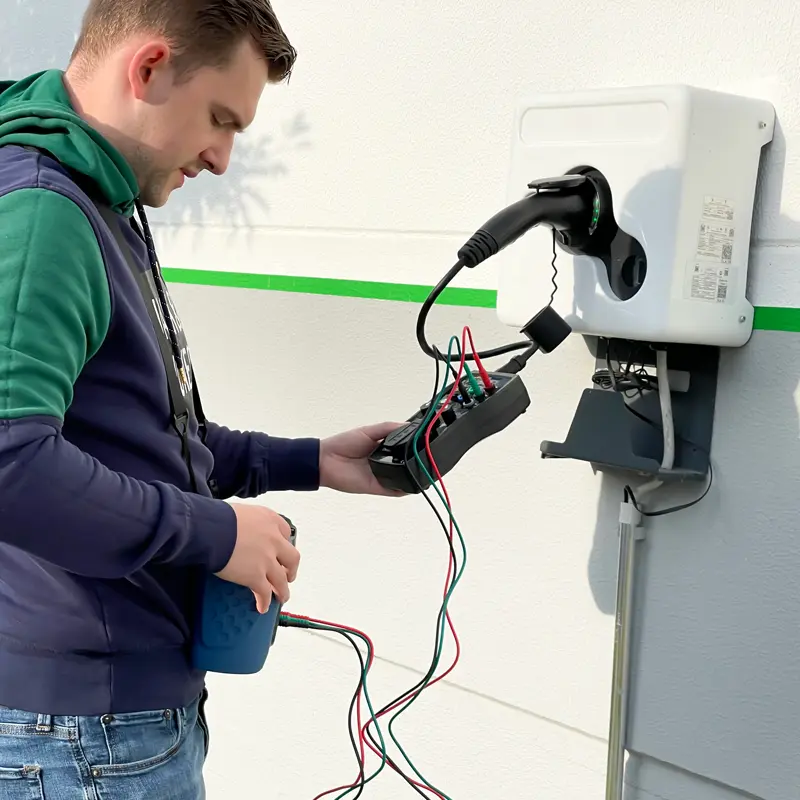

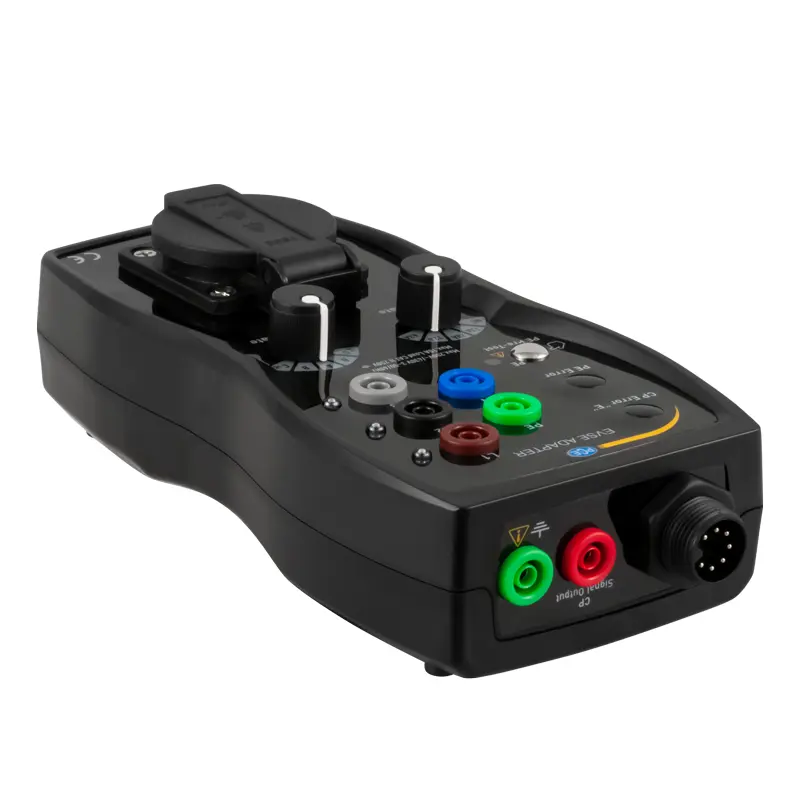

The EVSE adapter is specially designed for this application and already comes with a variety of functions. For example, all lines leaving the charging station are output individually via laboratory plugs. Thus, all lines can be tapped via the EVSE adapter. This allows the charging station to be checked for insulation with the help of the EVSE adapter. The EVSE adapter has a shock-proof plug connection. The RCD tester can be used to check the residual current device.

A charging cable not only contains the supply lines for charging an electric vehicle, but also two interfaces. The electric vehicle communicates with the charging station via the CP line (Control Pilot) and communicates the current status of the electric vehicle. The PP line (Proximity Plug) is used for communication between the connected charging cable and the charging station. The charging cable can thus tell the charging station how many amps it may be loaded with. To test both functions, the EVSE adapter is equipped with corresponding simulators.

Highlights

- 3.5" colour TFT LCD display
- Loop resistance L-N, L-PE and N-PE
- Adjustable FI test current
- SD card and bluetooth
- Dual display
- Good / bad FI test
- Low Ohm measurement
- Up to 1000 V terminal voltage
- Transport bag included in delivery
- Direct connection for wallboxes
- Adapter with type 1 and type 2 charging plugs
- PE conductor test
- Integrated Schuko socket

Specification

Installation Tester PCE-ITE 50

Isolation test

Terminal voltage

Measuring range

Resolution

Accuracy

Load current

Short circuit current

125V (0 ... 10 %)

0,125 ... 4 MΩ

0.001 MΩ

± (2% + 10 digits)

1-mA @ Last 125 kΩ

<= 1-mA

4,001 ... 40 MΩ

0.01 MΩ

± (2% + 10 digits)

40,01 ... 400 MΩ

0.1 MΩ

± (4% + 5 digits)

400,1 ... 1000 MΩ

1 MΩ

± (5% + 5 digits)

250V (0 ... 10 %)

0,125 ... 4 MΩ

0.001 MΩ

± (2% + 10 digits)

1-mA @ Last 250 kΩ

<= 1-mA

4,001 ... 40 MΩ

0.01 MΩ

± (2% + 10 digits)

40,01 ... 400 MΩ

0.1 MΩ

± (3% + 2 digits)

400,1 ... 1000 MΩ

1 MΩ

± (3% + 2 digits)

500V (0 ... 10 %)

0,125 ... 4 MΩ

0.001 MΩ

± (2% + 10 digits)

1-mA @ Last 500 kΩ

<= 1-mA

4,001 ... 40 MΩ

0.01 MΩ

± (2% + 10 digits)

40,01 ... 400 MΩ

0.1 MΩ

± (3% + 2 digits)

400,1 ... 1000 MΩ

1 MΩ

± (4% + 5 digits)

1000 V (0 ... 10 %)

0,125 ... 4 MΩ

0.001 MΩ

± (3% + 10 digits)

1-mA @ Last 1 MΩ

 <= 1-mA

4,001 ... 40 MΩ

0.01 MΩ

± (2% + 10 digits)

40,01 ... 400 MΩ

0.1 MΩ

± (3% + 2 digits)

400,1 ... 1000 MΩ

1 MΩ

± (4% + 5 digits)

Low Ohm

Measuring range

Resolution

Accuracy

Max. open circuit voltage

Overload protection

2,000 Ω

0.001 Ω

± (1.5% + 30 digits)

5.8V

250 Vrms

20,00 Ω

0.01 Ω

± (1.5% + 3 digits)

5.8V

250 Vrms

200,0 Ω

0.1 Ω

± (1.5% + 3 digits)

5.8V

250 Vrms

2000 Ω

1 Ω

± (1.5% + 5 digits)

5.8V

250 Vrms

Continuity tester

Measuring range

Resolution

Max. open circuit voltage

Overload protection

Short circuit current

2000 Ω

0.01 Ω

5.8V

250 Vrms

>= 200-mA

Loop resistance

L-PE (Hi-Amp): Load current 4.0 A

Measuring range

Resolution

Accuracy

0.23 ... 9.99 Ω

0.01 Ω

± (4% + 4 digits)

10.0 ... 99.9 Ω

0.1 Ω

± (4% + 4 digits)

100 ... 999 Ω

1 Ω

± (4% + 4 digits)

L-PE (without tripping): Load current 15-mA

Measuring range

Resolution

Accuracy

0.23 ... 9.99 Ω

0.01 Ω

± (5% + 6 digits)

10.0 ... 99.9 Ω

0.1 Ω

± (5% + 6 digits)

100 ... 999 Ω

1 Ω

± (5% + 6 digits)

L-N: Load current 4.0 A

Measuring range

Resolution

Accuracy

0.23 ... 9.99 Ω

0.01 Ω

± (4% + 4 digits)

10.0 ... 99.9 Ω

0.1 Ω

± (4% + 4 digits)

100 ... 999 Ω

1 Ω

± (4% + 4 digits)

RCD Test

RCD (In)

10-mA, 30-mA, 100-mA, 300-mA, 650-mA, 1 A

Factors

x 1/2, x1, x2, x5

Accuracy of the tripping time

± (1% + 1 ms)

Signal form of the test current

Sine (AC), pulse (DC)

Tripping characteristics

G and S

Release time

0° or 180°

Voltage range

194 ... 260V AC (50/60 Hz)

Accuracy of current measurement

± (5% + 2 digits)

RCD Types Type A, Type B

Voltage measurement

Measuring range

Resolution

Accuracy

80...500 V AC/DC

1 V

± (2 % + 2 digits)

Frequency measurement

Measuring range

Resolution

Accuracy

45...65 Hz

1 Hz

±2 Hz

Grounding measurement

Measuring range

Resolution

Accuracy

0.00...99.99 Ω

0.01 Ω

± (2% + 30 digits)

100.0...999.9 Ω

0.1 Ω

± (2% + 6 digits)

1000...2000 Ω

1 Ω

± (2% + 6 digits)

General specifications

Power supply

8 x 1.2 ... 1.5V AA batteries

Operating time

ca. 15 h

Measurement category

CAT III 600V

Protection class

IP 65

Display

3.5" TFT (320 x 240 Pixel)

Operating environment

0 ... 45°C
0 ... 95% rH, non condensing

Measurements

24.2 x 10.5 x 14.5 cm

Weight

1.56 kg / 3.4 lbs

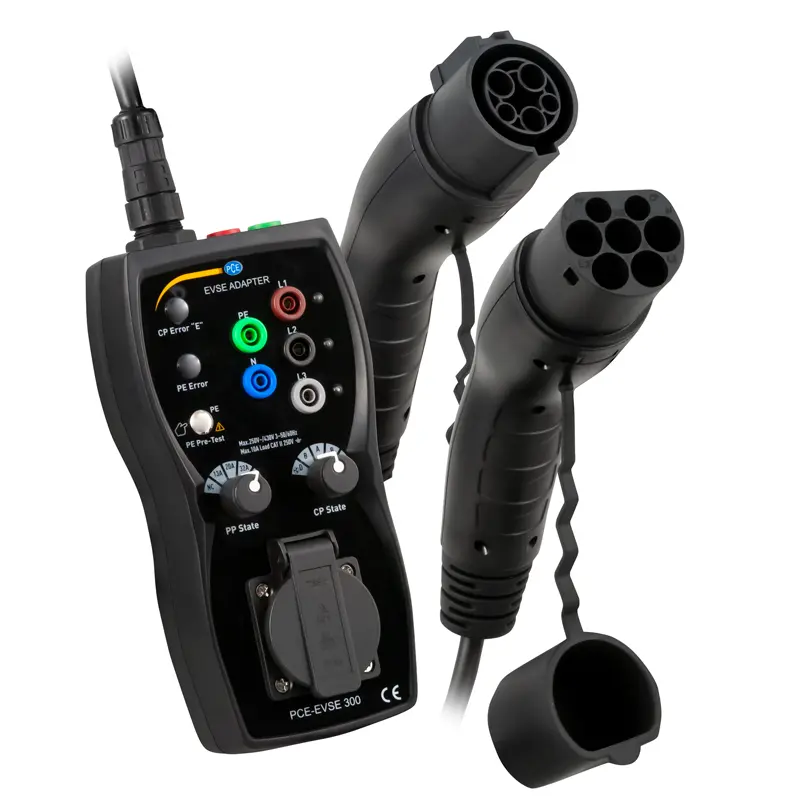

EVSE Measuring Device PCE-EVSE-300

Functions
PE test (protective conductor) available, error
PP simulation (charging cable coding)   open, 13 A, 20 A, 32 A, 63 A
CP simulation (communication line)
A, B, C, D, error
Outputs (only for test purposes)
Measuring connections L1, L2, L3, N, PE
  max. 250 / 430 V AC, 10 A
  laboratory plug
Schuko connection max. 250 V AC, 10 A
Fuse from the Schuko connection fuse F 10 A / 250 V, 5 x 20 mm /  0.19 x 0.78"
CP signal output ± 12 V PWM

Further specifications
Input voltage 1 phase: 250 V AC / 3 phase 430 V AC,
  50 / 60 Hz, max. 10 A

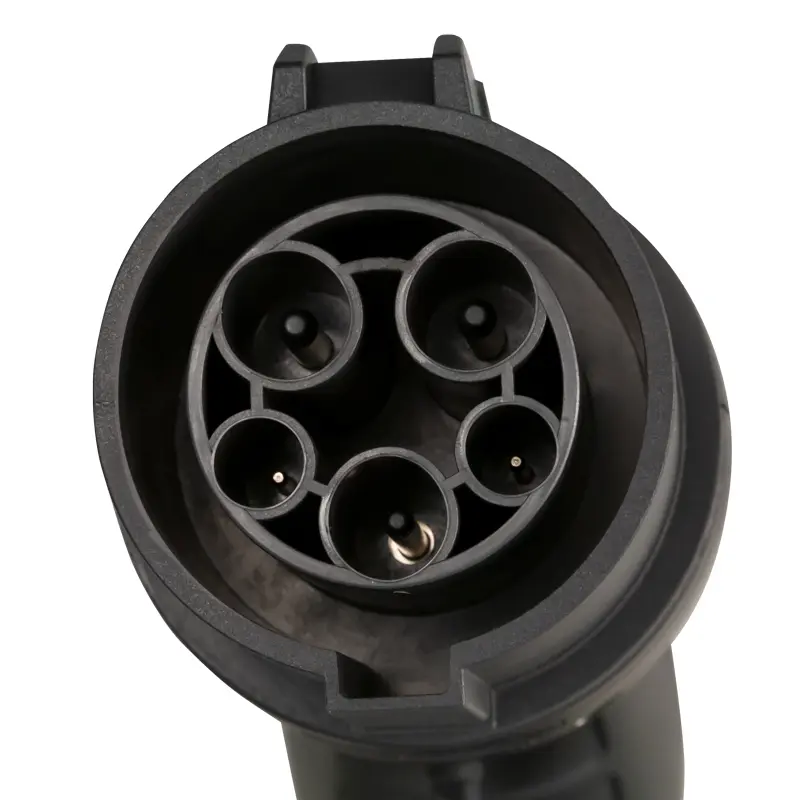

Charging cable connector Type 1 AC charging mode 3, compatible with IEC62196-1
  Type 1 or SAE J1772 with vehicle connection
  (Type 1, 5 pin, 1-phase)

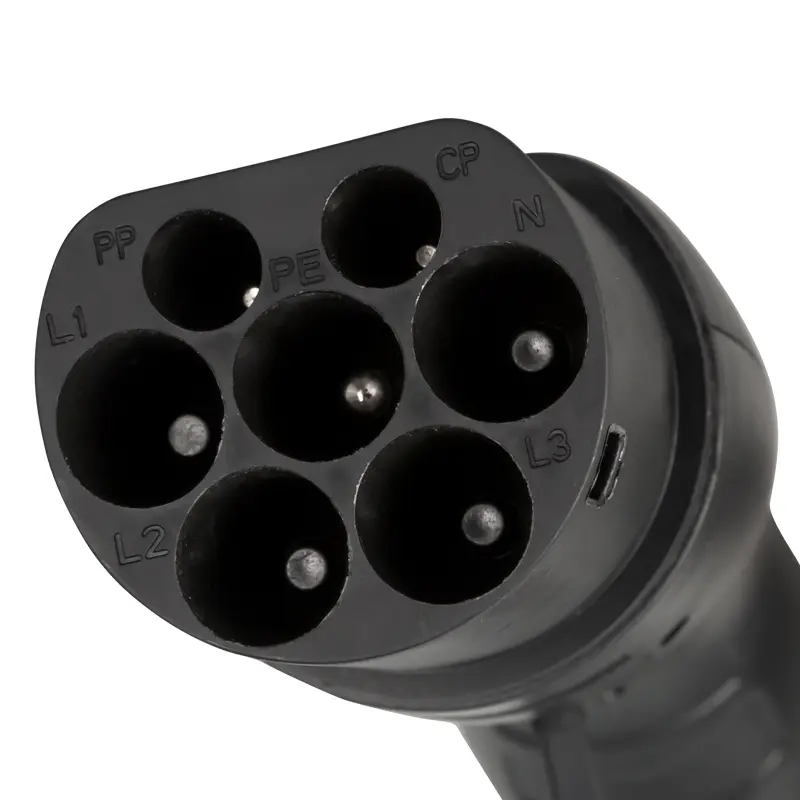

Charging cable connector Type 2 AC charging mode 3, compatible with IEC62196-2
  Type 1 or SAE J1772 with vehicle connection
  (Type 2, 7 pin, 3-phase)

Measurement category CAT II 300 V
Protection class IP54
Pollution degree 2
Operating conditions 0 ... 40 °C / 32 ... 104 °F, 10 ... 85% RH, non-condensing
Storage conditions -10 ... 50 °C / 14 ... 122 °F, 10 ... 60% RH, non-condensing
Maximum working height max. 2000 m / 6561 ft
Dimensions (handheld only) 277 x 109 x 63 mm / 10.9 x 4.3 x 2.4"
Weight ca. 1 kg / 2.2 lb

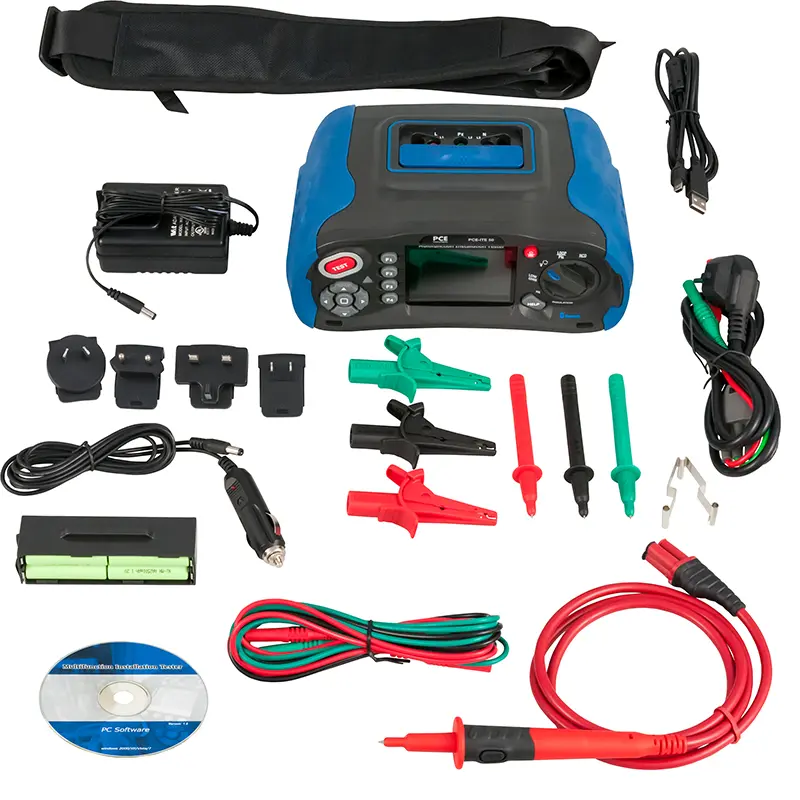

Delivery Scope

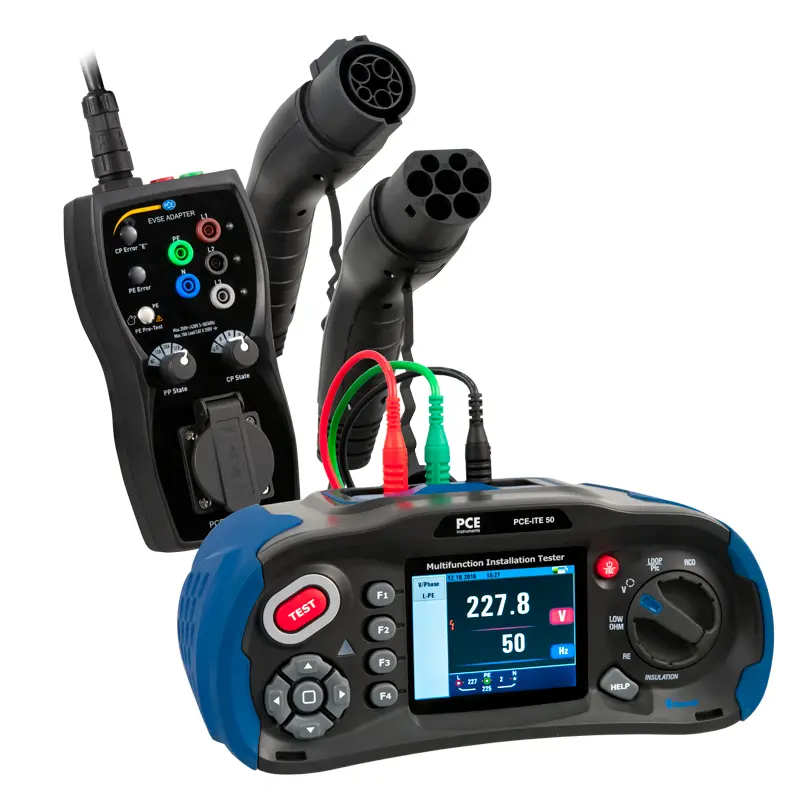

EVSE Measuring Device PCE-EVSE-KIT2
1 x EVSE Adapter PCE-EVSE 300
1 x Installation Tester PCE-ITE 50

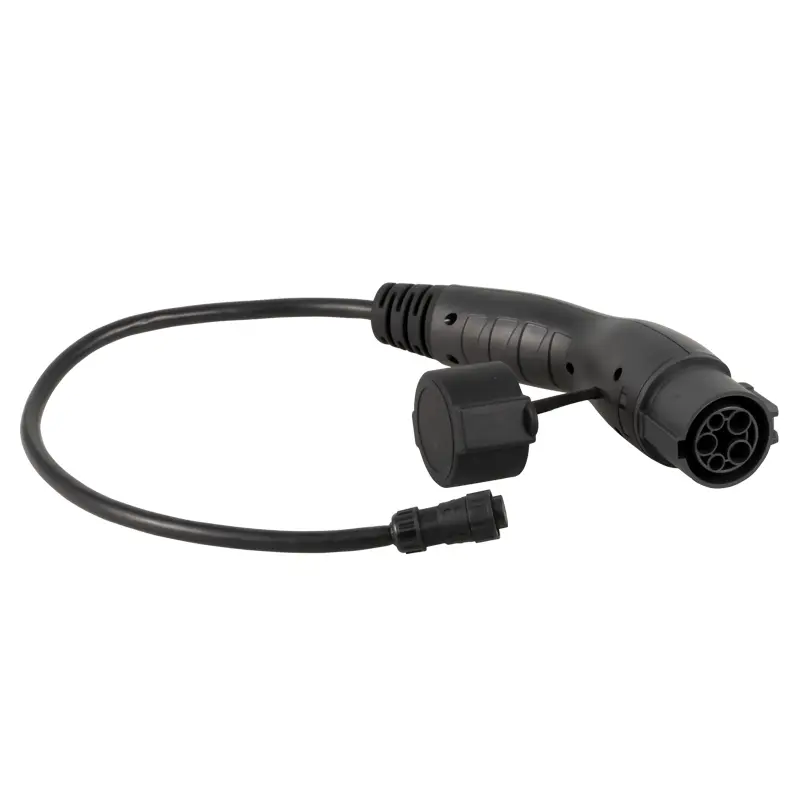

1 x Charging cable plug type 1
1 x Charging cable plug type 2
1 x Transport bag
1 x Instruction manual
1 x Test leads
1 x Transport case

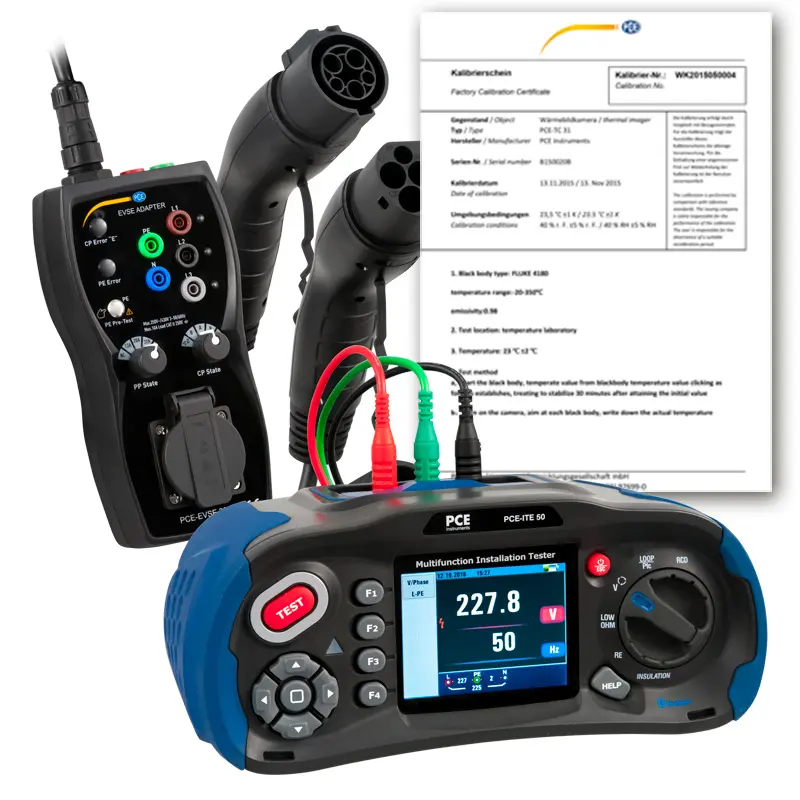

1 x ISO Calibration Certificate (calibration is only for the Installation Tester in the kit!)
