Environmental Meter PCE-LED 20

Order no.: PCE-LED 20
£ 164.00
£ 196.80
price ex. (VAT / delivery)
Delivery time: 1-2 working days

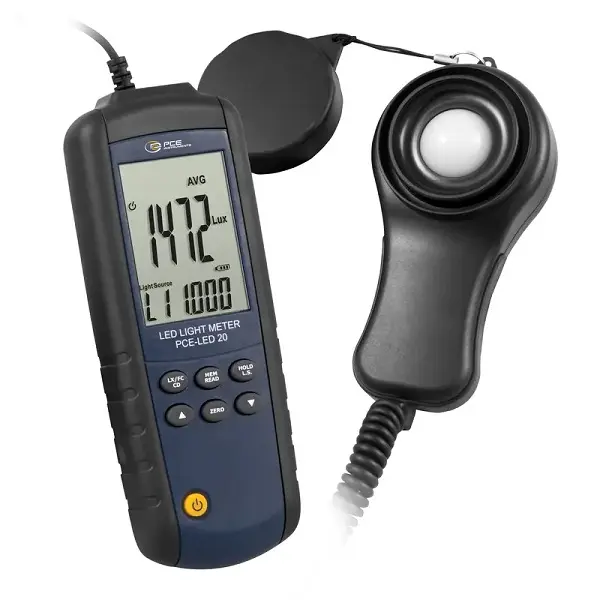

Environmental Meter PCE-LED 20
Handheld light meter with automatic range selection, displays measuring units in lux or footcandle

PCE-LED 20 is a environmental meter with an external LED light sensor. The cable of the sensor has an extended length of approx. 1.5 m / 4.9 ft. Different work or production processes require different lighting conditions. In school, office and factory environments, lighting must also meet applicable safety standards. Indoor lighting conditions can be assessed quickly and easily using this environmental meter. The environmental meter can display measured values directly on the display. A direct measurement is thus immediately possible. By means of various presets, the functions installed in the device can also be activated or deactivated. These functions include the normal HOLD function, in which the measured value is frozen in the display. In addition, the extreme values as well as the average value can be frozen in the display. Further functions of the environmental meter are the zero adjustment, the automatic shutdown and the automatic range selection.

Measurements are possible with the environmental meter in lux or footcandle. The unit has only seven keys, allowing for one-hand operation. This also makes the instrument simple to use. The environmental meter is a battery-powered handset, making the device portable and ideal for measurements in the field.

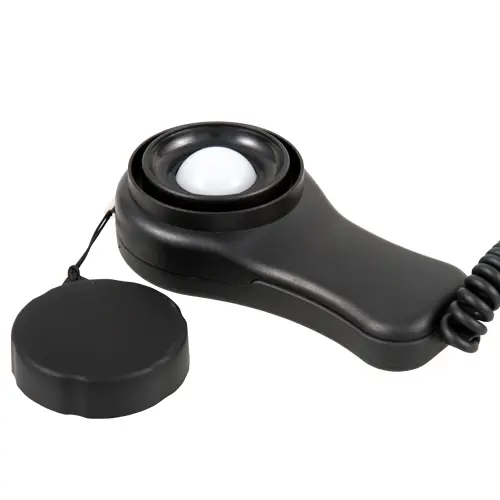

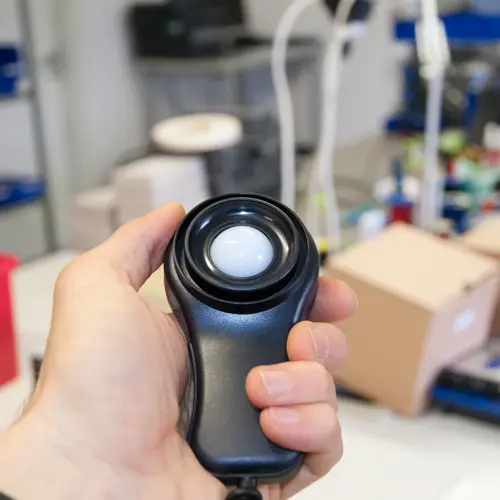

The measuring sensor of the environmental meter has a large exposure area. For convenience, the sensor is located on a coiled cable that can be extended to full length only when needed. A protective cap on the sensor prolongs its life. This protective cap should be placed on the sensor during storage. In addition, the protective cap is required when a zero adjustment is to be performed on the environmental meter.

- Displays measurements in lux or footcandle
- Battery status indicator
- Battery-saving automatic power off
- Overload indicator
- Wired sensor cable length of 1.5 m / 4.9 ft
- MIN / MAX / AVG / HOLD functions
- 2.5 measurements per second
- Zero adjustment
- Automatic range selection
Measuring ranges 40 / 400 / 4000 / 40000 / 400000 lx
40 / 400 / 4000 / 40000 fc
Measuring units Lux (lx) or footcandle (fc)
Sensor Silicone photodiode with built-in filter
Display Max. representation 3999
Representation of 40000 / 400000 lux and 40000 fc in klux and kfc respectively
Measuring accuracy ± 3% (for a standard incandescent lamp at 2856 K and LED white light)
± 6% for other visible light sources
Overload indication OL = Overload
Internal memory 99 measured values
Measuring rate 2.5 x per second
Measurable sources of light LED and any other visible light
Measuring functions Maximum / Minimum / Average / Hold / Zero
Automatic balance
Automatic shutdown
Automatic range selection
Power supply 3 x 1.5V AAA batteries
Operating conditions 5 ... 40°C / 41 … 104°F, 0 ... 70% RH
Storage conditions -10 ... 60°C / 14 … 140°F, 0 ... 70% RH
For compliance with standards EMC: EN 61326-1 (2006)
IEC 61000-4-2 (2006)
IEC 61000-4-3 (2006) + (2007)
JIS C1609: 1993
CNS 5519
OSHA § 1915.82
Dimensions Approx. 162 x 62 x 28 mm / 6.4 x 2.5 x 1.1 in (L x W x H)

Approx. 250 g /< 1 lb

Length of sensor cable Approx. 1.5 m / 4.9 ft
Reproducibility ± 3%

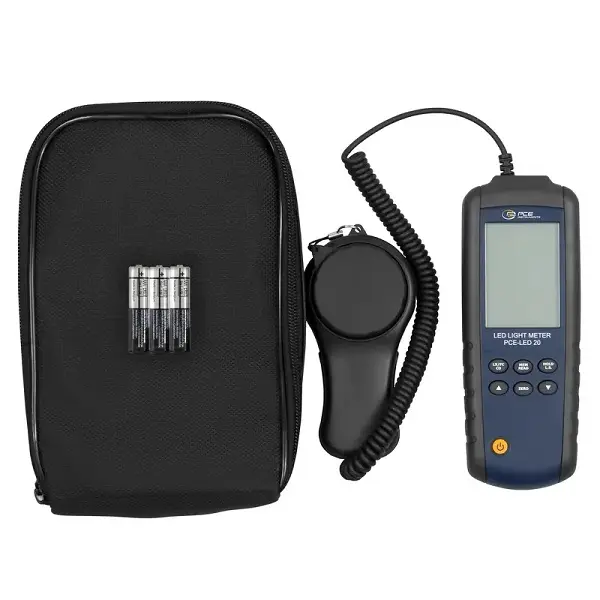

1 x Environmental Meter PCE-LED 20
1 x Light sensor with protective cap
3 x Batteries
1 x Carrying case
1 x User manual
