Digital Thermometer PCE-IR 1300

Order no.: PCE-IR 1300
£ 842.00
£ 1,010.40
PCE-IR 1300
price ex. (VAT / delivery)
Delivery time: Coming soon
PCE-IR 1300 Digital Thermometer
High-temperature infrared (IR) thermometer gun measures temperatures up to 1300ºC / 2372°F

PCE-IR 1300 is a high-temperature infrared (IR) thermometer gun or Digital Thermometer ideal for use in steel, metal and ceramic mold casting and other high-temperature industrial applications. Thanks to an impressive optical resolution of 120:1, the PCE-IR 1300 Digital Thermometer can measure the temperature of very small objects. In addition, the Digital Thermometer's emissivity can be adjusted according to the surface of the material to be measured.

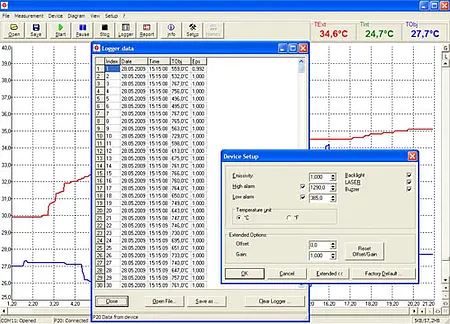

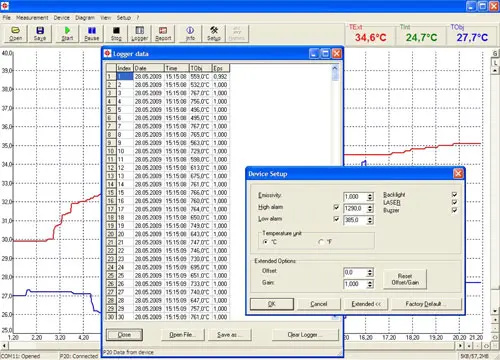

The Digital Thermometer's internal memory stores up to 2000 measurement protocols. The device includes a USB port, data cable and Windows-compatible software for quick and easy data transfer to a PC for further analysis.


- Adjustable temperature units: Celsius (°C) or Fahrenheit (°F)
- Adjustable emissivity
- Optical resolution of 120:1
- Max, min, hold, high / low alarm and auto shut-off functions
- Temperature offset capability
- Easy-to-use trigger control
- Laser
- Telescope
- LCD with backlight
- Internal memory stores up to 2000 measurement protocols
- USB port, data cable and Windows-compatible software for data transfer to PC

***ATTENTION*** Our temperature sensors are designed for industrial and laboratory surface temperature measurement ONLY. They are not designed or certified for body temperature measurement or for medical use.
Measurement range: 0 ... 1300°C / 32 ... 2372°F
Accuracy: ± 2°C / 3.6°F, 0 ... 200°C / 32 ... 392°F, ± 1%, 200 ... 1300°C / 392°F ... 2372°F
Repeatability: ± 1°C / 1.8°F, 0 ... 200°C / 32 ... 392°F, ± 0.5% 200 ... 1300°C / 392°F ... 2372°F

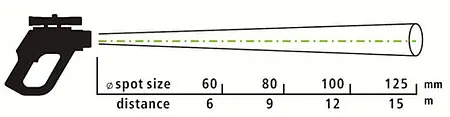

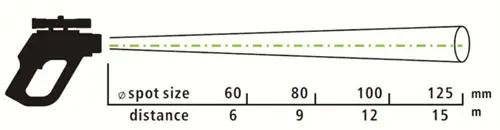

Optical resolution: 120:1
Spectral range: 8 ... 14 µm
Emissivity: Adjustable, 0.100 ... 1.000
Response time: 300 ms (95%)
Aim method: Laser and telescope
Functions: Max, min, hold, high / low audible and visual alarm, auto shut-off
Memory: Internal, stores up to 2000 measurement protocols
PC interface: USB port
Software: Compatible with Windows
Backlight: Three color
Power supply: Rechargeable Ni-MH battery
Storage temperature: -20 ... 60°C / -4 ... 140°F (no battery)
Ambient temperature: 0 ... 50°C / 32 ... 122°F (no green laser)
Relative humidity: 10 ... 95% RH, non-condensing
Dimensions: Approx. 264 x 203.5 x 60 mm / 10.4 x 8 x 2.4 in
Weight: Approx. 1000 g / 2.21 lbs

1 x PCE-IR 1300 Digital Thermometer
1 x USB data cable
1 x Software
1 x Rechargeable battery
1 x Battery charger
1 x Carrying case
1 x User manual

Accessories

Order no.: PCE-MS 25
PCE-MS 25 Measuring Point Sticker

Measuring point stickers for pyrometers with measuring surface for E = 0.95 (25 pieces)



Manufacturer: PCE Instruments
£ 13.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: CAL-IR
ISO Calibration Certificate for Infrared Thermometer
ISO calibration certificate, e.g. to comply with your DIN ISO 9000. For this purpose, we give the measuring device to our in-house calibration laboratory. As the client, the measured values and the serial number are recorded in this ISO calibration certificate.

- 4 measuring points evenly distributed over the measuring range
- Calibration range: 30 ... 500 °C
- Calibration applies to infrared sensors only

N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
Catalogue: Measuring Instruments / Test Meters / Infrared Thermometer
£ 97.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
