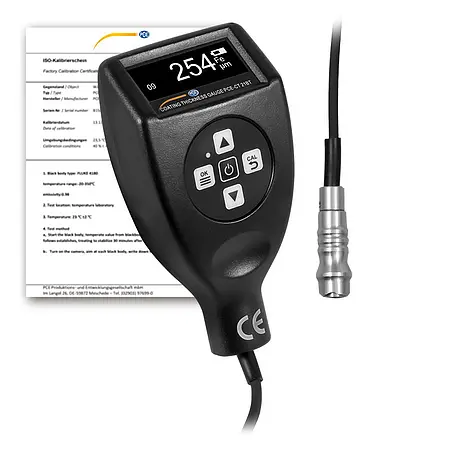

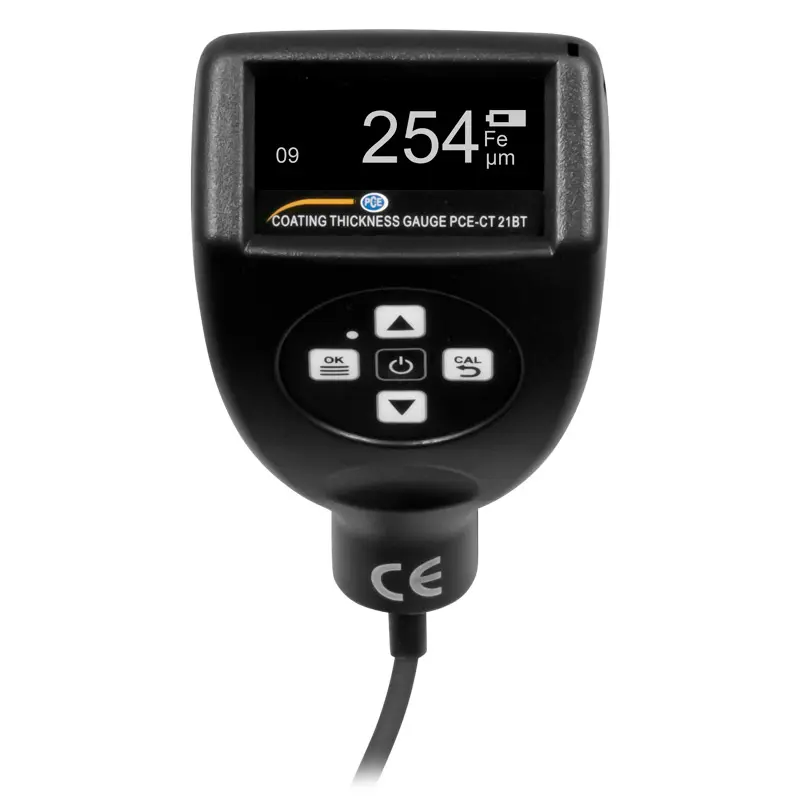

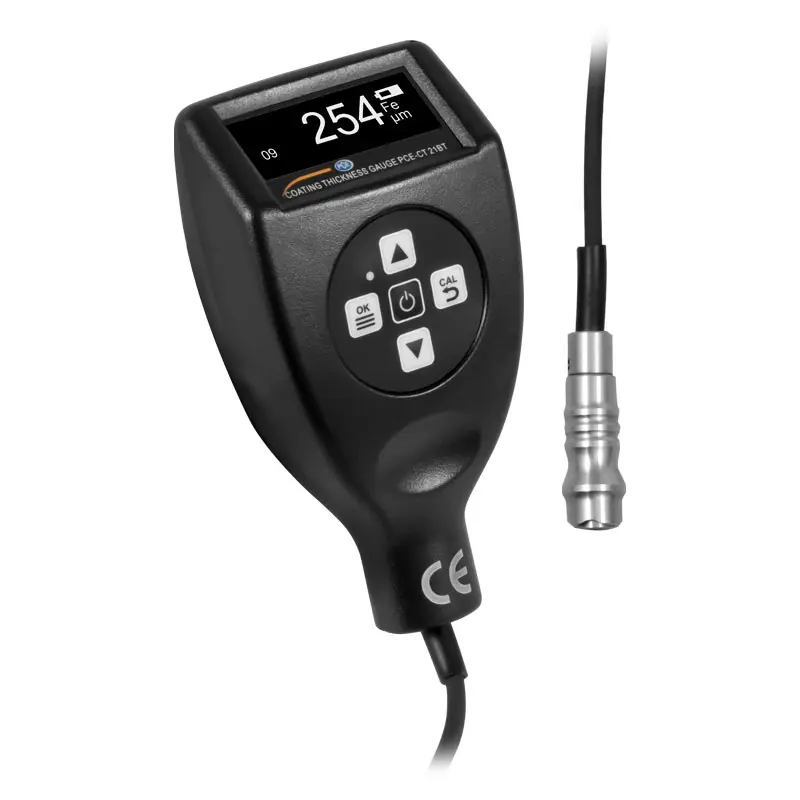

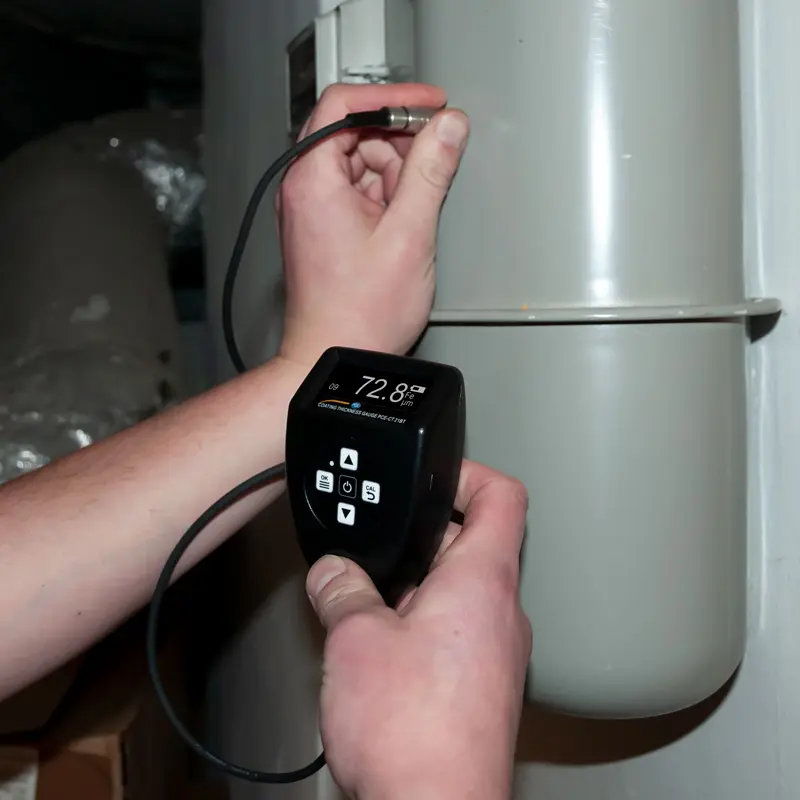

With this car measuring device, layer thicknesses on metallic surfaces can be reliably determined. The car measuring device has a measuring range of 1500 µm. This means that the car measuring device is used, for example, in a paint shop, for incoming goods inspection or for an expert.
With the Bluetooth interface on the car measuring device, all data can be transferred to a mobile iOS or Android device and exported as a CSV, PDF or TXT file. A live view with analysis of the measured values is also possible via the free app with the car measuring device.

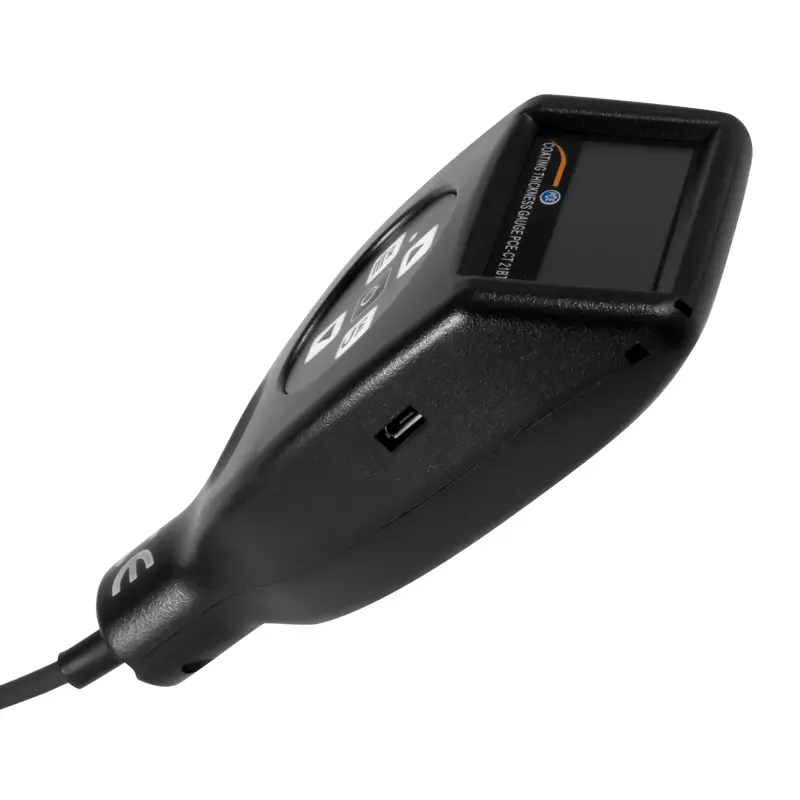

In addition to the Bluetooth interface, the car measuring device has a micro USB interface. All data can also be transferred to the PC and analyzed via this interface in the car measuring device. Another special feature of this interface is that the car measuring device can also be operated without batteries via this interface. As a result, many measurement processes are no longer dependent on the battery charge level.
|Measuring range||0… 1500 µm|
|Resolution||0.1 µm (in the measuring range 0… 99.9 µm)|
|1 µm (in the measuring range 100… 1500 µm)|
|Accuracy||± (1 µm + 2% of the layer thickness)|
|Smallest curvature||convex 5 mm, concave 5 mm|
|Smallest measuring area||10 x 10 mm|
|Minimum thickness of the substrate||0.4 mm|
|Interface||Bluetooth, micro USB|
|Memory||10 groups with 60 measurements each|
|Power supply||2 x 1.5 V AA batteries, 5 V USB interface|
|Environmental conditions||-10… 50 °C, 10… 85% RH|
|Dimensions||126 x 69 x 35 mm (without sensor)|
|Weight||approx. 97 g (without batteries)|
