AED 6,556.00
Weighing Hook PCE-DDM 5WI
Max. capacity up to 5 tons / Peak hold, sum and tare functions / Includes shackles, protective carrying case and two-year warranty against manufacturer defects

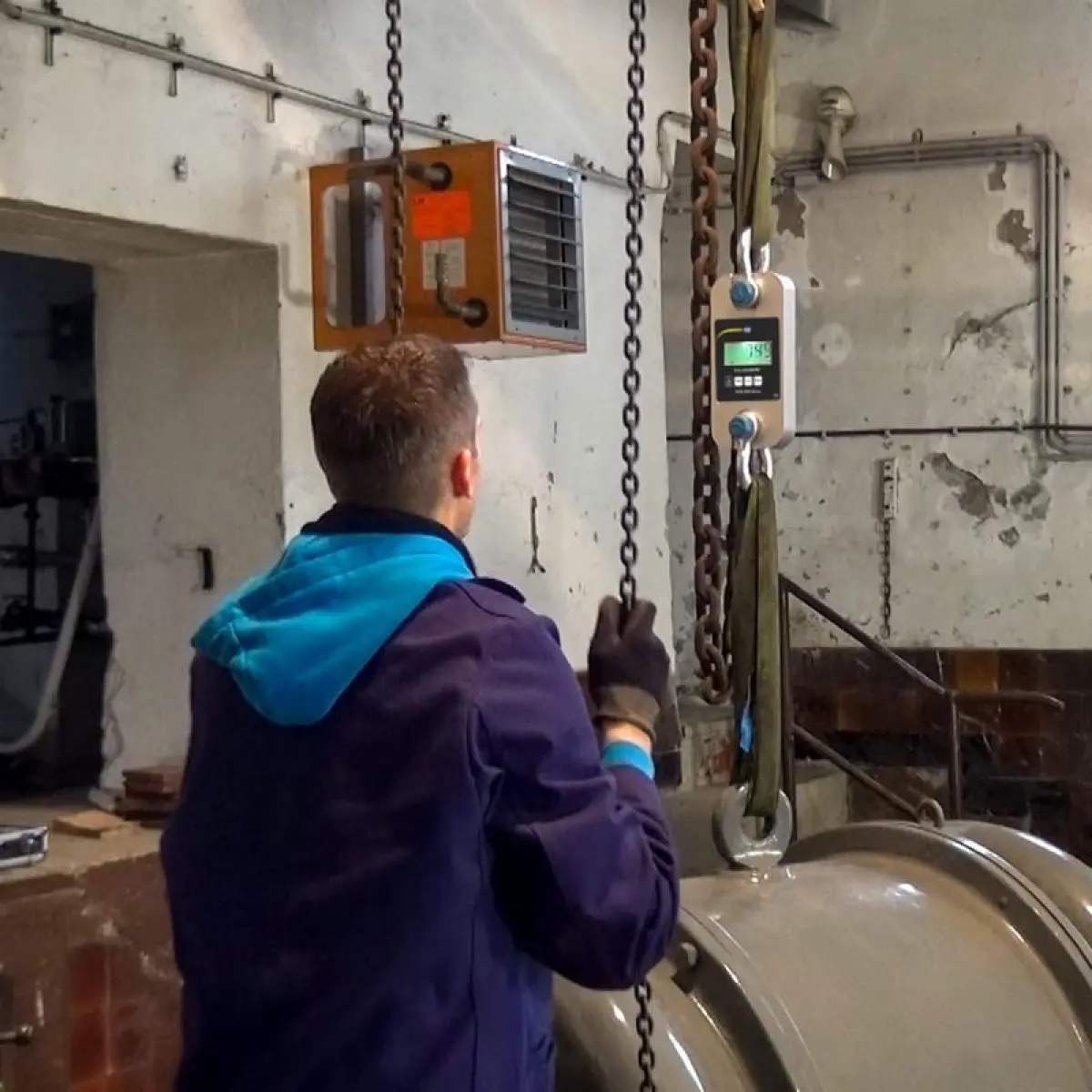

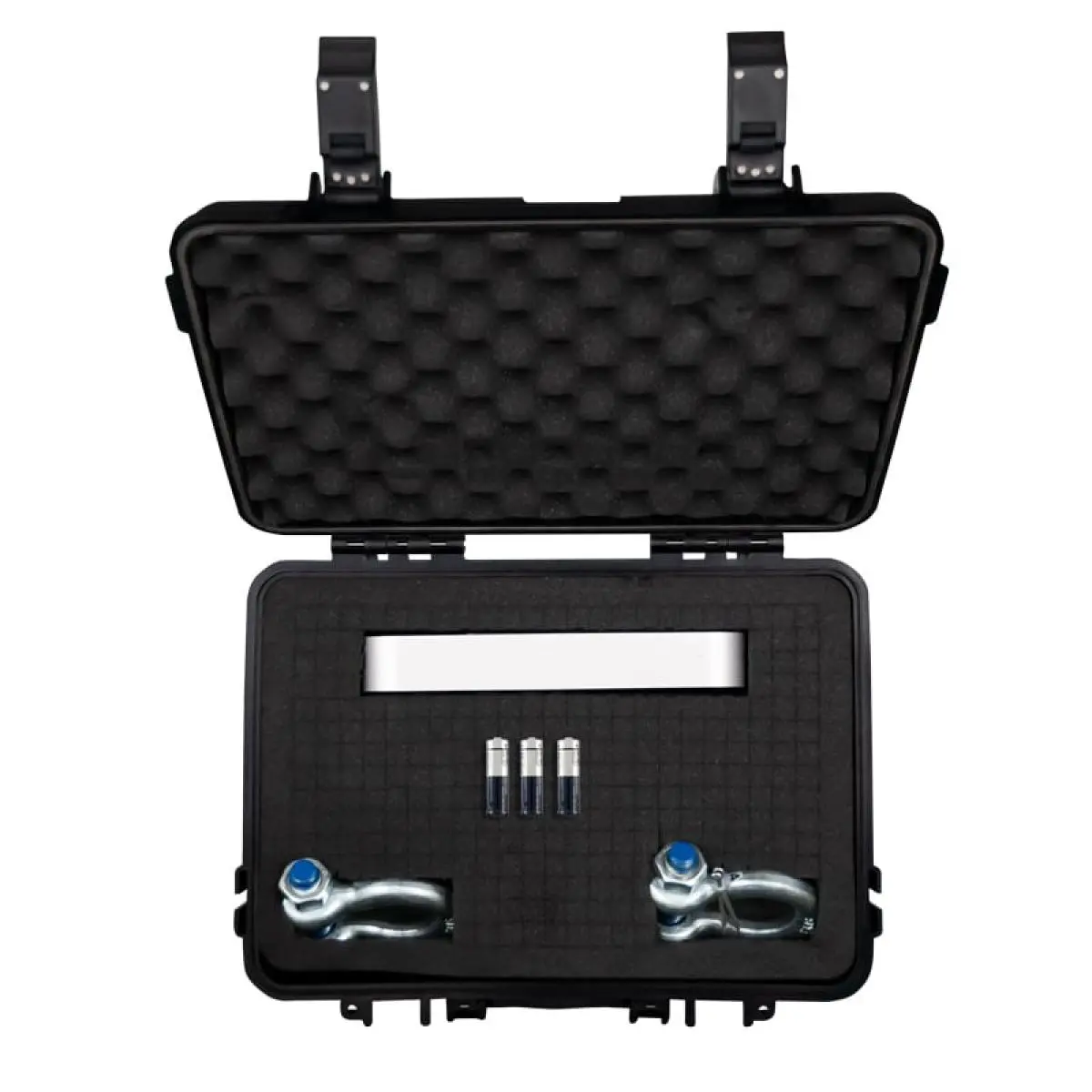

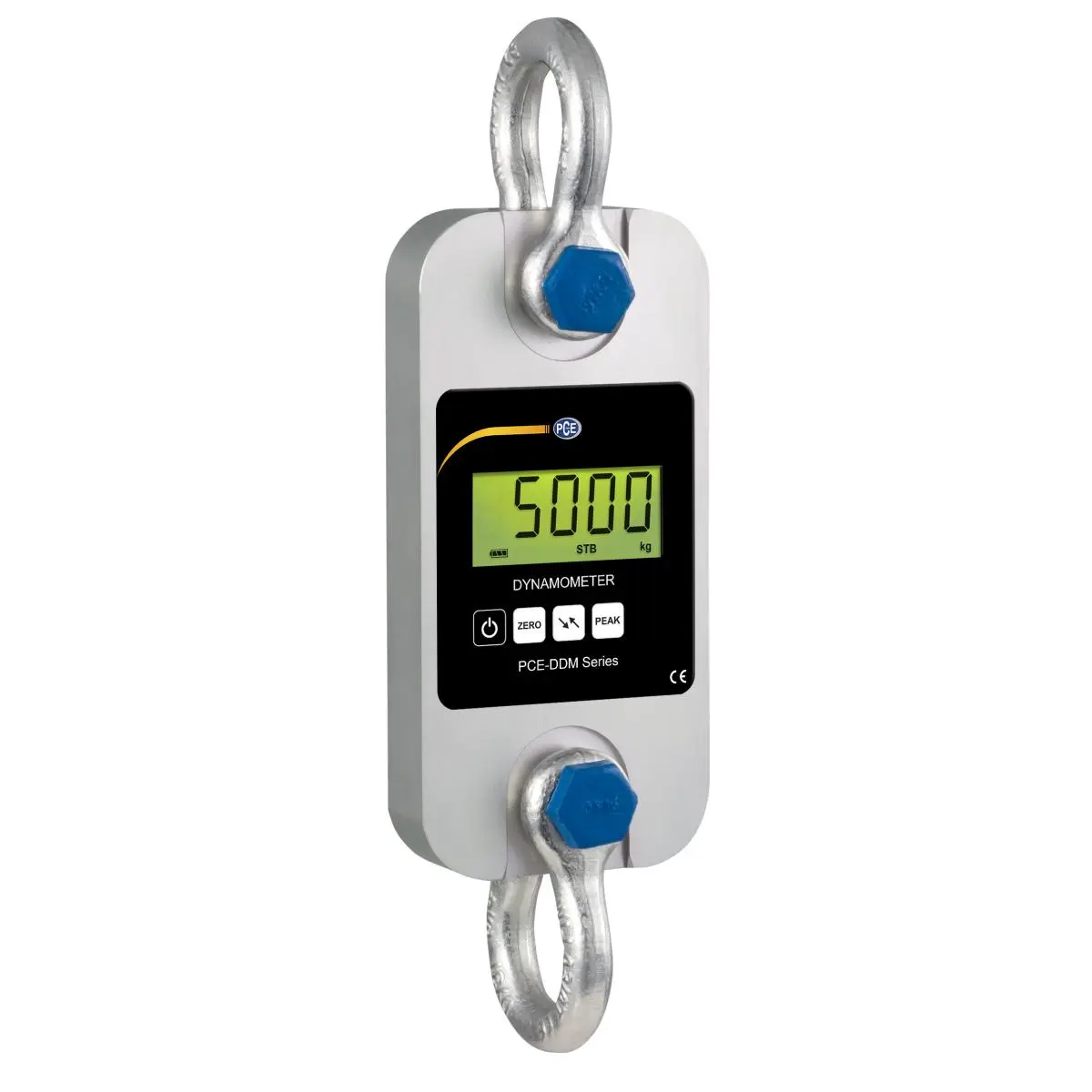

PCE-DDM 5WI is a rugged weighing hook designed to weigh large hanging loads. PCE-DDM 5WI is also a durable digital dynamometer specially crafted to measure strong tensile forces. This high-capacity device is delivered in a protective carrying case and includes two shackles made of heavy-duty aluminum. Each PCE-DDM 5WI is manufacturer calibrated, but can be certified to ISO standards for an additional fee (see accessories for details).
Despite its high capacity and rugged durability, the PCE-DDM 5WI is a compact and portable device with a low net weight. The PCE-DDM 5WI has many useful practical features including peak hold, tare, sum and the ability to select different units of measurement such as kg / t / lbs / N / kN.
Please note that this device is only suitable for weighing and for tension force testing. For compression force testing, please see the PCE-FM series force gauges (visit similar items tab for details).
| Weighing range | |
| Measuring range from | 40 kg |
| Measurement range up to [Max] | 5000 kg |
| Resolution [d] | 2 kg |
| Accuracy | ±0.1% of range |
| Force | |
| Measuring range | 0 ... 50 kN |
| Resolution | 20 N |
| Accuracy | ±0.1% of range |
| General technical data | |
| Measuring functions | HOLD, peak |
| Measuring functions (additional information) | Summing function |
| Units | kg, N, lb, T, kn |
| Display type | LCD |
| Digit size [WxH] | Height: 22 mm |
| Measuring rate | 2,5 Hz |
| Operating time | 50 h |
| Housing | Aluminium |
| Minimum load [min] | 40 kg |
| Tare range | max. 20 % of the measurement range |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| Power supply | batteries |
| (Rechargeable) battery | 3 x 1,5 V AA battery , Alkali-manganese |
| Capacity | 3000 mAh |
| Operating conditions | -10 ... 40 °C , 0 ... 85 % RH |
| Storage conditions | -10 ... 40 °C , 0 ... 85 % RH |
| Dimensions ( L x W x H ) | 285 x 123 x 57 mm |
| Weight | 3000 g |
