Weighbridge PCE-SD 1500F SST

[zoom]

Weighbridge PCE-SD 1500F SST

Order no.: PCE-SD 1500F SST

GTIN (EAN): 4250348712387

AED 31,056.00

Price (exclude VAT)

AED 32,608.80

Price (include VAT)

price ex. (customs / clearance)

GTIN (EAN):

4250348712387

Order no.

PCE-SD 1500F SST

Delivery time:1-2 working days

Interface Slot 1

Output / Interface Slot 2

Switching Output Slot 3

Additonal functions

+AF-CCP: Plug connection between display and weighing surface with approx. 1.5 m cable (AED +115.79)

+AF-DW-PCE: Additional function dual range weighing (AED +246.68)

+AF-TD-PCE: Additional function time and date (AED +135.93)

Question / Callback

Accessory

Scale Software PCE-SOFT-SC-Basic

AED 828.00

Scale Software PCE-SOFT-SC-Pro

AED 947.00

Scale Software PCE-SOFT-SC-3XPro

AED 1,780.00

USB Memory Adapter

AED 690.00

Stand for PCE-SD Series

AED 1,035.00

Two additional function ranges for PCE-SD Series

AED 276.00

Additional RS-232 interface

AED 161.00

RS485 interface AF-RS485-PCE

AED 322.00

USB interface AF-USB-S

AED 414.00

RS232 Cable

AED 128.00

USB cable PCE-USB

AED 69.00

Analog output / analog interface 4-20mA

AED 621.00

Limit weighing including control interface

AED 276.00

Analog output / analog interface 0-10V

AED 621.00

Signal lights for Balances

AED 2,300.00

LAN interface

AED 690.00

Additional date and time function

AED 151.00

Description

Calibrated stainless steel built-in Weighbridge up to 1.5t / Resolution 0.5 kg / IP68 - IP65 / Piece counting function / Summing function / RS-232 interface / Removable weighing plate

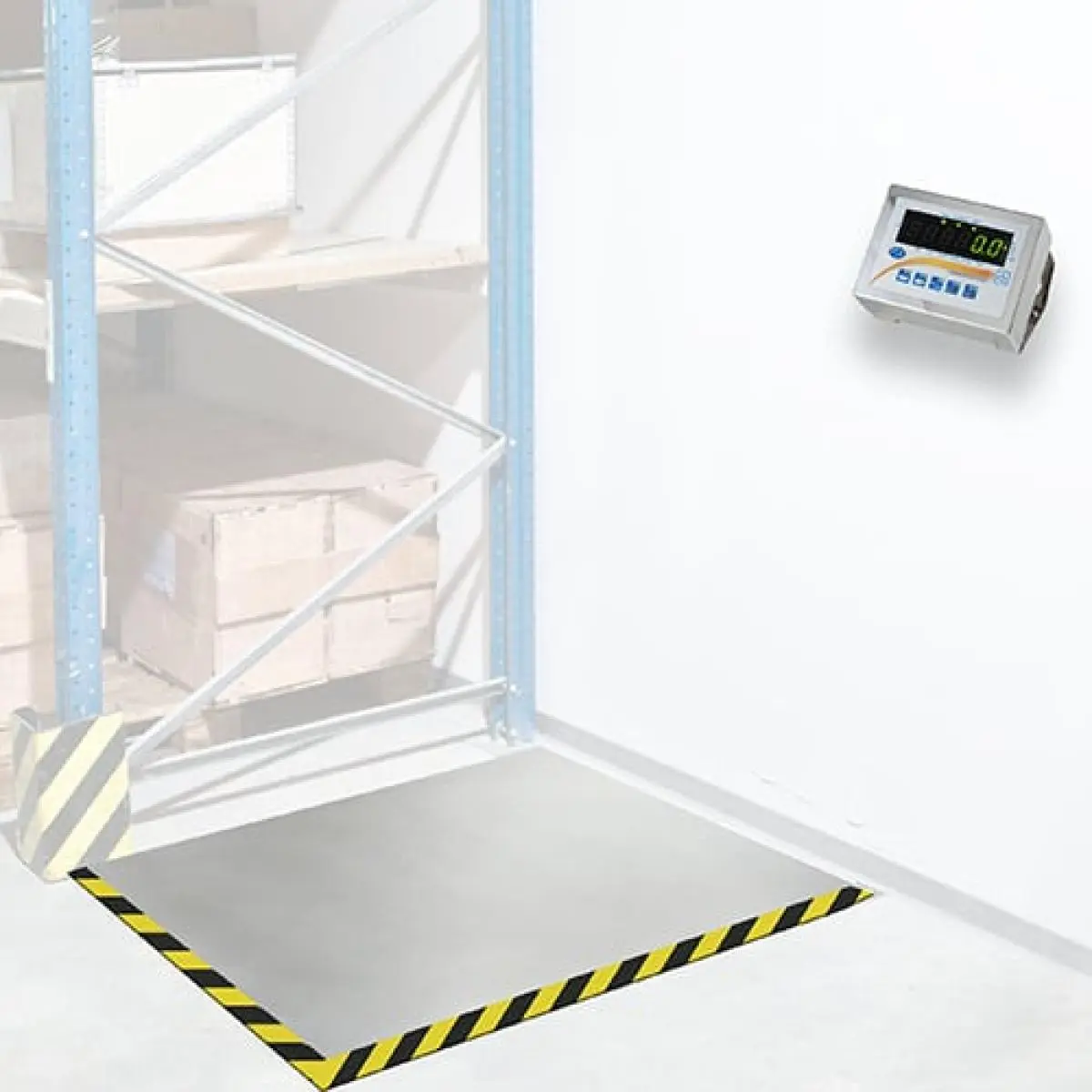

The stainless steel weighbridge is installed in the counting to obtain a flat surface. As a result, the stainless steel weighbridge can be easily loaded with all kinds of conveyors. The stainless steel weighbridge has a weighing platform bolted to the frame, which can be used as required. Optionally, it is possible to provide the stainless steel weighbridge with a damper which makes it easier to lift the weighing surface. The cells of the stainless steel weighbridge are IP68 protected and the display IP65. Due to the high protection class, the stainless steel weighbridge has no interfaces. These interfaces, such as RS-232, RS-485, USB, LAN, 4-20mA, 0-10V or floating contacts can be installed at our factory. Subsequent installation is not possible. This allows the stainless steel weighbridge to monitor or control production processes.

Highlights

- Piece counting function

- Percent% comparison weighing

- Filter (reaction time) adjustable

- Animal weighing function

- A tare value storable

- Tolerance determination Weight min / ok / max

- Sum up several weighings

- Statistics function

- Adjustable automatic shutdown

- Gross / net button on the display

- Menu freely adjustable

- Maintenance-free components

- Optional: USB, LAN or 4-20 mA

Specification

Weighing range
Measurement range up to [Max]	1500 kg
Resolution [d]	0,5 kg
Accuracy	0.5 kg
Verification value [e]	0,5 kg

General technical data
Cable length	4 m
Measuring functions	MIN, MAX
Measuring functions (additional information)	Piece counting function, percentage comparative weighing, animal weighing function, recipe mixture weighing, totalising several weighings
Units	kg, lb, T, oz, ct, ozt, gr, dwt
Display type	LED
Digit size [WxH]	Height: 18 mm
Interface	RS232
Automatic power-off	5 min
Minimum load [min]	10 kg
Tare range	Multiple tare over the full weighing range
Weighing plate material	Plain stainless steel sheet
Dimensions	Display 190 x 140 x 65 mm
Verification class [e]	M III
Settling time	< 3 s
Menu language	English, English (GB)
Protection class (device)	IP65, IP68
Power supply	230V AC \| 50 Hz, 8V A
Connector type	Schuko plug
(Rechargeable) battery	1 x 3 V CR 2032 (button cell 3V) , lithium-ion battery
Capacity	220 mAh
Dimensions ( L x W x H )	1500 x 1500 x 118 mm
Weight	210000 g
