Calibratable Trade Approved Scale up to 6,000 kg / Resolution from 0.1 kg
/
Summing function / Tare weight storable / Piece counting function
/ Limit value weighing
Optional: analog output 4-20 mA, 0-10 V, OC switch contacts, RS-232, USB, LAN

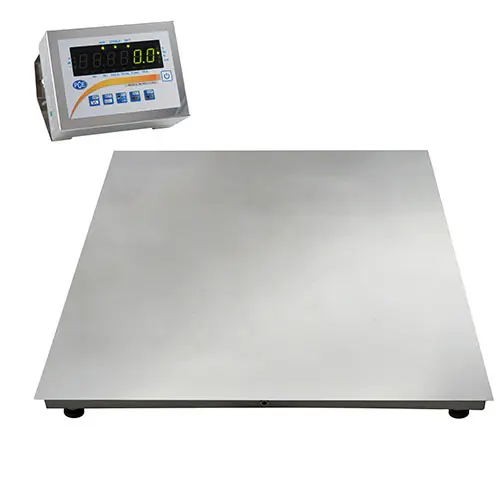

The trade approved is made entirely of high quality, acid resistant stainless steel. The weighing cells installed in the stainless steel trade approved scale have a protection class of IP68. The weighing surface of the trade approved scale is smooth and has no screw connections or recesses so that the cleaning of the trade approved scale can be done quickly and reliably. The platform size of the trade approved scale is available in different dimensions depending on the measuring range.
The functions of the trade approved scale are summing function, counting function, statistical function, animal weighing function, percentage weighing function, recipe weighing function, multiple tare, storable tare value, gross - net weighing and adjustable weight limits MIN / MAX / OK. Furthermore, the trade approved scale can be provided with interfaces, which can be used to monitor and control tasks. We offer bidirectional RS-232, USB, LAN, 4-20 mA analog interface, 0-10 V analogue interface and passive 3 floating contacts / OC. In industry special sizes or functions of the trade approved scale may be in demand. For such applications we also offer individual solutions such as Level controls with SMS notification.
| Weighing range | |
| Measurement range up to [Max] | 300 kg |
| Resolution [d] | 0,1 kg |
| Accuracy | 0.1 kg |
| Verification value [e] | 0,1 kg |
| General technical data | |
| Cable length | 4 m |
| Measuring functions | Average value, MIN, MAX |
| Measuring functions (additional information) | Animal weighing function, totalising several weighings, recipe mixture weighing, piece counting function |
| Units | kg, lb, g, oz, ct, ozt, gr, dwt |
| Display type | LED |
| Digit size [WxH] | Height: 18 mm |
| Interface | bidirectional RS232 |
| Automatic power-off | 5 min |
| Minimum load [min] | 2 kg |
| Tare range | Multiple tare over the full measurement range |
| Calibration | external |
| Dimensions | Display 190 x 140 x 65 mm |
| Verification class [e] | M III |
| Settling time | < 3 s |
| Menu language | English, English (GB) |
| Protection class (device) | IP65, IP68 |
| Power supply | 230V AC | 50 Hz, 8V A |
| Connector type | Schuko plug |
| (Rechargeable) battery | 1 x 3 V Button cell , lithium-ion battery |
| Capacity | 220 mAh |
| Operating conditions | -10 ... 40 °C , 20 ... 90 (non-condensing)% RH |
| Storage conditions | -10 ... 40 °C , 0 ... 90 % RH |
| Dimensions ( L x W x H ) | 1250 x 1250 x 85 mm |
| Weight | 100000 g |
