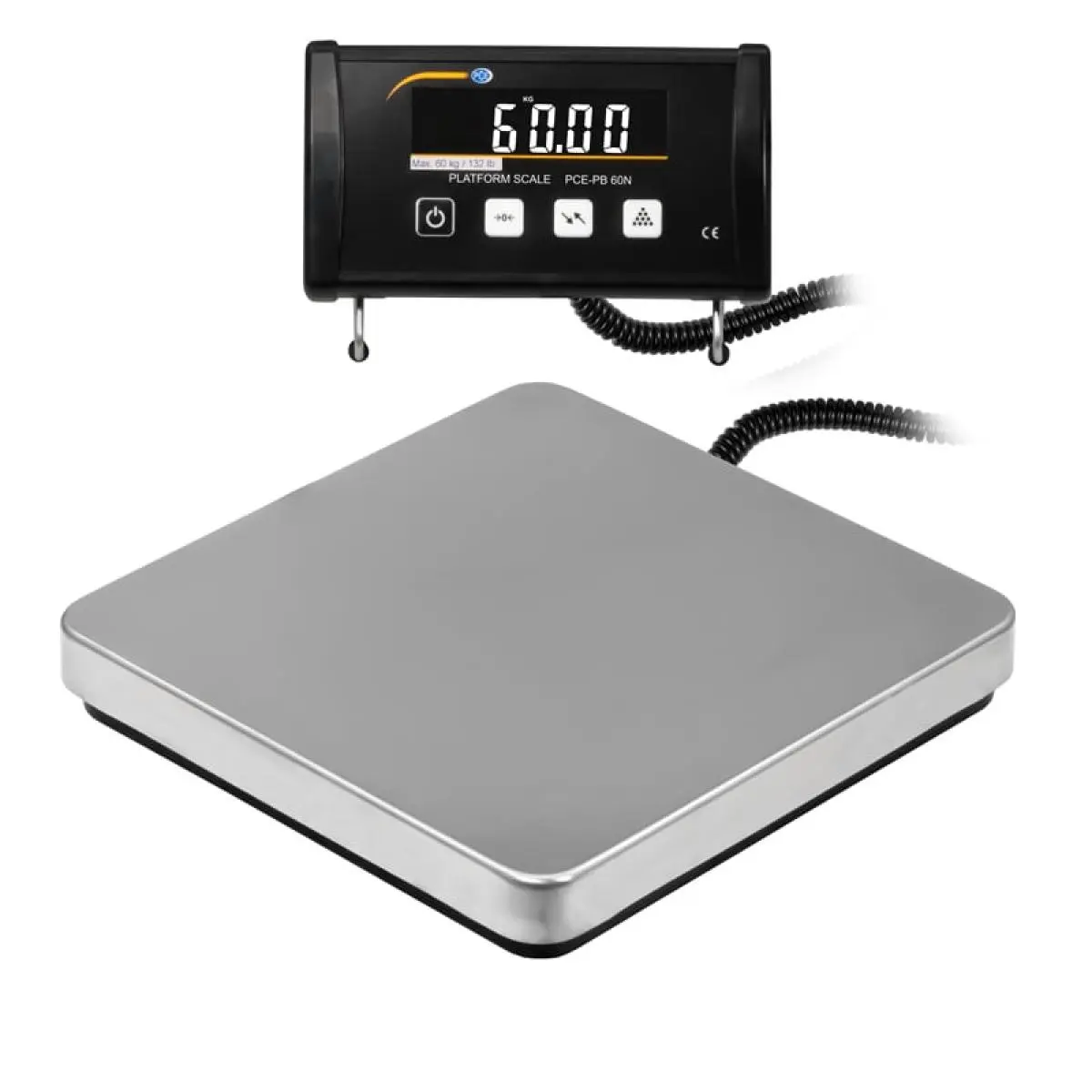

The
USB platform scale of the PCE-PB N series is a versatile platform
scale. The functions of the USB platform scale are very extensive, but
one function is particularly interesting for shipping. It is the
bidirectional USB interface of the platform scales that enables control
by the PC. However, the USB platform scales of the PCE-PB N series can
be used with the optional, inexpensive "ProCell" software. This software
simulates keyboard input, similar to a scanner. With the help of this
software, the platform scale can then transfer the weight value into
active fields.

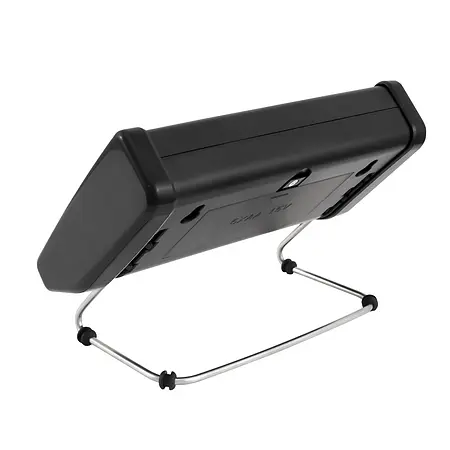

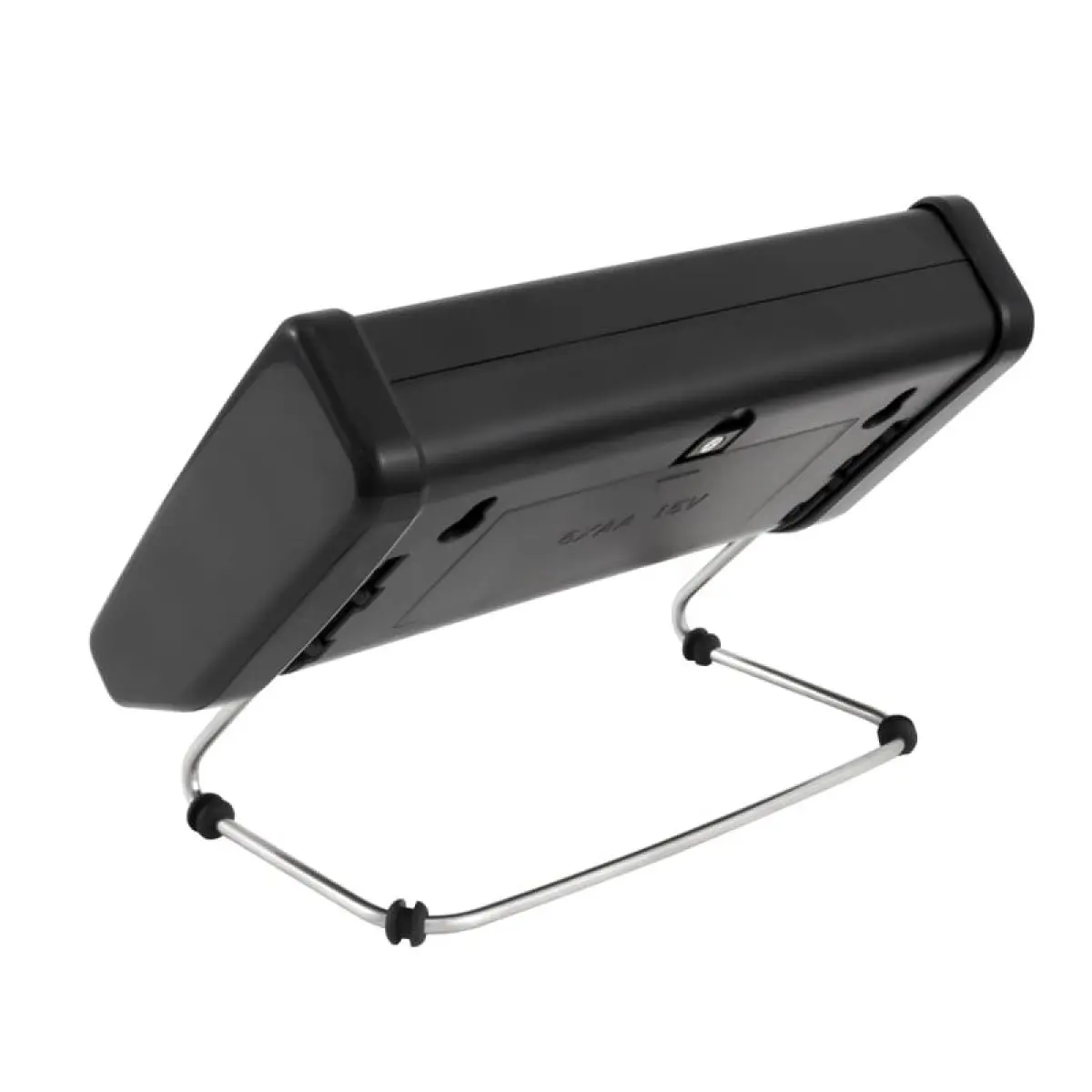

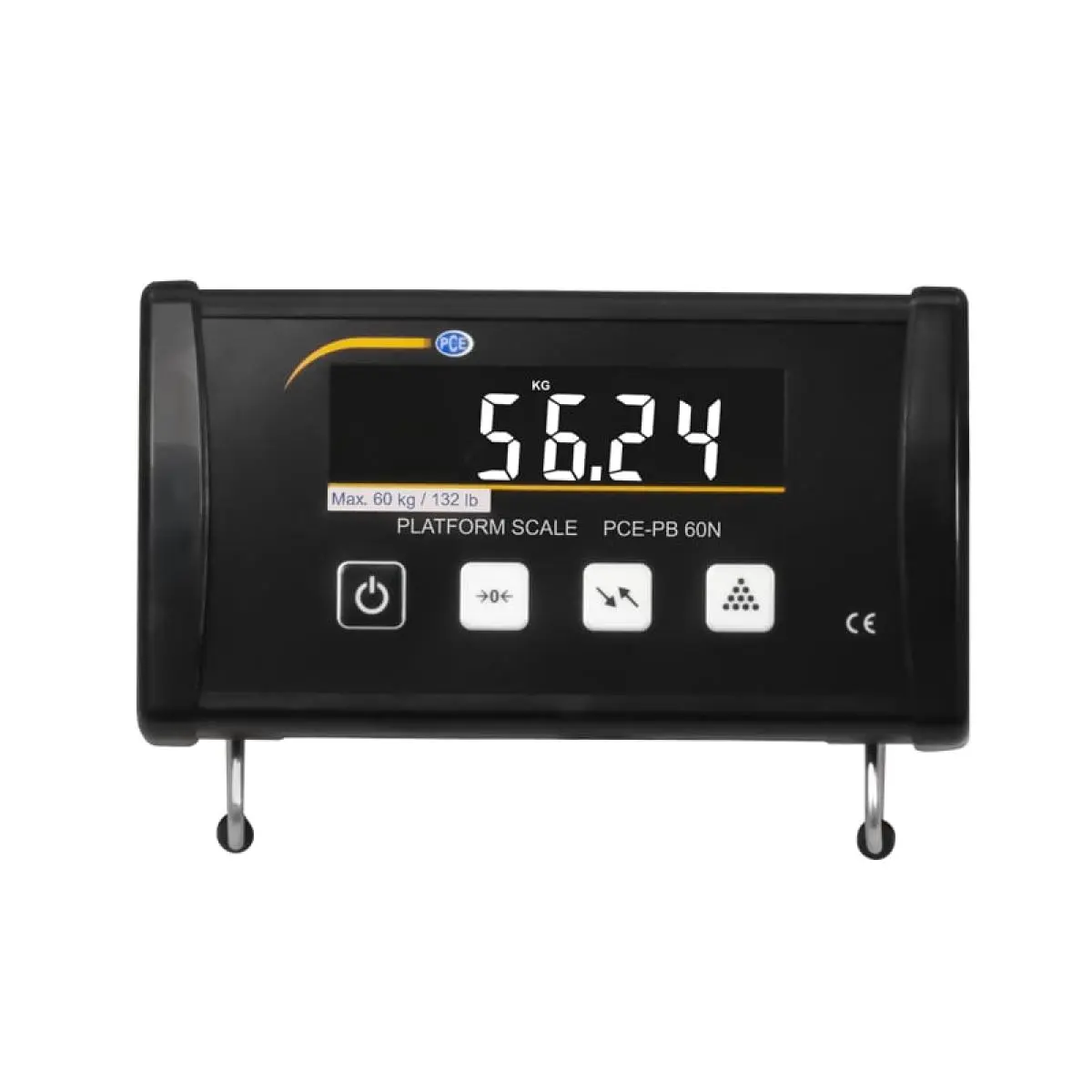

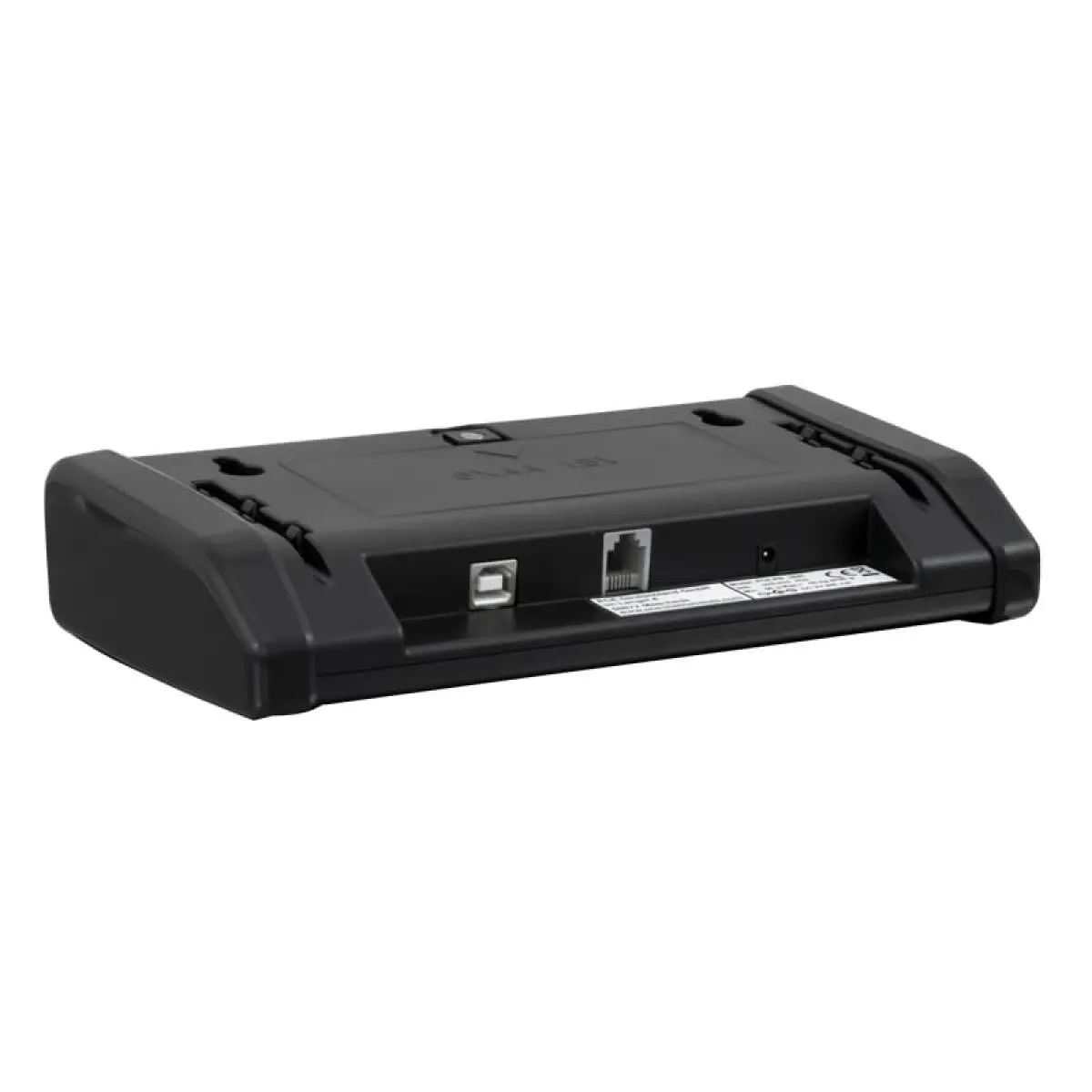

Another advantage of this platform scale is the
wired display. The display is supplied with a stand, but it is also
suitable for wall mounting. Other interesting functions of the platform
scales are the piece counting function, PEAK hold function, function for
level control, measuring units such as kg / lb / N (Newton) / g,
adjustable background lighting, adjustable automatic switch-off and the
option to operate the scales with power pack or batteries.
| Weighing range | |
| Measurement range up to [Max] | 60 kg |
| Resolution [d] | 20 g |
| Accuracy | ±80 g |
| General technical data | |
| Cable length | 1,5 m |
| Measuring functions | MAX, HOLD, peak |
| Measuring functions (additional information) | Fill level control (auto tare OFF function), piece counting function (min.1 d), animal weighing function |
| Units | kg, g, N, lb |
| Display type | LCD with backlight |
| Digit size [WxH] | Height: 20 mm |
| Interface | USB-B bidirectional |
| Minimum load [min] | 60 g |
| Tare range | Multiple tare over the full measurement range |
| Weighing plate material | Stainless steel |
| Dimensions | Cradle plate: L 300 x W 300 x H 45 mm / L 11.8 × W 11.8 × H 1.8 in |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| Power supply | 9V DC / 200 mA |
| Connector type | Device-europlug |

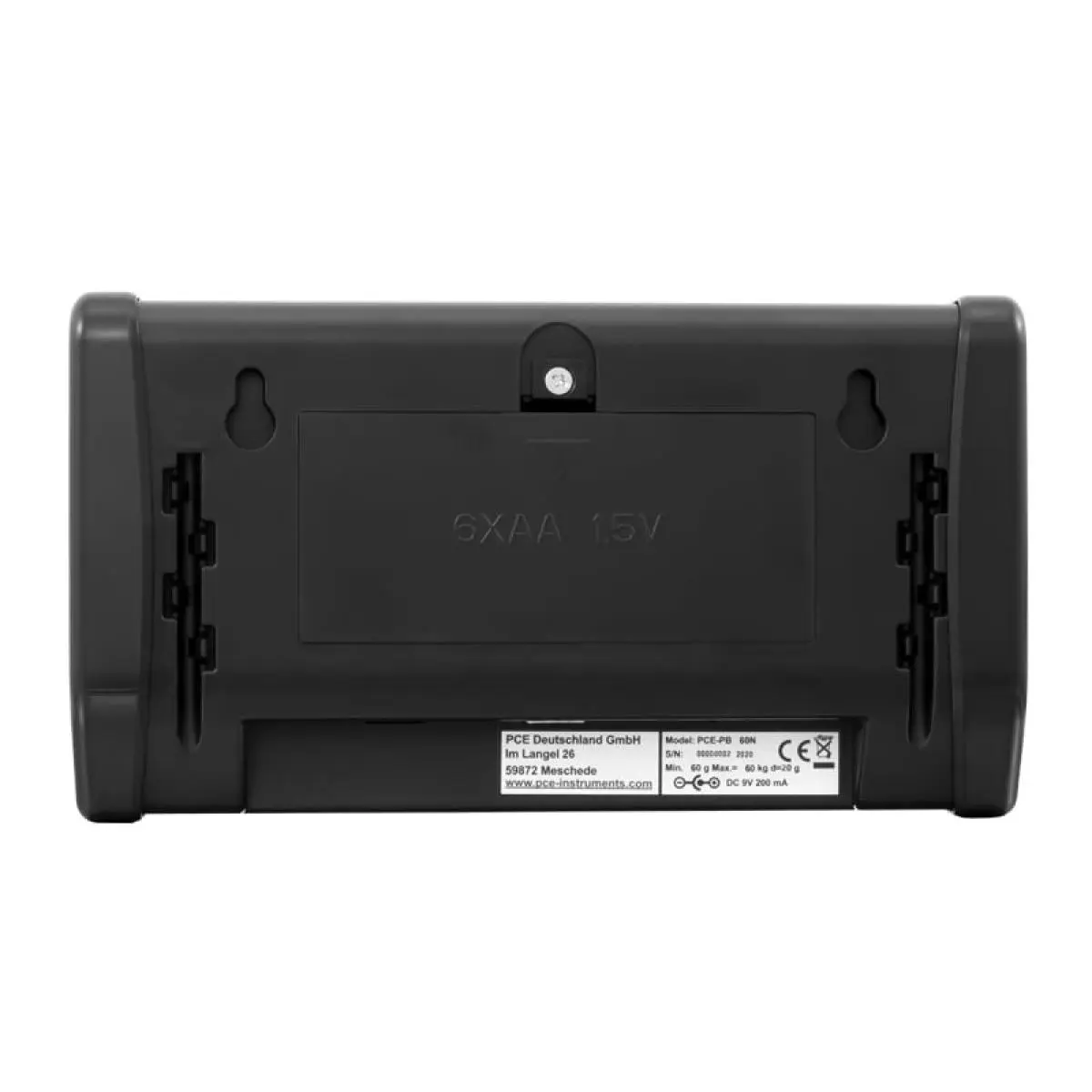

| (Rechargeable) battery | 6 x 1,5 V AA battery , Alkali-manganese |
| Capacity | 3000 mAh |
| Operating conditions | 5 ... 35 °C , 0 ... 85 % RH |
| Storage conditions | 5 ... 35 °C , 0 ... 85 % RH |
| Dimensions ( L x W x H ) | 300 x 300 x 45 mm |
| Weight | 4000 g |
