Tabletop Scales PCE-MA 200-ICA

Tabletop Scale PCE-MA 200-ICA incl. ISO Calibration Certificate

Order no.: PCE-MA 200-ICA
GTIN (EAN): 4250348726278
AED 6,188.00
AED 6,497.40
price ex. (customs / clearance)
:
4250348726278
PCE-MA 200-ICA
Delivery time:5-7 working days

Description

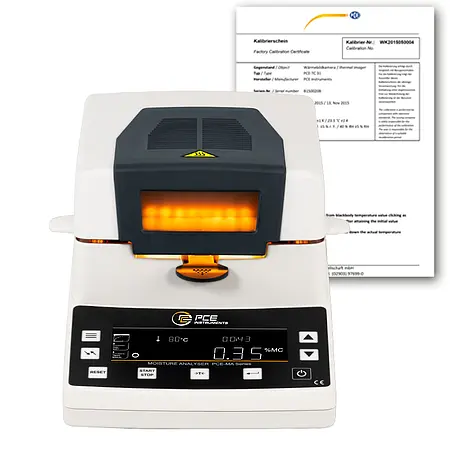

PCE-MA 200-ICA Tabletop Scale incl. ISO Calibration Certificate
Oven-drying moisture analyzing balance for weighing and halogen-heating samples to determine moisture content /
 Accuracy to 0.01 %

The tabletop scale PCE-MA 200 allows different materials to be weighed and their moisture contents determined. The heating chamber is heated by halogen lamps up to 199 °C. In this chamber, the tabletop scale dries the material to be weighed, and then calculates the moisture content from the weight difference. The tabletop scale can determine the smallest weight differences thanks to a readability of 0.001 g. The results are displayed on the large LCD display. Up to 15 different drying programs can be stored in the memory of the laboratory balance. Accordingly, the tabletop scale is suitable for quality control of wood products, granules, pellets, feed, food, pastes and more. With the included 100 g weight, the tabletop scale can be calibrated at any time.


Highlights

- Weighing range: 200 g
- Readability: 1 mg / 0.001 g
- Heating chamber for moisture determination
- RS-232 interface
- Memory for up to 15 drying programs
- Adjustable drying temperature and time
- Ease of use
- Calibration function for readjustment
- 100 g calibration weight included
- Large LCD display with nine membrane keys
- Accuracy to 0.01 %
- incl. ISO-Calibration Certificate

Specification

Absolute moisture
Measuring range  0 ... 100 %
Resolution  0,01 %

Weighing range
Measurement range up to [Max]  200 g
Resolution [d]  0,001 g
Accuracy  0.003 g

General technical data
Display type  LCD with backlight
Digit size [WxH]  H: 17 mm
Storage capacity  15 Programs
Interface  RS232
Heating element  Halogen light
Heating temperature  40 ... 199 °C
Repeatability  0,003 g
Dimensions  Halogen lamp: Ø 90 mm
Drying time  1 ... 99 min.
Settling time  4 s
Linearity  0.003 g
Readability  0,001 g
Menu language  English, English (GB)
Protection class (device)  IP20
Power supply  220 V / 50 Hz
Connector type  Cold-device plug
Operating conditions  5 ... 35 °C , 0 ... 75 % RH
Storage conditions  0 ... 40 °C , 0 ... 75 % RH
Dimensions ( L x W x H )  200 x 180 x 380 mm
Weight  4400 g

Delivery Scope

Delivery contents
1 x PCE-MA 200-ICA Tabletop Scales
1 x wind protection shield
1 x sample pans
1 x power supply cord
1 x sample cup holder / handle
1 x 100 g weight in plastic box
1 x user manual
1 x ISO-Calibration Certificate
