AED 6,556.00

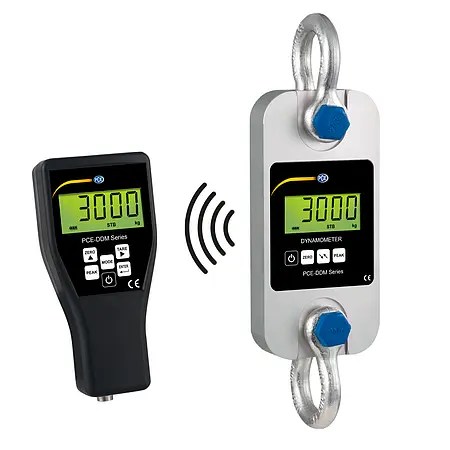

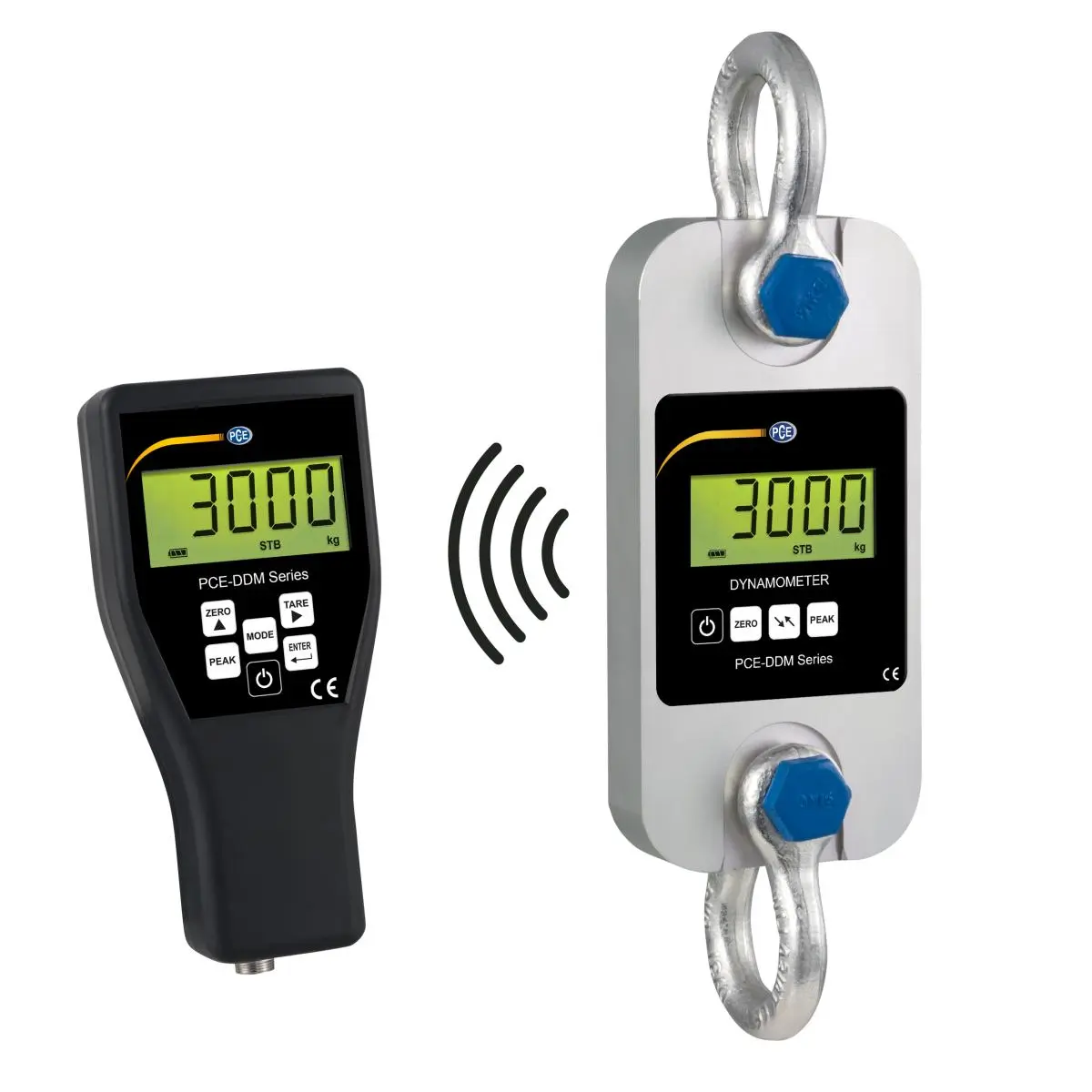

Suspended Scale PCE-DDM 3

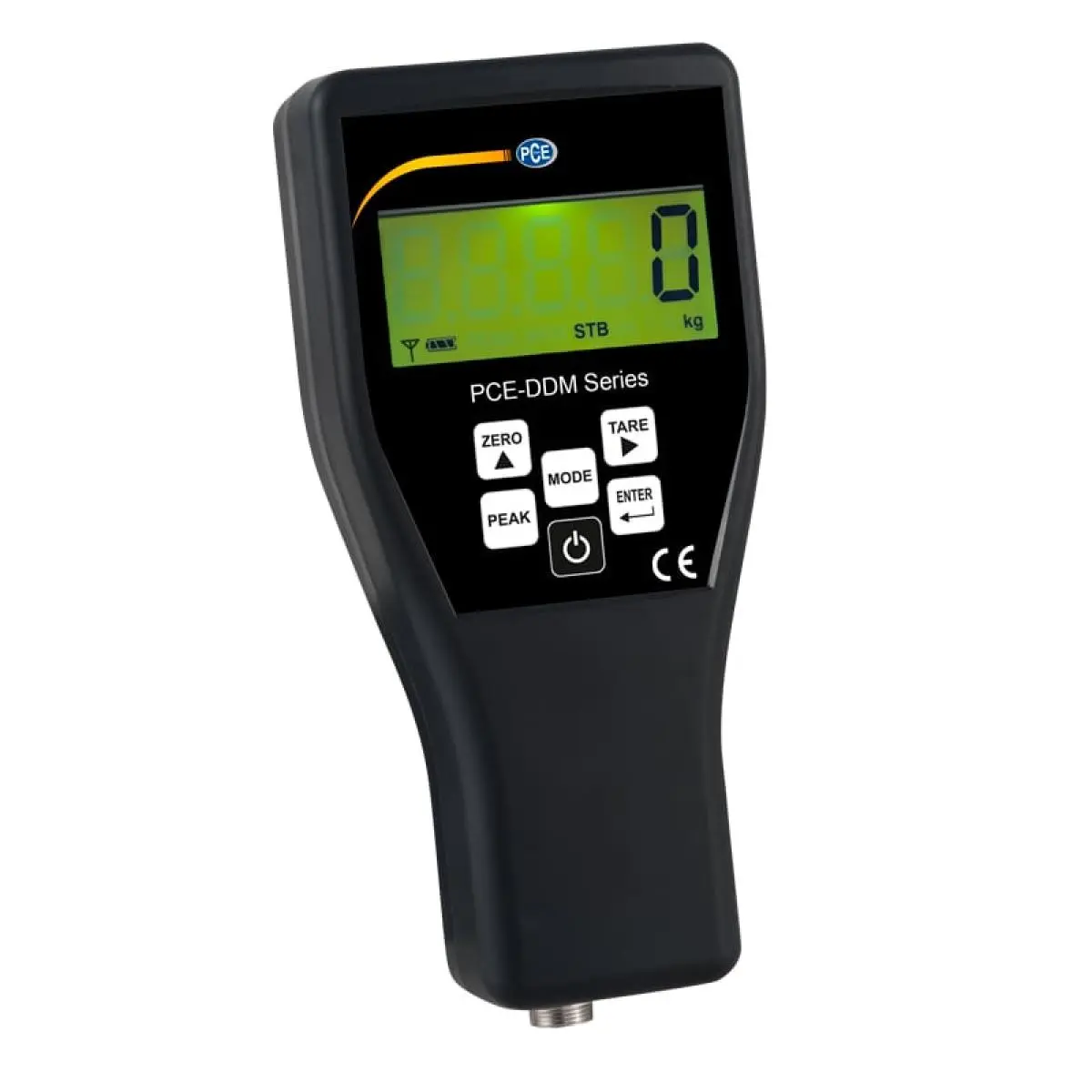

Measurement range up to 3 t / Peak hold function / Includes remote control indicator, shackles and protective carrying case

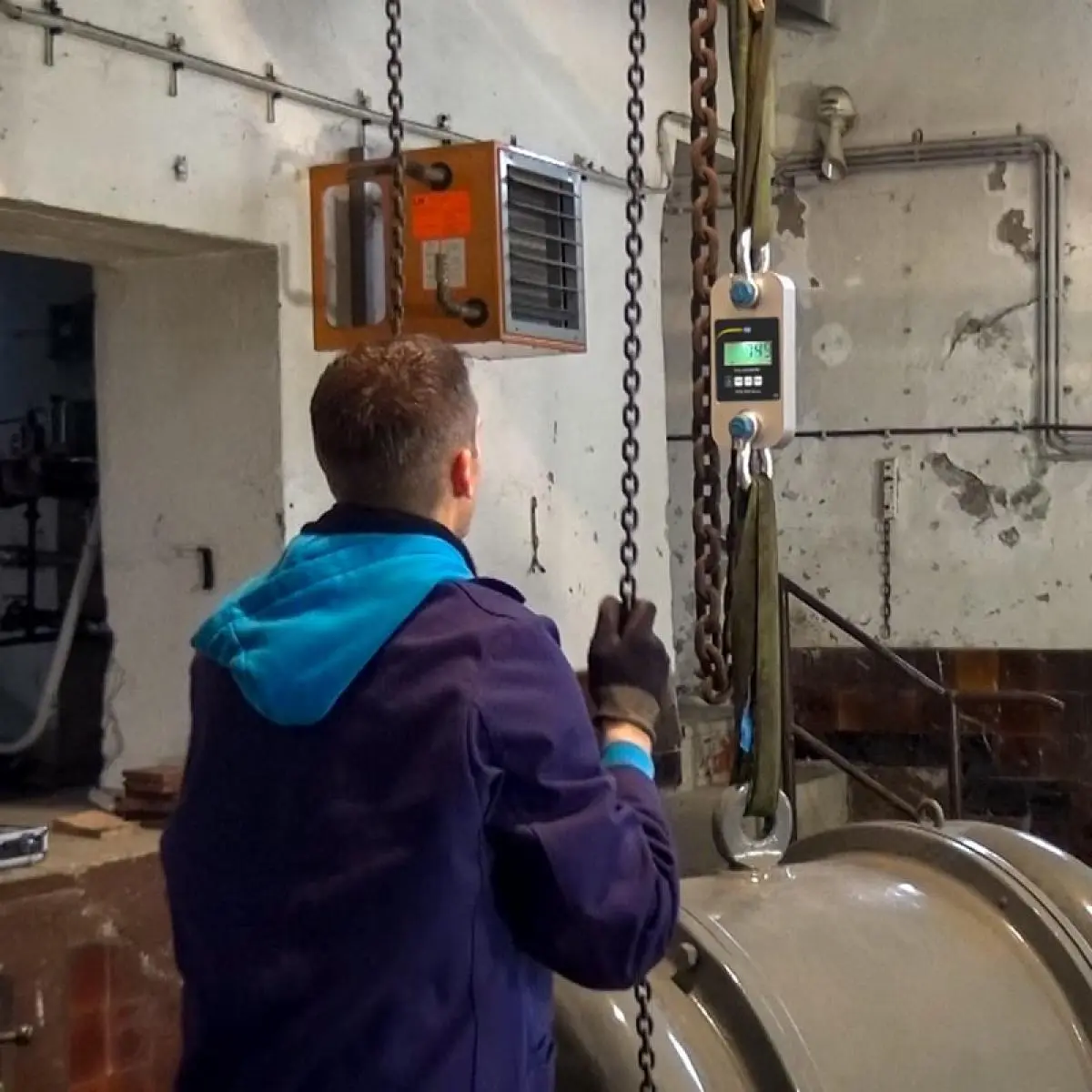

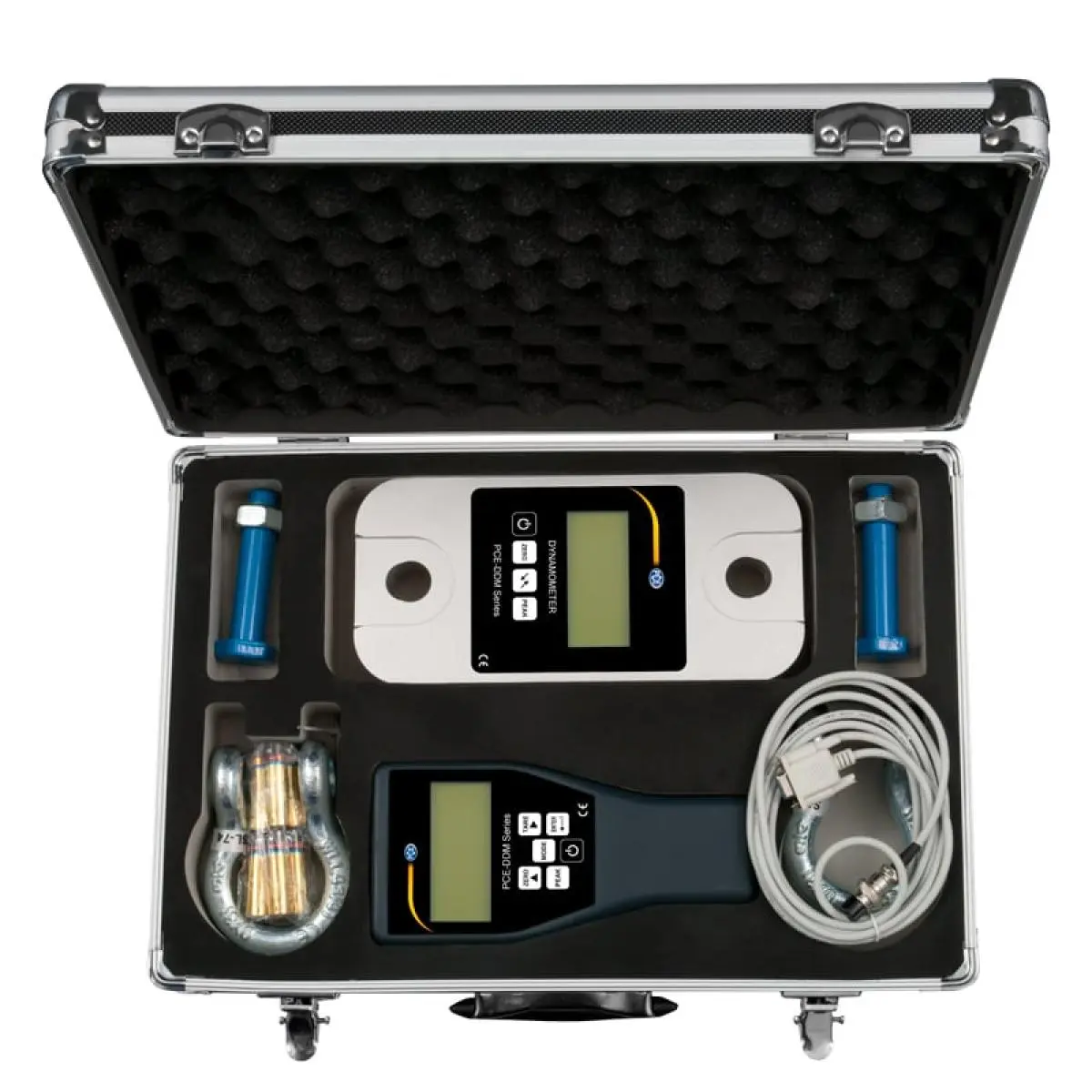

The suspended scale is the ideal tool for weighing big loads and for measuring strong tensile forces. The suspended scale is delivered in a protective carrying case and includes two shackles made of heavy-duty aluminum. The instrument is manufacturer calibrated, but can be certified to ISO standards for an additional fee. Despite its high measurement capacity, the suspended scale is a compact portable device with a low net weight. Interesting functions of the suspended scale are the peak hold function, summation function, and the ability to select different units of measurement such as kg / t / lbs / N / kN. The instrument is only suitable for weighing and for tension force testing. For compression force testing, please see the PCE-FB series force gauges.
| Weighing range | |
| Measurement range up to [Max] | 3000 kg |
| Resolution [d] | 1 kg |
| Accuracy | ±0.1% of range |
| Force | |
| Measuring range | 0 ... 30 kN |
| Resolution | 10 N |
| Accuracy | ±0.1% of range |
| General technical data | |
| Measuring functions | HOLD, peak |
| Measuring functions (additional information) | Summing function |
| Units | kg, N, lb, T, kn |
| Display type | LCD |
| Digit size [WxH] | Height: 22 mm |
| Measuring rate | 2,5 Hz |
| Operating time | 50 h |
| Minimum load [min] | 10 kg |
| Tare range | max. 20 % of the measurement range |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| Power supply | batteries |
| (Rechargeable) battery | 7 x 1,5 V AA battery , Alkali-manganese |
| Capacity | 3000 mAh |
| Operating conditions | -10 ... 40 °C , 0 ... 85 % RH |
| Storage conditions | -10 ... 40 °C , 0 ... 85 % RH |
| Dimensions ( L x W x H ) | 260 x 123 x 37 mm |
| Weight | 2000 g |
