AED 828.00
Calibrated Stainless Steel built-in scale up to 3,000 kg /
Resolution 1 kg / Weighing cells IP67 /
Piece counting function / Summing function / RS-232 interface / Scales made of painted steel
/ Removable weighing plate / Mounting frame optional

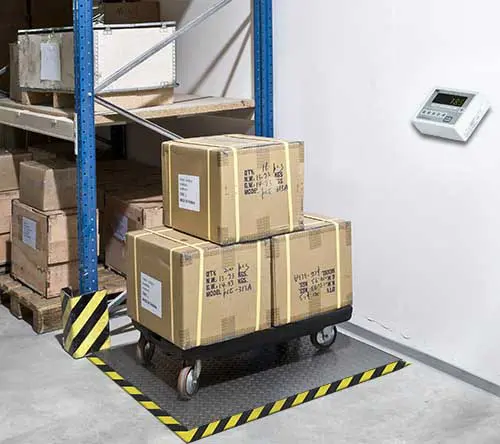

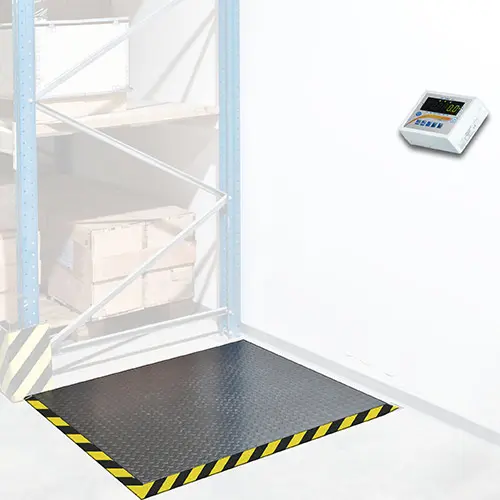

The stainless steel scale is designed for flush installation and is optionally available with a built-in frame on request. The stainless steel built-in scale is calibrated according to Calibration Class III and is approved throughout the EU for use for trading of goods for two years. The display cable of the stainless steel scale has a length of 5 m and is equipped with a plug-in connection, which allows a problem-free laying in the cable duct without having to re-calibrate the stainless steel scale. The display of the stainless steel scale is IP 54 protected and has a bracket for a table or wall mounting.Optionally, you can also get a tripod suitable for the stainless steel scale.
Various dimensions of the stainless steel scale are available to you and the functions of the stainless steel scale make this a multi-talent. The serial bi-directional RS-232 interface of the stainless steel scale is also a versatile feature. Thus, a programmer can easily implement the stainless steel scale in the existing IT system. The stainless steel scale is also available as a stainless steel version. For special industrial applications analog interfaces 4-20 mA or 0-10 V as well as 3 potential-free switching contacts can be offered for the calibrated floor scale.
| Weighing range | |
| Measurement range up to [Max] | 3000 kg |
| Resolution [d] | 1 kg |
| Accuracy | 1 kg |
| Verification value [e] | 1 kg |
| General technical data | |
| Cable length | 4 m |
| Measuring functions | MIN, MAX, Average value |
| Measuring functions (additional information) | Piece counting function, percentage % comparative weighing, animal weighing function, totalising several weighings, recipe weighing, statistics function |
| Units | kg, lb, g, T, oz, ct, ozt, gr, dwt |
| Display type | LED |
| Digit size [WxH] | Height: 18 mm |
| Interface | bidirectional RS232 |
| Automatic power-off | 5 min |
| Tare range | Multiple tare over the full weighing range |
| Weighing plate material | Painted checkered steel sheet |
| Calibration | external |
| Dimensions | Display 190 x 140 x 65 mm |
| Verification class [e] | M III |
| Settling time | < 3 s |
| Menu language | English, English (GB) |
| Protection class (device) | IP54, IP67 |
| Power supply | 230V AC | 50 Hz, 8V A |
| Connector type | Schuko plug |
| Capacity | 220 mAh |
| Operating conditions | -10 ... 40 °C , 20 ... 90 (non-condensing)% RH |
| Storage conditions | -10 ... 40 °C , 0 ... 90 % RH |
| Dimensions ( L x W x H ) | 1500 x 1500 x 118 mm |
| Weight | 210000 g |
