AED 828.00

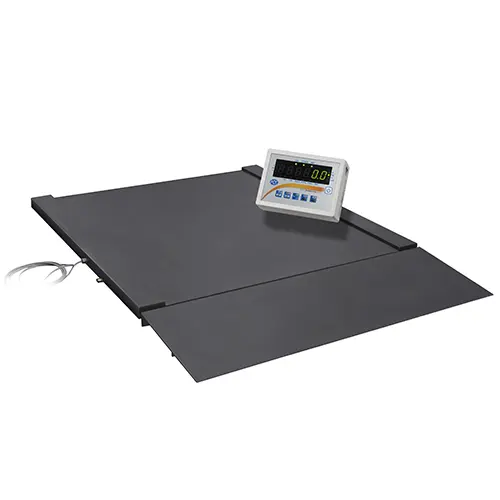

The calibrated platform scale is ideal if you do not want to put a scale into the ground. Simply place the platform scale in the room, fix the platform scale to the ramp with the fixing plates included in the delivery, connect the operating terminal to the socket and you can start weighing. We carry out the verification of the platform scale before shipping, so the platform scale can be used immediately in the custody of goods traffic.
The platform scale has a small height of only about 5 cm and allow easy loading even with heavy goods. A drive-on ramp is included in the delivery contents, and a second ramp can be ordered as an option. The display of the platform scale has a bracket which allows it to be mounted on the wall or on the table, optionally a tripod is also available for the platform scale. The functions of the platform scale are: piece count function, max. min weighing, recipe weighing, percentage weighing, average weight determination, summing function, tare weight memory and adjustable RS-232 interface.
| Weighing range | |
| Measurement range up to [Max] | 1500 kg |
| Resolution [d] | 0,5 kg |
| Accuracy | 0.5 kg |
| Verification value [e] | 0,5 kg |
| General technical data | |
| Measuring functions | MIN, MAX, Average value |
| Measuring functions (additional information) | Piece counting function, animal weighing function, recipe mixing weighing, adding multiple weighings, percentage % comparison weighing |
| Units | kg, g, ct, oz, ozt, gr, dwt, lb, T |
| Display type | LED |
| Digit size [WxH] | Height: 20 mm |
| Interface | bidirectional RS232 |
| Automatic power-off | 5 min |
| Minimum load [min] | 10 kg |
| Tare range | Over the full weighing range |
| Calibration | external |

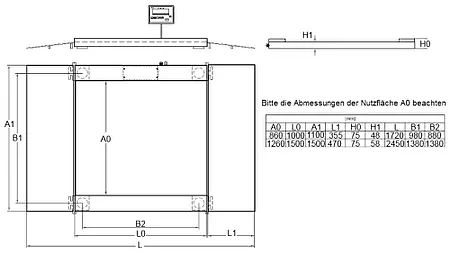

| Dimensions | Display 190 x 140 x 65 mm Access ramp: L 480 × H 58 mm |
| Verification class [e] | M III |
| Settling time | < 4 s |
| Menu language | English, English (GB) |
| Protection class (device) | IP67, IP54 |
| Power supply | 230V AC | 50 Hz, 8V A |
| Connector type | Schuko plug |
| (Rechargeable) battery | 1 x 3 V CR 2032 (button cell 3V) , lithium-ion battery |
| Capacity | 220 mAh |
| Operating conditions | -10 ... 40 °C , 20 ... 90 (non-condensing)% RH |
| Storage conditions | -10 ... 40 °C , 0 ... 90 % RH |
| Dimensions ( L x W x H ) | 1500 x 1250 x 58 mm |
| Weight | 350000 g |
