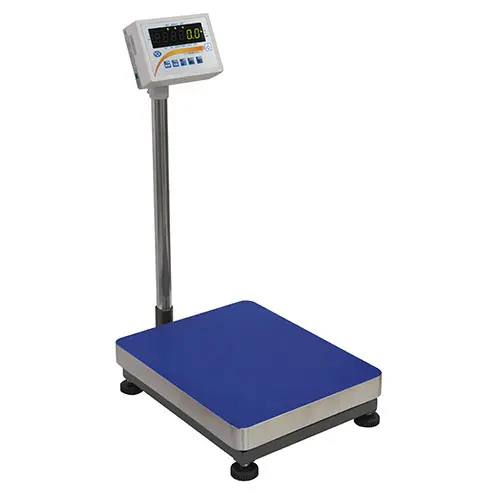

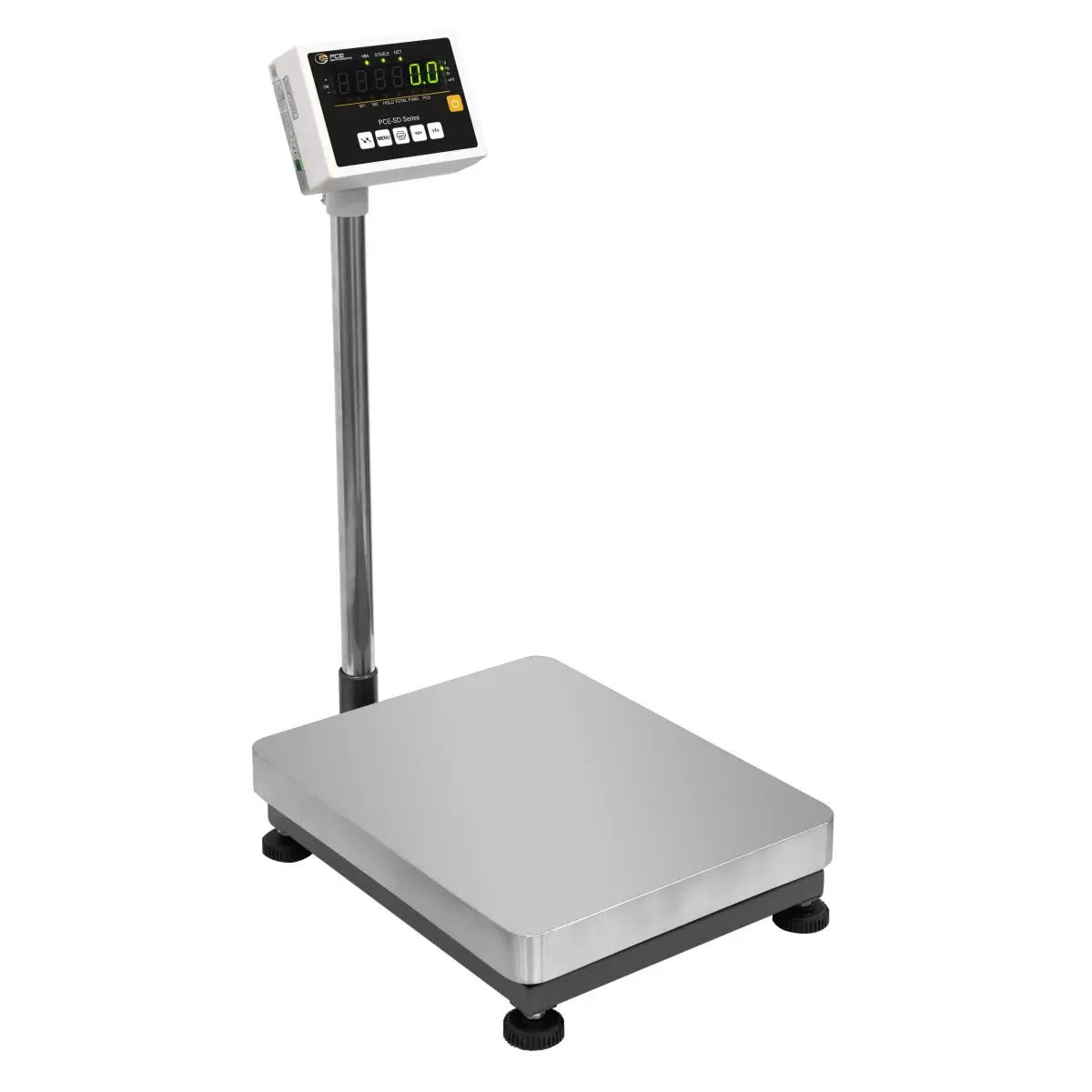

The parcel scale is a solid calibratable platform scale that is reasonably priced. The calibration of the parcel scale is performed by calibrating authorities following the calibration directives of Class M III. The solid base of the calibratable parcel scale is made of lacquered steel and features a plastic-coated platform made of steel. The calibratable parcel scale also has pedestals that can be alternated in their height, assuring a firm stand.
The navigation display of the parcel scale is placed on a stand mounted within a reachable height and fixed to the parcel scale. In order to assure an ideal readability of the display at all time, the display can be alternated in its angle. Functions that the calibratable parcel scale features are: automatic tare, item counter, saving tare value, gross / net weighing, percentage calculation, threshold weighing, etc. Further characteristics of the calibratable parcel scale are: e.g. analogue output 4 ... 20 mA or 0 ... 10 V, RS-485, LAN interfaces, potential-free contact, USB data storage, scanner input etc.
| Weighing range | |
| Measurement range up to [Max] | 30 kg |
| Resolution [d] | 10 g |
| Accuracy | 10 g |
| Verification value [e] | 10 g |
| General technical data | |
| Measuring functions | MIN, MAX, Average value |
| Measuring functions (additional information) | Piece counting function, totalising function, percentage weighing, recipe weighing, statistics function, animal weighing function |
| Units | kg, g, lb, oz, ct, ozt, gr, dwt |
| Display type | LED |
| Digit size [WxH] | Height: 18 mm |
| Interface | bidirectional RS232 |
| Automatic power-off | 5 min |
| Repeatability | 2 g |
| Minimum load [min] | 200 g |
| Tare range | Multiple tare over the full measurement range |
| Calibration | external |

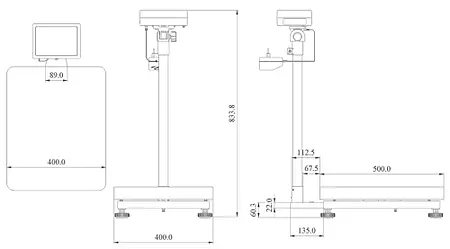

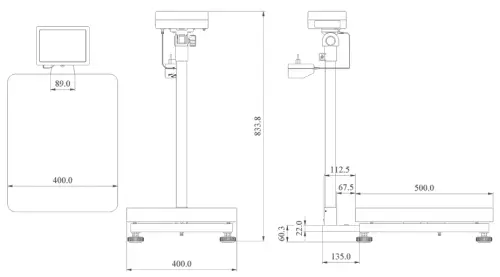

| Dimensions | Display 190 x 140 x 65 mm Platform 400 x 500 mm |
| Verification class [e] | M III |
| Settling time | < 3 s |
| Linearity | 3 g |
| Menu language | English, English (GB) |
| Protection class (device) | IP54, IP65 |
| Power supply | 230V AC | 50 Hz, 8V A 12V DC, 850 mA |
| Connector type | Device-europlug |
| Capacity | 220 mAh |
| Operating conditions | -10 ... 40 °C , 20 ... 90 (non-condensing)% RH |
| Storage conditions | -10 ... 40 °C , 0 ... 90 % RH |
| Dimensions ( L x W x H ) | 400 x 620 x 870 mm |
| Weight | 12000 g |
