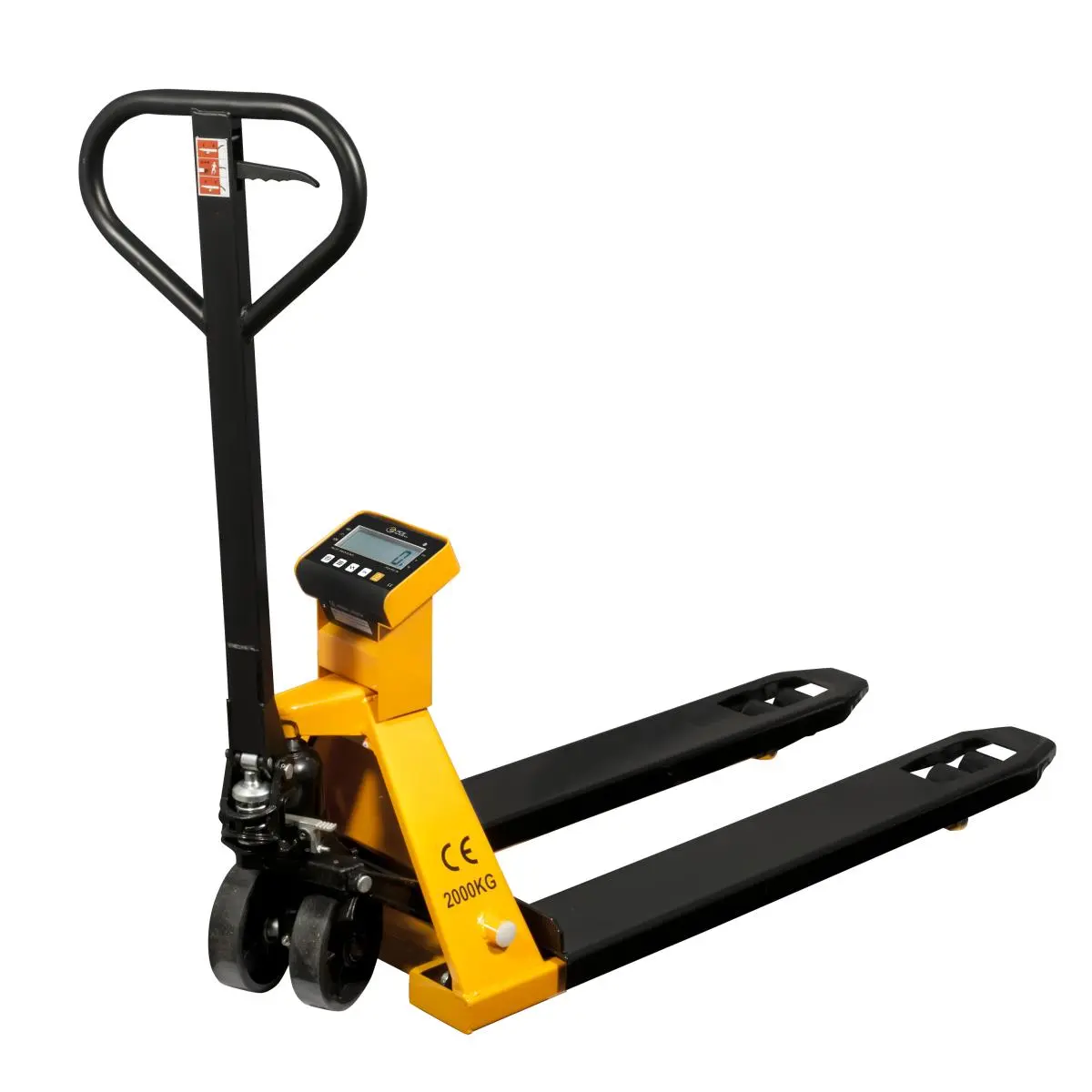

Pallet Truck Scales / Pallet Truck with Scales PCE-PTS 1N

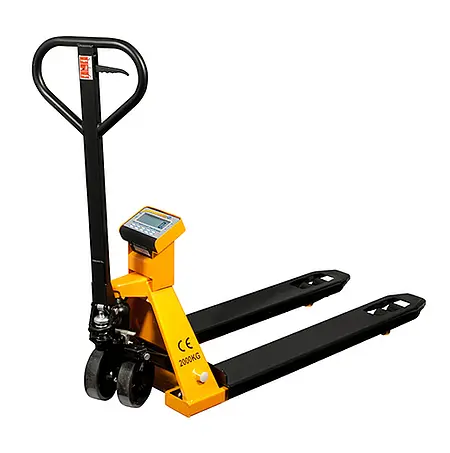

Pallet Truck Scales PCE-PTS 1N

Order no.: PCE-PTS 1N
GTIN (EAN): 4250348712233
AED 5,429.00
price ex. (customs / clearance)
:
4250348712233
PCE-PTS 1N
Delivery time:1-2 working days
5 t
1 kg
Calibratable

Description

Pallet truck scales up to 2000 kg / 1 kg readability / Taring function
Totalizing function / Piece counting function / Rechargeable battery / Automatic backlight

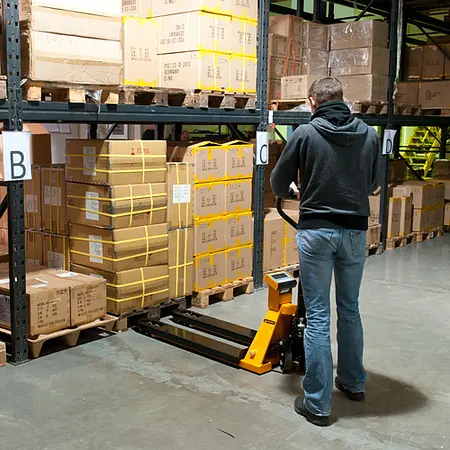

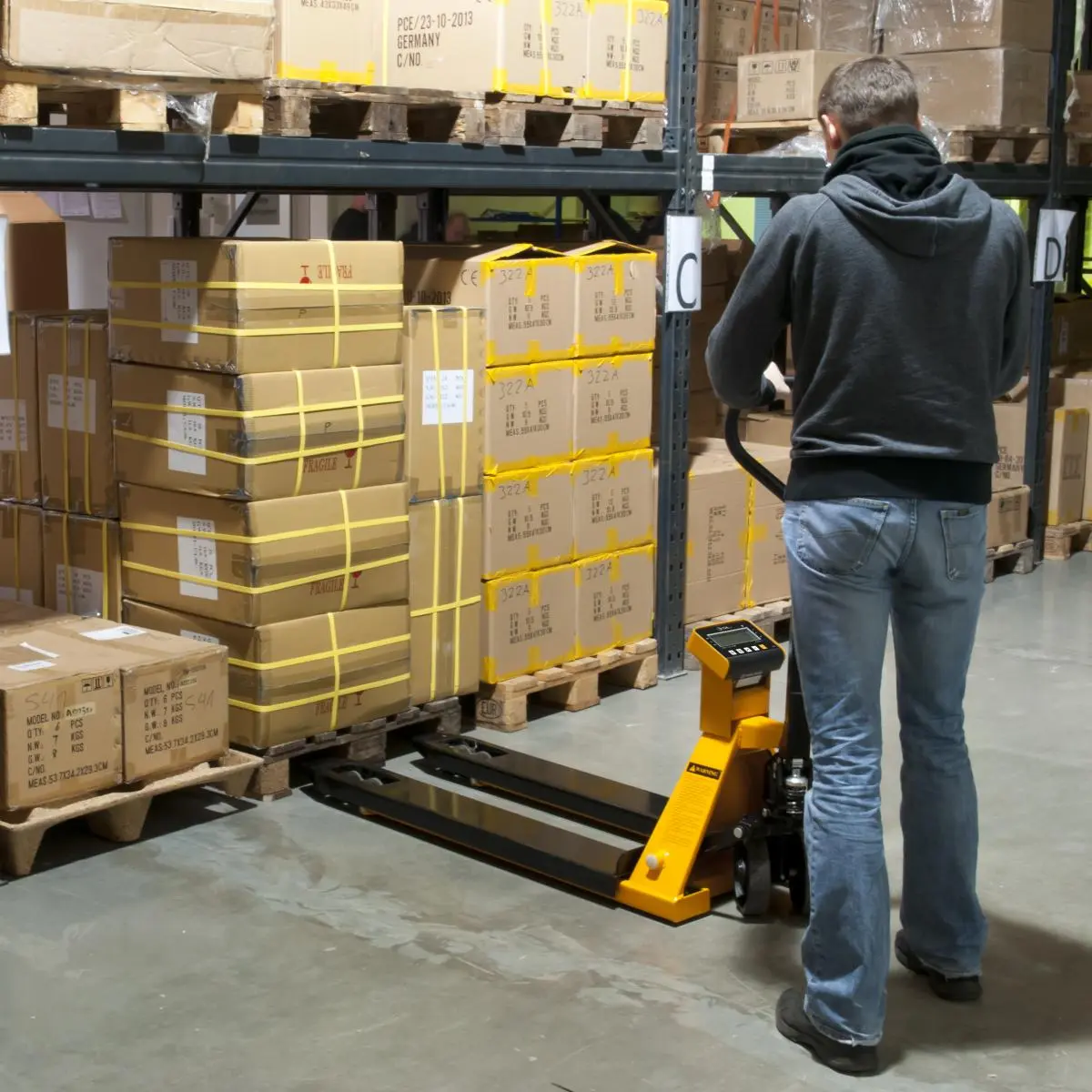

The pallet truck scales are a convenient way to save time and shorten work processes. These pallet truck scales can transport and weigh loads up to 2000 kg. For this purpose, four load cells are installed in the forks of the pallet truck scales, which form a weighing system with the evaluation unit. The display mounted on the pallet truck scales in no way limits the swiveling range of 180°. The pallet truck scales are powered by a rechargeable battery, which enables mobile and unrestricted use.

Despite the built-in scales, the forks of the pallet truck are particularly flat and therefore suitable for a wide variety of pallet types. For the transport cost calculation, the pallet truck scales can quickly and easily determine the weight of the pallet to be transported. The pallet truck scales can use the counting function to check the completeness of parts of the same weight, and the summation function can be used to check for overloading, with which up to 99 pallet weights can be added.

Highlights

- Weighing capacity: 2000 kg / 4409 lbs / 2.2 Tons
- Units of measure: kg or lb
- Readability: Selectable, 0.0
- High accuracy
- Tare function
- Automatic power off to conserve battery

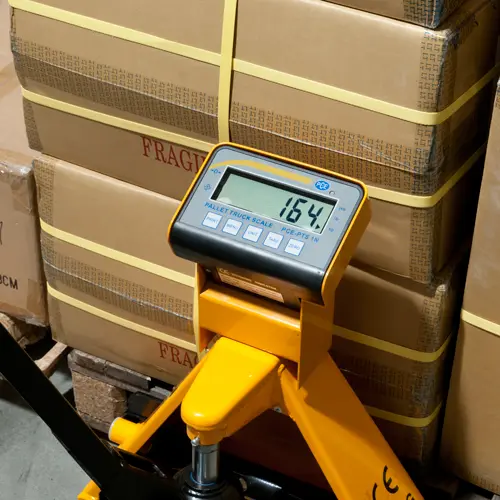

- Large, easy-to-read, backlit display that is splash proof
- Lacquered steel construction with robust Vulkolan wheels for use on uneven
ground

Specification

Weighing range
Measuring range from  0 kg
Measurement range up to [Max]  2000 kg
Resolution [d]  1 kg
Accuracy  ±0.2% FS

General technical data
Measuring functions (additional information)  Totalising function, piece counting function
Units  kg, lb

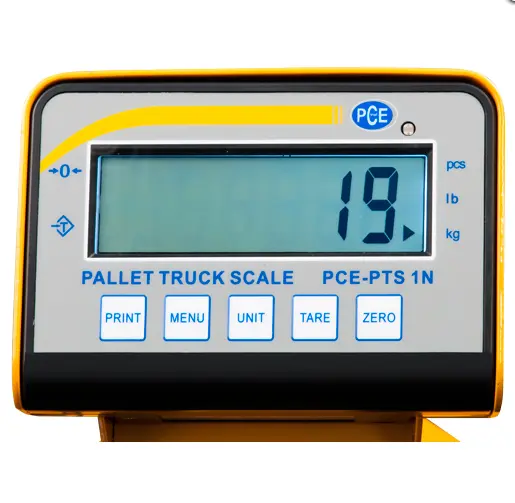

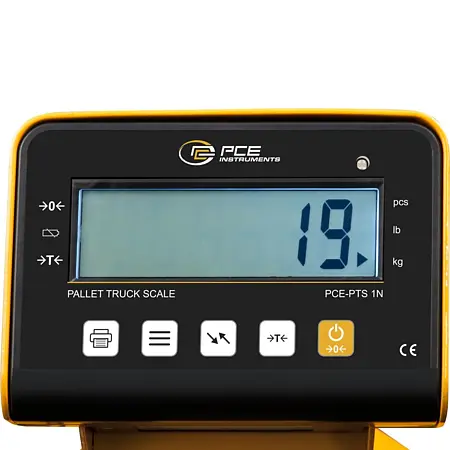

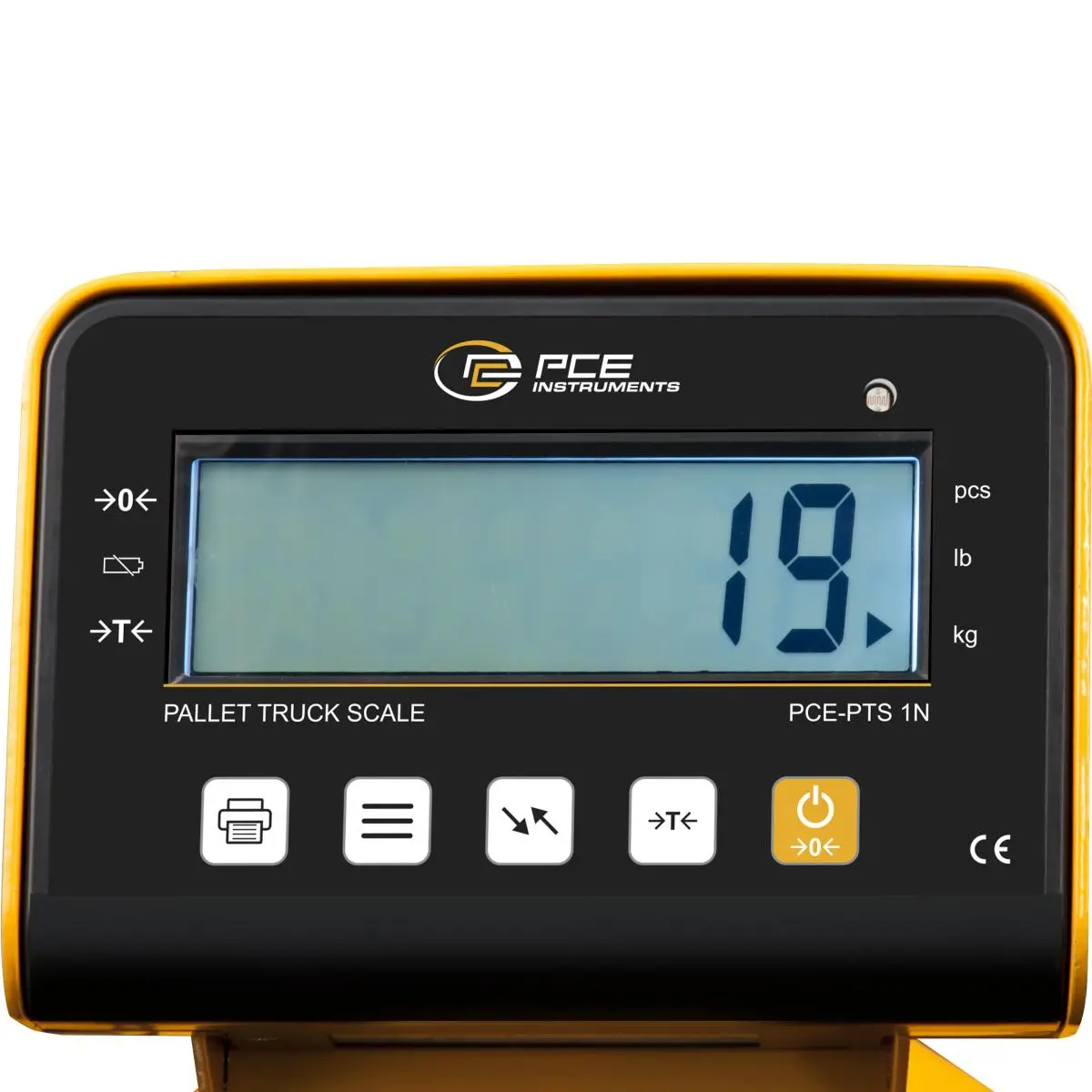

Display type  LCD with backlight
Digit size [WxH]  13 x 30 mm / 0.5 × 1.2 in
Automatic power-off  10 min
Tare range  Over the full measurement range
Dimensions  Display: L 410 x W 286 x H 83 mm
Menu language  English, English (GB)
Protection class (device)  IP43
Power supply  220 V AC
Connector type  Device-europlug
(Rechargeable) battery  1 x 6 V internal , Lead gel battery
Capacity  4500 mAh
Operating conditions  -10 ... 40 °C , 0 ... 85 (non-condensing)% RH
Storage conditions  -10 ... 40 °C , 0 ... 85 (non-condensing)% RH

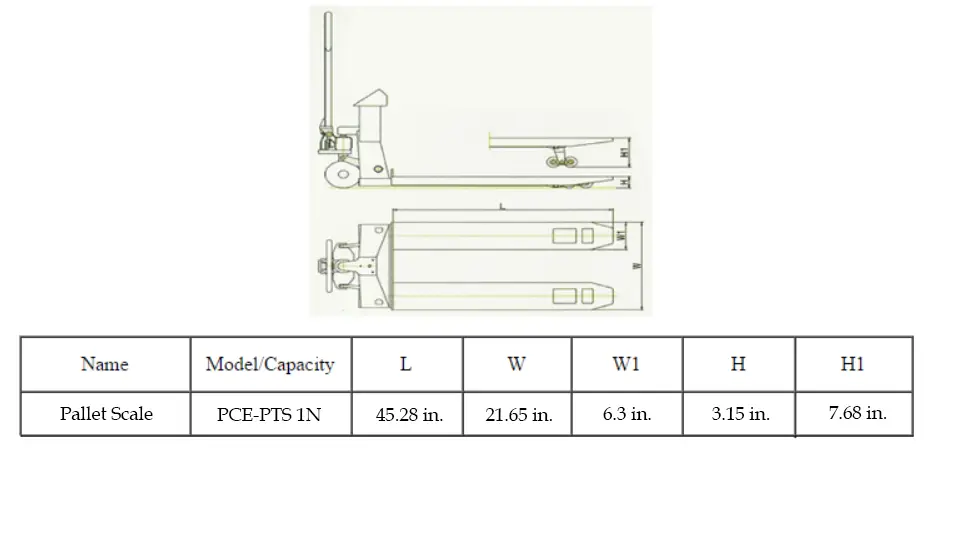

Dimensions ( L x W x H )  1570 x 550 x 1210 mm
Weight  85000 g

Delivery Scope

1 x PCE-PTS 1N Pallet Truck Scales / Pallet Truck with Scaless
1 x battery (installed internally)

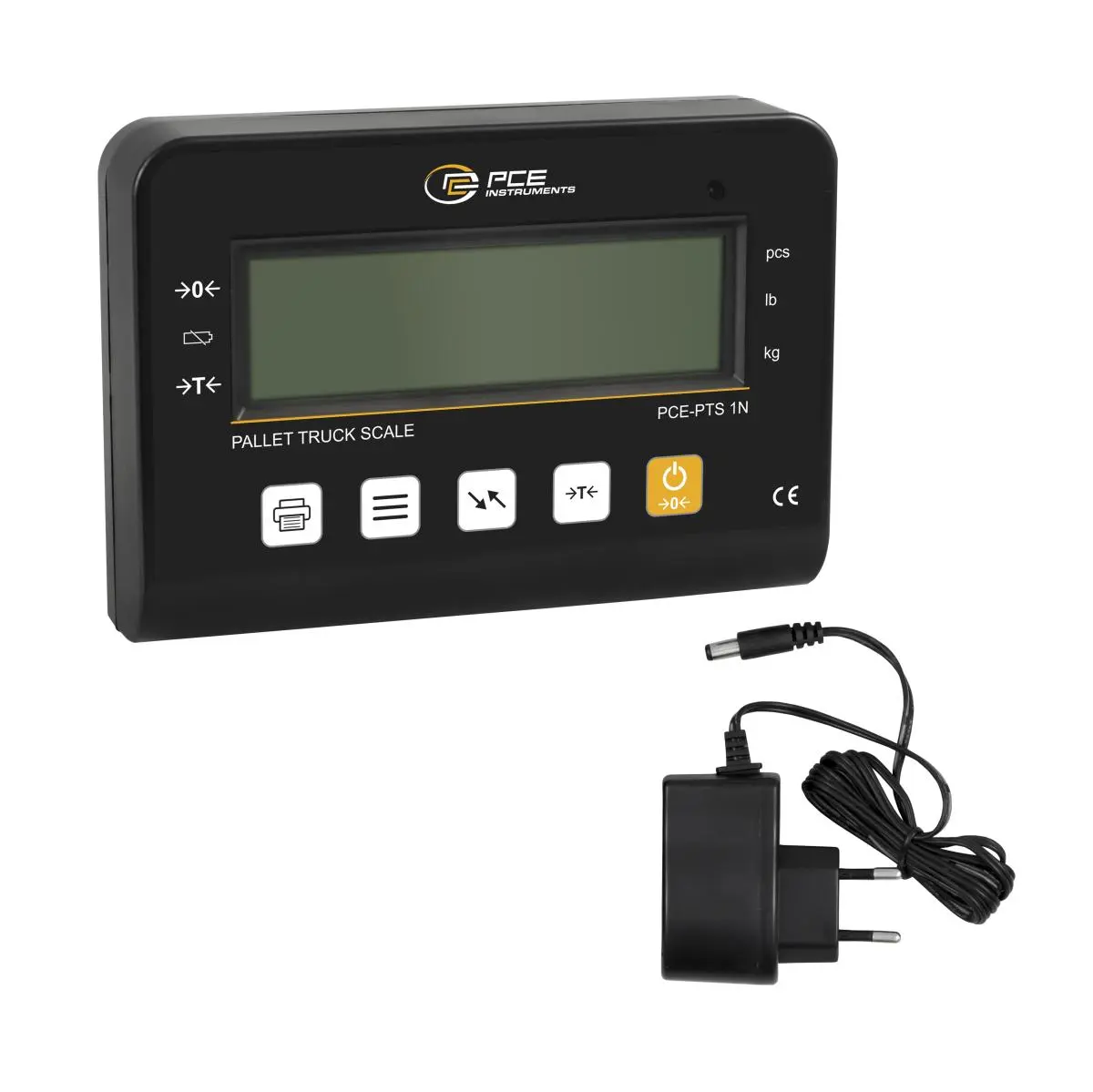

1 x battery charger
1 x user manual
NOTE: Customer is responsible for assembly, unless professional assembly by PCE
Instruments is added. See accessories for details.
