NTEP Certified Scales PCE-SD 150C

NTEP Certified Scale PCE-SD 150C

Order no.: PCE-SD 150C
GTIN (EAN): 4250348712349
AED 3,335.00
AED 3,501.75
price ex. (customs / clearance)
:
4250348712349
PCE-SD 150C
Delivery time:1-2 working days

Description

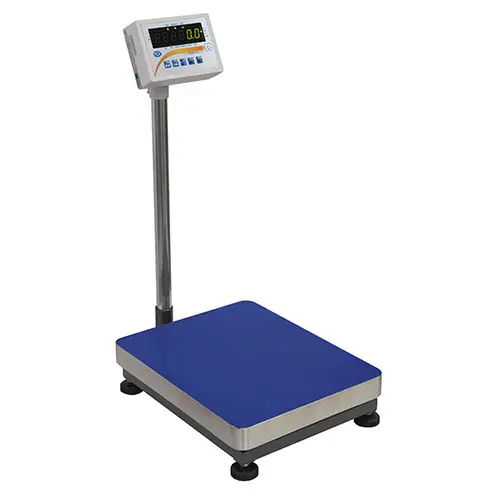

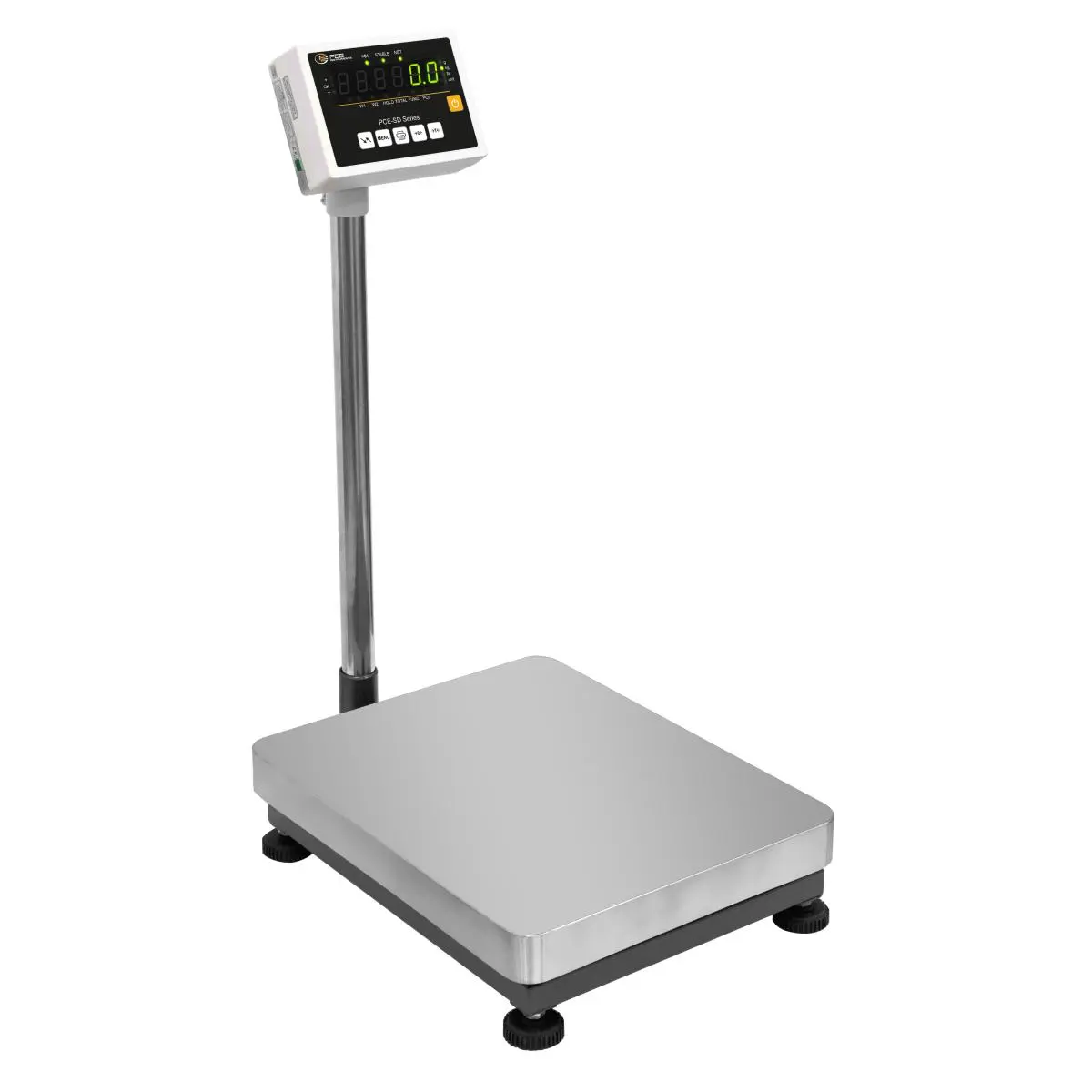

Calibratable NTEP Certified Scale / platform 400 x 500 mm or 500 x 600 mm  / bi-directional RS- 232 interface /
item counter / Summation function / RS-485, analogue outputs 4-20 mA, 0 - 10 V optional
The calibratable animal weighing scale is a solid calibratable platform scale that is reasonably priced. The calibration of the animal weighing scale is performed by calibrating authorities following the calibration directives of Class M III. The solid base of the calibratable animal weighing scale is made of lacquered steel and features a plastic-coated platform made of steel. The calibratable animal weighing scale also has pedestals that can be alternated in their height, assuring a firm stand.

The navigation display of the animal weighing scale is placed on a stand mounted within a reachable height and fixed to the animal weighing scale. In order to assure an ideal readability of the display at all time, the display can be alternated in its angle. Functions that the calibratable animal weighing scale features are: automatic tare, item counter, saving tare value, gross / net weighing, percentage calculation, threshold weighing, etc. Further characteristics of the calibratable animal weighing scale are: e.g. analogue output 4 ... 20 mA or 0 ...  10 V, RS-485, LAN interfaces, potential-free contact, USB data storage, scanner input etc.

Highlights

- Calibratable (delivery incl. calibration)
- Bi-directional RS-232 interface
- Unit counter
- Summation function
- Max. / min. display
- Percentage weighing
- Formula weighing
- Statistics function
- Animal weighing function
- Gross / net function
- Tare data storage
- Threshold weighing MIN / MAX / OK
- 3 potential-free contacts optional
- Analogue outputs optional (4-20 mA / 0-10 V)

Specification

Weighing range
Measurement range up to [Max]  150 kg
Resolution [d]  50 g
Accuracy  50 g
Verification value [e]  50 g

General technical data
Measuring functions  MIN, MAX, Average value
Measuring functions (additional information)  Piece counting function, totalising function, percentage weighing, recipe weighing, statistics function, animal weighing function
Units  kg, g, oz, ct, ozt, gr, dwt
Display type  LED
Digit size [WxH]  Height: 18 mm
Interface  bidirectional RS232
Automatic power-off  5 min
Repeatability  10 g

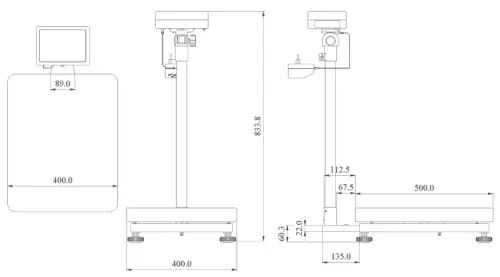

Other dimensions  Display 190 x 140 x 65 mm
Platform 400 x 500 x 125 mm
Minimum load [min]  1 kg
Tare range  Multiple tare over the full weighing range
Weighing plate material  Painted checkered steel sheet
Verification class [e]  M III
Settling time  < 3 s
Linearity  20 g
Menu language  English, English (GB)
Protection class (device)  IP54, IP65
Power supply  230V AC | 50 Hz, 8VA / 12V DC, 850 mA
Connector type  Device-europlug
(Rechargeable) battery  1 x 3 V CR 2032 (button cell 3V) , lithium-ion battery
Capacity  220 mAh
Operating conditions  -10 ... 40 °C , 20 ... 90 (non-condensing)% RH
Storage conditions  -10 ... 40 °C , 0 ... 90 % RH
Dimensions ( L x W x H )  400 x 620 x 870 mm
Weight  12000 g

Delivery Scope

1 x NTEP Certified Scales PCE-SD 150C incl. calibration
1 x Adapter
1 x Instruction Manual
