AED 202.00

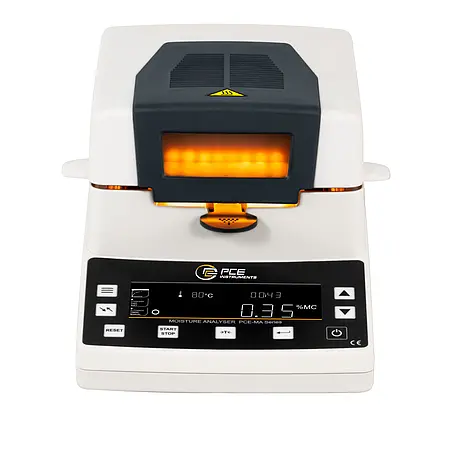

PCE-MA 200 Moisture Analyzer
Oven-drying moisture analyzing balance for weighing and halogen-heating samples to determine moisture content / Accuracy to 0.01 %
The moisture analyzer PCE-MA 200 allows different materials to be weighed and their moisture contents determined. The heating chamber is heated by halogen lamps up to 199 °C. In this chamber, the moisture analyzer dries the material to be weighed, and then calculates the moisture content from the weight difference. The moisture analyzer can determine the smallest weight differences thanks to a readability of 0.001 g. The results are displayed on the large LCD display. Up to 15 different drying programs can be stored in the memory of the moisture analyzer. Accordingly, the moisture analyzer is suitable for quality control of wood products, granules, pellets, feed, food, pastes and more. With the included 100 g weight, the moisture analyzer can be calibrated at any time.
| Absolute moisture | |
| Measuring range | 0 ... 100 % |
| Resolution | 0,01 % |
| Weighing range | |
| Measurement range up to [Max] | 200 g |
| Resolution [d] | 0,001 g |
| Accuracy | 0.003 g |
| General technical data | |
| Display type | LCD with backlight |
| Digit size [WxH] | H: 17 mm |
| Storage capacity | 15 Programs |
| Interface | RS232 |
| Heating element | Halogen light |
| Heating temperature | 40 ... 199 °C |
| Repeatability | 0,003 g |
| Dimensions | Halogen lamp: Ø 90 mm |
| Drying time | 1 ... 99 min. |
| Settling time | 4 s |
| Linearity | 0.003 g |
| Readability | 0,001 g |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| Power supply | 220 V / 50 Hz |
| Connector type | Cold-device plug |
| Operating conditions | 5 ... 35 °C , 0 ... 75 % RH |
| Storage conditions | 0 ... 40 °C , 0 ... 75 % RH |
| Dimensions ( L x W x H ) | 200 x 180 x 380 mm |
| Weight | 4400 g |
