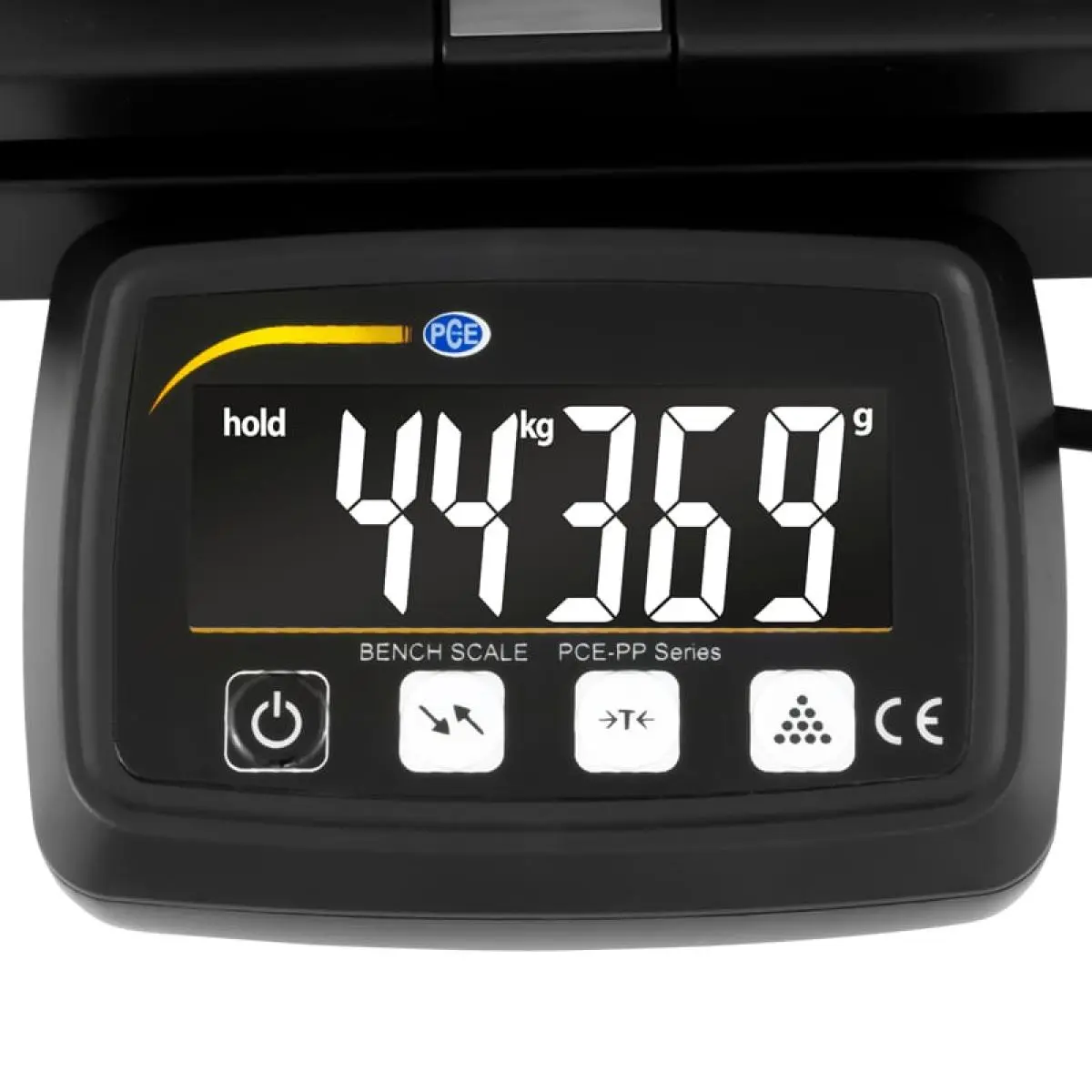

The LAB Scales / Laboratory Scales are very precise measuring devices for determining weights due to the resolution of 1 g and an accuracy of ± 0.1% of the measuring range. The display units available on the LAB Scales / Laboratory Scales are lb / oz, kg / g, kg, g, lb, oz. The illuminated LC display of the LAB Scales / Laboratory Scales is sized in such a way that the measured value can be read easily even in very bright ambient conditions. In addition, the display of the LAB Scales / Laboratory Scales can be removed and can be positioned freely because of the spiral cable.

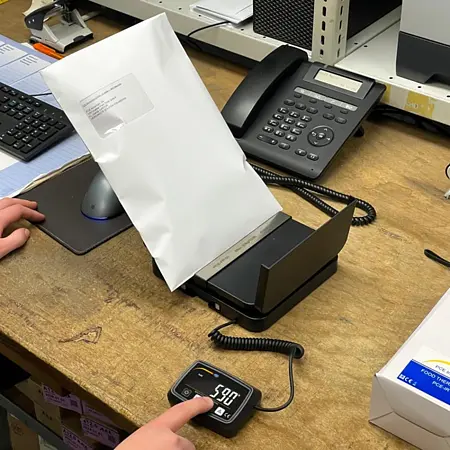

With the piece counting function, the LAB Scales / Laboratory Scales can determine the number of objects, such as screws. For this purpose, a reference measurement is first carried out on the LAB Scales / Laboratory Scales. The piece counting function is then started by pressing a button. As an extension of the piece counting function, the weighing surface of the LAB Scales / Laboratory Scales can be opened to the side. In this way, for example, stacked envelopes or similar can be weighed with the LAB Scales / Laboratory Scales without them falling off the weighing surface.

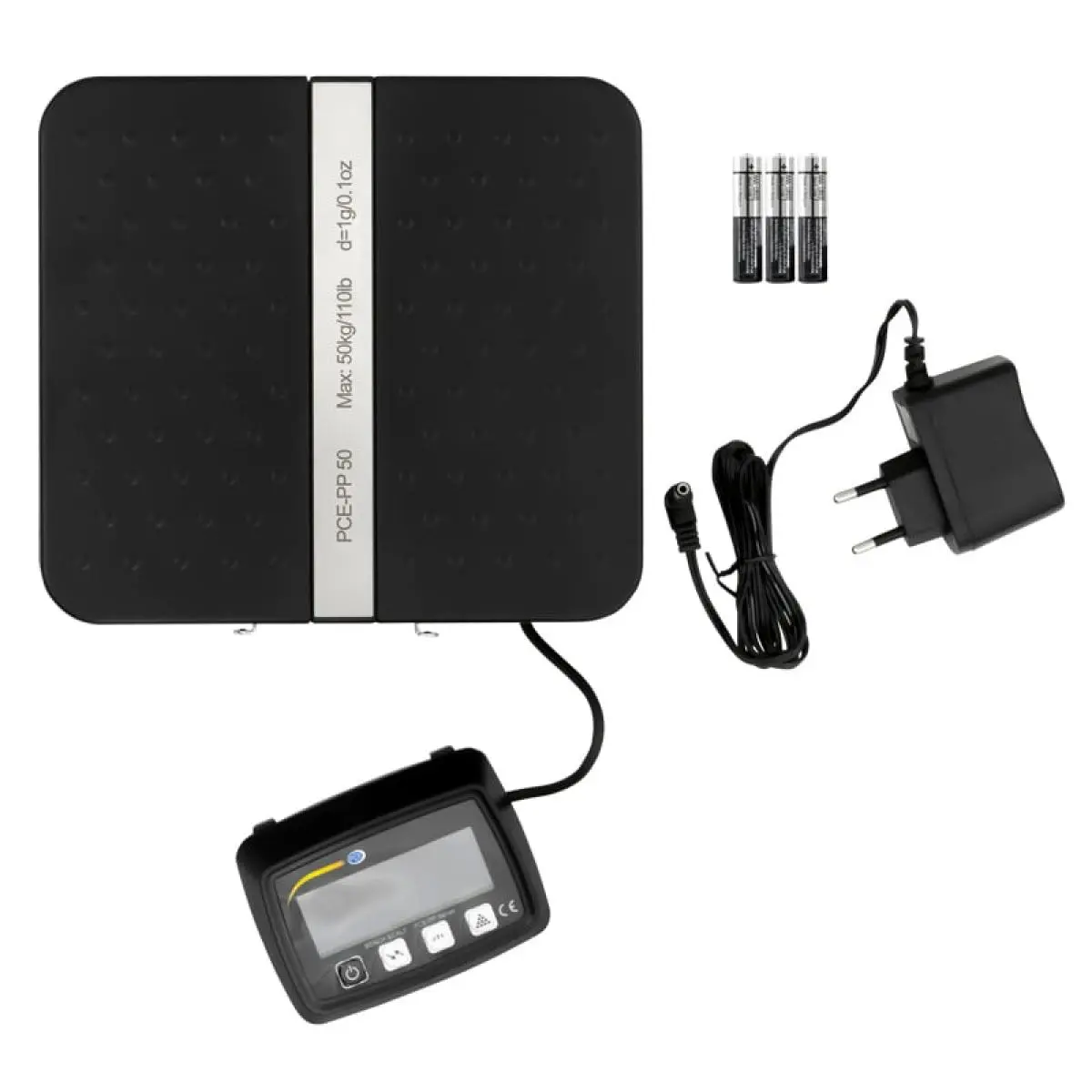

The LAB Scales / Laboratory Scales are supplied with power via a 6 V DC mains power adapter. In addition, the LAB Scales / Laboratory Scales can be operated with three 1.5 V batteries. This means that the LAB Scales / Laboratory Scales can be used both stationary and mobile. The automatic switch-off ensures that the LAB Scales / Laboratory Scales switches itself off within 5 minutes of inactivity. PCE Instruments optionally offers an ISO calibration certificate for the LAB Scales / Laboratory Scales.
| Weighing range | |
| Measurement range up to [Max] | 50 kg |
| Resolution [d] | 1 g |
| Accuracy | ±0.1% FS |
| General technical data | |
| Type of cable | Coiled cable |
| Cable length | 1,1 m |
| Measuring functions (additional information) | Piece counting function |
| Units | kg, g, lb, oz, g/kg, Ib/oz |
| Display type | LCD |
| Automatic power-off | 5 min |
| Overload protection | Measurement range exceeded: "O-Ld" |
| Dimensions | Platform 198 x 180 x 120 mm / 7.8 × 7.1 × 4.7 in (unfolded) Display 92 x 68 x 30 mm / 3.6 × 2.7 × 1.2 in |
| Protection class (device) | IP20 |
| Power supply | 100 ... 240 V AC | 50/60 Hz |
| Connector type | Device-europlug |
| (Rechargeable) battery | 3 x 1,5 V AAA battery , Alkali-manganese |
| Capacity | 1200 mAh |
| Operating conditions | 5 ... 35 °C , 0 ... 90 % RH |
| Storage conditions | 5 ... 35 °C , 0 ... 90 % RH |
| Dimensions ( L x W x H ) | 198 x 180 x 44 mm |
| Weight | 794 g |
