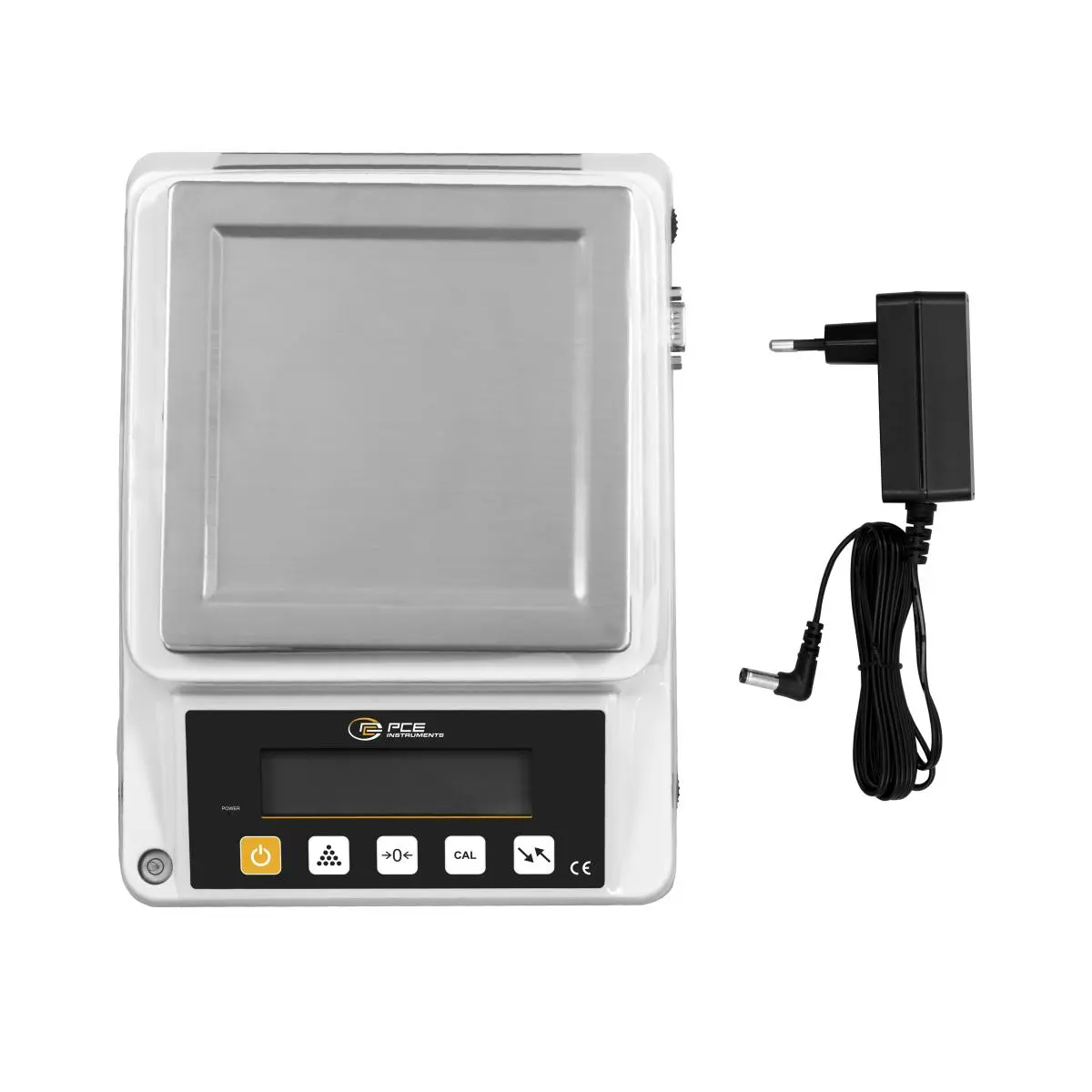

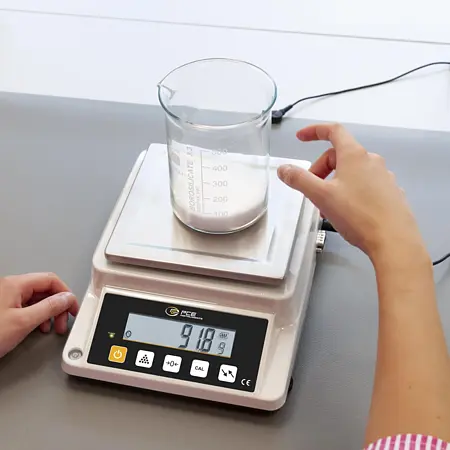

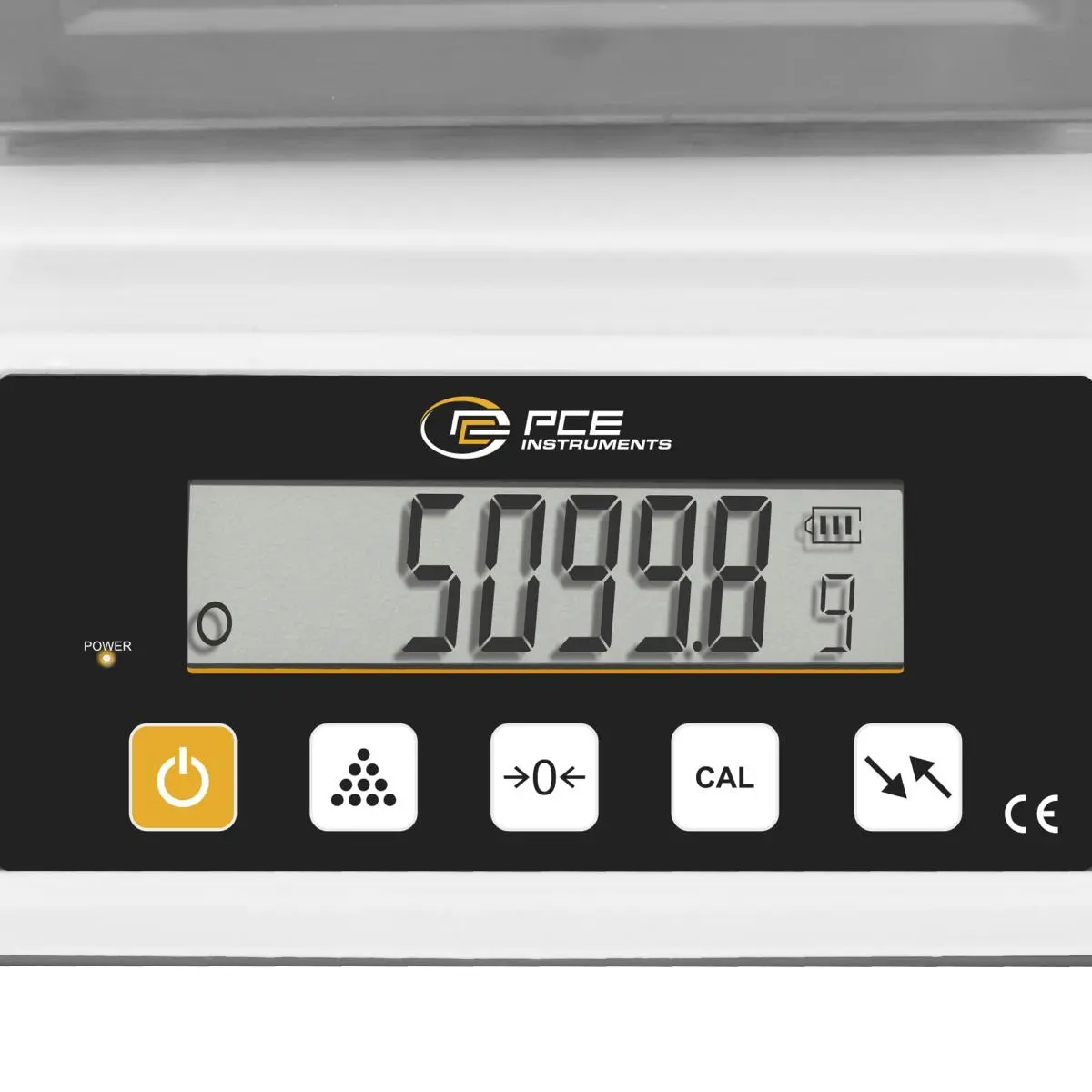

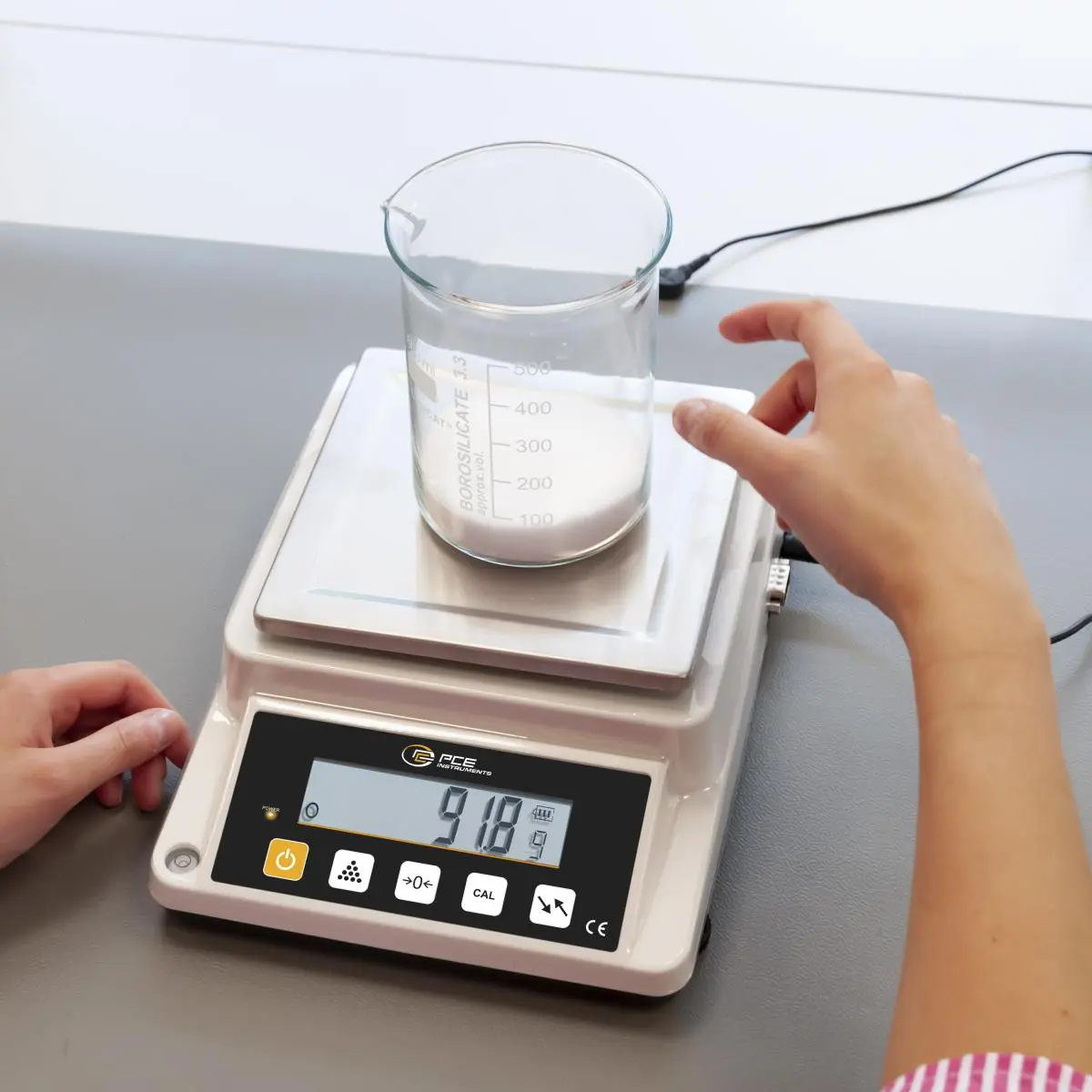

The Inventory Scale is a scale for daily laboratory use. Another function besides the normal measuring function of the Inventory Scale is the piece counting function. This function allows the Inventory Scale to determine the number of screws, for example. Thus, the Inventory Scale can also be used in logistics, for example. So that the display is readable even in low light conditions, the display of the Inventory Scale has a backlight.
In addition to the measuring functions, the Inventory Scale also has an RS-232 interface. Thanks to this interface, the measured values can be transferred to a PC, for example. This Inventory Scale can be used for stationary as well as for mobile use. For mobile use, the Inventory Scale requires 3 x 1.5 V AA batteries, which can be used quickly and easily.
| Weighing range | |
| Measurement range up to [Max] | 5100 g |
| Resolution [d] | 0,1 g |
| Accuracy | Class III |
| General technical data | |
| Measuring functions (additional information) | Piece counting function |

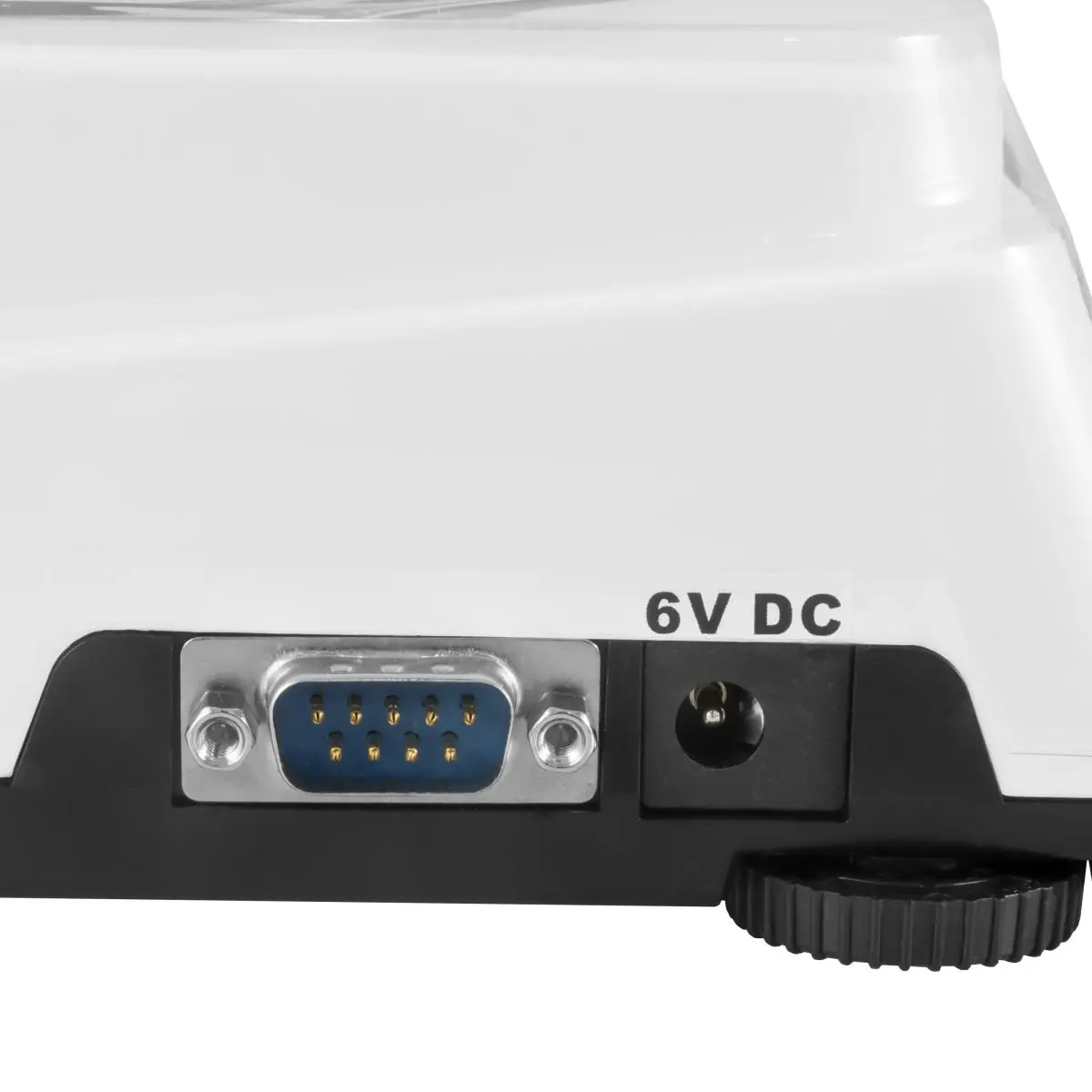

| Interface | RS232 |
| Repeatability | 0,2 g |
| Housing | Plastic |

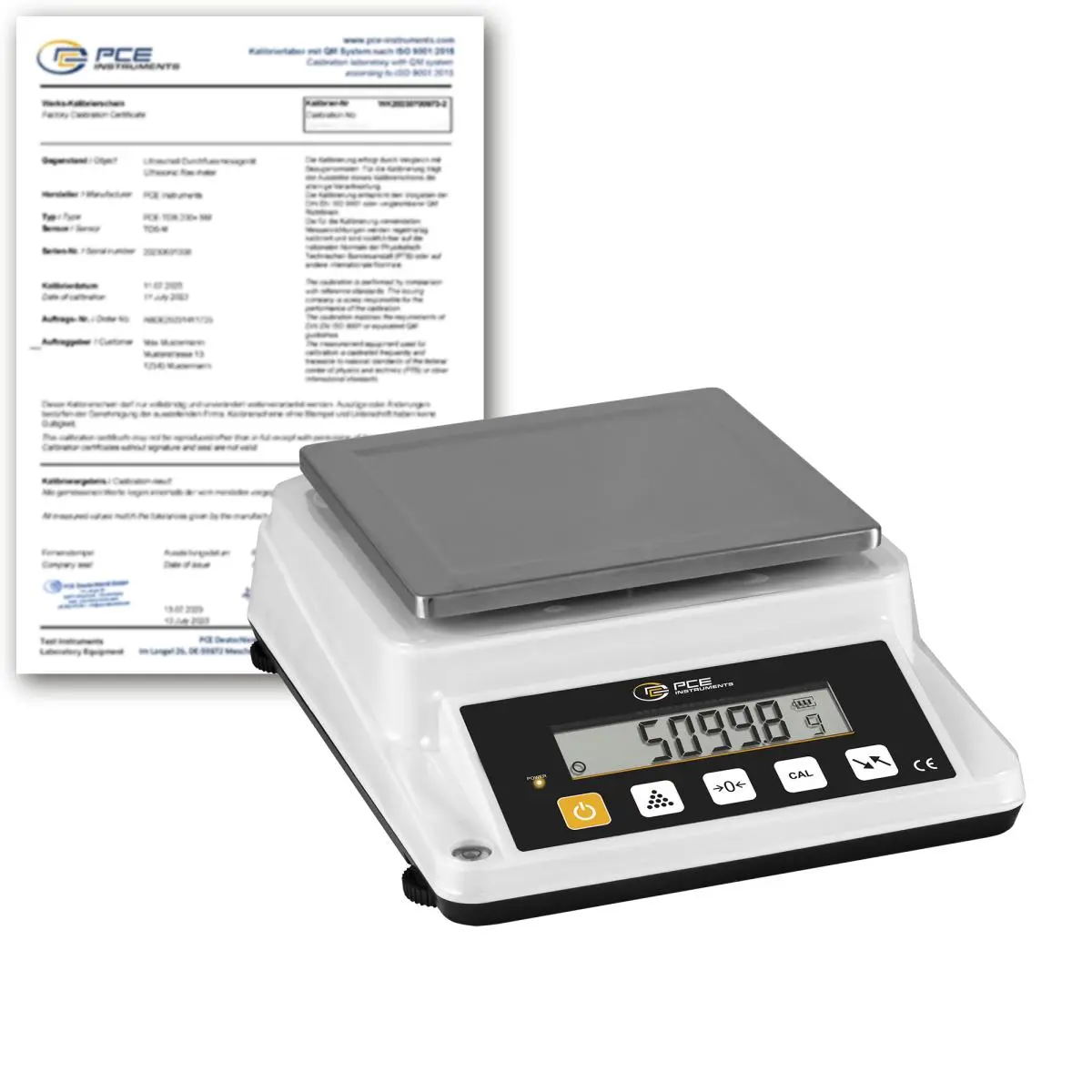

| Calibration | external |
| Dimensions | Weighing plate: 160 x 160 mm |
| Settling time | < 3 s |
| Linearity | ±0.3 g |

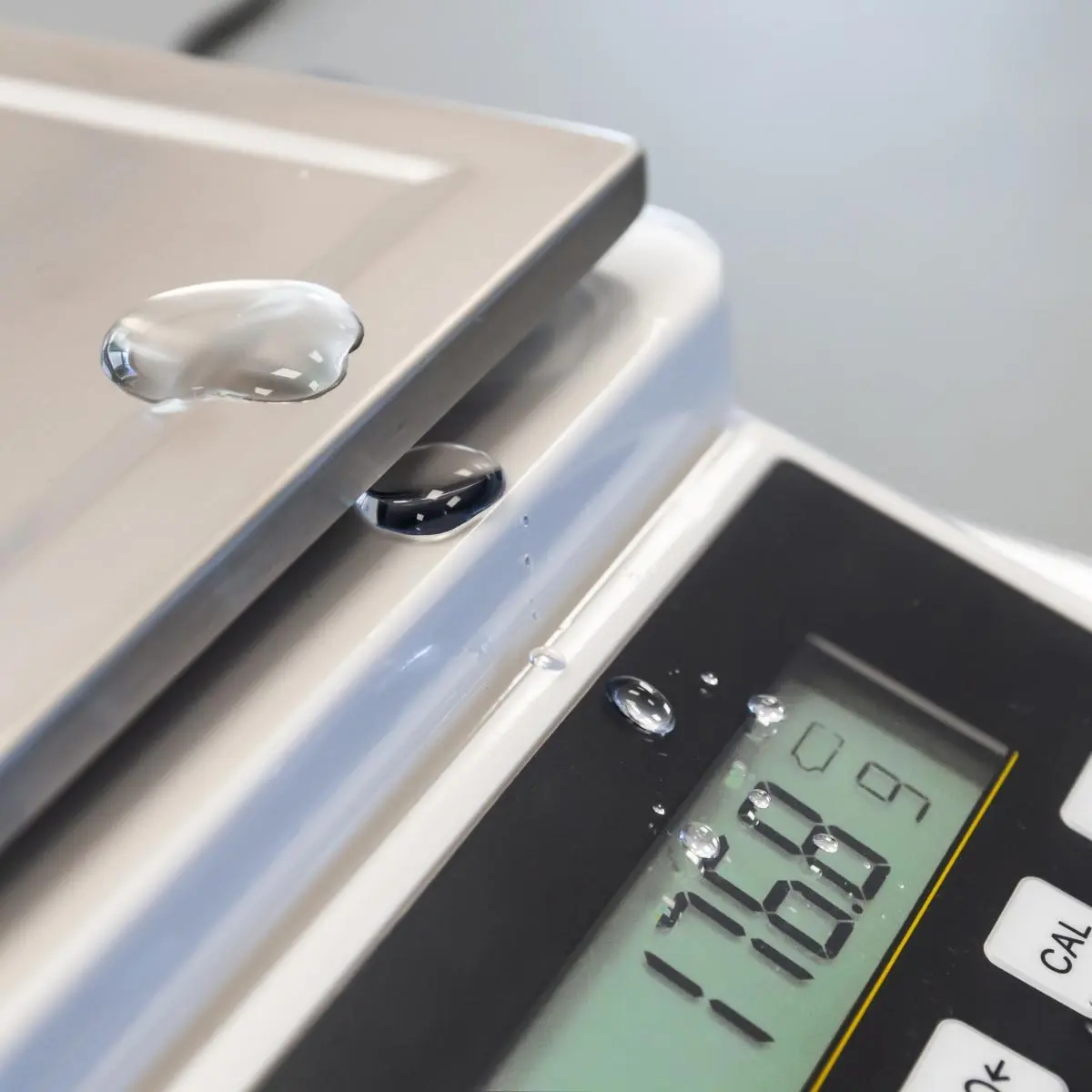

| Protection class (device) | IP20 |
| Power supply | 100 ... 240V AC | 50/60 Hz 6V DC, 500 mA |
| Connector type | Device-europlug |
| Operating conditions | 0 ... 40 °C , 50 ... 85 % RH |
| Storage conditions | 0 ... 50 °C , 50 ... 85 % RH |
| Dimensions ( L x W x H ) | 270 x 200 x 80 mm |
| Weight | 950 g |
