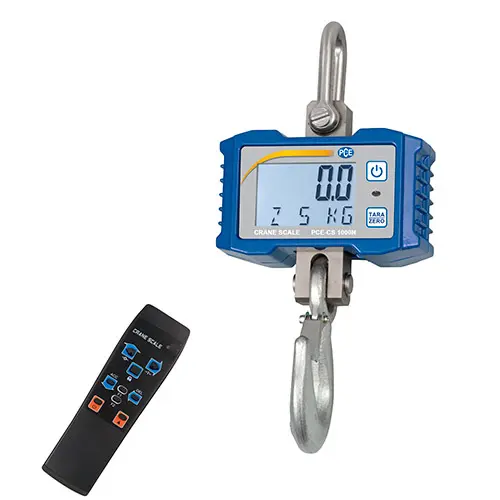

The PCE-CS 1000N is a digital, electronic, battery-powered heavy duty scale that displays measurement values in kilograms (kg), pounds (lbs) and freely adjustable units. The scale comes factory calibrated and includes a hook, shackle and remote control. For an additional fee, the heavy duty scale can be calibrated according to ISO standards.
The robust aluminum housing of this heavy duty scale allows weighing in even the harshest indoor industrial environments. The heavy duty scale is operated with three commercially available 1.5 V AA batteries, allowing for a continuous operating time of approx. 65 hours. The display of the heavy duty scale is a backlit LCD screen featuring large, easy-to-read digits. The timing of the backlight of the heavy duty scale's display can be adjusted to extend the operating time.
Other functions of the heavy duty scale are: gross / net weighing, sum function, data hold function, zero function, power-saving automatic shutdown and the possibility to display a measuring unit that is freely adjustable by the user. This means that the user can store a conversion factor in the heavy duty scale, so that the weighed product is not in kg or lbs, but in another measurement such as meters (e.g., 1 kg = 1.25 m). In addition, the heavy duty scale features a linear calibration to ensure high accuracy.
| Weighing range | |
| Measurement range up to [Max] | 1000 kg |
| Resolution [d] | 0,2 kg |
| Accuracy | ±1% of range |
| General technical data | |
| Measuring functions (additional information) | Totalising function, gross, net, weighing |
| Display type | LCD with backlight |
| Digit size [WxH] | Height: 20 mm |
| Response time | 1 s |
| Operating time | 65 h |
| Minimum load [min] | 10 kg |
| Tare range | Multiple tare over the entire range |
| Calibration | linear calibration possible |

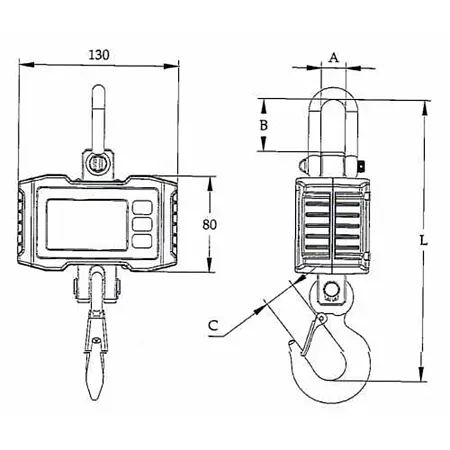

| Dimensions | Shackle opening: 20 mm Hook: H 43 mm x W 21 mm |
| (Rechargeable) battery | 5 x 1,5 V AA battery , Alkali-manganese |
| Capacity | 3000 mAh |
| Operating conditions | -10 ... 40 °C , 20 ... 90 % RH |
| Storage conditions | -10 ... 40 °C , 20 ... 90 % RH |
| Dimensions ( L x W x H ) | 270 x 130 x 80 mm |
| Weight | 1366 g |
