Floor Scales PCE-SD 3000U

Floor Scale PCE-SD 3000U

Order no.: PCE-SD 3000U
GTIN (EAN): 4250348712431
AED 12,307.00
AED 12,922.35
price ex. (customs / clearance)
:
4250348712431
PCE-SD 3000U
Delivery time:1-2 working days

Description

Calibrated floor scale up to 1500 or 3000 kg / resolution above 0.5 or 1 kg / analogue outputs optional / mobile due to transportation rollers / bi-directional RS-232 interface

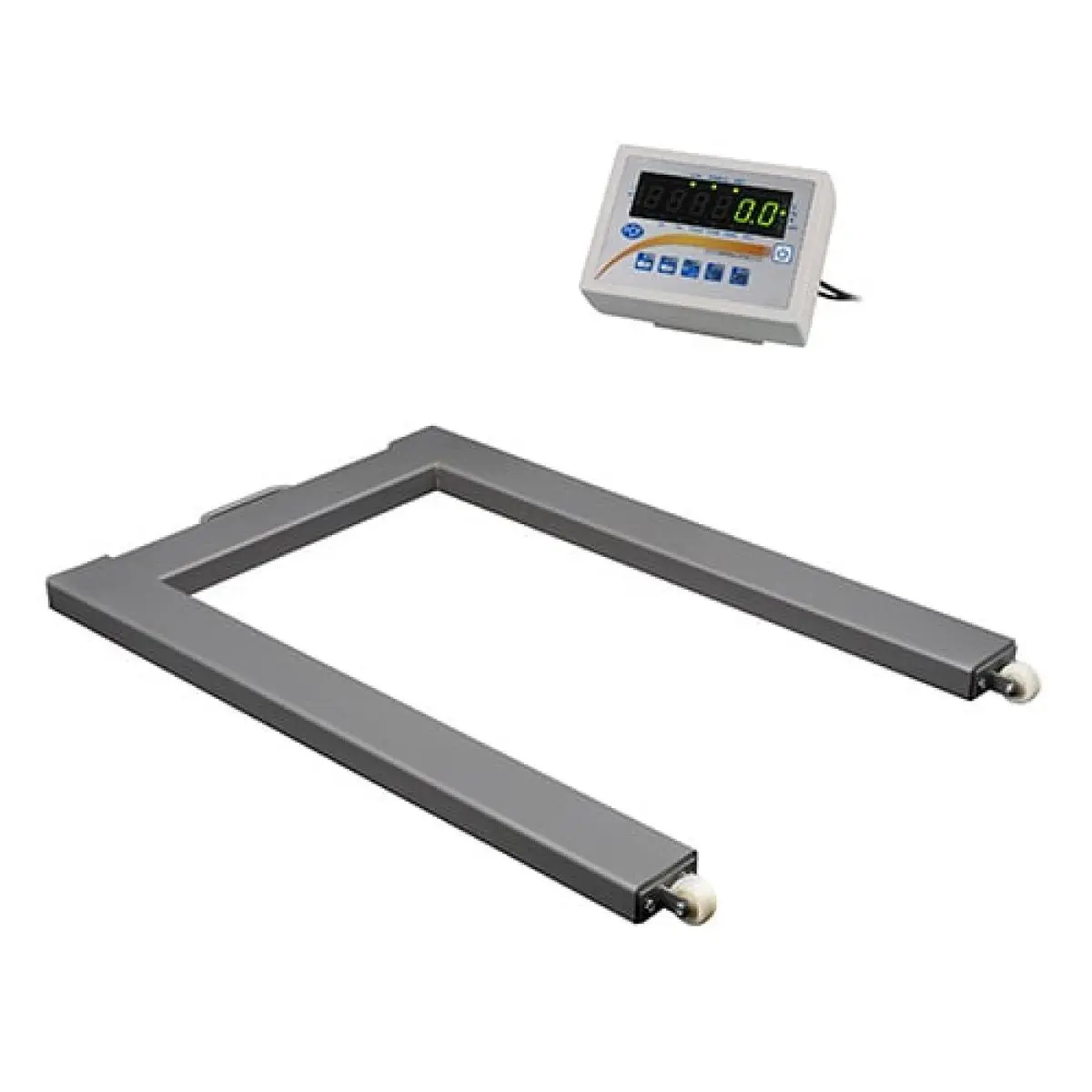

The floor scale is calibratable, and also initially calibrated, designed for mobile applications and having a U-shaped design. The size and measurements of the calibrated floor scale PCE-SD U series is accordant to European standard pallet scales (1200 x 800 mm). The U-shape of the calibrated floor scale allows easy positioning of EU standard pallets on the scale, preferably with a forklift. This calibrated floor scale is lacquered with steel. In order to maintain flexible application of the calibrated floor scale, it features two rollers and a handle, thus the calibrated floor scale can be mounted and dismounted easily and quickly at different locations. The measured data can be easily read from the separate display (connected to a 3.0 m cable). The separate pallet display features a 3.0 m long cable, so that it can be placed on a table or mounted to a wall or placed on a stand. Functions that the calibrated floor scale support are: unit counter, max./min. weighing, composition weighing, percentage weighing, average weight determination, summation function, tare weighing data storage, adjustable RS-232 interface. The bi-directional RS-232 interface can be used to transfer the weighing data to a computer or printer.

Highlights

- Unit Counter
- Summation function
- Weight compare on percentage
- Animal weighing
- Tare-value memory
- Weight tolerance min/OK/max
- Statistical calculation
- Composition weighing
- Adjustable bi-directional RS-232 interface
- Adjustable automatic switch-off
- Gross / net key at display
- Adjustable menu
- Maintenance-free compartments
- Optional: USB, LAN or 4-20 mA

Specification

Weighing range
Measurement range up to [Max]  3000 kg
Resolution [d]  1 kg
Accuracy  1 kg
Verification value [e]  1 kg

General technical data
Cable length  4 m
Measuring functions  MIN, MAX, Average value
Measuring functions (additional information)  Piece counting function, totalising function, percentage % comparative weighing, animal weighing function, statistics function, recipe mixture weighing
Units  kg, lb, g, T, oz, ct, ozt, gr, dwt
Display type  LED
Digit size [WxH]  Height: 18 mm
Interface  bidirectional RS232
Automatic power-off  5 min
Minimum load [min]  20 kg
Tare range  Over the full weighing range
Calibration  external
Dimensions  Display 190 x 140 x 65 mm
Verification class [e]  M III
Settling time  < 4 s
Menu language  English, English (GB)
Protection class (device)  IP54, IP67
Power supply  230V AC | 50 Hz, 8V A
Connector type  Schuko plug
Capacity  220 mAh
Operating conditions  -10 ... 40 °C , 20 ... 90 (non-condensing)% RH
Storage conditions  -10 ... 40 °C , 0 ... 90 % RH

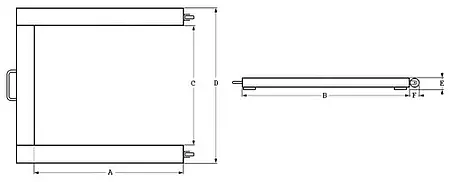

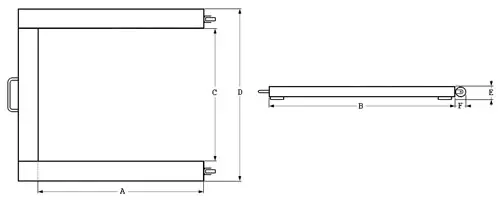

Dimensions ( L x W x H )  1125 x 600 x 86 mm
Weight  49000 g

Delivery Scope

1 x Calibrated Pallet Scale PCE-SD 3000U
1 x display incl. holder for wall or table
1 x instruction manual
