Floor Scales PCE-SD 1500U SST

Floor Scale PCE-SD 1500U SST

Order no.: PCE-SD 1500U SST
GTIN (EAN): 4250348712448
AED 15,965.00
AED 16,763.25
price ex. (customs / clearance)
:
4250348712448
PCE-SD 1500U SST
Delivery time:1-2 working days

Description

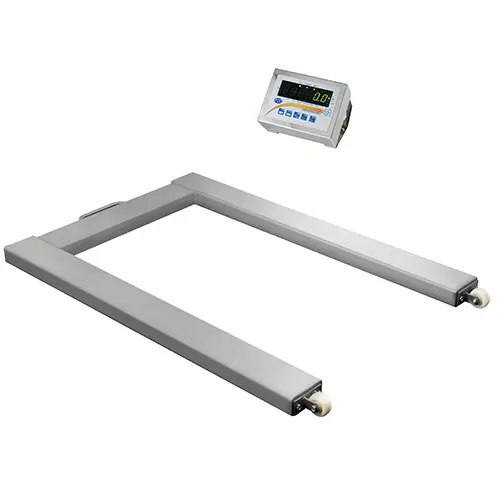

Calibrated U-shaped floor scale made of stainless steel / incl. transport rollers / IP68-IP65 /
Unit Counter / Summation function / analogue outputs 4 ... 20 mA, 0 ... 10 V optional

The U-shaped floor scale is a calibratable scale that will be already calibrated before delivery. The measurements of the U-shaped floor scale are exactly accordant to serial EU palettes. The U-shape of the platform scale allows quick and easy loading of the scale even by means of forklift scales. The four load cells of the U-shaped floor scale are IP68 protected and are embedded at the corners of the U-shaped scale. The weighing frame is made of massive stainless steel that is resistant to acids. The display of the U-shaped floor scale is IP65 protected and can be mounted either on a wall or placed on a table. There is also an option to extend the U-shaped floor scale with interfaces, e.g. RS-232, USB, LAN, 4-20 mA etc., although it should be considered that this would affect the IP protection. For more comfortable transport and moving from one location to another, the U-shaped floor scale also features rollers at its pillars. Functions of the U-shaped floor scale are automatic tare, unit counter, tare memory, gross / net weighing, percentage calculation, threshold measurement etc.

Highlights

- Calibratable incl. initial calibration before delivery
- Made entirely of IP68-IP65 stainless steel
- Unit Counter
- Summation function
- MAX / MIN indication
- Percentage calculation
- Measurement on formula
- Statistics calculation
- Animal weighing function
- Gross / net indication
- Tare memory
- Threshold weighing MIN / MAX / OK
- 3 potential-free contacts optional
- Analogue outputs optional (4-20 mA / 0-10 V)

Specification

Weighing range
Measurement range up to [Max]  1500 kg
Resolution [d]  0,5 kg
Accuracy  0.5 kg
Verification value [e]  0,5 kg

General technical data
Cable length  4 m
Measuring functions  MIN, MAX, Average value
Measuring functions (additional information)  Piece counting function, totalising function, percentage weighing, recipe weighing, statistics function, animal weighing function
Units  kg, lb, T, oz, ct, ozt, gr, dwt
Display type  LED
Digit size [WxH]  Height: 18 mm
Interface  bidirectional RS232
Automatic power-off  5 min
Minimum load [min]  10 kg
Tare range  Multiple tare over the full measurement range

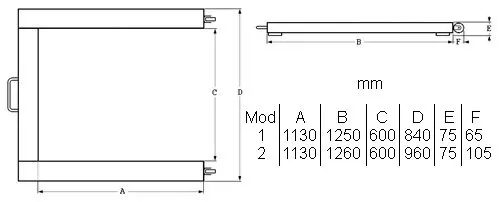

Dimensions  Display 190 x 140 x 65 mm Drive-in width 600 mm
Verification class [e]  M III
Settling time  < 4 s
Menu language  English, English (GB)
Protection class (device)  IP65, IP68
Power supply  230V AC | 50Hz, 8 V A
Connector type  Schuko plug
(Rechargeable) battery  1 x 3 V CR 2032 (button cell 3V) , lithium-ion battery
Capacity  220 mAh
Operating conditions  -10 ... 40 °C , 20 ... 90 (non-condensing)% RH
Storage conditions  -10 ... 40 °C , 0 ... 90 % RH
Dimensions ( L x W x H )  1260 x 840 x 78 mm
Weight  49000 g

Delivery Scope

1 x U-shaped Floor Scales PCE-SD 1500U SST (incl. calibration)
1 x instruction manual
