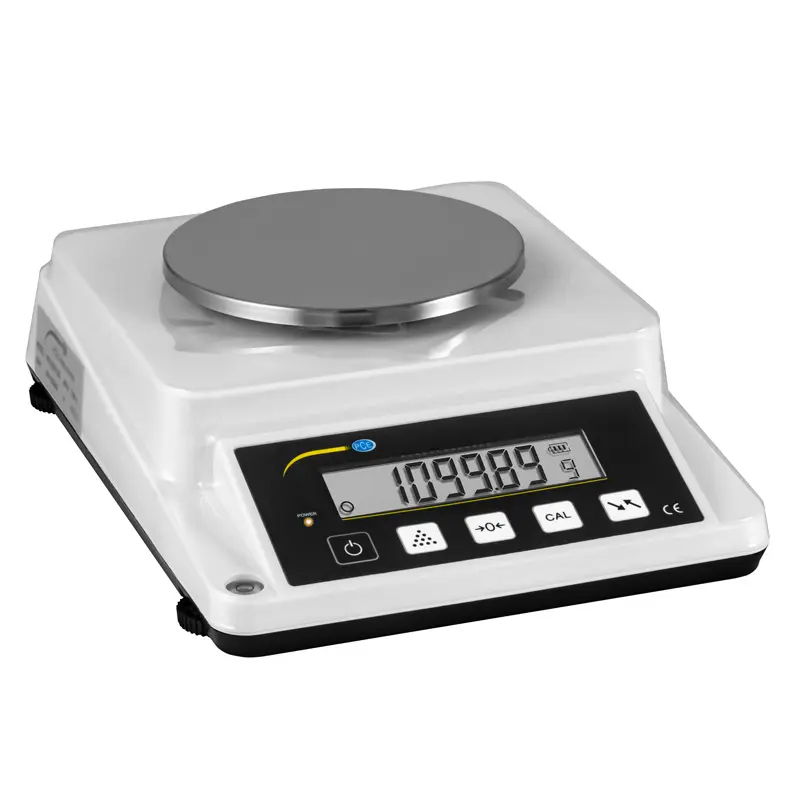

Compact Scales / Compact Balances PCE-BSK 1100

Compact Scales / Compact Balances PCE-BSK 1100 [zoom]
Compact Scales / Compact Balances PCE-BSK 1100

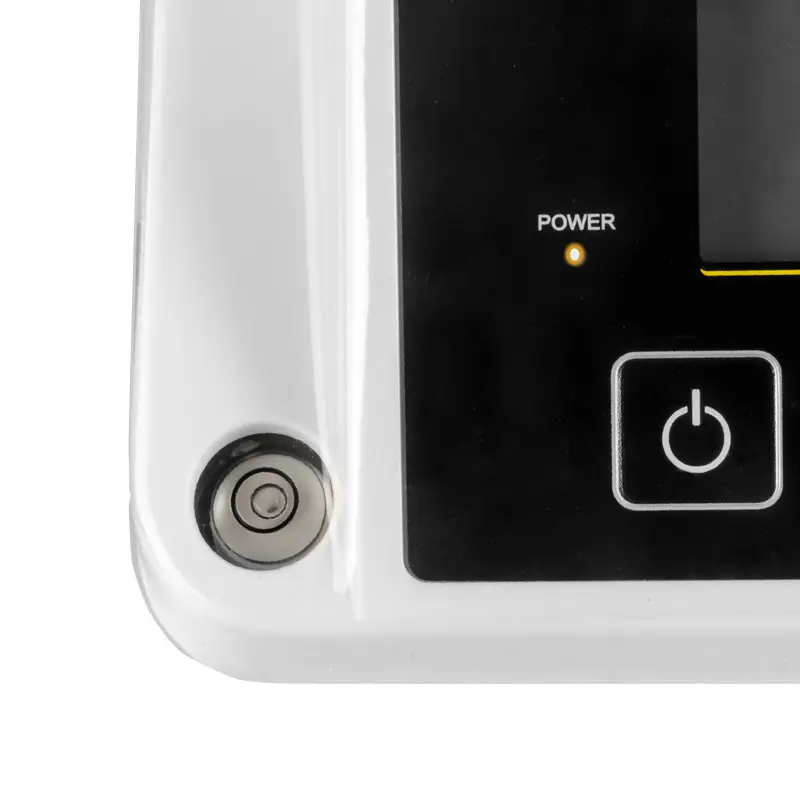

Compact Scales / Compact Balances Level

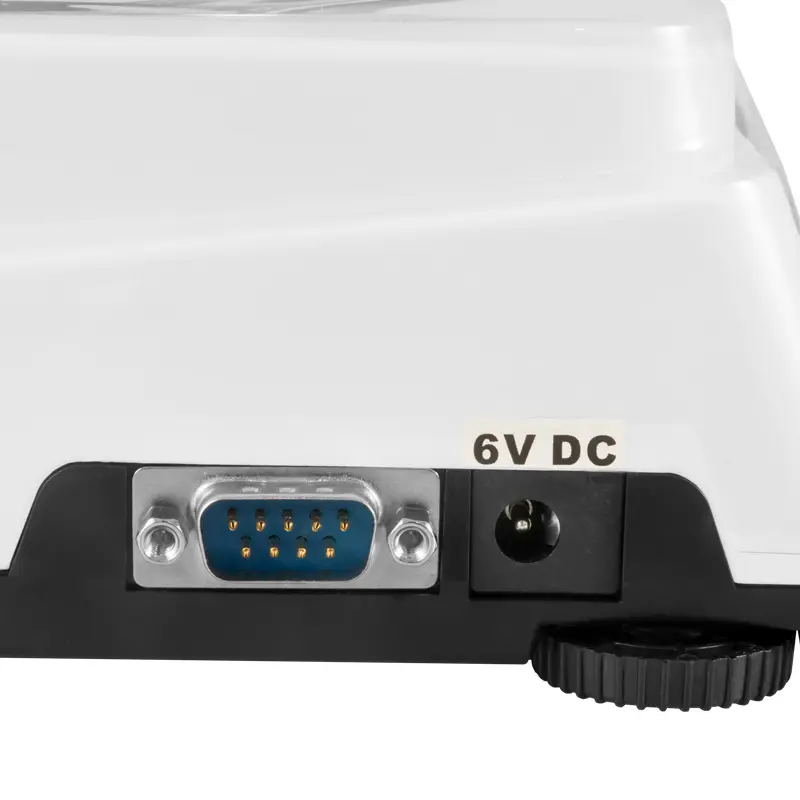

Compact Scales / Compact Balances Connections

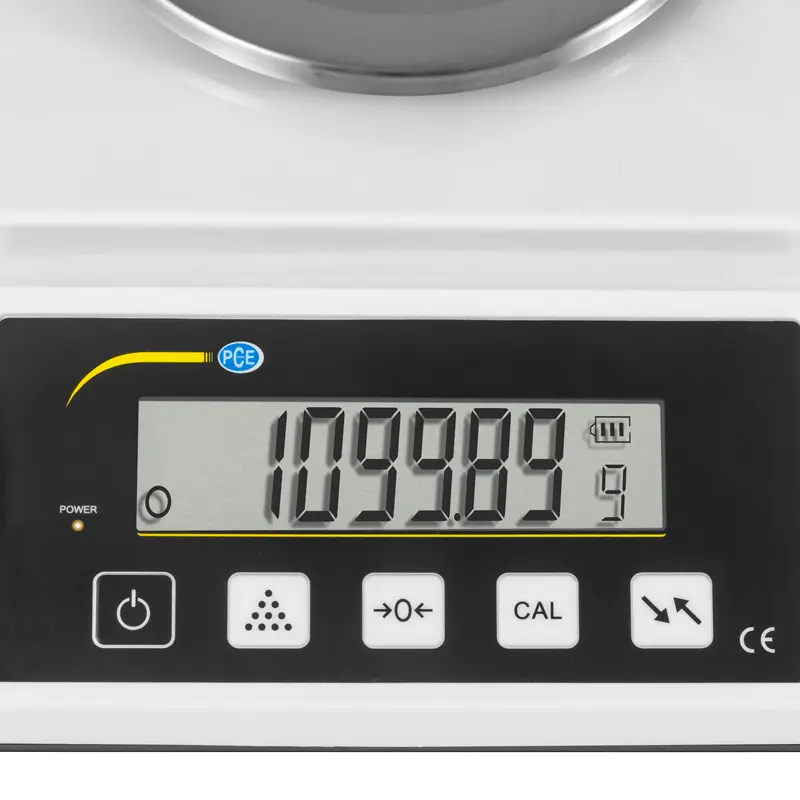

Compact Scales / Compact Balances Display

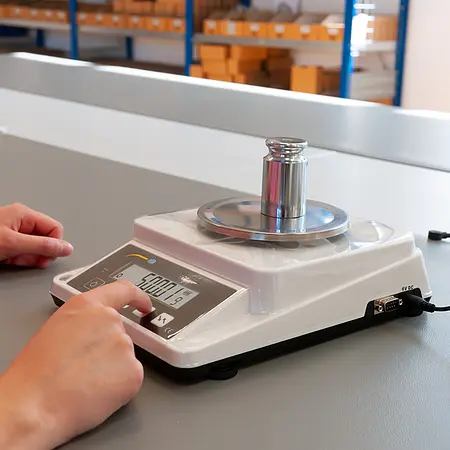

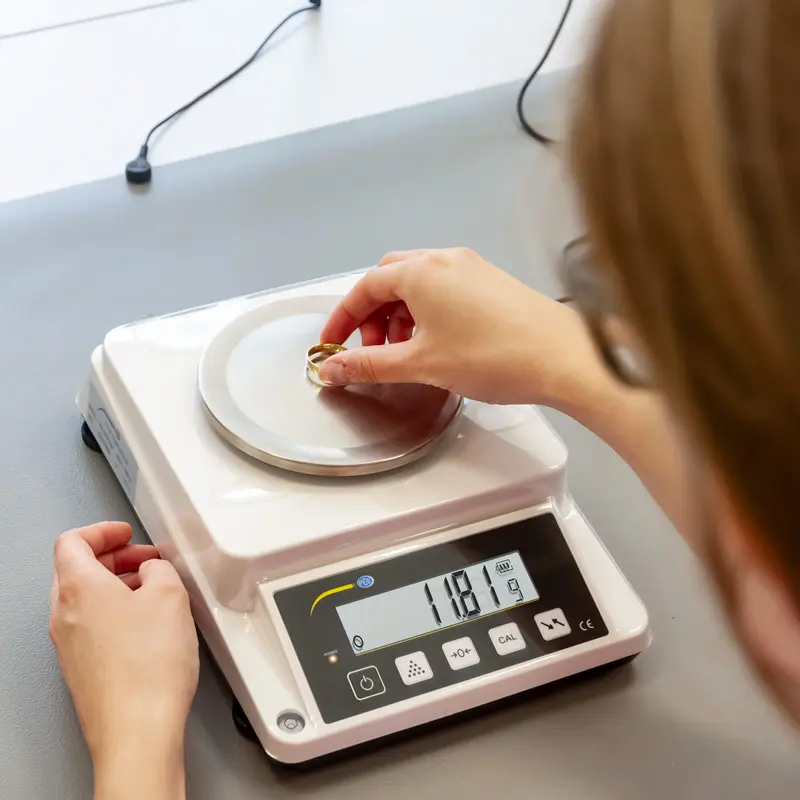

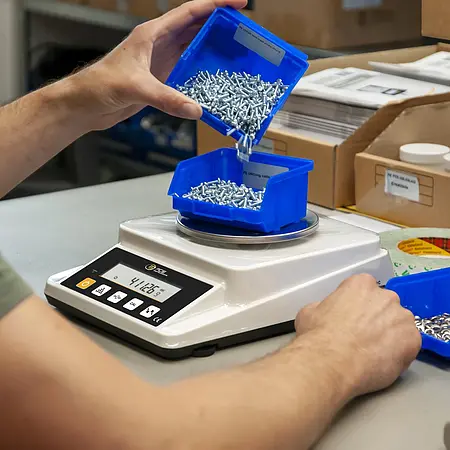

Compact Scales / Compact Balances Application picture
Compact Scales / Compact Balances Application picture

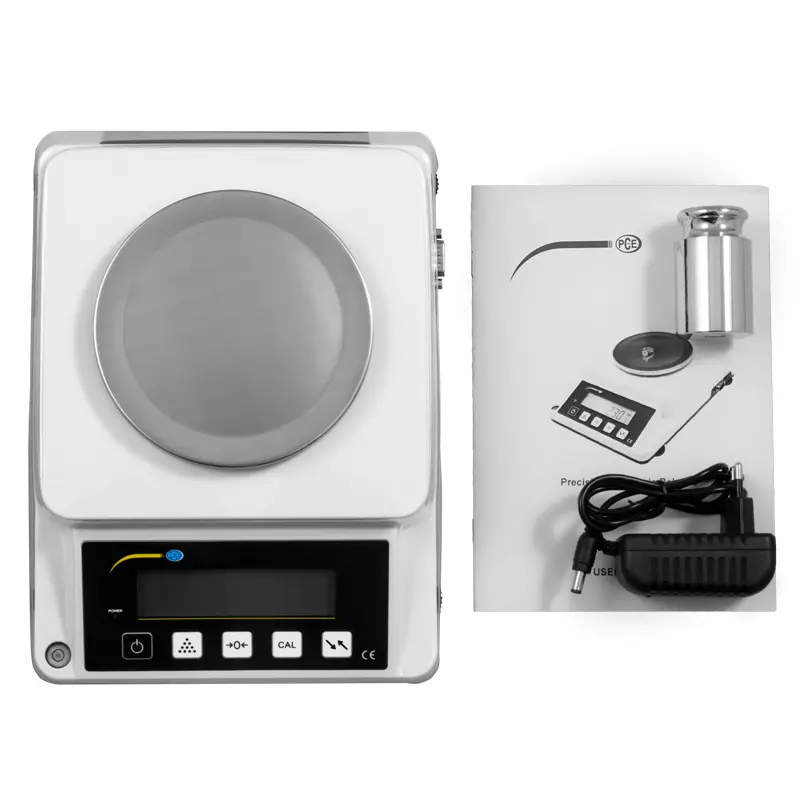

Compact Scales / Compact Balances Delivery scope

Compact Balance PCE-BSK 1100

Order no.: PCE-BSK 1100
GTIN (EAN): 4250348722010
AED 699.00
AED 733.95
price ex. (customs / clearance)
:
4250348722010
PCE-BSK 1100
Delivery time:1-2 working days

Accessory

Description

Compact balance PCE-BSK 1100
Compact balance with piece counting function / Usable batteries for mobile operation / RS-232 interface / Level for aligning the scale / For mobile use

The compact balance is a scale for daily laboratory use. Another function besides the normal measurement function of the compact balance is the piece counting function. This function allows the compact balance to determine the number of screws, for example. Thus, for example, the compact balance can also be used in logistics. So that the display is readable even in poor lighting conditions, the display of the compact balance has a backlight.

In addition to the measuring functions, the compact balance also has an RS 232 interface. Thanks to this interface, the measured values ​​can be transferred to a PC, for example. This compact balance can be used for stationary as well as for mobile use. For mobile use, the compact balance requires 3 x 1.5V AA batteries, which can be used quickly and easily.

Highlights

- Piece counting function
- RS-232 interface
- Backlight
- Battery operation for mobile use
- Level indicator to align the scale
- High precision

Specification

Weighing range
Measurement range up to [Max]  1100 g
Resolution [d]  0,01 g
Accuracy  Class III

General technical data
Measuring functions (additional information)  Piece counting function
Interface  RS232
Housing  Plastic
Repeatability  ±0.02
Calibration  external
Dimensions  Cradle plate: Ø 130 mm
Settling time  < 3 s
Linearity  ±0.03 g
Protection class (device)  IP20
Power supply  100 ... 240V AC | 50/60 Hz
6V DC, 500 mA
Connector type  Device-europlug
Operating conditions  0 ... 40 °C , 50 ... 85 % RH
Storage conditions  0 ... 50 °C , 50 ... 85 % RH
Dimensions ( L x W x H )  270 x 200 x 80 mm
Weight  930 g

Delivery Scope

1 x Compact Scales / Compact Balances PCE-BSK 1100
1 x Test weight
1 x Power supply
3 x 1.5V AA batteries
1 x User manual
