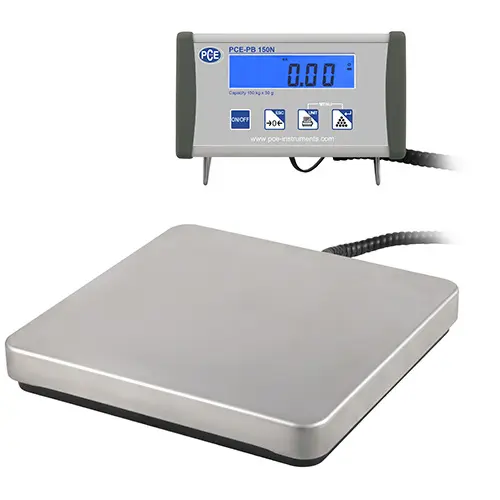

Checkweighing Scale PCE-PB 150N

Order no.: PCE-PB 150N

GTIN (EAN): 4250348711410

Accessory

Scale Software PCE-SOFT-SC-Basic

AED 828.00

Scale Software PCE-SOFT-SC-Pro

AED 947.00

Scale Software PCE-SOFT-SC-3XPro

AED 1,780.00

Description

Checkweighing Scale PCE-PB 150N up to 150 kg, Bidirectional USB interface, PEAK hold function,

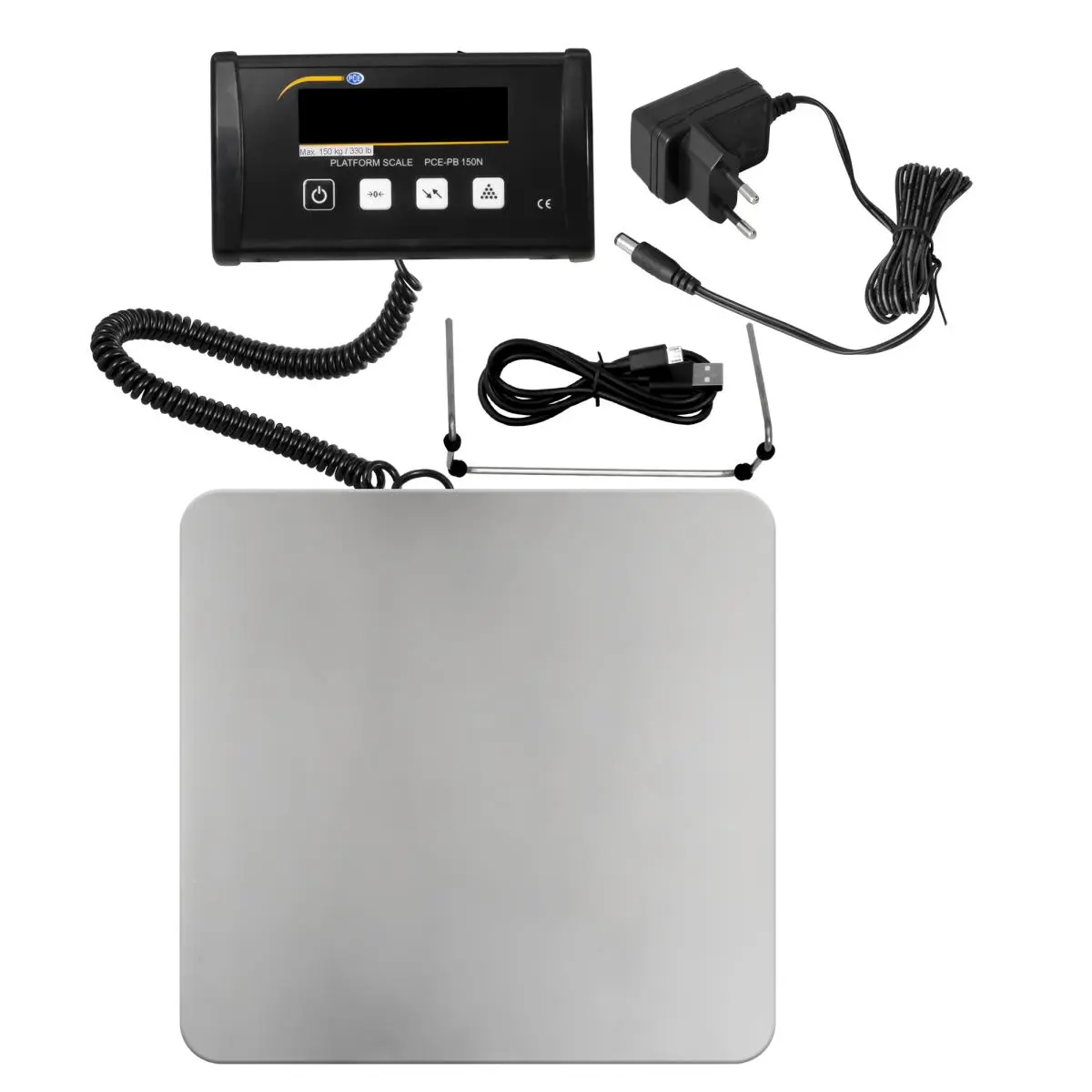

Counting function, Mains and battery operation including USB interface cable

The checkweighing scale of the PCE-PB N series is a versatile platform scale. The functions of the checkweighing scale are very extensive, but one function is particularly interesting for shipping. It is the bidirectional USB interface of the checkweighing scale that enables control by the PC. However, the checkweighing scale of the PCE-PB N series can be used with the optional, inexpensive "ProCell" software. This software simulates keyboard input, similar to a scanner. With the help of this software, the checkweighing scale can then transfer the weight value into active fields.

Another advantage of this checkweighing scale is the wired display. The display is supplied with a stand, but it is also suitable for wall mounting. Other interesting functions of the checkweighing scale are the piece counting function, PEAK hold function, function for level control, measuring units such as kg / lb / N (Newton) / g, adjustable background lighting, adjustable automatic switch-off and the option to operate the scales with power pack or batteries.

Highlights

- Bidirectional USB interface

- Spiral cable can be extended to approx. 1.5 m / 59"

- Digit height 20 mm / 0.78"

- Stainless steel platform

- PEAK function (maximum value display)

- Piece counting function with reference number of pieces

- Multiple tare

- Function for level control (drum weighing)

- Mains or battery operation

- USB interface cable incl.

Specification

Weighing range
Measurement range up to [Max]	150 kg
Resolution [d]	50 g
Accuracy	±200 g

General technical data
Cable length	1,5 m
Measuring functions	MAX, HOLD, peak
Measuring functions (additional information)	Fill level control (auto tare OFF function), piece counting function (min.1 d), animal weighing function
Units	kg, g, N, lb
Display type	LCD with backlight
Digit size [WxH]	Height: 20 mm
Interface	USB-B bidirectional
Minimum load [min]	150 g
Tare range	Multiple tare over the full measurement range
Weighing plate material	Stainless steel
Dimensions	Cradle plate: L 300 x W 300 x H 45 mm / L 11.8 × W 11.8 × H 1.8 in
Readability	50 g
Menu language	English, English (GB)
Protection class (device)	IP20
Power supply	9V DC / 200 mA
Connector type	Device-europlug
(Rechargeable) battery	6 x 1,5 V AA battery , Alkali-manganese
Capacity	3000 mAh
Operating conditions	5 ... 35 °C , 0 ... 85 % RH
Storage conditions	5 ... 35 °C , 0 ... 85 % RH
Dimensions ( L x W x H )	300 x 300 x 45 mm
Weight	4000 g
