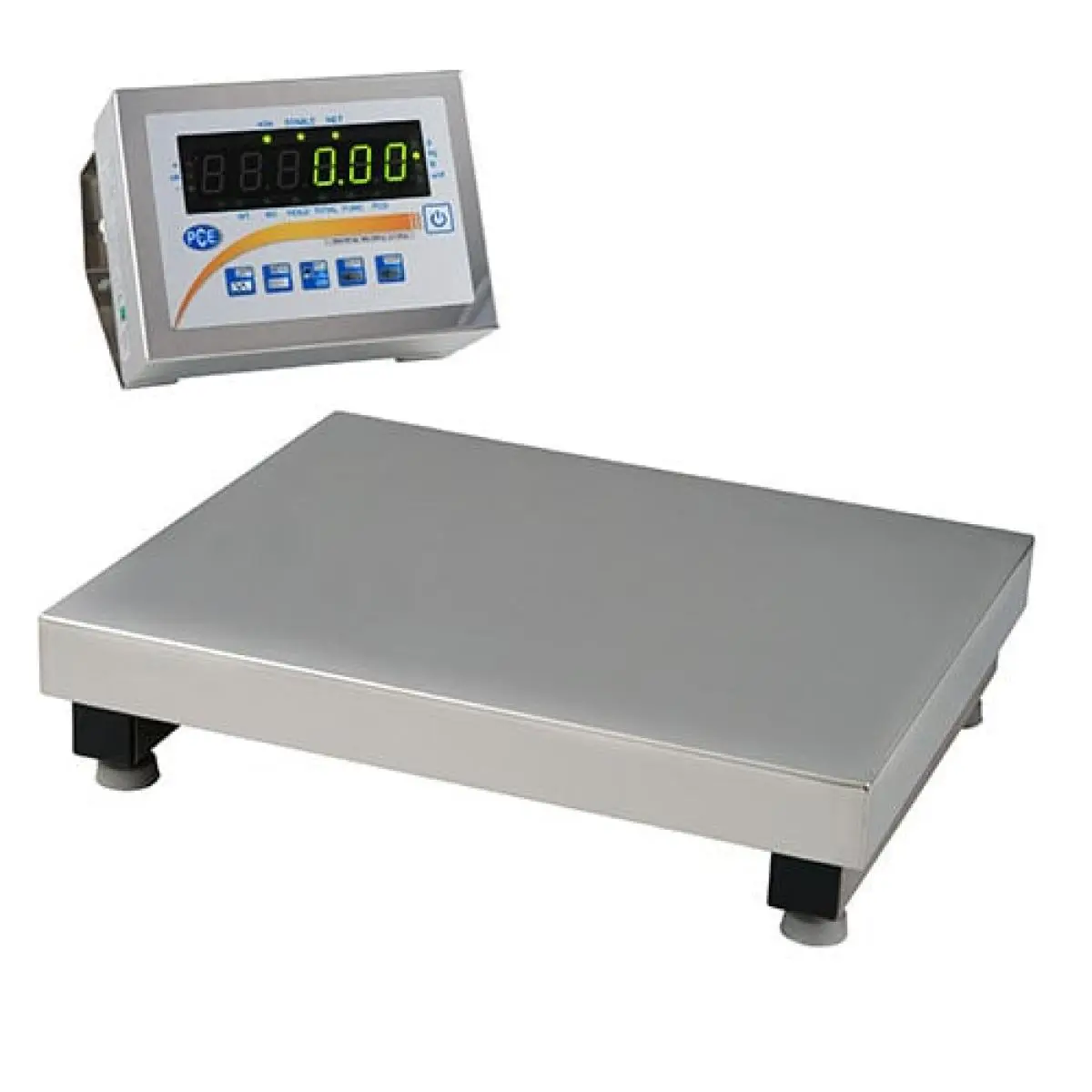

Benchtop Scales PCE-SD 30SST C

Benchtop Scale PCE-SD 30SST C

Order no.: PCE-SD 30SST C
GTIN (EAN): 4250348712486
AED 6,556.00
AED 6,883.80
price ex. (customs / clearance)
:
4250348712486
PCE-SD 30SST C
Delivery time:1-2 working days

Description

Calibrated waterproof benchtop scale made entirely of stainless steel / weighing range up to 300 kg / IP67 - IP65 protection class / summation function / threshold-function / statistics function /
interface RS-232, RS-485, USB, LAN, Analogue 4-20 mA, 0-10 V, OC optional
The waterproof benchtop scale PCE-SD SST featuring a separate display can be MIII calibrated and will be delivered calibrated. The load cells of the waterproof benchtop scale are IP67 protected, while the display device is made of an IP65 protected enclosure. Thus the waterproof benchtop scale proves to be ideal for high-moisture locations or such locations that require a high hygienic standard. With the appropriate equipment that is optionally purchasable, you can also use the waterproof benchtop scale on ships at sea. Standard functions of the waterproof benchtop scale are: summation function, counting function, statistics function, mixing on formula, percentage weighing function, animal weighing function, alarm on trespassing thresholds etc. Due to its high IP protection the waterproof benchtop scale does not feature any interface. But optionally interfaces can be purchased for the waterproof benchtop scale, e.g. RS-232, RS-485, USB, LAN, OC contactors, analogue interfaces 4-20 mA or 0-10 V.

Highlights

- Calibrated according to calibration class MIII
- Completely made of stainless steel IP67-IP65
- Unit Counter
- Summation function
- MAX. / MIN. indication
- Percentage weighing
- Formula weighing
- Statistics function
- Animal weighing function
- Gross / Net display
- Tare storage
- Threshold weighing MIN / MAX / OK
- 3 potential-free contactors
- Analogue output optional 4-20 mA / 0-10 V

Specification

Weighing range
Measurement range up to [Max]  30 kg
Resolution [d]  10 g
Accuracy  10 g
Verification value [e]  10 g

General technical data
Cable length  1 m
Measuring functions  MIN, MAX, Average value
Measuring functions (additional information)  Piece counting function, totalising function, percentage weighing, recipe weighing, statistics function, animal weighing function
Units  kg, g, lb, oz, ct, ozt, gr, dwt
Display type  LED
Digit size [WxH]  Height: 18 mm
Interface  bidirectional RS232
Automatic power-off  5 min
Minimum load [min]  200 g
Tare range  Multiple tare over the full weighing range
Weighing plate material  Painted checkered steel sheet
Calibration  external
Dimensions  Display 190 x 140 x 65 mm
Settling time  < 3 s
Menu language  English, English (GB)
Protection class (device)  IP65, IP67
Power supply  230V AC | 50 Hz, 8V A
Connector type  Schuko plug
(Rechargeable) battery  1 x 3 V Button cell , lithium-ion battery
Capacity  220 mAh
Operating conditions  -10 ... 40 °C , 20 ... 90 (non-condensing)% RH
Storage conditions  -10 ... 40 °C , 0 ... 90 % RH
Dimensions ( L x W x H )  500 x 400 x 120 mm
Weight  17000 g

Delivery Scope

Delivery content of the Waterproof Benchtop Scales PCE-SD SST Series
1 x Waterproof Benchtop Scales PCE-SD 30SST C, 1 x display device, 1 x
instruction manual
