Weather Station / Air Quality Station PCE-WS V

Weather Station / Air Quality Station PCE-WS V [zoom]

Weather Station PCE-WS V

Order no.: PCE-WS V
GTIN (EAN): 4250348721945
AED 920.00
AED 966.00
price ex. (customs / clearance)
:
4250348721945
PCE-WS V
Delivery time:1-2 working days
Agriculture, Industry, Home automation

Accessory

Description

Robust Weather Station for fixed installation / various output signals /
for wind warning systems, building services and building automation

The Weather Station impresses with its compact design and various output signals. The Weather Station can be used for applications in warning technology, building automation and home technology. Depending on the Weather Station, a 4 ... 20 mA, 0 ... 10 V, Modbus or pulse output is available. The Weather Station is designed as a star, so that operation independent of the wind direction is guaranteed.

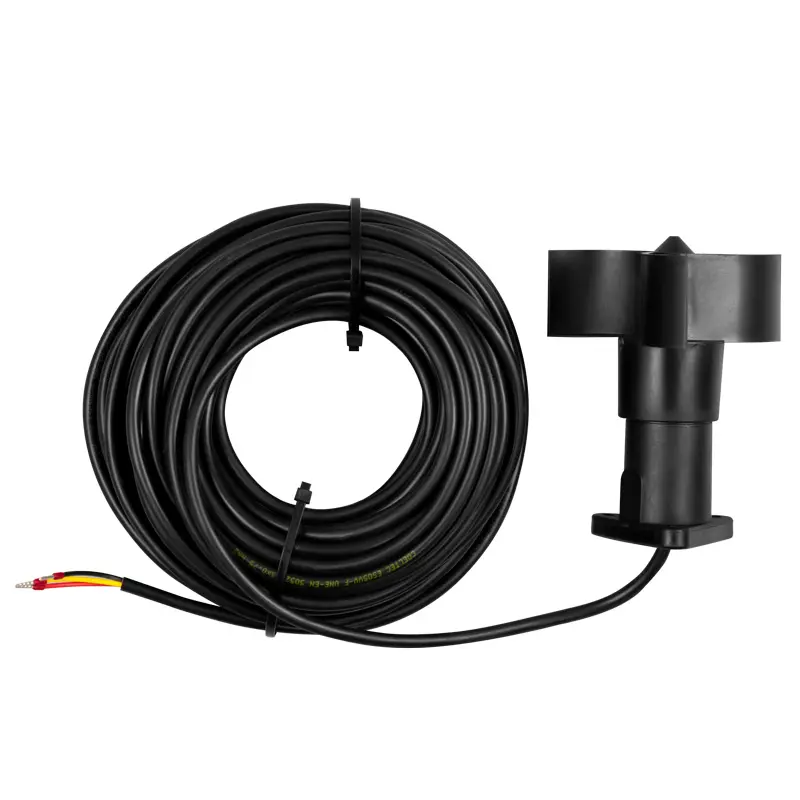

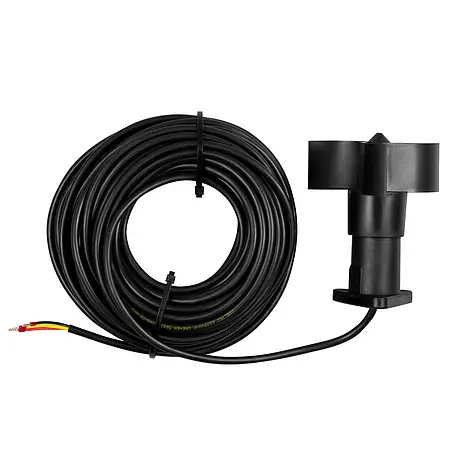

The Weather Station is made of robust plastic and is therefore resistant to rust and corrosion. The Weather Station is also protected to IP65. The design of the Weather Station also ensures that it is particularly protected against high-frequency and electromagnetic radiation. The measuring range extends between 2.62 ... 164.04 ft/s, 0.8 ... 50 m / s. The Weather Station has a 65 ft, 20 m connection cable as standard. A stainless steel mounting kit for the Weather Station is optionally available.

Highlights

- Robust PA plastic housing
- IP 65 protection
- mA, V, pulse or Modbus output
- Long lifetime
- Direct measurement of wind speed
- Measurement from 2.62 ft/s, 0.8 m/s

Specification

Speed
Measuring range  0,8 ... 4 m/s
Resolution  0.1 m/s
Accuracy  ±0.27 m/s

Speed
Measuring range  4 ... 50 m/s
Resolution  0.1 m/s
Accuracy  ±3%

General technical data
Outputs  0 ... 10V

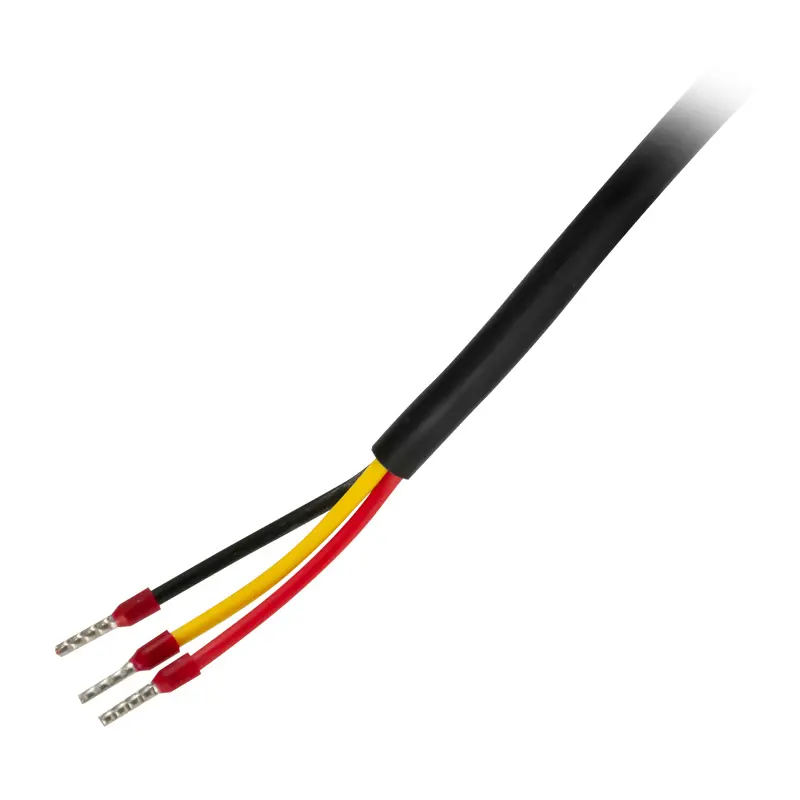

Cable length  20 m
maximum wind speed  55 m/s
Protection class (device)  IP65
Power supply  15 ... 24 V DC
Operating conditions  -20 ... 80 °C , 0 ... 95 % RH
Storage conditions  -20 ... 80 °C , 0 ... 95 % RH
Dimensions ( L x W x H )  139 x 123 x 123 mm
Weight  160 g

Delivery Scope

1 x Weather Station / Air Quality Station PCE-WS V
1 x instruction manual
