Water Hardness Meter / Water Hardness Tester PCE-CP 10

Water Hardness Meter / Water Hardness Tester PCE-CP 10 [zoom]

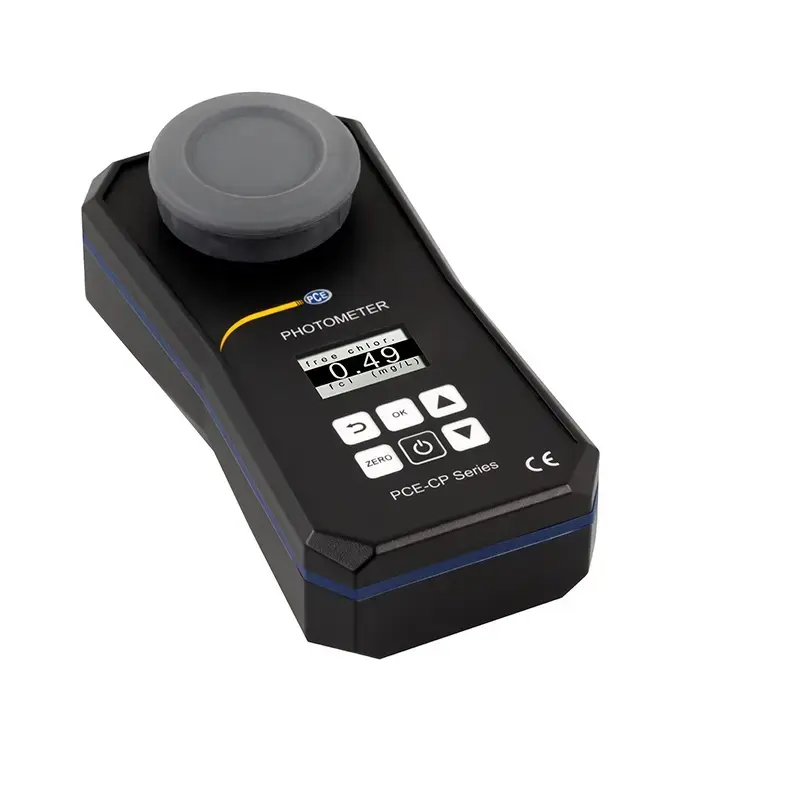

Water Hardness Meter / Water Hardness Tester PCE-CP 10

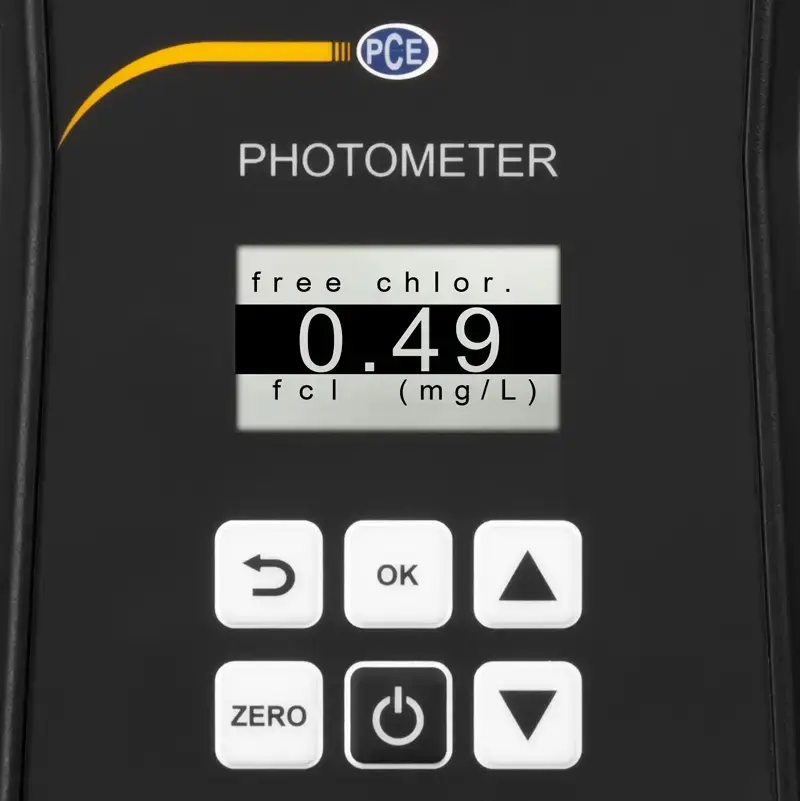

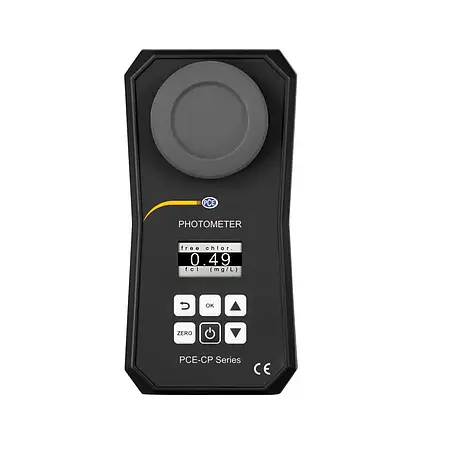

Water Hardness Meter / Water Hardness Tester Frontal
Water Hardness Meter / Water Hardness Tester Cuvette

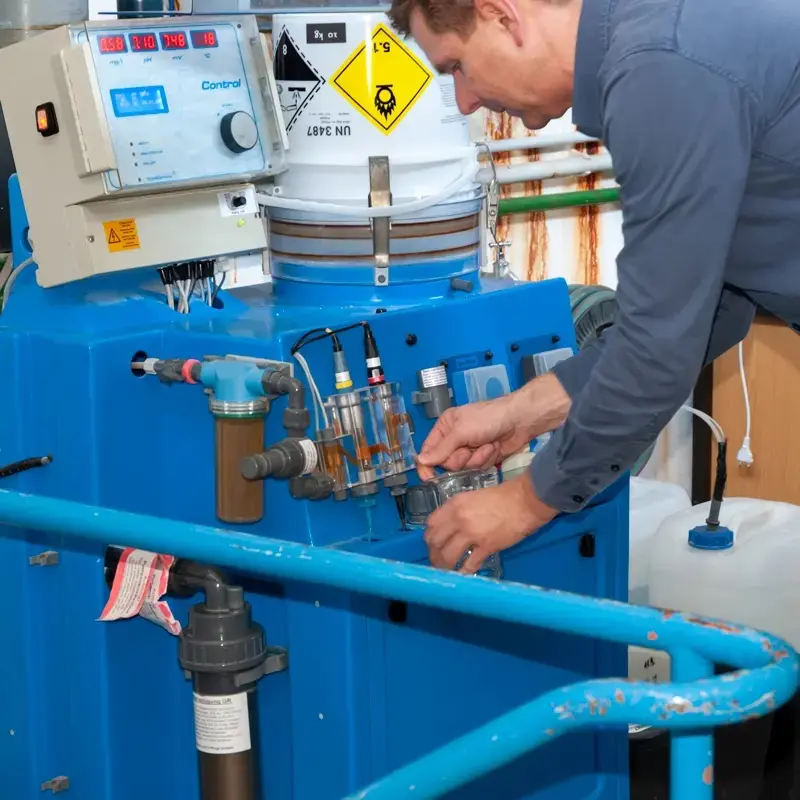

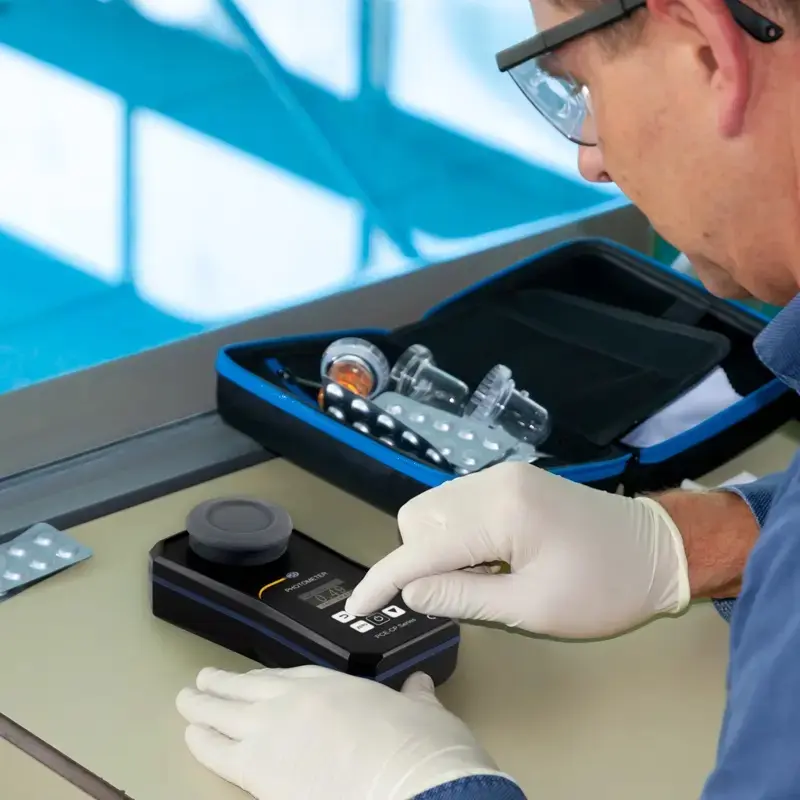

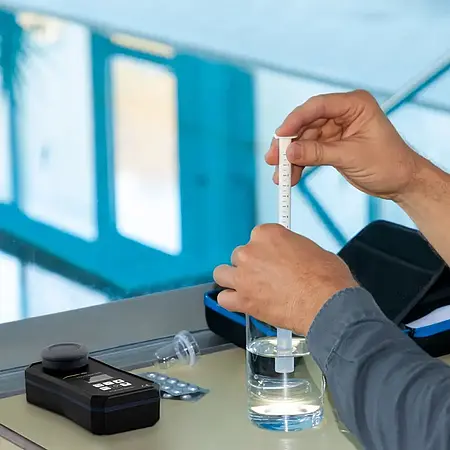

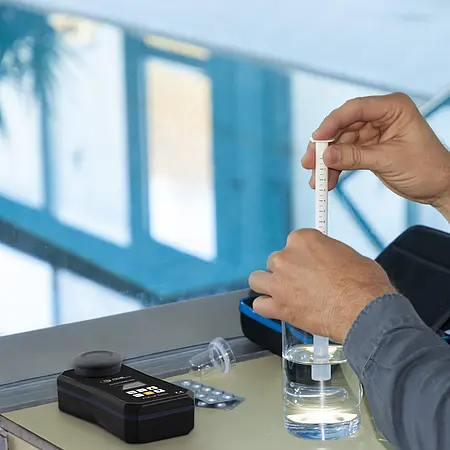

Water Hardness Meter / Water Hardness Tester Application picture
Water Hardness Meter / Water Hardness Tester Application picture
Water Hardness Meter / Water Hardness Tester Application picture
Water Hardness Meter / Water Hardness Tester Application picture
Water Hardness Meter / Water Hardness Tester Application picture
Water Hardness Meter / Water Hardness Tester Delivery scope

Water Hardness Tester PCE-CP 10

Order no.: PCE-CP 10
GTIN (EAN): 4250348722980
AED 1,610.00
AED 1,690.50
price ex. (customs / clearance)
:
4250348722980
PCE-CP 10
Delivery time:1-2 working days

Accessory

Description


Multi-parameter water hardness tester  with Bluetooth interface / PC software / Cloud service / Cross-system synchronization of measured values ​​/ Up to 5 selectable parameters / For measuring e.g. pH, alkalinity, chlorine, cyanuric acid / storage of measured values

The water hardness tester  is a mobile measuring device for liquid analysis. This means that the most varied of measurements can be carried out with the water hardness tester. With this mwater hardness tester it is possible, for example, to determine alkalinity, chlorine, cyanuric acid or the pH value. In order to carry out a measurement with the water hardness tester, a water sample of 10 ml must be placed in a cuvette. The LED built into the water hardness tester generates a test light in the wavelength ranges of 503 nm, 570 nm and 620 nm. A photodiode now recognizes the value to be measured based on the light transmission of the sample.>

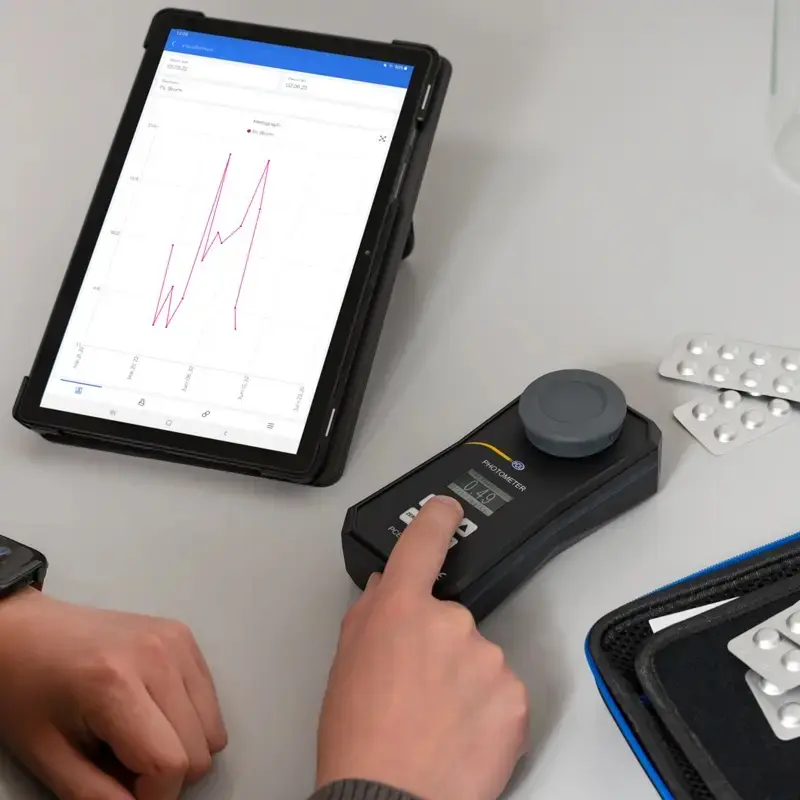

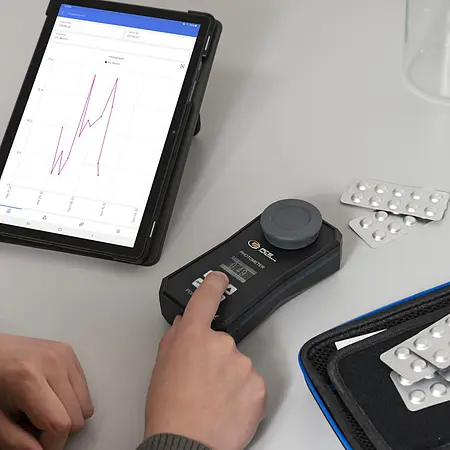

Each measurement is automatically saved by the water hardness tester. The stored measured values ​​can then be read out, for example, via a mobile device via the Bluetooth interface built into the water hardness tester. A free app is available to analyze the measured values ​​from the water hardness tester. It is also possible to establish a Bluetooth connection between the water hardness tester and a computer. Free software is also available for this, with which the measurement data can be analyzed. As another special feature of the water hardness tester, the measurement data can be uploaded to a cloud using both variants and accessed from anywhere. This service for the water hardness tester is also free of charge.

Highlights

- Up to 5 selectable parameters
- Bluetooth connection with app
- Exchangeable and lockable cuvette
- 503 nm / 570 nm / 620 nm LED
- Automatic shutdown when inactive
- Many different menu languages
- Light detector: photodiode
- Cuvette: 36 x ø 21 mm / 3.6 x ø 2.1 cm (10 ml)

Specification

Alkalinity
Measuring range  0 ... 30 mg/l
Resolution  1 mg/l
Accuracy  3 mg/l

Alkalinity
Measuring range  30 ... 60 mg/l
Resolution  1 mg/l
Accuracy  7 mg/l

Alkalinity
Measuring range  60 ... 100 mg/l
Resolution  1 mg/l
Accuracy  12 mg/l

Alkalinity
Measuring range  100 ... 200 mg/l
Resolution  1 mg/l
Accuracy  18 mg/l

Chlorine
Measuring range  0 ... 2 mg/l
Resolution  0,01 mg/l
Accuracy  0.10 mg/l

Chlorine
Measuring range  2 ... 3 mg/l
Resolution  0,01 mg/l
Accuracy  0.23 mg/l

Chlorine
Measuring range  3 ... 4 mg/l
Resolution  0,01 mg/l
Accuracy  0.75 mg/l

Chlorine
Measuring range  4 ... 8 mg/l
Resolution  0,01 mg/l
Accuracy  1.00 mg/l

Cyanuric acid
Measuring range  0 ... 15 mg/l
Resolution  1 mg/l
Accuracy  1 mg/l

Cyanuric acid
Measuring range  15 ... 50 mg/l
Resolution  1 mg/l
Accuracy  5 mg/l

Cyanuric acid
Measuring range  50 ... 120 mg/l
Resolution  1 mg/l
Accuracy  13 mg/l

Cyanuric acid
Measuring range  120 ... 160 mg/l
Resolution  1 mg/l
Accuracy  19 mg/l

pH
Measuring range  6,5 ... 8,4 pH
Resolution  0,01 pH
Accuracy  0.11 pH

General technical data
Units  mg/l, ppm, mg/l CaCO³, mmol/l KS 4.3, °dH (degree of German hardness), °e (degree of English hardness / Clark degree), °f (degree of French hardness)
Display type  LED
Storage medium  Internal memory
Storage capacity  255 Values
Interface  Bluetooth
Sensor  Photodiode
Automatic power-off  300 s
Light source  530nm/570nm/620nm LED
Number of calibration points  0
Menu language  English, Spanish, German, French, Italian
Protection class (device)  IP21
(Rechargeable) battery  3 x 1,5 V AAA battery , Alkali-manganese
Capacity  1200 mAh
Performance  1,8
Operating conditions  5 ... 45 °C , 20 ... 90 % RH
Storage conditions  5 ... 45 °C , 20 ... 90 % RH
Dimensions ( L x W x H )  150 x 75 x 52 mm
Other dimensions  Cuvette: 36 x ø 21 mm (10 ml)
Weight  196,5 g

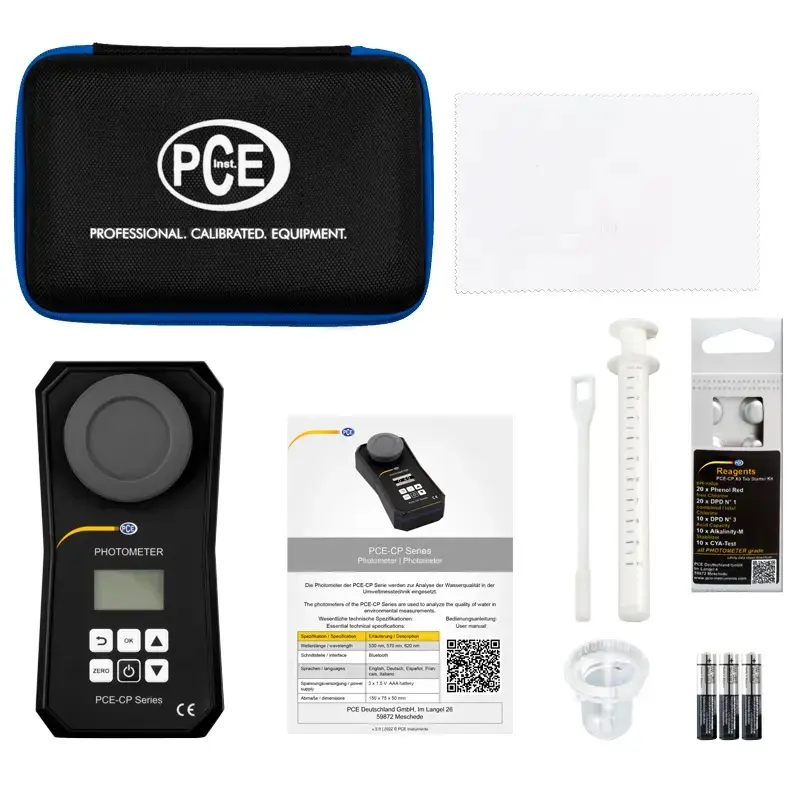

Delivery Scope

1 x Multi-parameter Water Hardness Meter / Water Hardness Tester PCE-CP 10 incl. Cuvette
1 x Replacement cuvette
1 x Light protection cover
1 x Microfiber cloth
1 x Plunger
1 x 10 ml dosing pipette
3 x AAA batteries
1 x Quick start guide
1 x Service bag
1 x Free app
1 x Free PC software
1 x Free cloud service
1 x Reagent starter kit (20 x pH, 20 x free chlorine, 10 x combined / total
chlorine, 10 x alkalinity, 10 x cyanuric acid)
