Water Analysis Meter PCE-PH20

Order no.: PCE-PH20

GTIN (EAN): 4250348717955

Accessory

ISO certificate CAL-PCE-PH for pH meters

AED 331.00

Calibration Solution pH4 and pH7

AED 95.65

pH Electrode IJ-44A

AED 782.00

Calibration Solution pH4 and pH7 and pH10

AED 120.82

Calibration Solution pH10

AED 64.00

Calibration Solution pH7

AED 50.34

Calibration Solution pH4

AED 50.34

Carrying Case with hard foam insert

AED 119.00

pH-Electrode PE-03

AED 234.19

Description

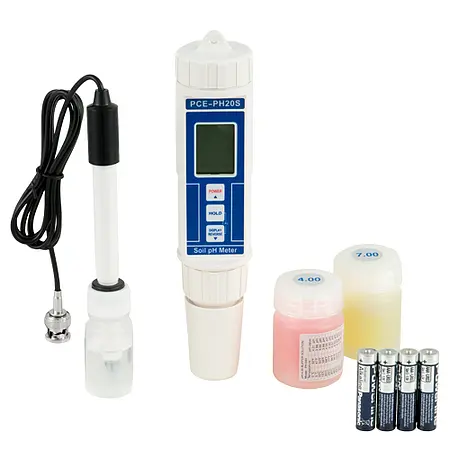

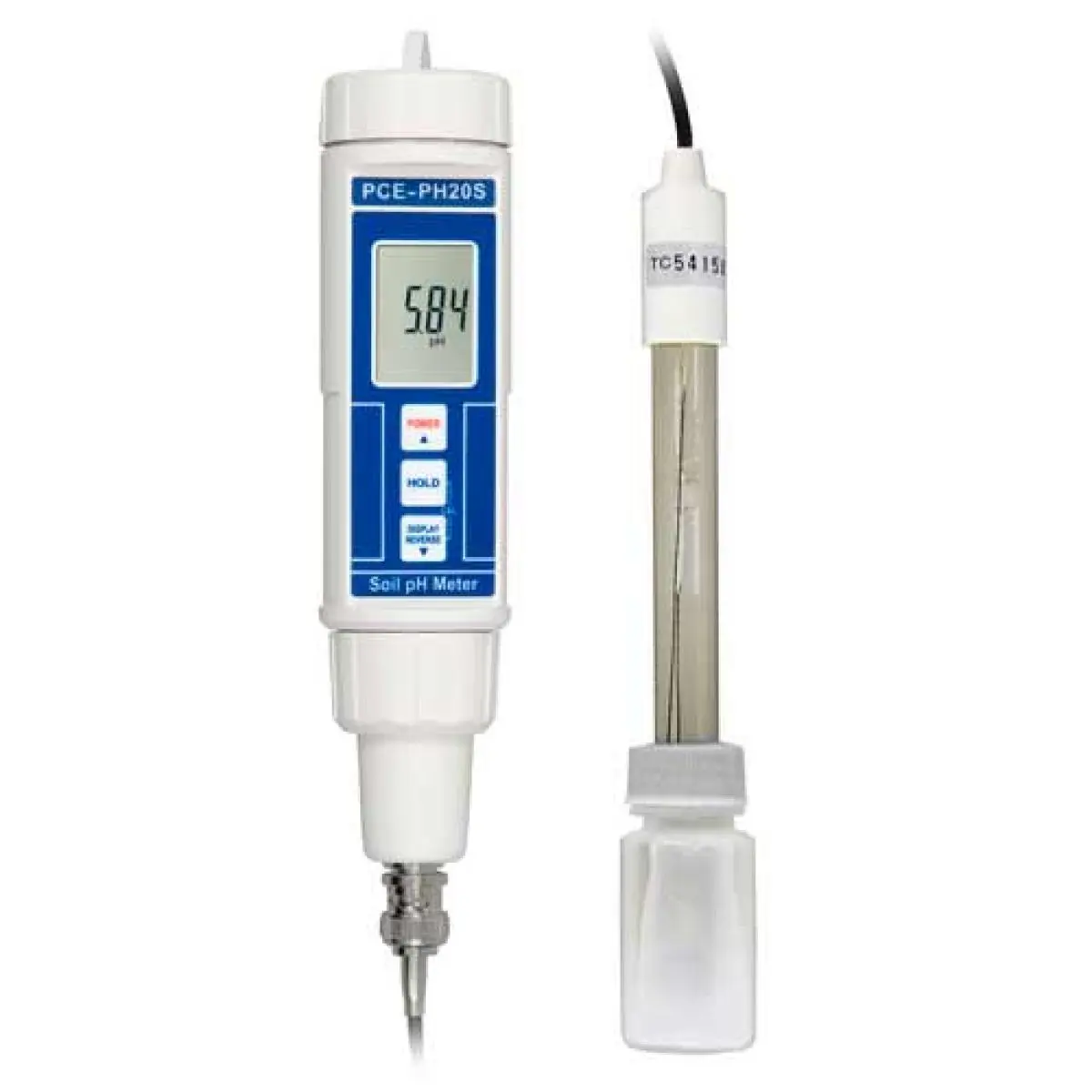

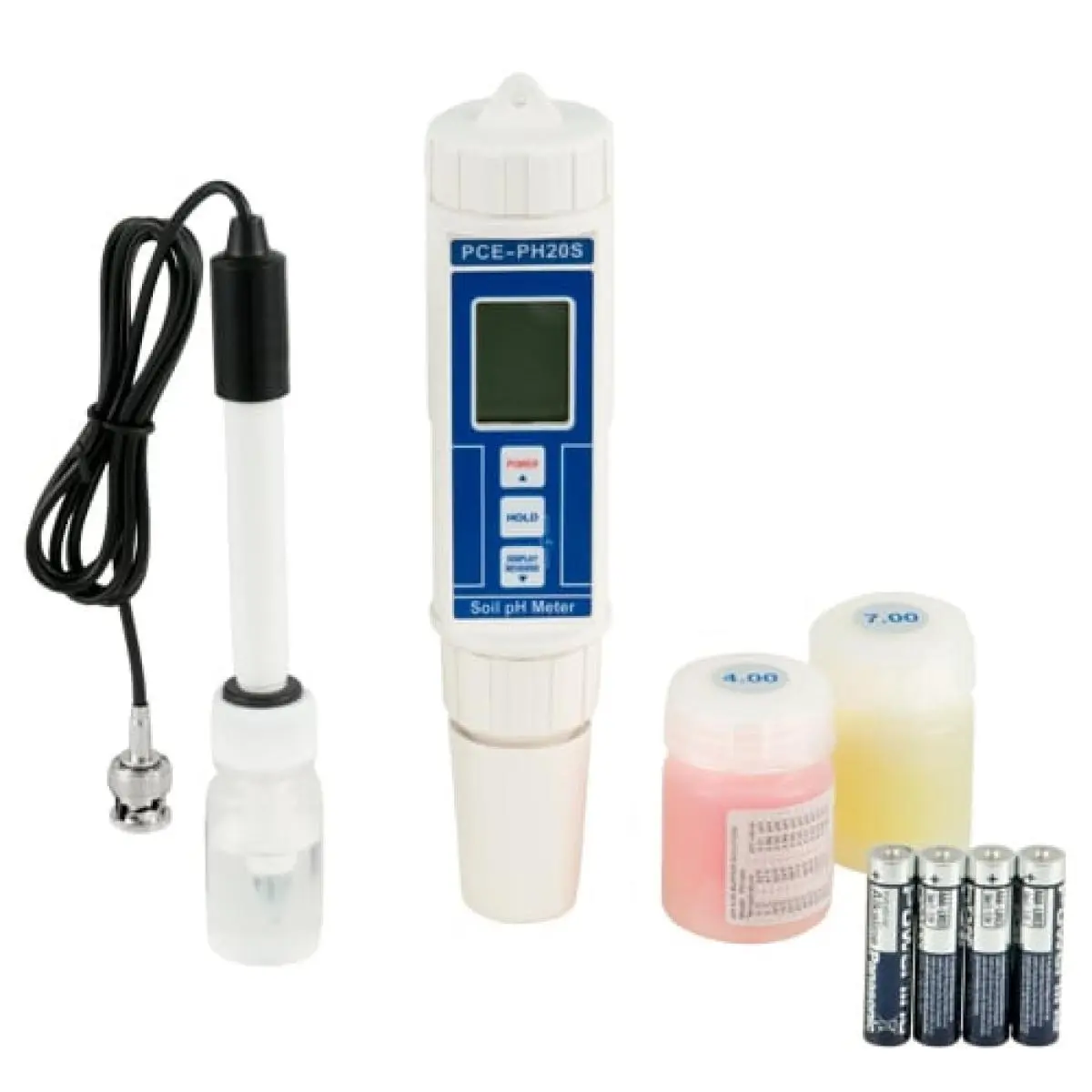

PCE-PH20 easy-to-use water analysis meter for pH determination / External pH electrode / Recalibratable / Waterproof (IP 67)

The water analysis meter was developed to directly determine the pH in aqueous media. The waterproof water analysis meter PCE-PH20 is used for the fast and accurate measurement of pH. The practical display makes the pH value on the pH meter easy to read. Due to the waterproof and robust housing (IP 67), the water analysis meter can also be used under difficult conditions. A recalibration always guarantees optimum accuracy and is very easy to perform using the optionally available calibration kits (automatic calibration function without calibration screws - to be performed only via the keyboard).

Highlights

- Waterproof (IP 67)

- Special external measuring electrode on cable

- High accuracy

- Auto-power-off for battery conservation

- Supplied with calibration solutions

- Data hold function

- Easy-to-read digital display

- Easy to use

Specification

pH
Measuring range	0 ... 14 pH
Resolution	0,01 pH
Accuracy	±0.07 pH (within range 5 ... 9 pH) / ±0.1 pH (within ranges 4 ... 4.9 and 9.1 ... 10 pH) / ±0.2 pH (within ranges 1 ... 3.9 and 10 ... 13 pH)

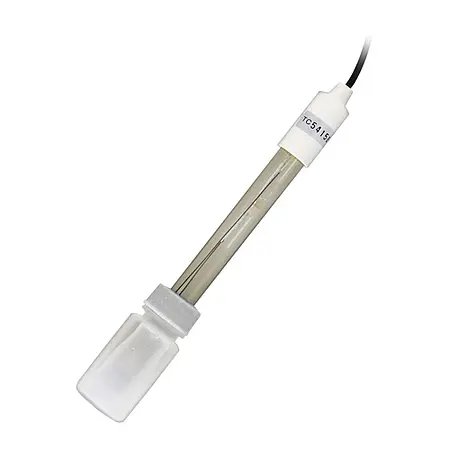

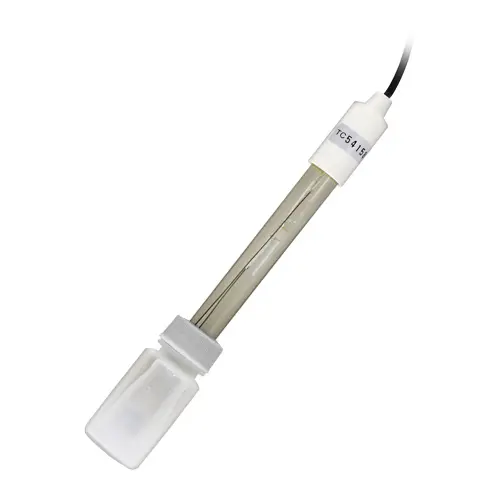

Electrode
Designation	PE-03
Measuring range	0 ... 13 pH
Temperature range	5 ... 60 °C
Application	Aqueous media
reference system	Ag/AgCl
Reference electrolyte	3M Potassium Chloride
Shank material	Epoxid
Shank length	160 mm
Shank diameter	12 mm
Cable length	1 m
Connection	BNC

General technical data
Measuring functions	HOLD
Display type	LCD
Display size	1,35 Inch
Automatic power-off	10 min
Number of calibration points	3
Calibration	Automatically, at pH 4, pH 7, pH 10 using calibration solutions
Protection class (device)	IP67
(Rechargeable) battery	4 x 1,5 V AAA battery , Alkali-manganese
Capacity	1200 mAh
Operating conditions	0 ... 60 °C , 0 ... 80 % RH
Storage conditions	0 ... 60 °C , 0 ... 80 % RH
Dimensions ( L x W x H )	180 x 40 x 32 mm
Weight	220 g
