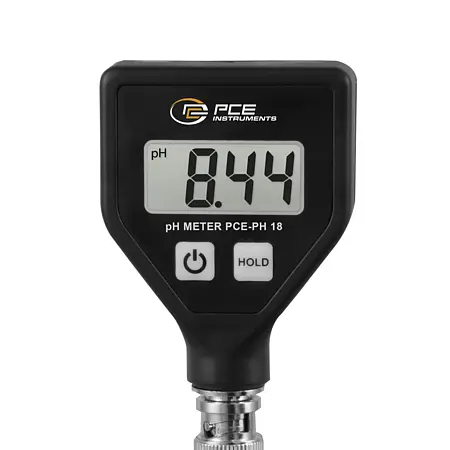

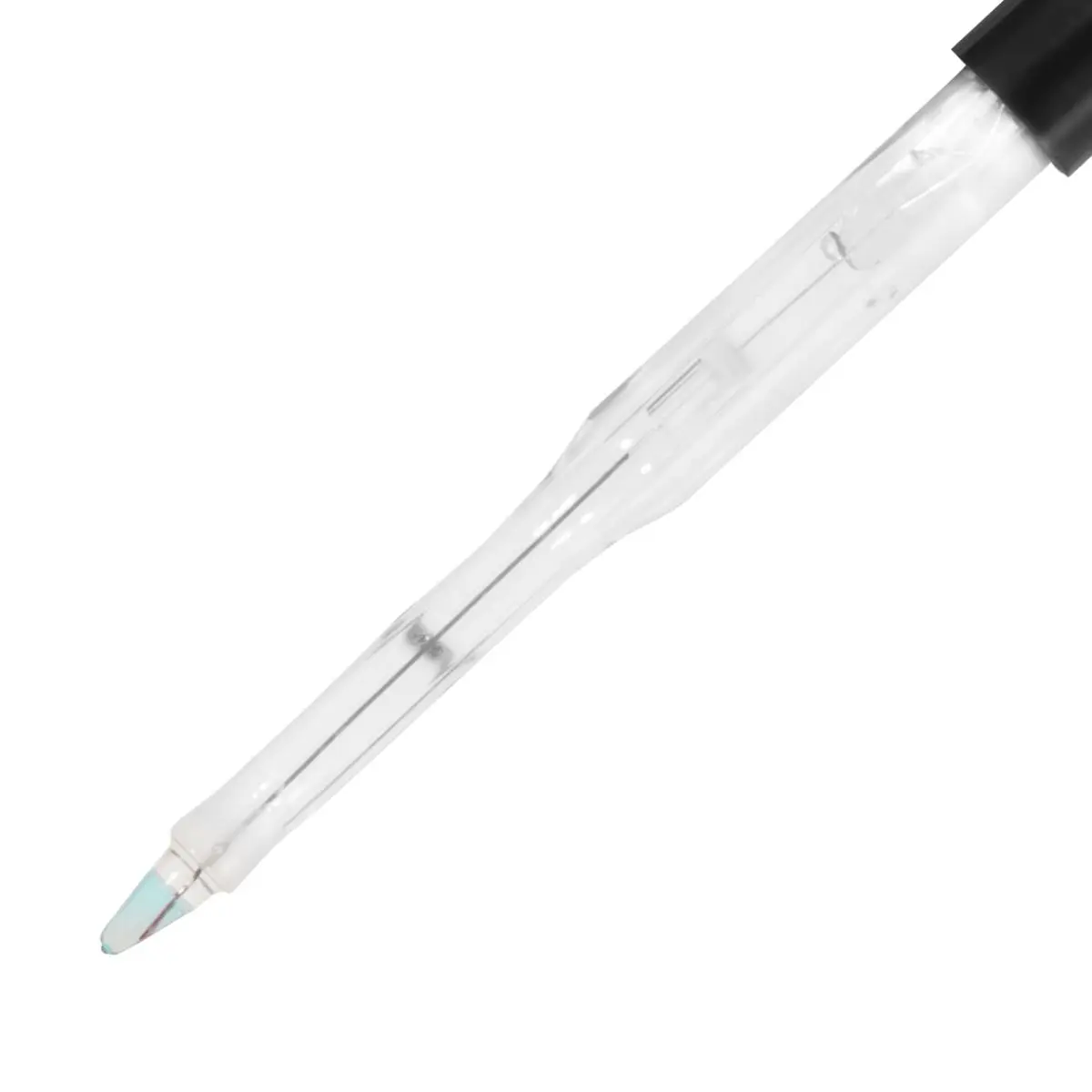

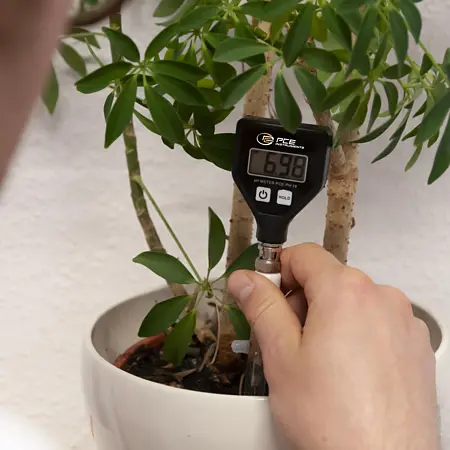

The ground Water Analysis Meter PCE-PH 18 is a Water Analysis Meter with a pointed glass electrode. Thanks to this glass electrode, the pH value can be determined with the soil Water Analysis Meter in, for example, potting soil, sludge or viscous liquids, such as lye. Because of its small and compact design, the ground Water Analysis Meter is ideally suited for mobile use.

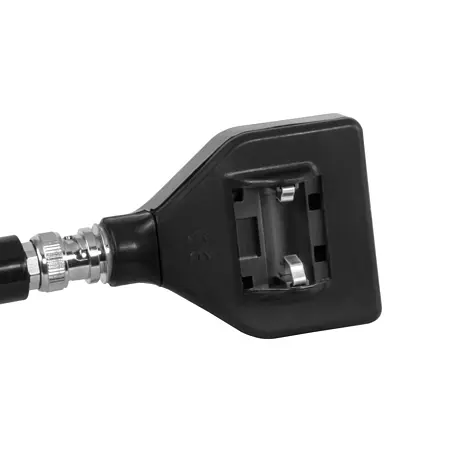

Using the BNC connector, alternative electrodes can be connected to the ground Water Analysis Meter. Thanks to the ease of use, the soil Water Analysis Meter can be easily readjusted to another electrode.
| pH | |
| Measuring range | 0 ... 14 pH |
| Resolution | 0,01 pH |
| Accuracy | ±0.1 pH (at 20 °C), ±0.2 pH |
| General technical data | |
| Measuring functions | HOLD |
| Display type | LCD |
| Adjustment | manual single-point adjustment |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| Power supply | batteries |
| (Rechargeable) battery | 3 x 1,5 V AG13 , Alkali-manganese |
| Capacity | 140 mAh |
| Operating conditions | 0 ... 50 °C , 0 ... 80 % RH |
| Storage conditions | 0 ... 50 °C , 0 ... 95 % RH |
| Dimensions ( L x W x H ) | 235 x 51 x 25 mm |
| Weight | 82,5 g |
