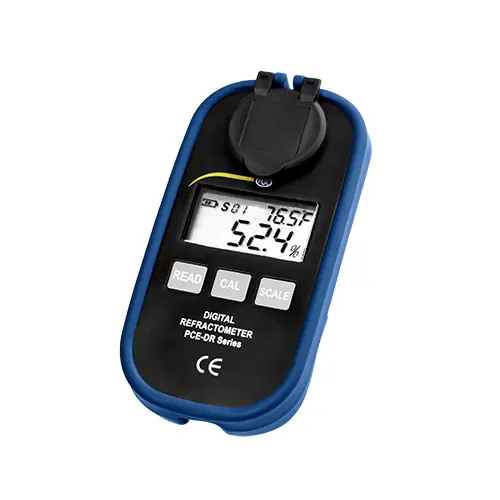

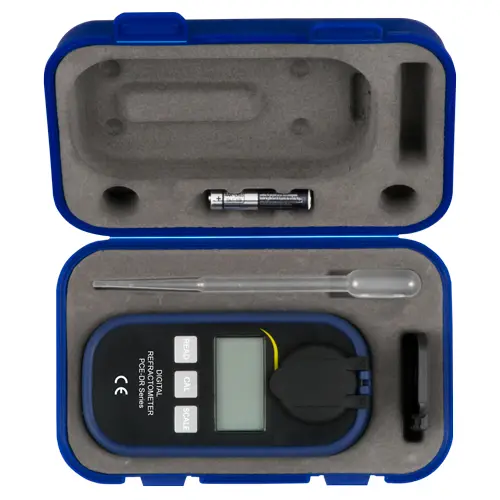

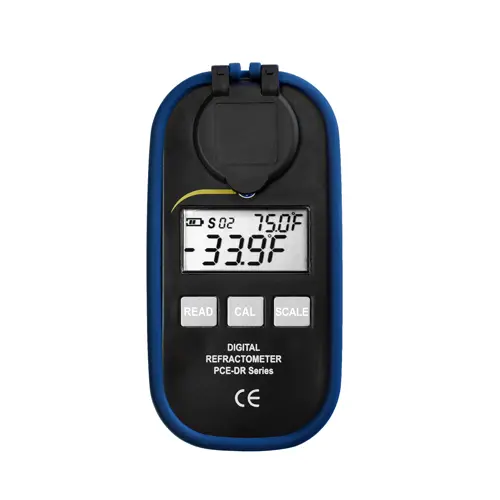

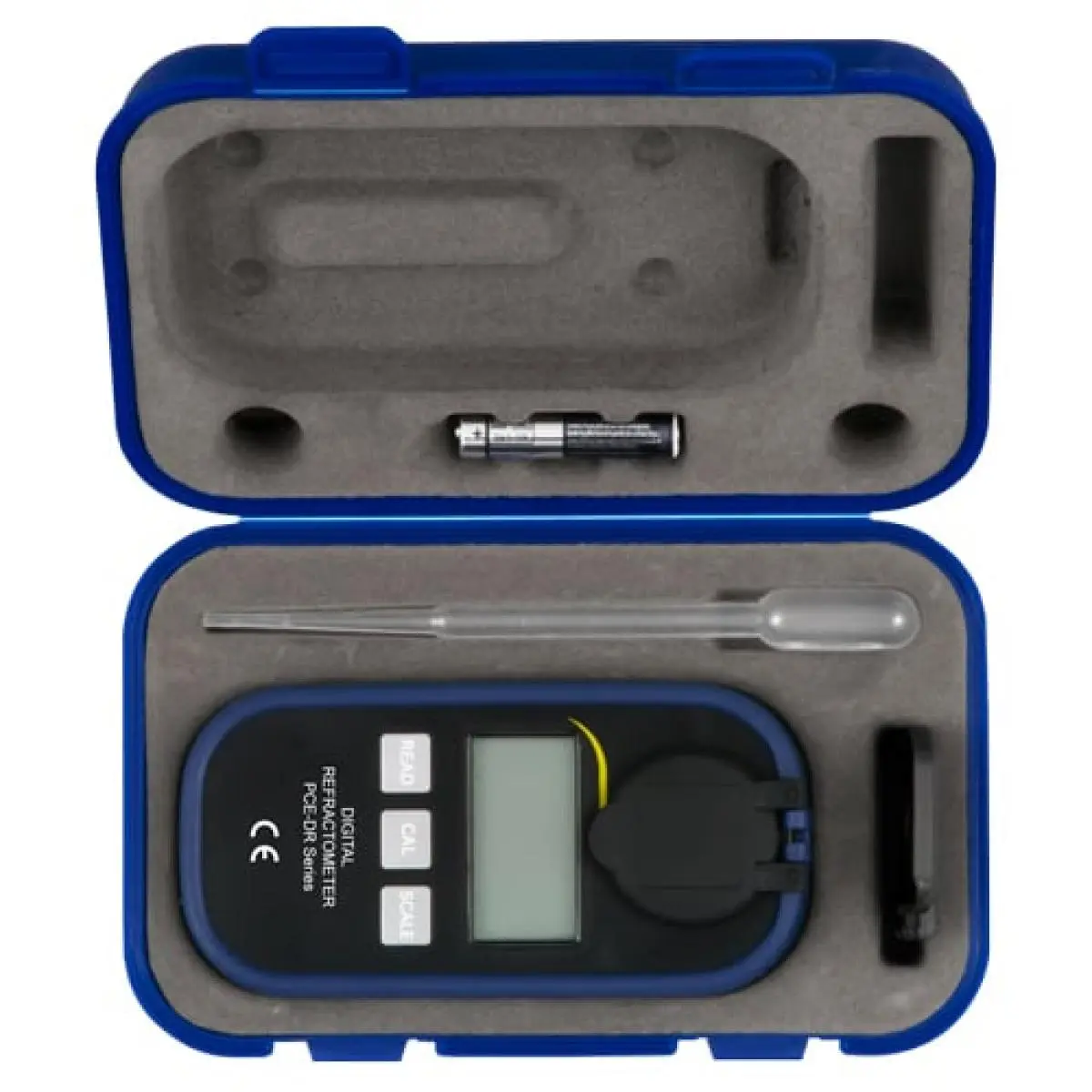

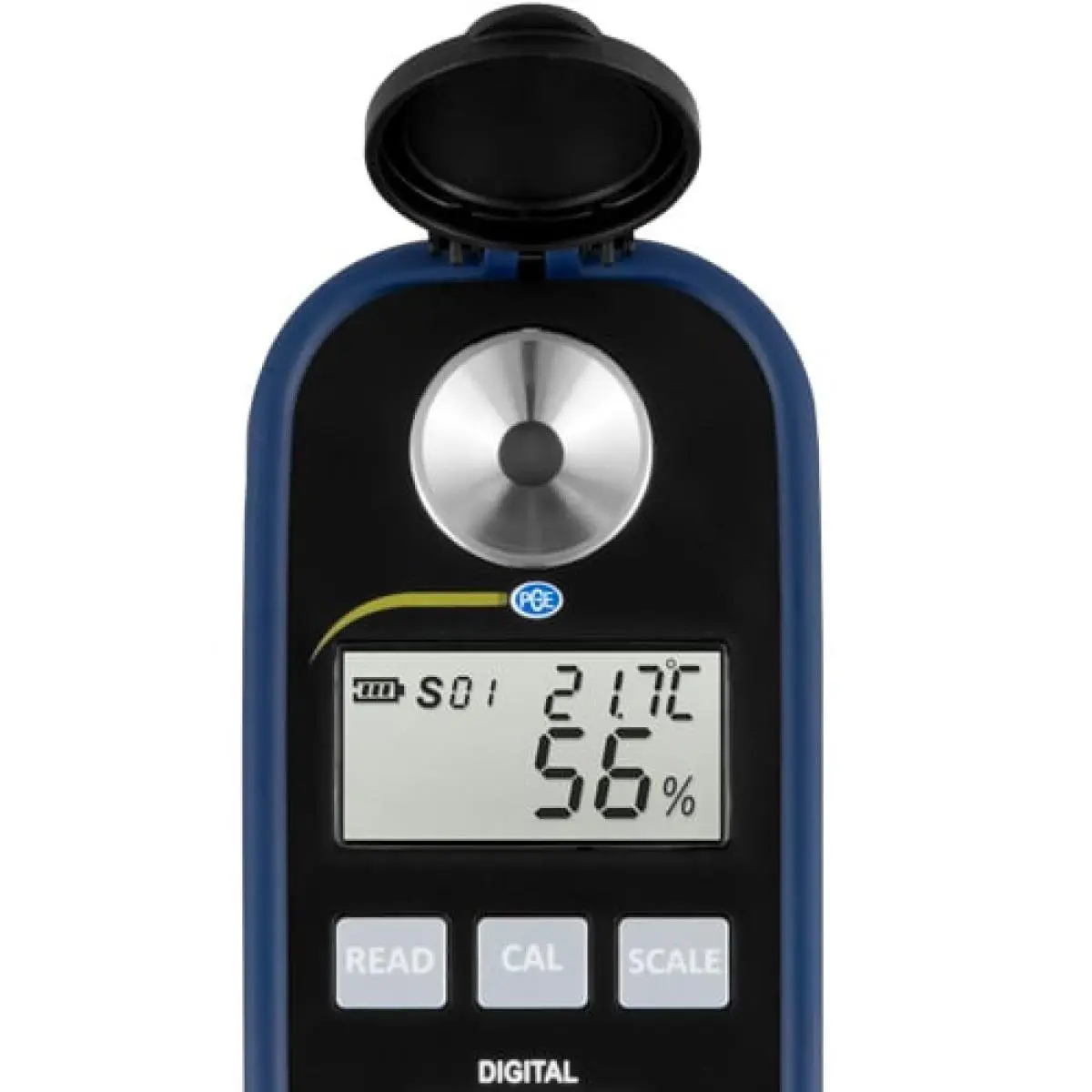

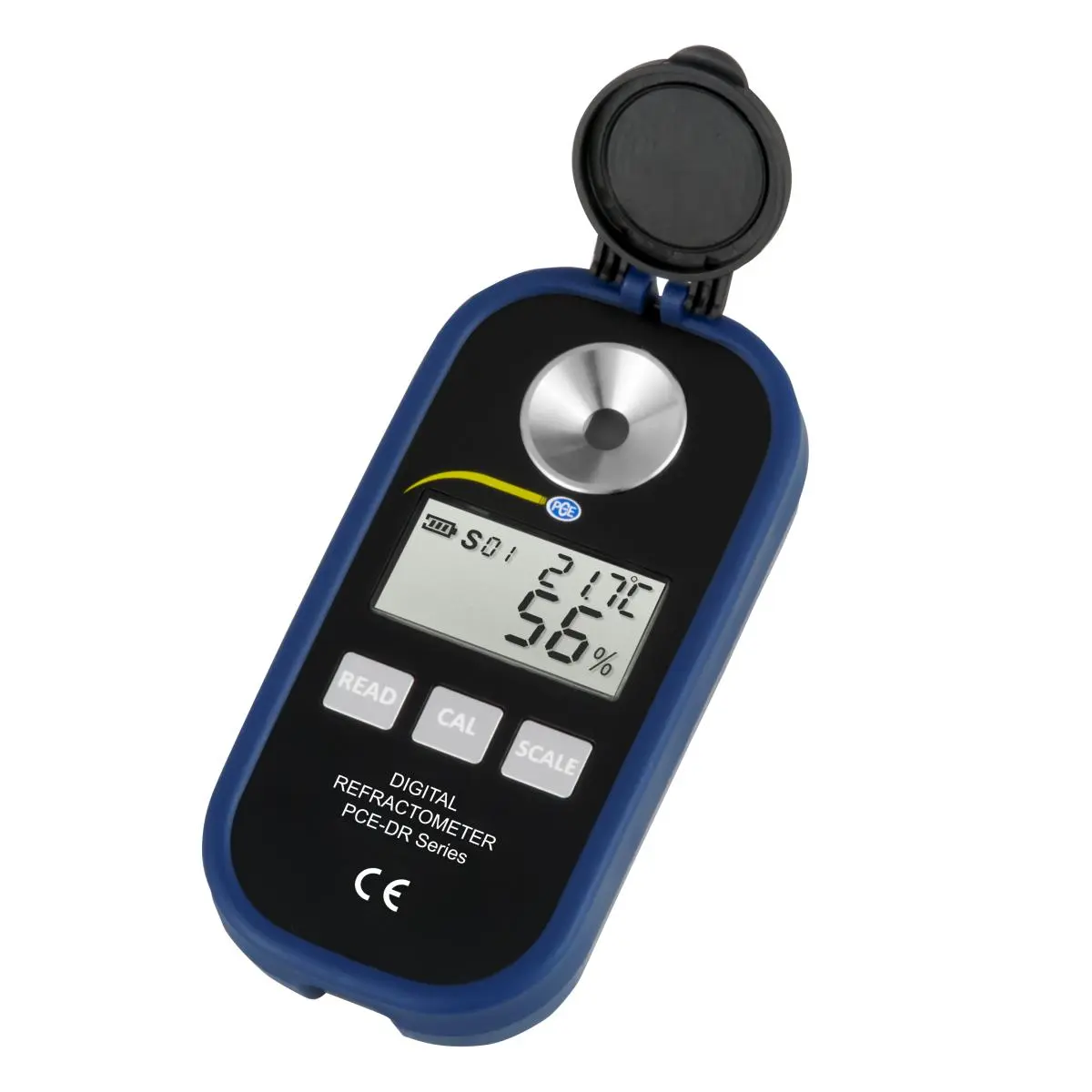

PCE-DRS 2 Water Analysis Meter - Salinity / Chlorine Refractometer
Waterproof IP65-rated salinity or salt content (‰) / chlorine content (‰) / specific gravity (SG) / refractive index (nD) refractometer with easy-to-read LCD
PCE-DRS 2 is a handheld digital sodium chloride (NaCl) and chlorine (Cl) refractometer used to determine the salinity or salt content (‰), chlorine content (‰), specific gravity (SG) and refractive index (nD) of liquid. This waterproof IP65-rated digital refractometer features automatic temperature compensation (ATC) from +10 ... +40 °C / +50 ... +104 °F, as well as a large, easy-to-read LCD that shows both the measured value and the temperature.
| Refractive index | |
| Measuring range | 1,333 ... 1,353 nD |
| Resolution | 0,0001 nD |
| Accuracy | 0.0003 nD |
| Salinity | |
| Measuring range | 0 ... 100 ‰ |
| Resolution | 1 ‰ |
| Accuracy | 2‰ |
| Density | |
| Measuring range | 1 ... 1,07 |
| Resolution | 0,001 |
| Accuracy | ±0.002 |
| Chloride content | |
| Measuring range | 0 ... 57 ‰ |
| Resolution | 1 ‰ |
| Accuracy | ±2‰ |
| Temperature | |
| Measuring range | 0 ... 40 °C |
| Resolution | 0,1 °C |
| Accuracy | ±0.5 °C |
| General technical data | |
| Temperature compensation | automatic 10 ... 40 °C |
| Display type | LCD |
| Response time | 1 s |
| Automatic power-off | 1 min |
| Housing | ABS (acrylonitrile-butadiene-styrene copolymers) |
| Sample quantity | 4 ... 5 drops |
| Sample tray | Stainless steel ring with glass prism |
| Menu language | English, English (GB) |
| Protection class (device) | IP65 |
| (Rechargeable) battery | 1 x 1,5 V AAA battery , Alkali-manganese |
| Capacity | 1200 mAh |
| Operating conditions | 10 ... 40 °C , 0 ... 80 % RH |
| Storage conditions | -10 ... 50 °C , 0 ... 80 % RH |
| Dimensions ( L x W x H ) | 121 x 58 x 25 mm |
| Weight | 90 g |
