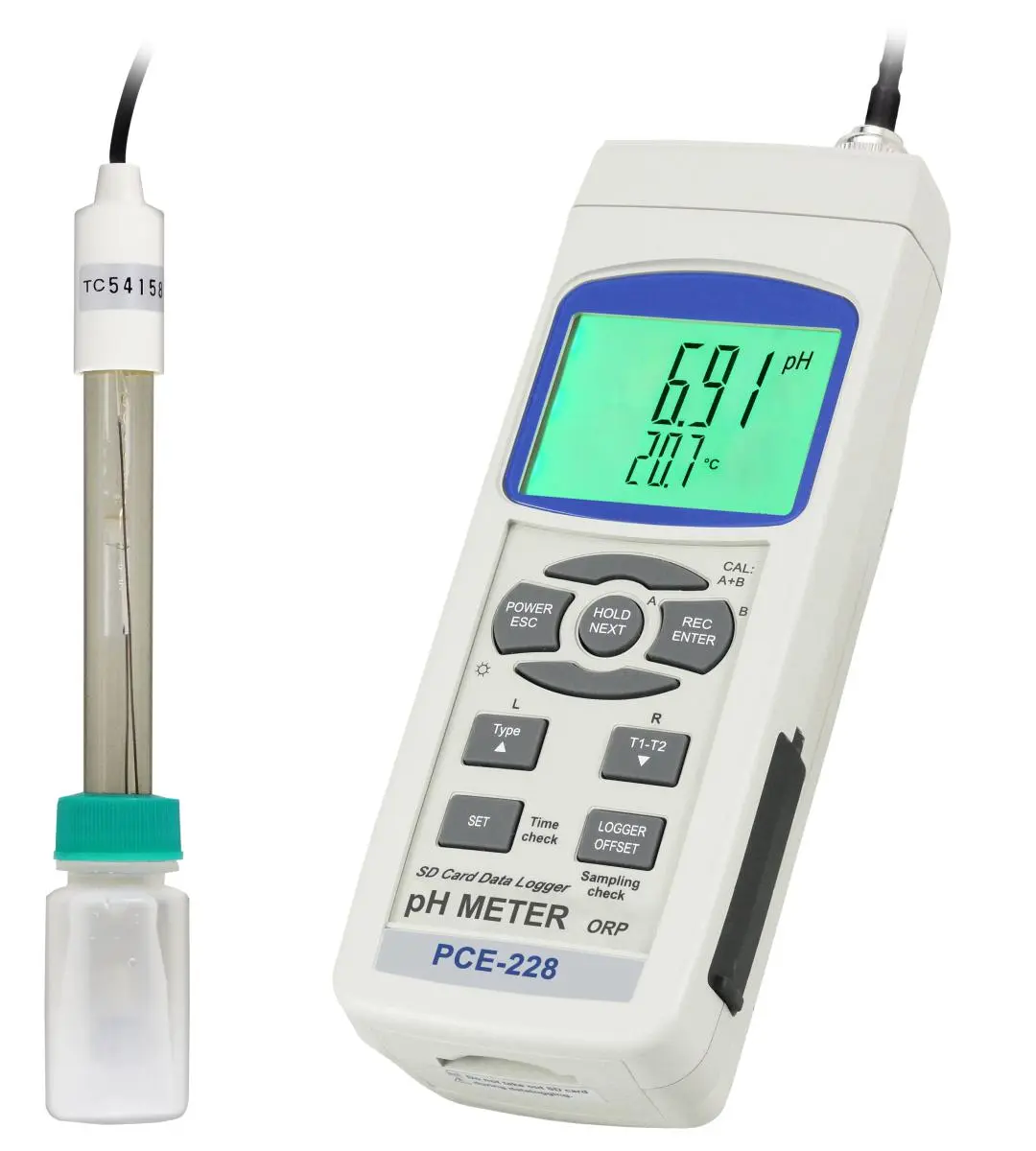

The PCE-228 Water Analysis Meter is a very easy-to-use handheld pH / mV / °C meter. The pH value and the temperature can be saved directly on the SD card (Excel file) or transferred directly from the Water Analysis Meter to a PC via the RS-232 interface. For this purpose, we optionally offer software and the appropriate RS-232 interface cable as accessories. The temperature compensation takes place either manually or automatically using the temperature sensor supplied.

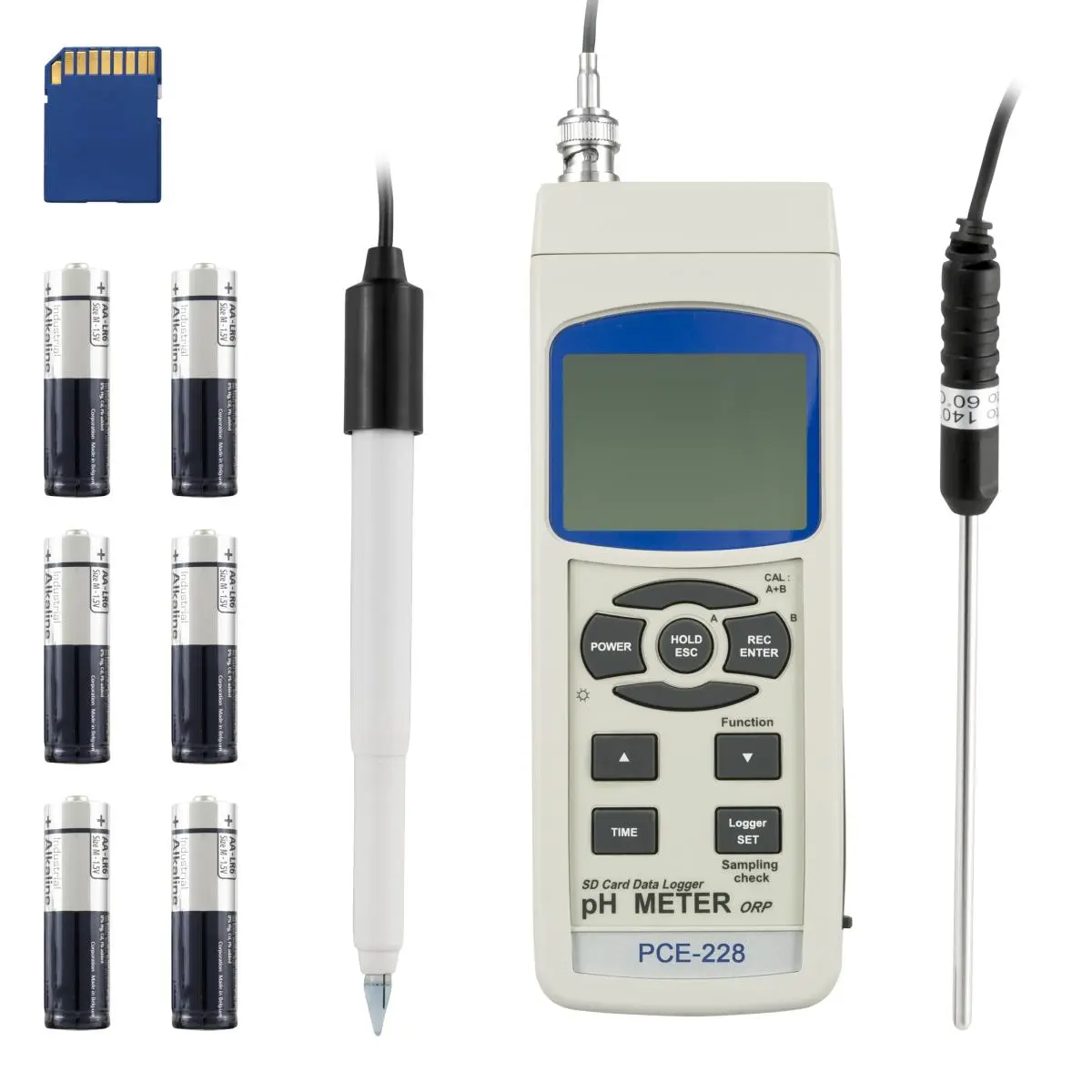

All of this allows a quick and reliable pH measurement. The Water Analysis Meter has a three-point calibration, which is carried out automatically. The combination measuring device can be used to determine the pH value, the temperature or the REDOX potential (ORP). For the latter measurement parameter, however, a REDOX electrode must be ordered additionally. Here we recommend the ORP electrode ORP-14. The Water Analysis Meter is battery operated (6 x 1.5 V batteries are included).
| pH | |
| Measuring range | 0 ... 14 pH |
| Resolution | 0,01 pH |
| Accuracy | ±(0.02 pH +2 digits) |
| Redox | |
| Measuring range | -1999 ... +1999 mV |
| Resolution | 1 mV |
| Accuracy | ±(0.5 % +2 digits) |
| Temperature | |
| Measuring range | 0 ... 65 °C |
| Resolution | 0,1 °C |
| Accuracy | ±0.5 °C |
| Electrode | |
| Designation | PE-03 |
| Measuring range | 1 ... 13 pH |
| Temperature range | 0 ... 60 °C |
| Application | Aqueous non-corrosive media |
| Reference electrolyte | Ag/AgCl |
| Shank material | Epoxy resin |
| Shank length | 160 mm |
| Shank diameter | 12,4 mm |
| Cable length | 1 m |
| Connection | BNC |
| General technical data | |
| Measuring functions | MIN, MAX, HOLD |
| Temperature compensation | - automatic 0 ... 65 °C - manual 0 ... 100 °C with temperature sensor removed |
| Display type | LCD with backlight |
| Display size | 2,6 Inch |
| Storage medium | SD card |
| Storage capacity | 4 GB |
| Memory capacity (additional information) | up to 16 GB SD card possible |
| Storage interval from | 1 s |
| Storage interval to | 9 h |
| Interface | RS232 |
| Number of calibration points | 3 |
| Calibration | automatic |
| Menu language | English |
| Protection class (device) | IP20 |
| Power supply | 9 V DC |
| (Rechargeable) battery | 6 x 1,5 V AA battery , Alkali-manganese |
| Capacity | 3000 mAh |
| Operating conditions | 0 ... 50 °C , 0 ... 85 % RH |
| Storage conditions | 0 ... 50 °C , 0 ... 85 % RH |
| Dimensions ( L x W x H ) | 186 x 68 x 45 mm |
| Weight | 261 g |
