The Videoscope / Video Borescope is suitable for inspecting hard-to-reach areas such as engines, pipework, machinery, and cavities. It enables non-destructive visual inspection without the need to dismantle components.

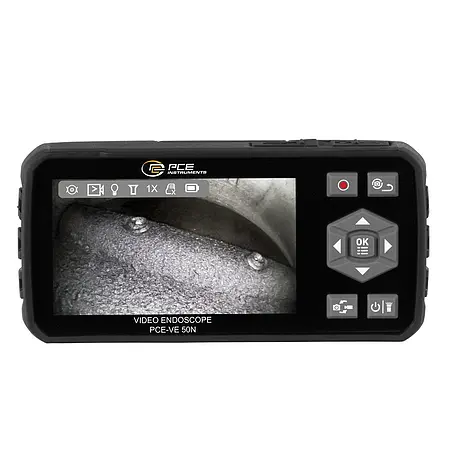

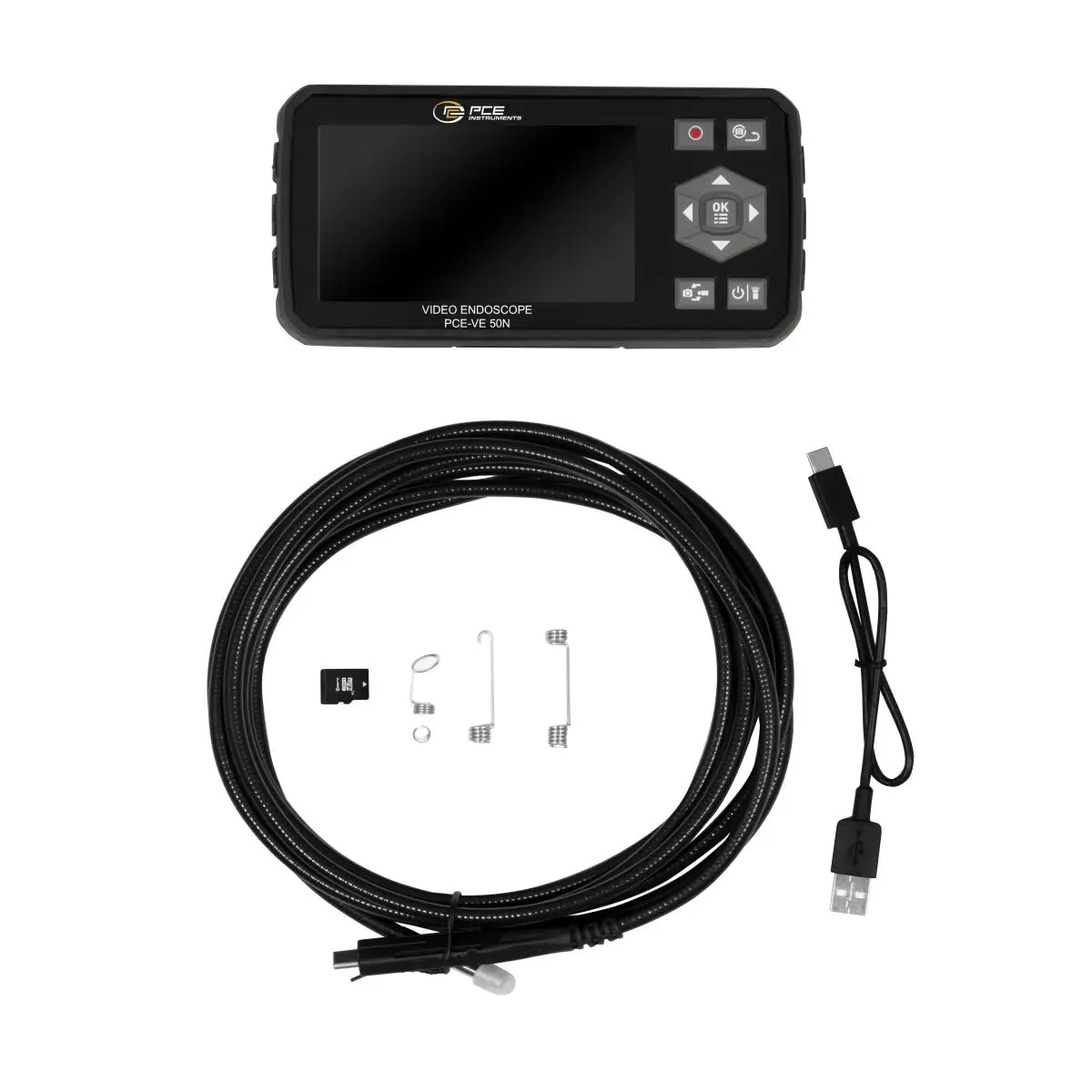

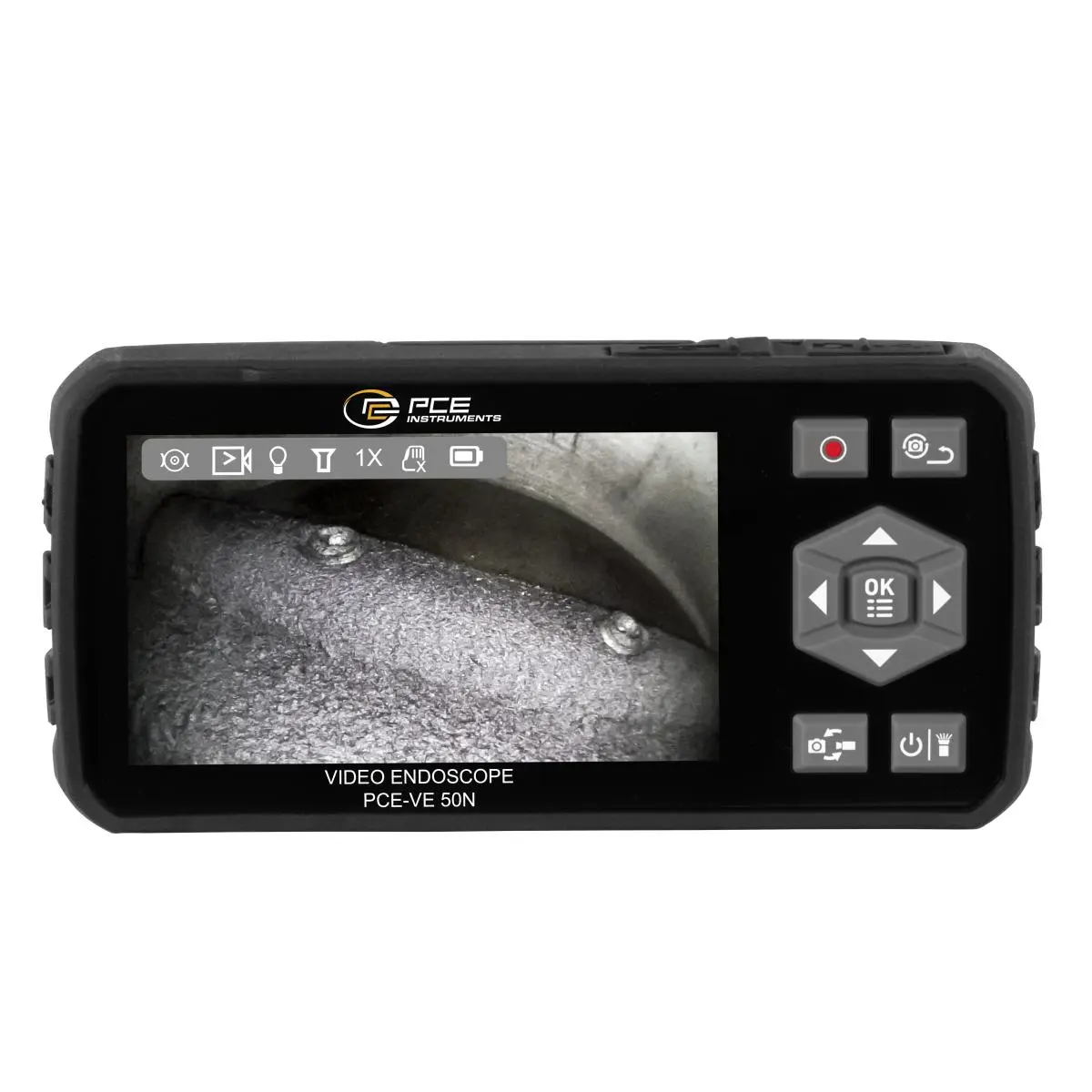

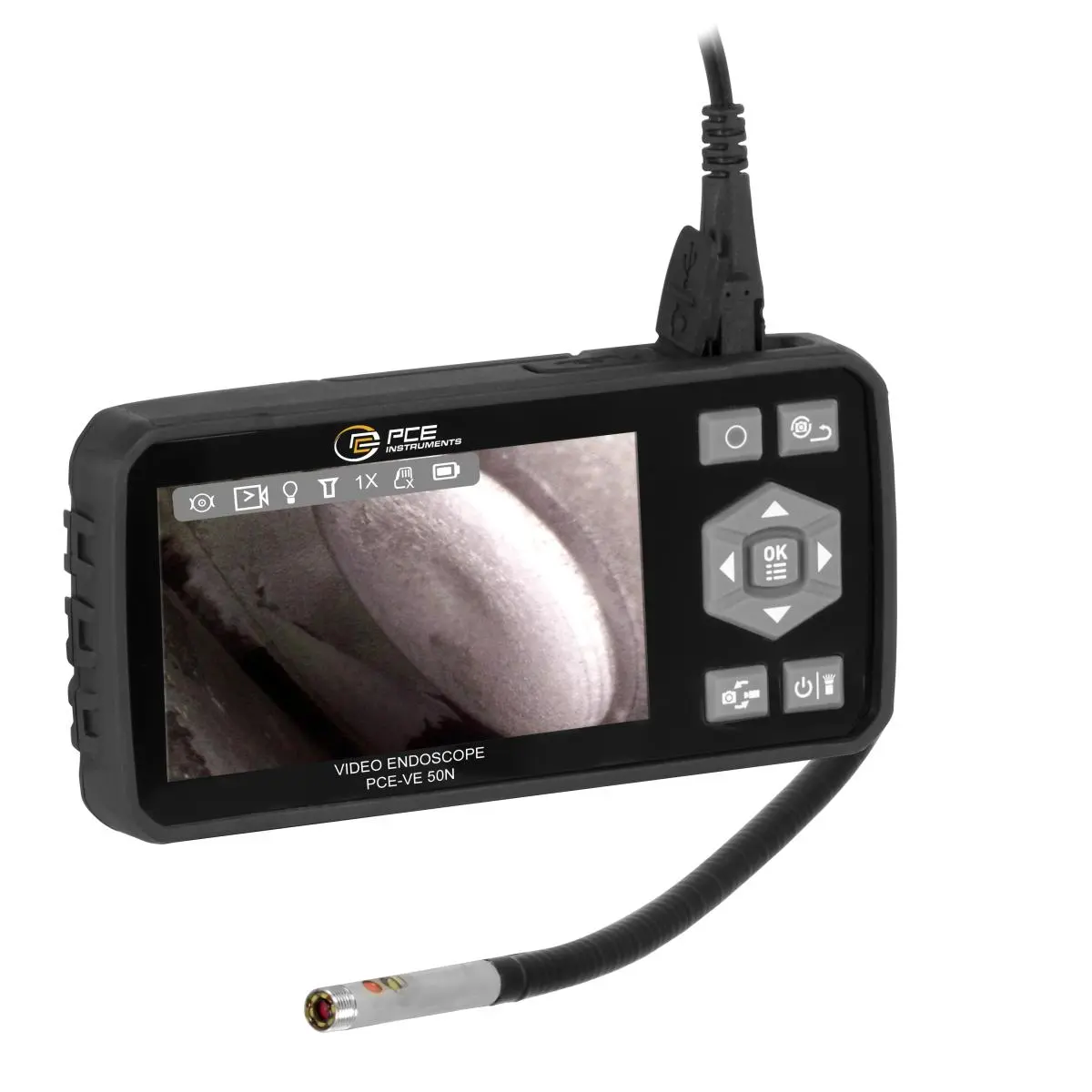

The Videoscope / Video Borescope features a 4.5-inch TFT color display with a resolution of 854 × 480 pixels and an HD camera probe with a resolution of up to 1280 × 720 pixels. Images and videos can be stored directly on a micro SD card, so no additional recording devices are required. The integrated WiFi function allows stored images and videos to be easily transferred to an Android device. Adjustable LED lighting on the camera probe ensures good illumination in dark areas. The digital zoom of the Videoscope / Video Borescope also allows detailed examination of test objects. The camera probe is IP67 rated and therefore suitable for use in demanding environments. The included attachments such as the magnet, hook, and mirror also make it possible to retrieve small items or inspect side areas more effectively.

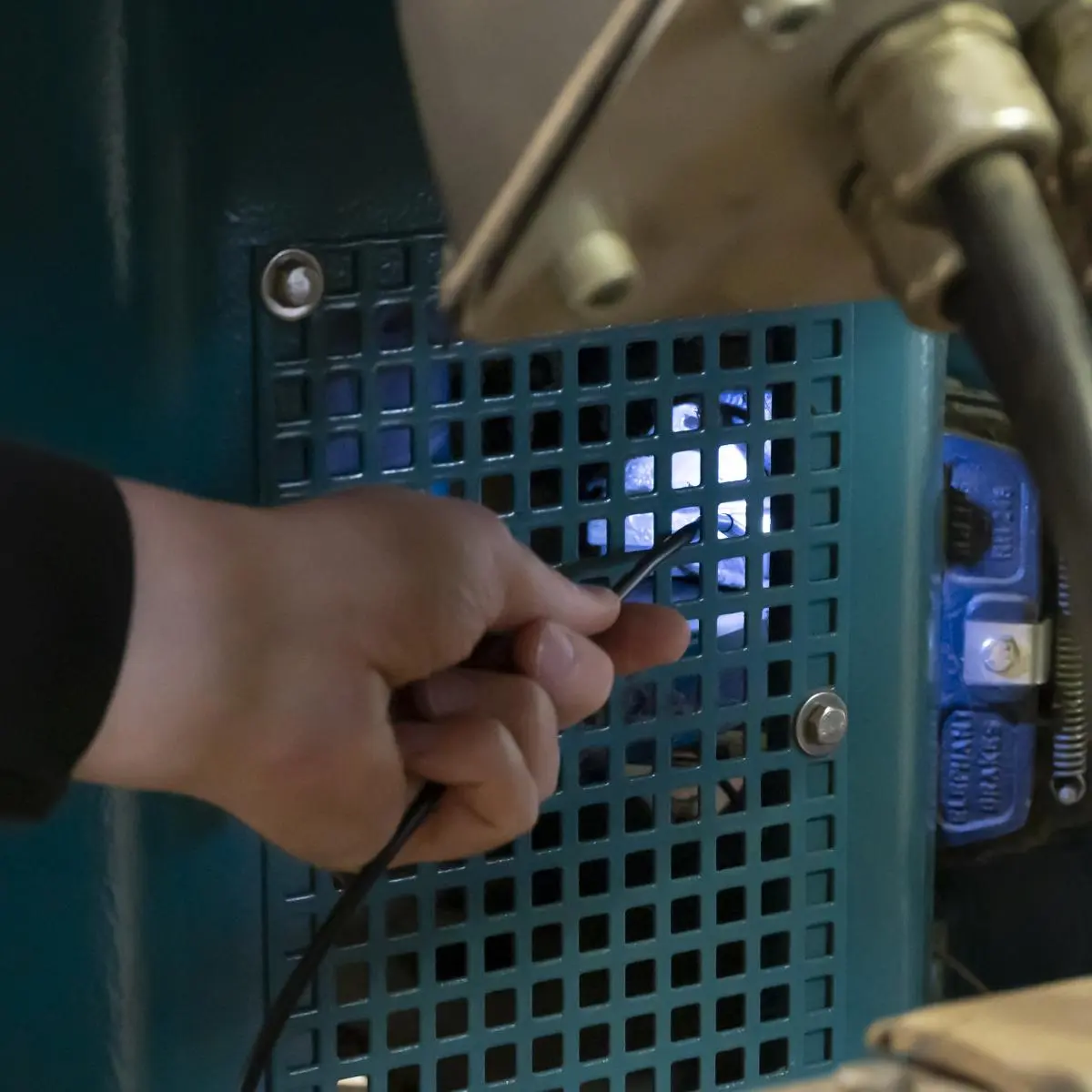

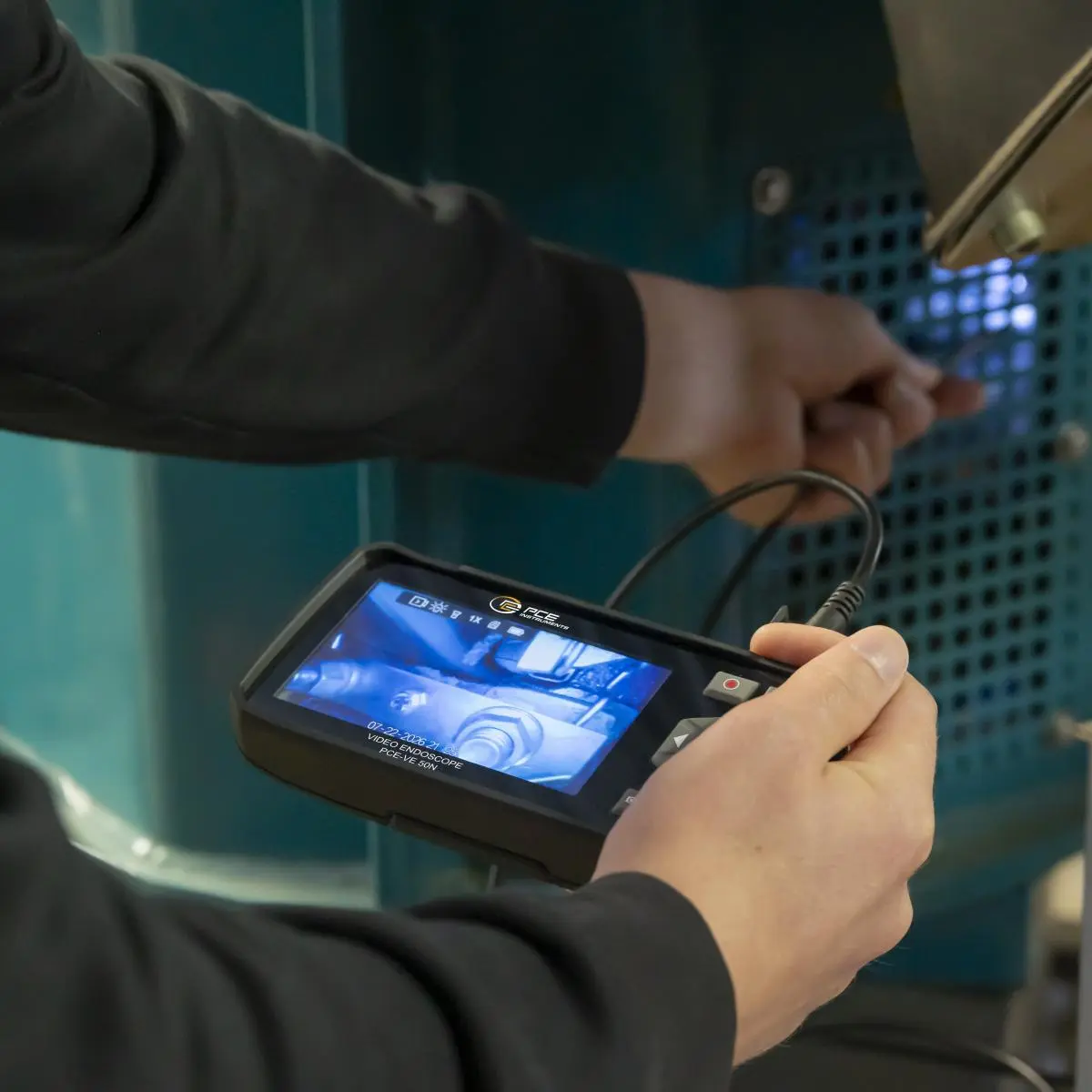

The Videoscope / Video Borescope is used by mechanics, tradespeople, and technicians to quickly and reliably detect damage, wear, or blockages in hard-to-reach areas.
Not suitable for medical use.
| General technical data | |
| Type of cable | PVC |
| Cable length | 3 m |
| Display type | TFT colour display |
| Display size | 4,5 in |
| Display resolution | 854 x 480 pixels |
| Storage medium | Micro SD card |
| Storage capacity | 8 GB |
| Memory capacity (additional information) | Up to 128 GB possible |

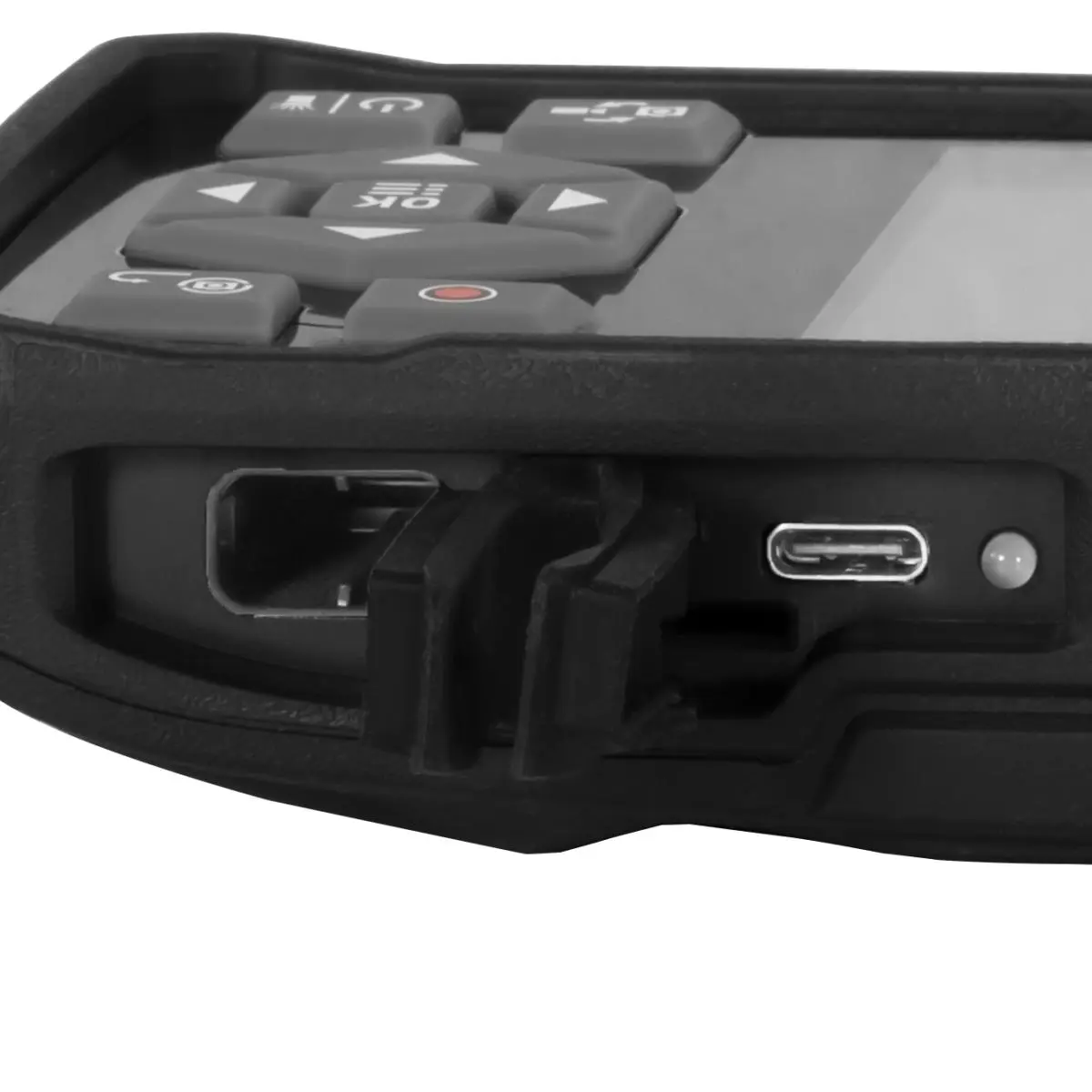

| Interface | USB-C, WLAN |
| Camera resolution | 1280 x 720 |
| Camera orientation | front 0° side 90° |
| Operating time | 3 h |
| Automatic power-off from...to | 30 ... 120 min. |
| Camera head diameter | 5,5 mm |
| Camera probe length | 32 mm |
| Camera probe material | Metal |
| Camera probe movement | semi-rigid |
| Protection class camera probe | IP67 |
| Field of vision | 70 ° |
| Depth of field of vision | 30 ... 80 mm |
| Luminous intensity | 6 LEDs |
| Image / video format | mp4, JPG |
| Frame rate | 25 FPS |
| Menu language | English, English (GB), French, Spanish |
| Protection class (device) | IP67 |
| Power supply | 5V DC, 1.5 A |
| (Rechargeable) battery | 1 x 3,7 V internal , Lithium-ion polymer battery |
| Capacity | 2000 mAh |
| Operating conditions | -10 ... 50 °C , 0 ... 85 % RH |
| Storage conditions | -20 ... 60 °C , 0 ... 85 % RH |
| Dimensions ( L x W x H ) | 83 x 170 x 35 mm |
| Weight | 250 g |
