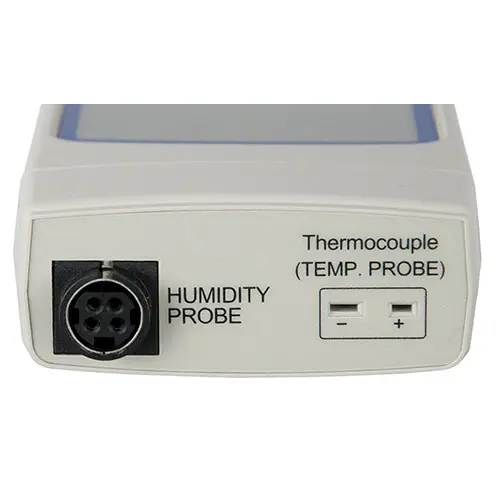

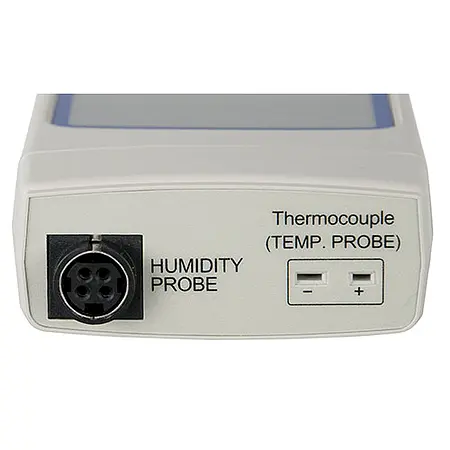

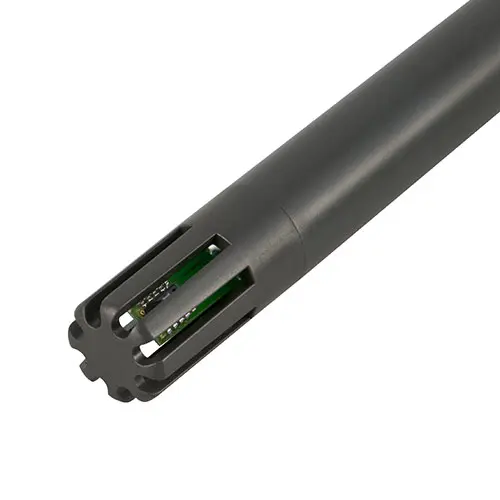

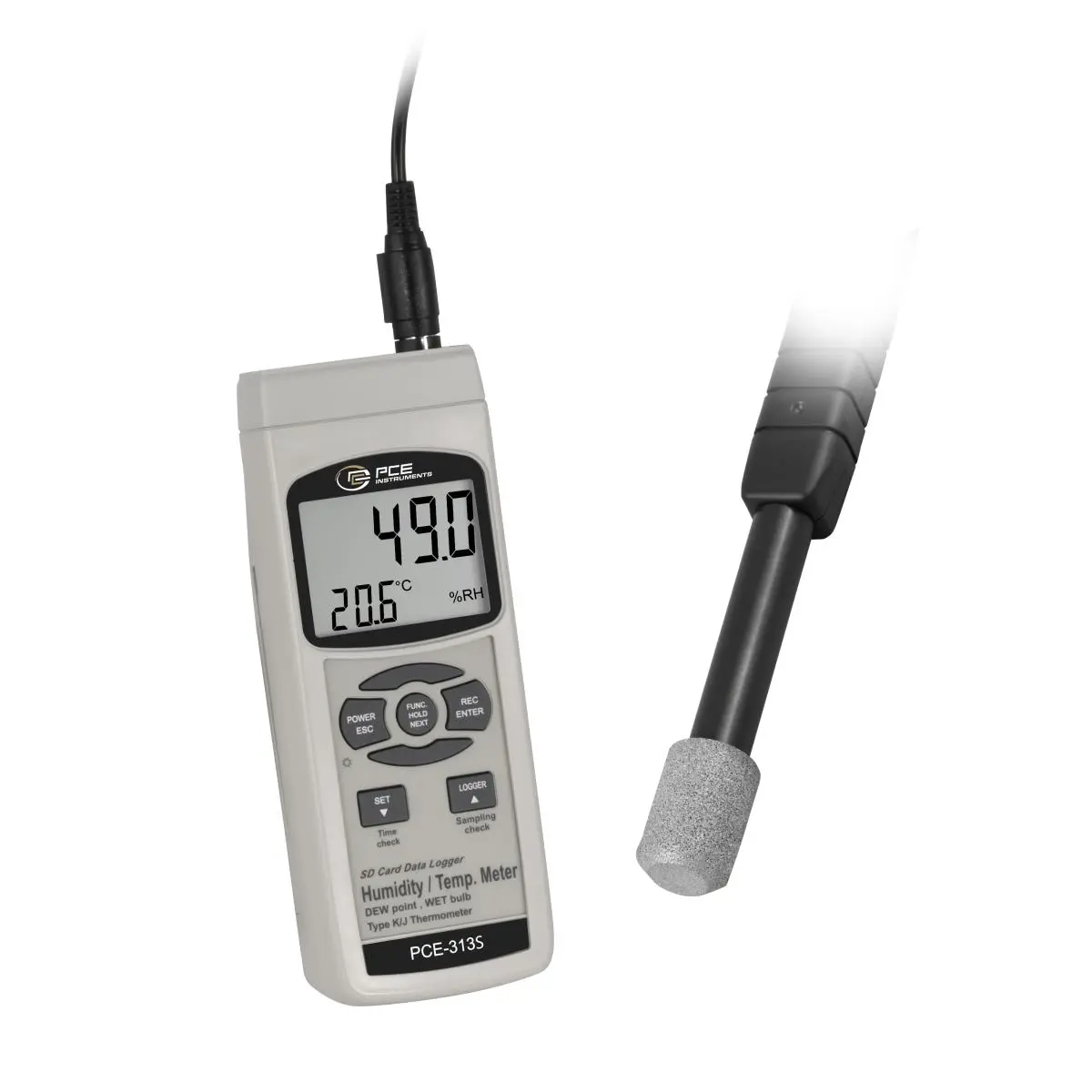

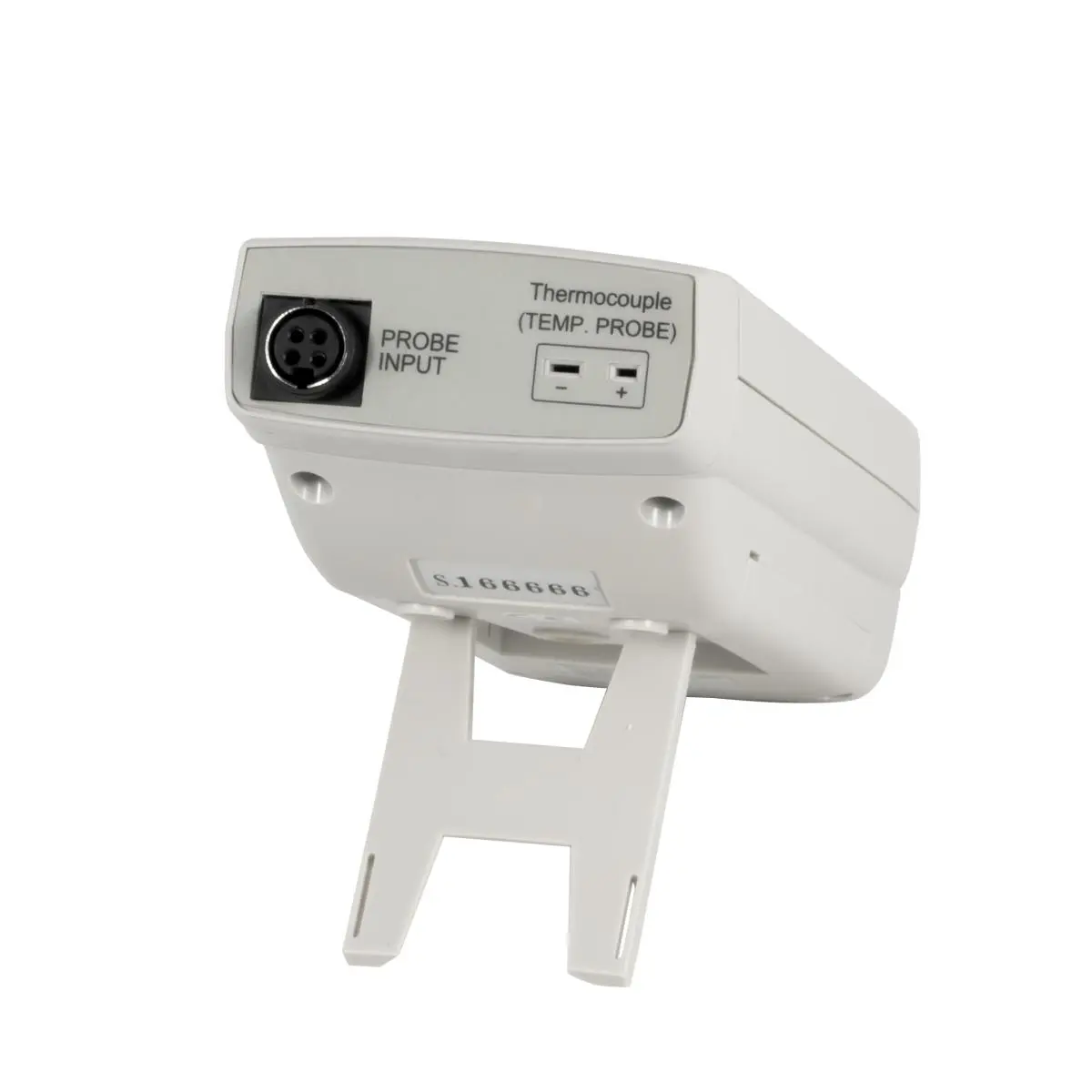

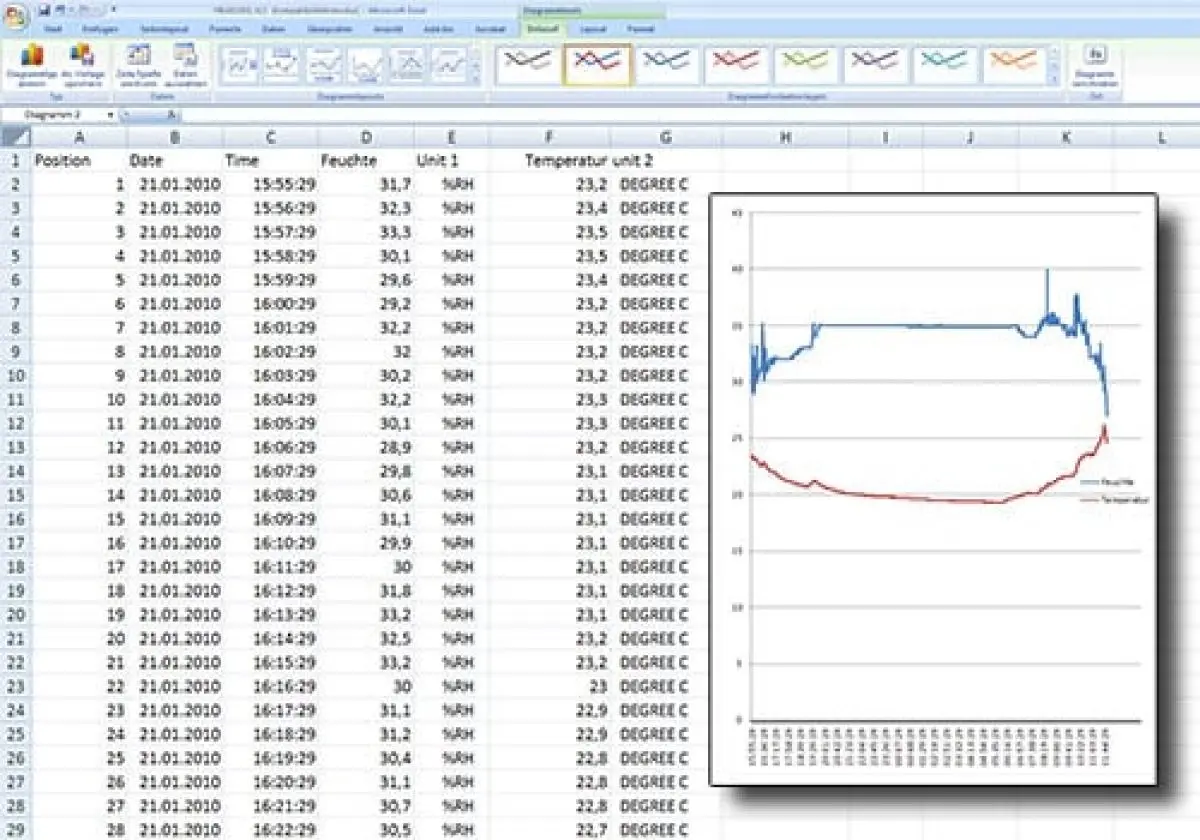

The PCE-313 S Thermometer has been designed for professional use in fields such as the air-conditioning sector. The PCE-313 S Thermometer determines both relative humidity and ambient temperature. The PCE-313 S Thermometer can be connected to type K thermo-elements to detect, for instance, the temperature of a wall by means of a surface probe. The internal memory of the PCE-313 S Thermometer allows you to record humidity and temperature values, with a free adjustment of the measurement rate for real time measurements or data storage thanks to its SD memory card (1 to 16 GB). The PCE-313 S Thermometer can be previously programmed via the keypad so the device can record values without the need of being present during the process. For long term records, we recommend you to power the PCE-313 S Thermometer by means of a power adapter (optional). Recorded values can be transferred to a PC for further analysis (.xls file in the SD card). This property allows you to check measured values or design a graphic by means of the Excel calculation program.
| Wet bulb temperature | |
| Measuring range | -21,6 ... +50 °C |
| Resolution | 0,1 °C |
| Temperature K-type | |
| Measuring range | -50 ... +1300 °C |
| Resolution | 0,1 °C |
| Accuracy | ±(0.4 % +0.5 °C) |
| Dew point | |
| Measuring range | -25,3 ... +48,9 °C |
| Resolution | 0,1 °C |
| Relative humidity | |
| Measuring range | 5 ... 95 % RH |
| Resolution | 0,1 % RH |
| Accuracy | ±3 % RH |
| Temperature | |
| Measuring range | 0 ... 50 °C |
| Resolution | 0,1 °C |
| Accuracy | ±0.8 °C |
| General technical data | |
| Number of measuring channels | 1 |
| Display type | LCD with backlight |
| Display size | 2,5 Inch |
| Storage medium | SD card |
| Storage capacity | 16 GB |

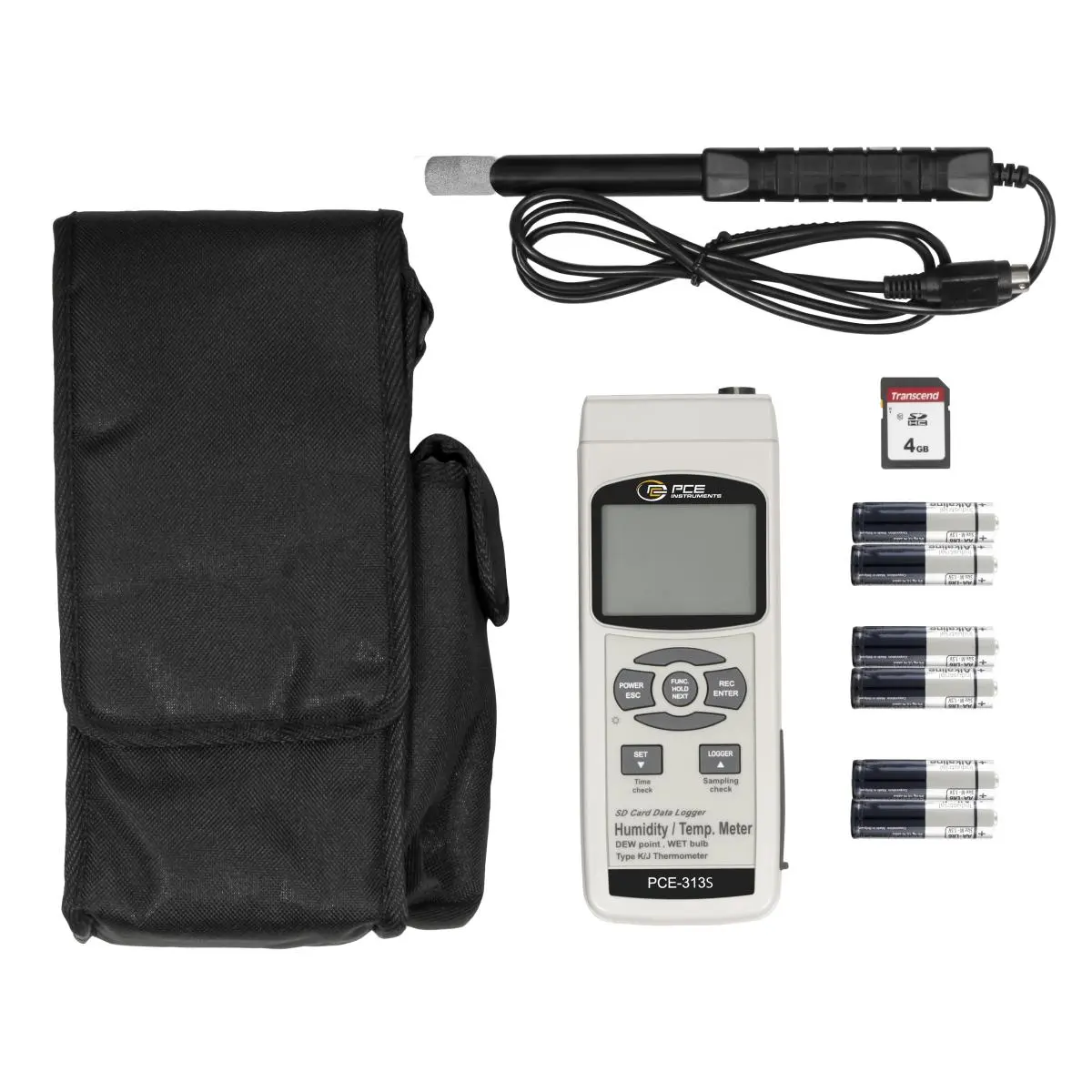

| Memory capacity (additional information) | SD card possible from 1 ... 16 GB / 2 GB SD card included in the delivery scope |
| Storage interval from | 1 s |
| Storage interval to | 3600 min. |

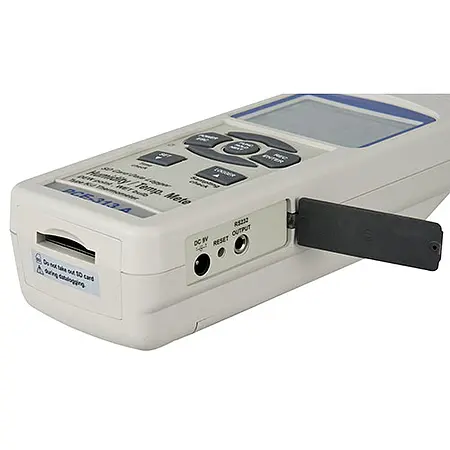

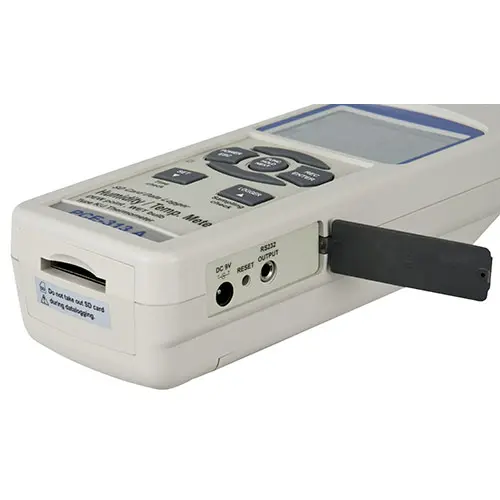

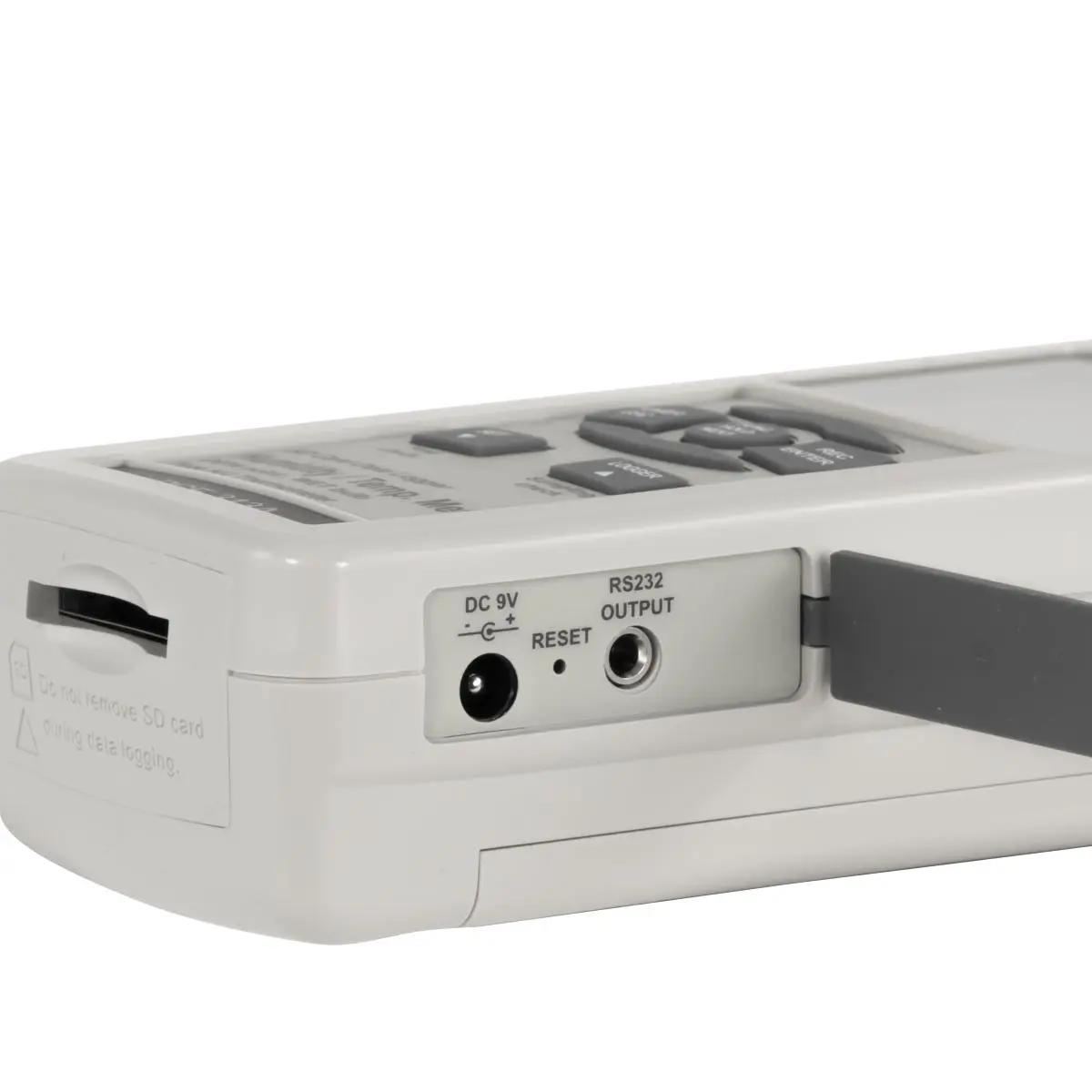

| Interface | RS232 |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| Power supply | 9 V DC |

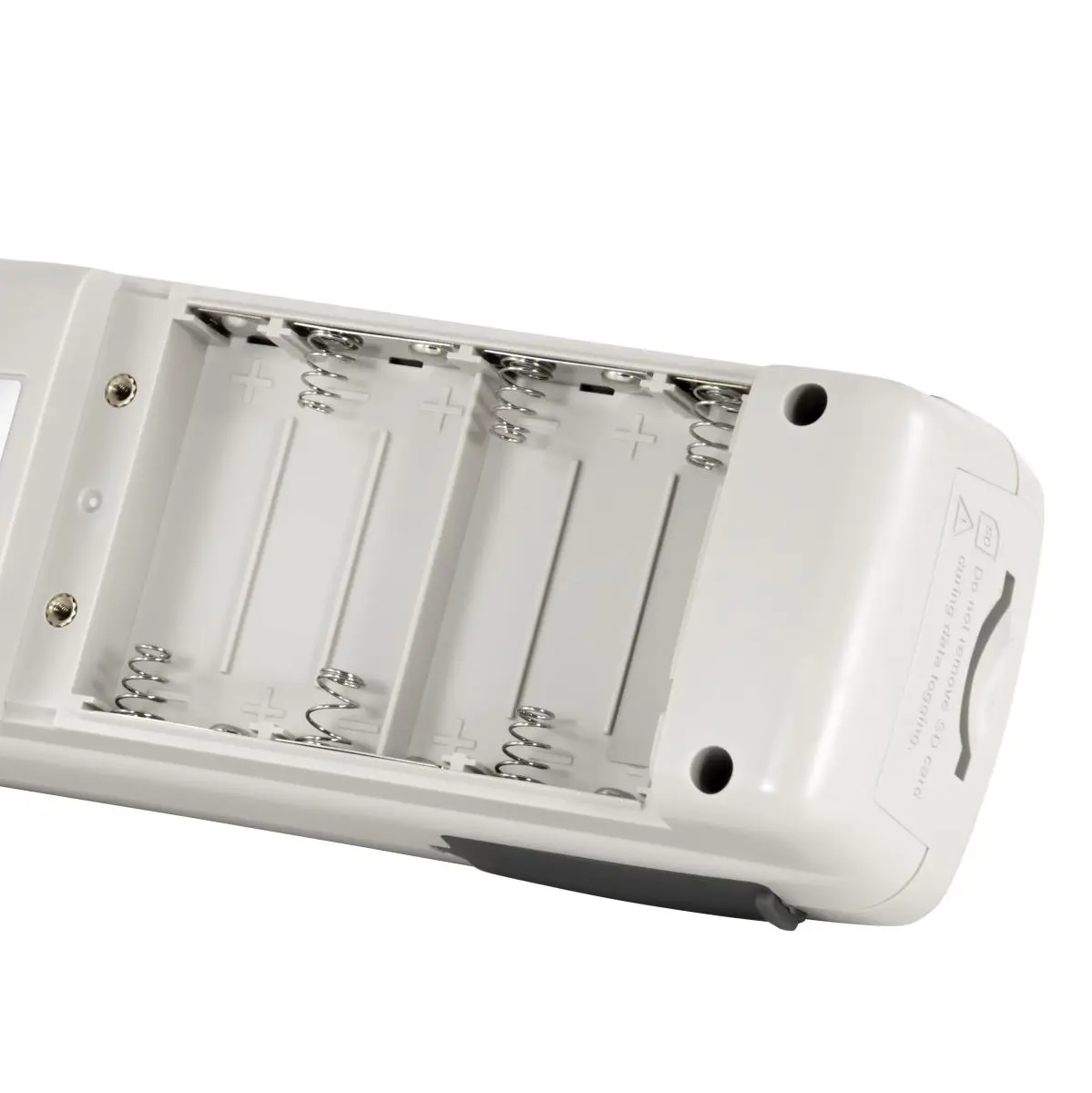

| (Rechargeable) battery | 6 x 1,5 V AA battery , Alkali-manganese |
| Capacity | 3000 mAh |
| Operating conditions | 0 ... 50 °C , 0 ... 85 % RH |
| Storage conditions | 0 ... 50 °C , 0 ... 85 % RH |
| Dimensions ( L x W x H ) | 177 x 68 x 45 mm |
| Weight | 490 g |
