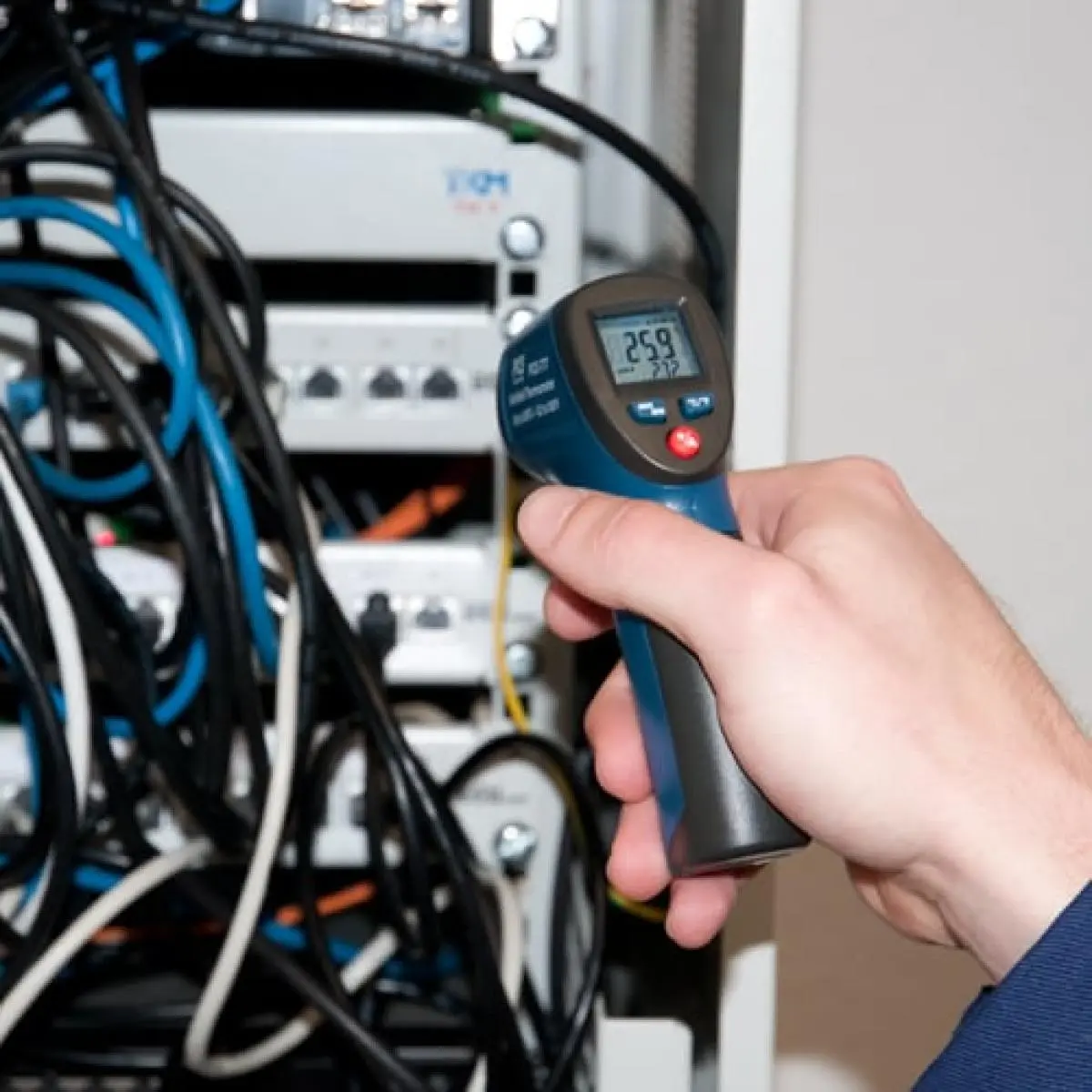

The contactless Temperature Meter PCE-777N measures the temperature of surfaces non-destructively and from a distance via an infrared beam. This light contactless Temperature Meter is characterized by simple operation and the red sighting tool. So you can accurately measure the temperature of a particular area on a surface. The contactless Temperature Meter is for industry and craft, maintenance and servicing, e.g. in the fields of heating, ventilation, and air conditioning and automotive, and is useful in the control of electrical equipment and control systems.

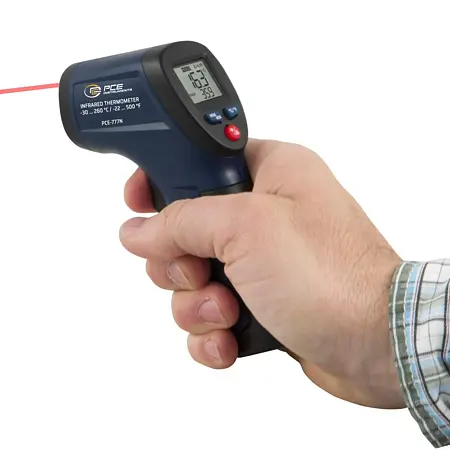

The contactless Temperature Meter PCE-777N can also be used under difficult conditions and provides you with measurement results. The backlight of the contactless Temperature Meter is selectively turned on or off. The contactless Temperature Meter has a visible sighting tool for precise contactless pointing and quick temperature measurement from a safe distance of hot or moving objects or difficult measuring points. The emission level is fixed for this contactless Temperature Meter at 0.95 and covers about 90% of all temperature measuring tasks.
| Infrared temperature | |
| Measuring range | -30 ... 0 °C |
| Resolution | 0,1 °C |
| Accuracy | ±4 °C |
| Infrared temperature | |
| Measuring range | 0 ... 260 °C |
| Resolution | 0,1 °C |
| Accuracy | ±2% or ±2°C |
| General technical data | |
| Measuring functions | MIN, MAX, HOLD |
| Units | °C, °F |
| Display type | LCD |
| Response time | 1 s |
| Automatic power-off | 8 s |
| Measurement spot | 8:1 |
| Laser | Class 2 <1mW |
| Emissivity | 0,95 |
| Spectral range | 6 ... 14 µm |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| (Rechargeable) battery | 1 x 9 V 9V block , Zinc carbon |
| Capacity | 400 mAh |
| Operating conditions | 0 ... 50 °C , 10 ... 90 % RH |
| Storage conditions | -20 ... 60 °C , 0 ... 80 % RH |
| Dimensions ( L x W x H ) | 80 x 35 x 135 mm |
| Weight | 94 g |
