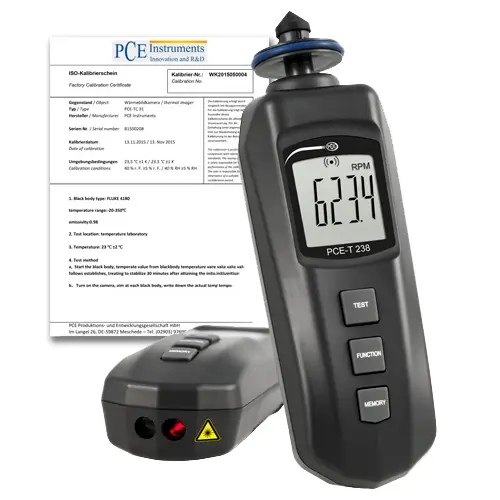

Tachometer PCE-T 238-ICA Incl. ISO Calibration Certificate

Order no.: PCE-T 238-ICA

GTIN (EAN): 4250348726728

Accessory

USB Data Cable Incl. Software SOFT-LUT-USB

AED 395.00

Carrying Case with hard foam insert

AED 119.00

Description

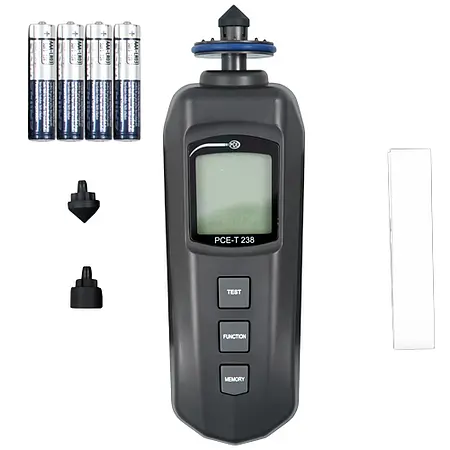

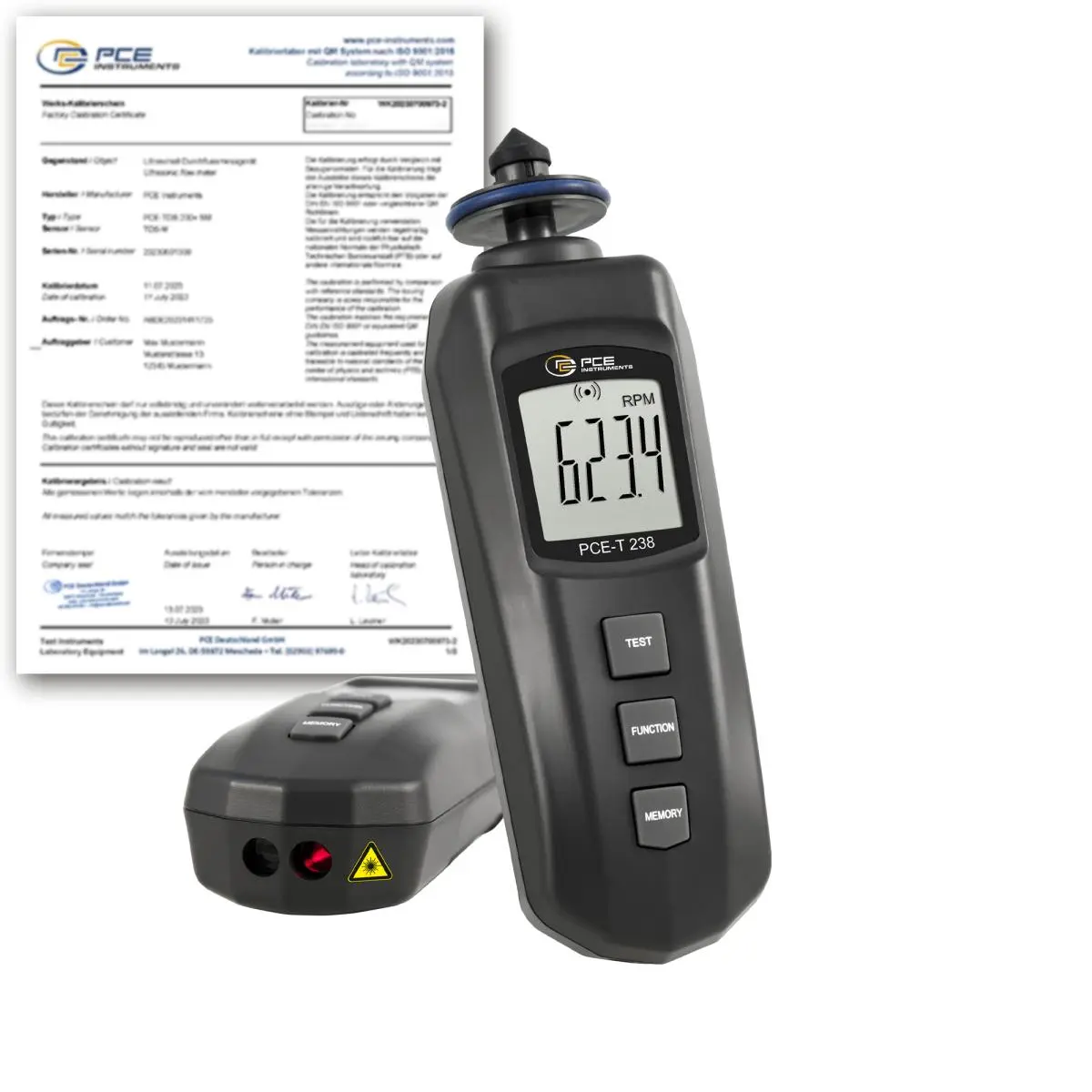

Handheld Tachometer PCE-T 238-ICA incl. ISO calibration certificate

Tachometer for contact and non-contact measurement /

Verification of surface speeds also possible /

For speeds up to 99,999 rpm / Battery powered / Independent of the rotation direction

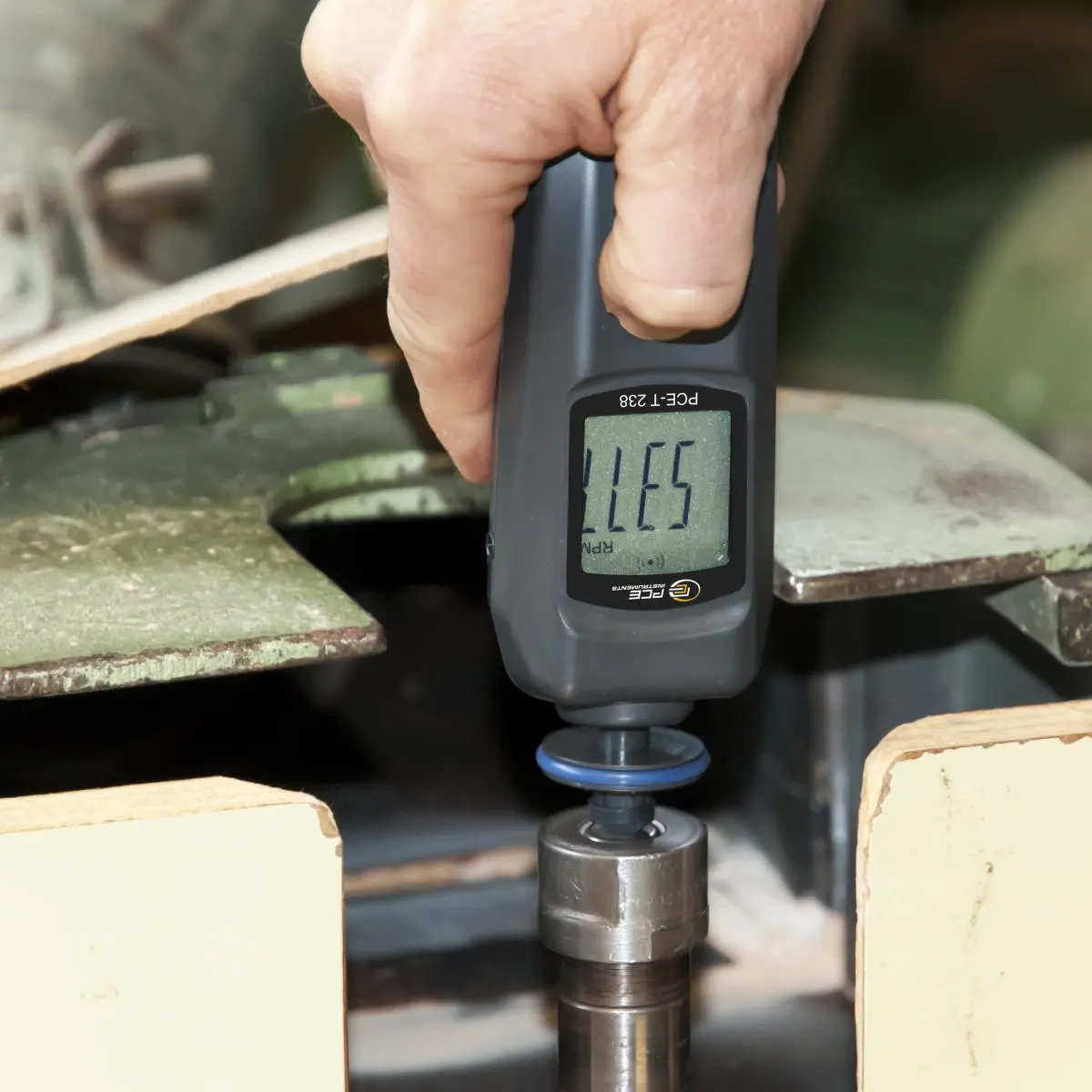

The tachometer PCE-T 238 is a battery-powered hand-held device that allows mobile use. The handheld tachometer can perform a contact measurement as well as a non-contact measurement. It is also possible to perform a measurement of the surface velocity. The handheld tachometer allows a measurement of up to 99,999 revolutions per minute. This measuring range is possible with contactless measurements with the optical tachometer. With the contact measurement, values up to 19,999 revolutions per minute can be determined, and the measurement of the surface speed offers the possibility of determining speeds of up to 1999.9 meters per minute. Such measurements can be started directly with the tachometer and do not require much preparation.

The user does not have to pay attention to the direction of rotation when using the tachometer, as this device works independently. Thus, it is suitable for use in the care and maintenance of machines. Non-contact measurement also makes it possible to check the speed of hard-to-reach components.

Highlights

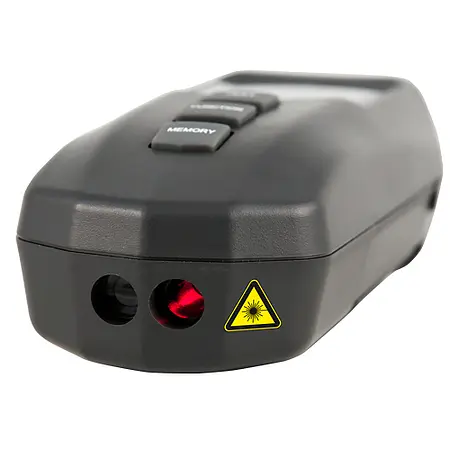

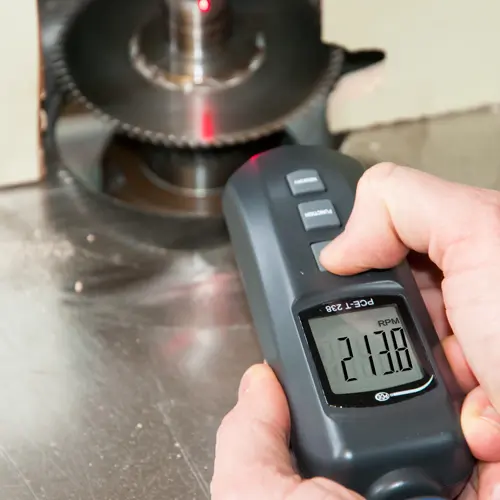

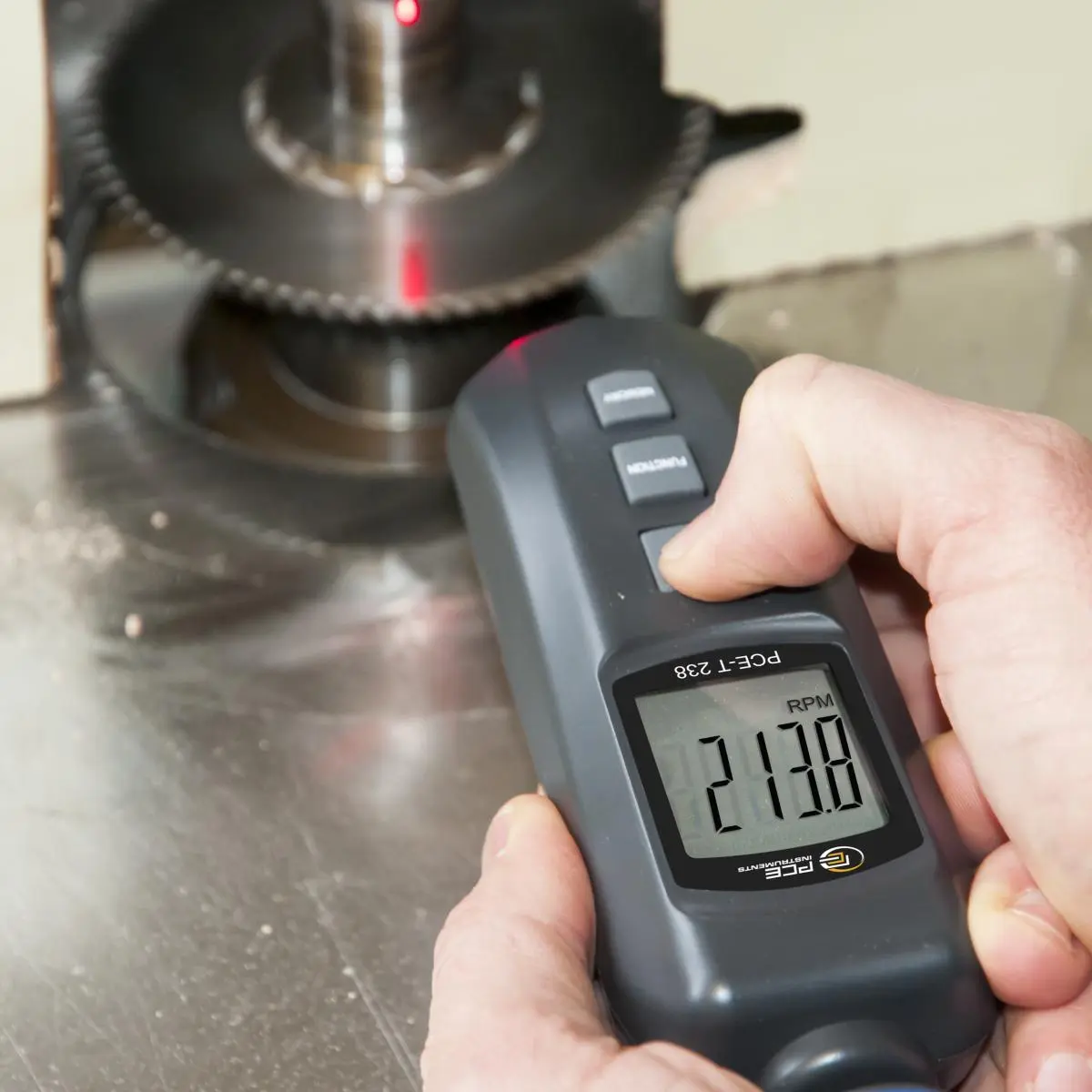

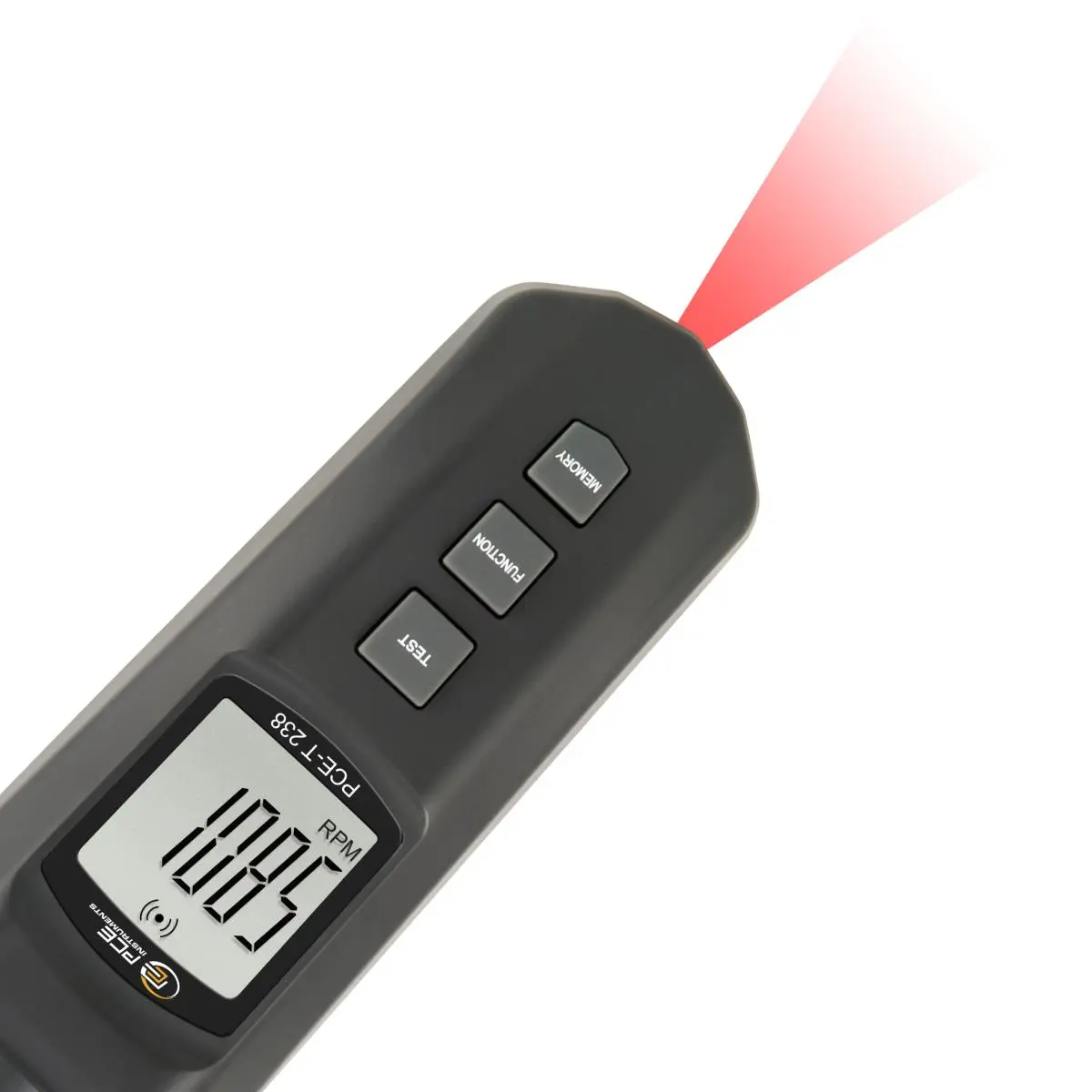

- Non-contact measurement via a laser

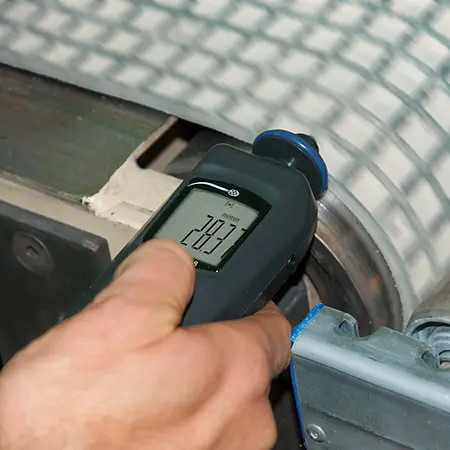

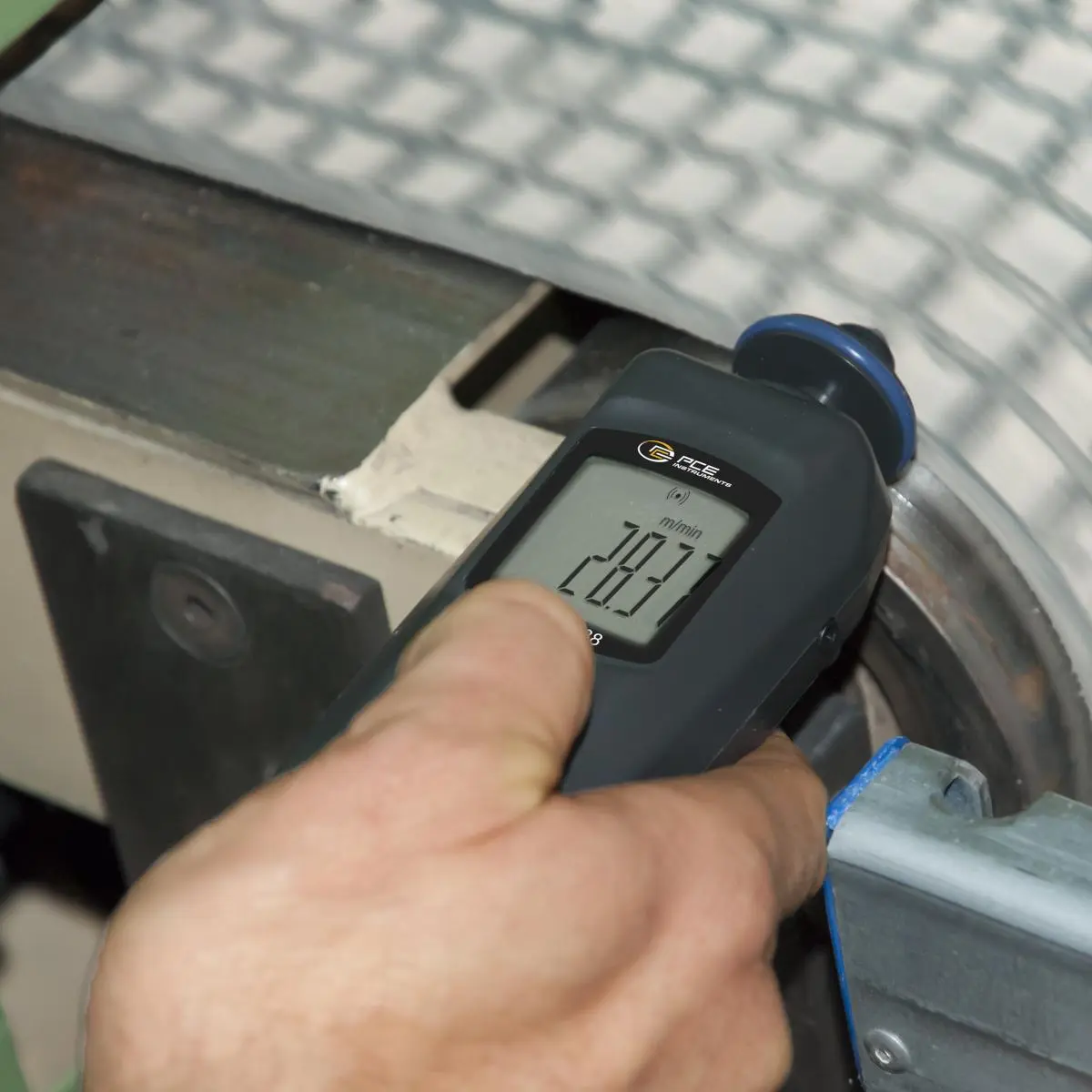

- Contact measurement of m/min via surface wheel

- Robust ABS plastic housing

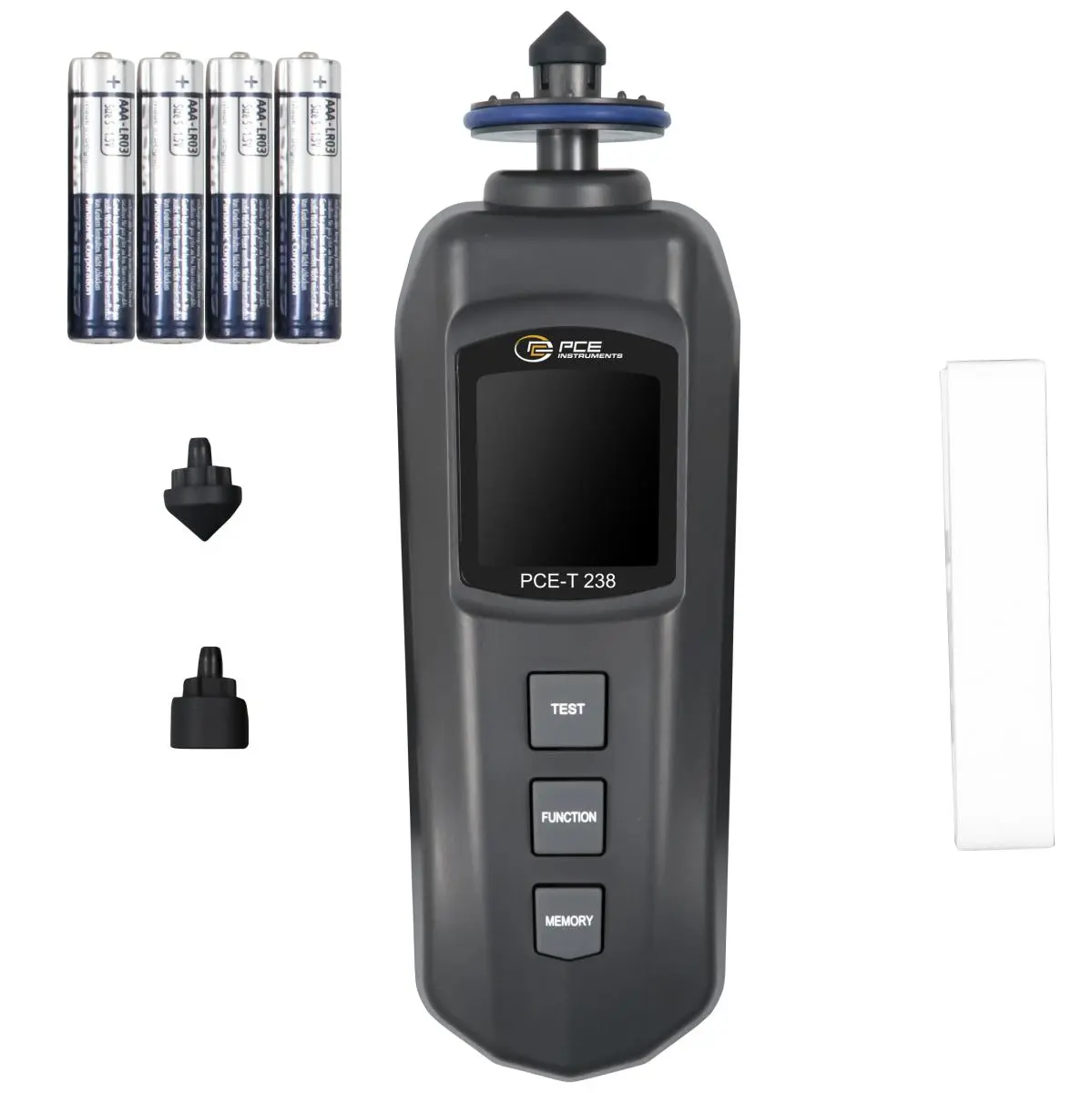

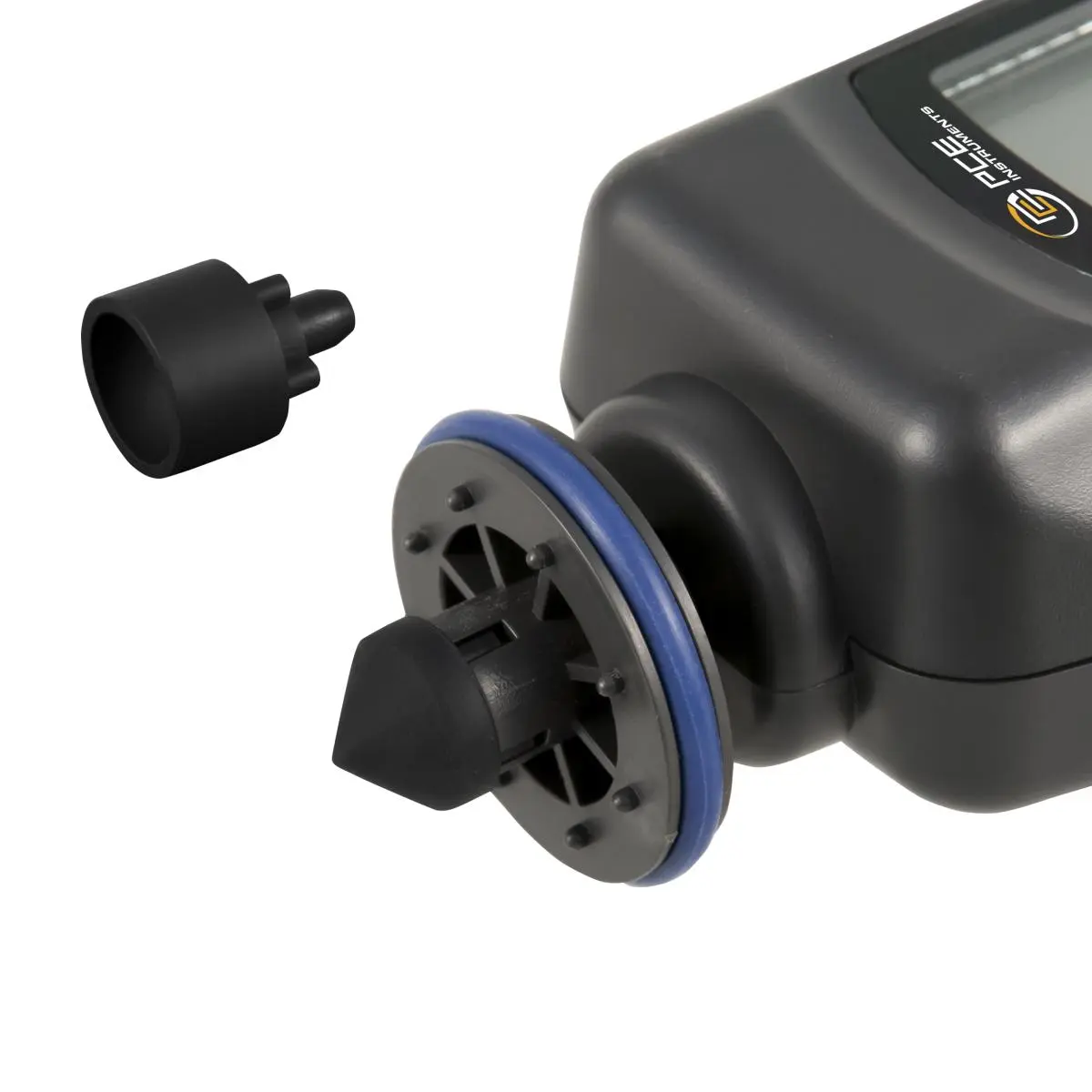

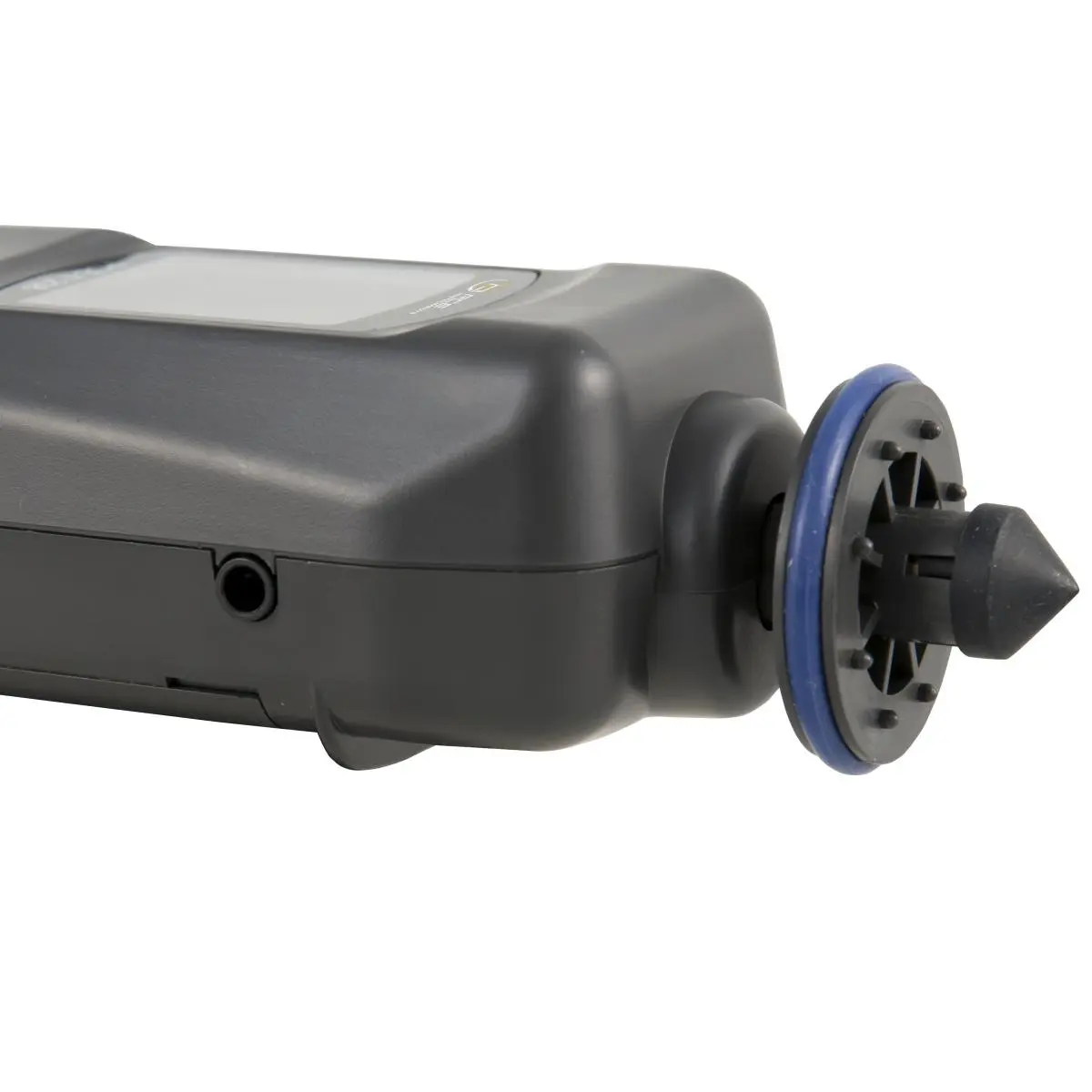

- With different rubberized measuring tips (cone shape and funnel shape)

- Checking the speed of hard to reach components possible

- Independent of rotation direction

- Running speed

- incl. ISO-Calibration Certificate

Specification

Mechanical speed
Measuring range	0,5 ... 999 rpm
Resolution	0,1 rpm
Accuracy	±(0.1% of full scale + 1 digit) of the full-scale value

Mechanical speed
Measuring range	1000 ... 19999 rpm
Resolution	1 rpm
Accuracy	±(0.1% of full scale + 1 digit) of the full-scale value

Optical speed
Measuring range	5 ... 999 rpm
Resolution	0,1 rpm
Accuracy	±(0.1% of full scale + 1 digit) of the full-scale value

Optical speed
Measuring range	1000 ... 99999 rpm
Resolution	1 rpm
Accuracy	±(0.1% of full scale + 1 digit) of the full-scale value

Speed
Measuring range	0,05 ... 99,99 km/h
Resolution	0.01 km/h
Accuracy	±(0.1% of full scale + 1 digit) of the full-scale value

Speed
Measuring range	100 ... 999,9 m/min
Resolution	0.1 m/min
Accuracy	±(0.1% of full scale + 1 digit) of the full-scale value

Speed
Measuring range	1000 ... 1999,9 m/min
Resolution	1 m/min
Accuracy	±(0.1% of full scale + 1 digit) of the full-scale value

General technical data
Units	ft/min, m/min, RPM, in/min

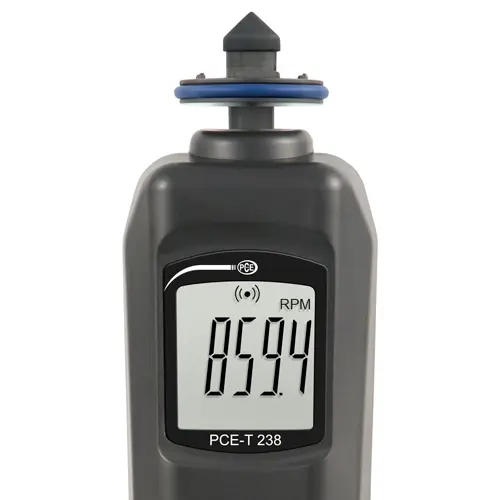

Display type	LCD
Display size	1,67 Inch
Memory information	Saves the MAX, MIN and the last reading.

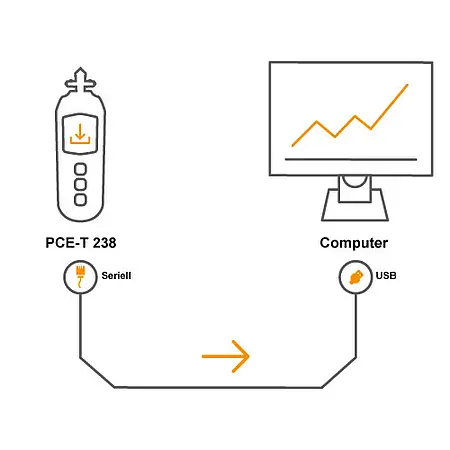

Interface	RS232

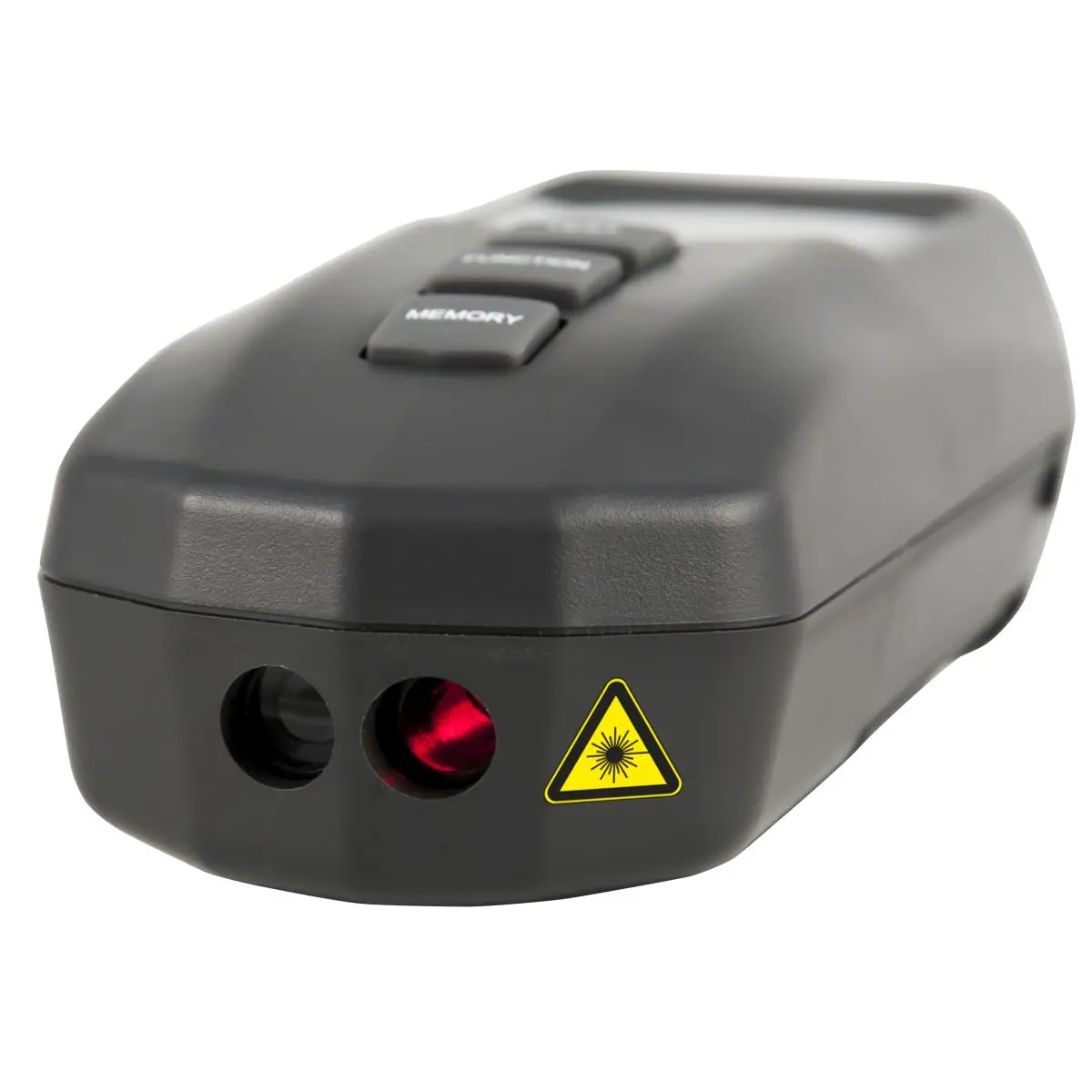

Laser	Class 2 <1mW
Measuring distance	5 ... 150 cm
Menu language	English, English (GB)
Protection class (device)	IP20
Power supply	batteries
(Rechargeable) battery	4 x 1,5 V AAA battery , Alkali-manganese
Capacity	1200 mAh
Operating conditions	0 ... 50 °C , 0 ... 80 % RH
Storage conditions	0 ... 50 °C , 0 ... 80 % RH
Dimensions ( L x W x H )	165 x 50 x 33 mm
Weight	182 g
